with Source 120 W LED Electrical Street Light Garden Lights
Product Description
Basic Specifications
Model NO.:ZN-LEDLD-01
Material:Aluminum
Power:60-100W
IP Rating:IP65 / IP66
Input Voltage:100-240V
LED Brand:CREE / Osram / Puri
Certification:CCC, CE, CQC, RoHS
Application:Square, Highway, Garden, Parking Lot
Detailed Parameter Table
| Product Model | ZN-LD-04-LED-50W-200w | Power Brand | Meanwell, Mosho, Songsheng, Jiansen |
| Input Voltage | 100-240V | Luminous Effect | 110-150LM/W |
| Intelligent System | PLC / Lora / Mobile Phone | Surge Protection | 10KV |
| Warranty | 2-5 Years | Power Efficiency | >0.97 |
| Color Temperature | 3000K, 4000K, 5000K, 6500K | Working Life | >50,000 Hours |
| Operating Temp | -40ºC ~ +70ºC | Shell Color | Black, Gray |
Product and Packaging Dimensions
| Model | ZN-LD-04-LED60W | ZN-LD-04-LED150W | ZN-LD-04-LED200W |
|---|---|---|---|
| Power | 60W | 90W-150W | 120W-200W |
| Product Size (mm) | 540*290*100 | 640*290*100 | 740*290*100 |
| Net Weight | 2.7kg | 3.3kg | 3.9kg |
| Package Size (mm) | 580*320*100 | 670*320*100 | 760*320*100 |
Features and Advantages
●

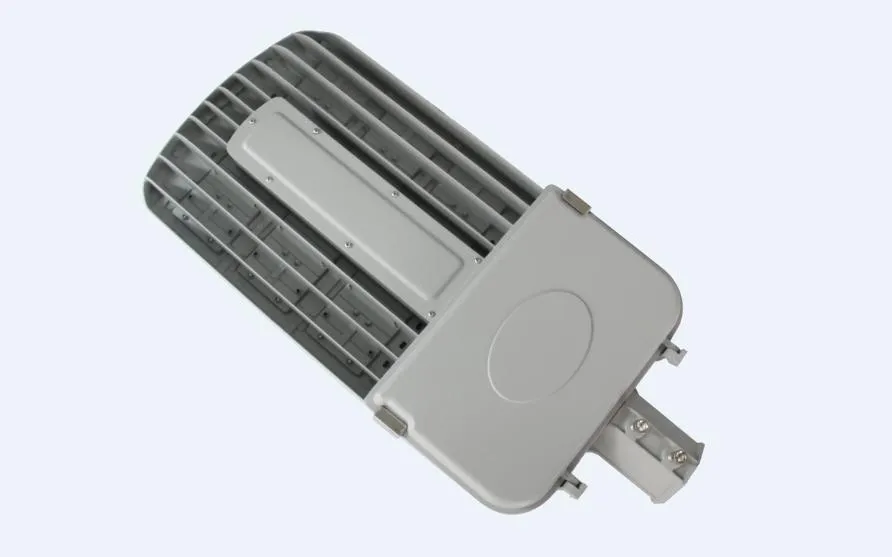

Adjustable angle design to accommodate different lamp poles. Die-cast aluminum body for efficient heat dissipation.
●
Multiple power options ranging from 60W to 200W.
●

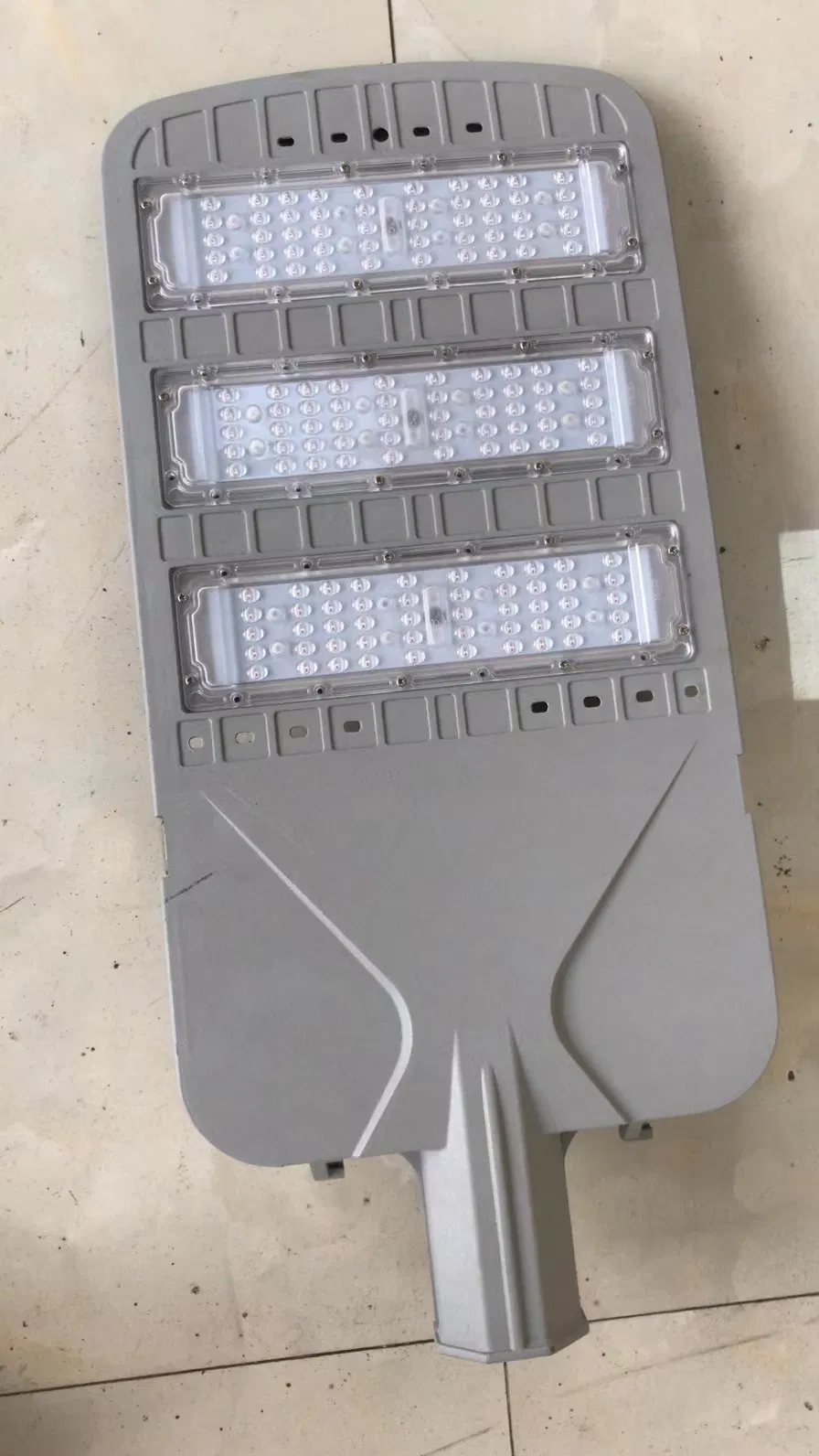

High brightness 3030 SMD LED chips, achieving 150 LM/Watt.
●
IP66 waterproof rating with CE and RoHS certification.
●
Automatic dusk-to-dawn switching functionality.
●
Compatible with Lora intelligent systems for group or area control.

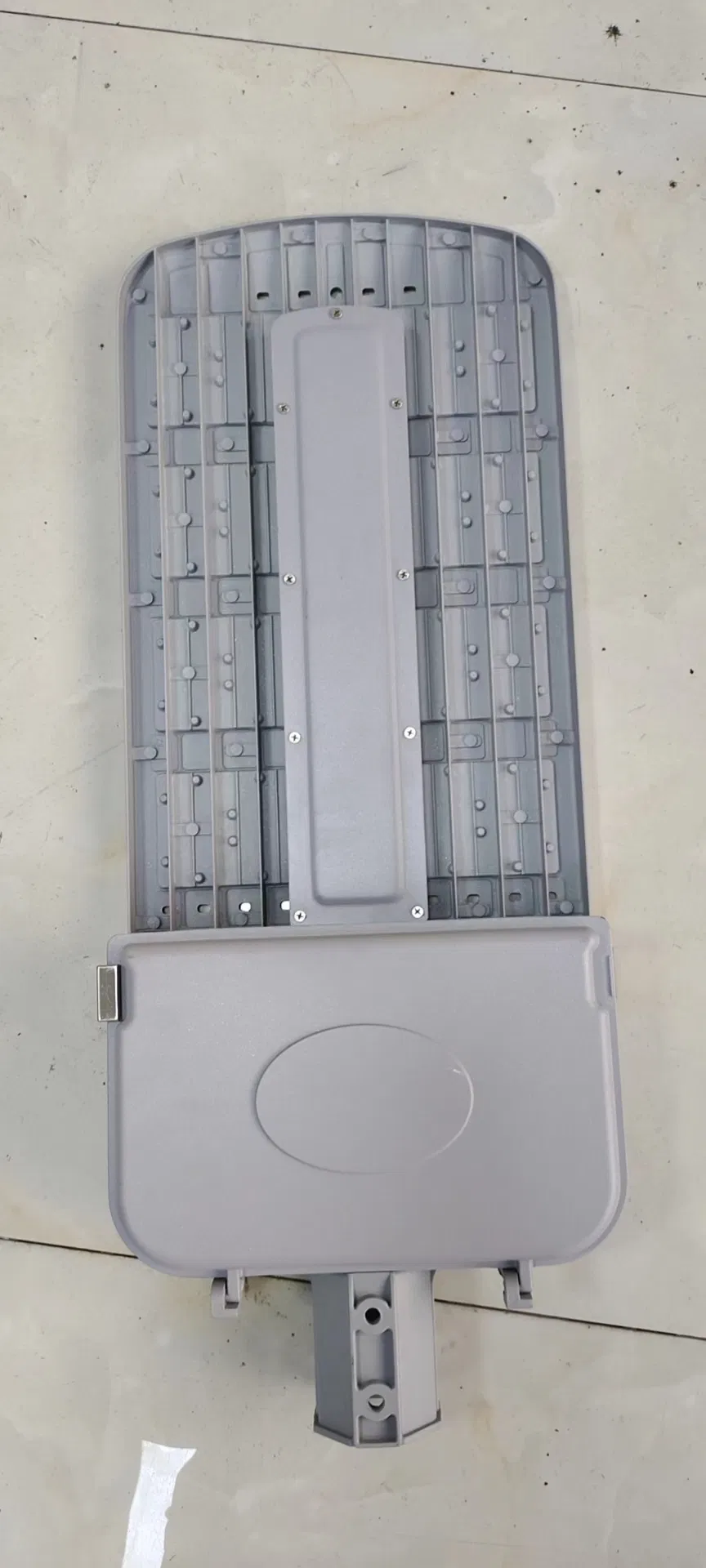

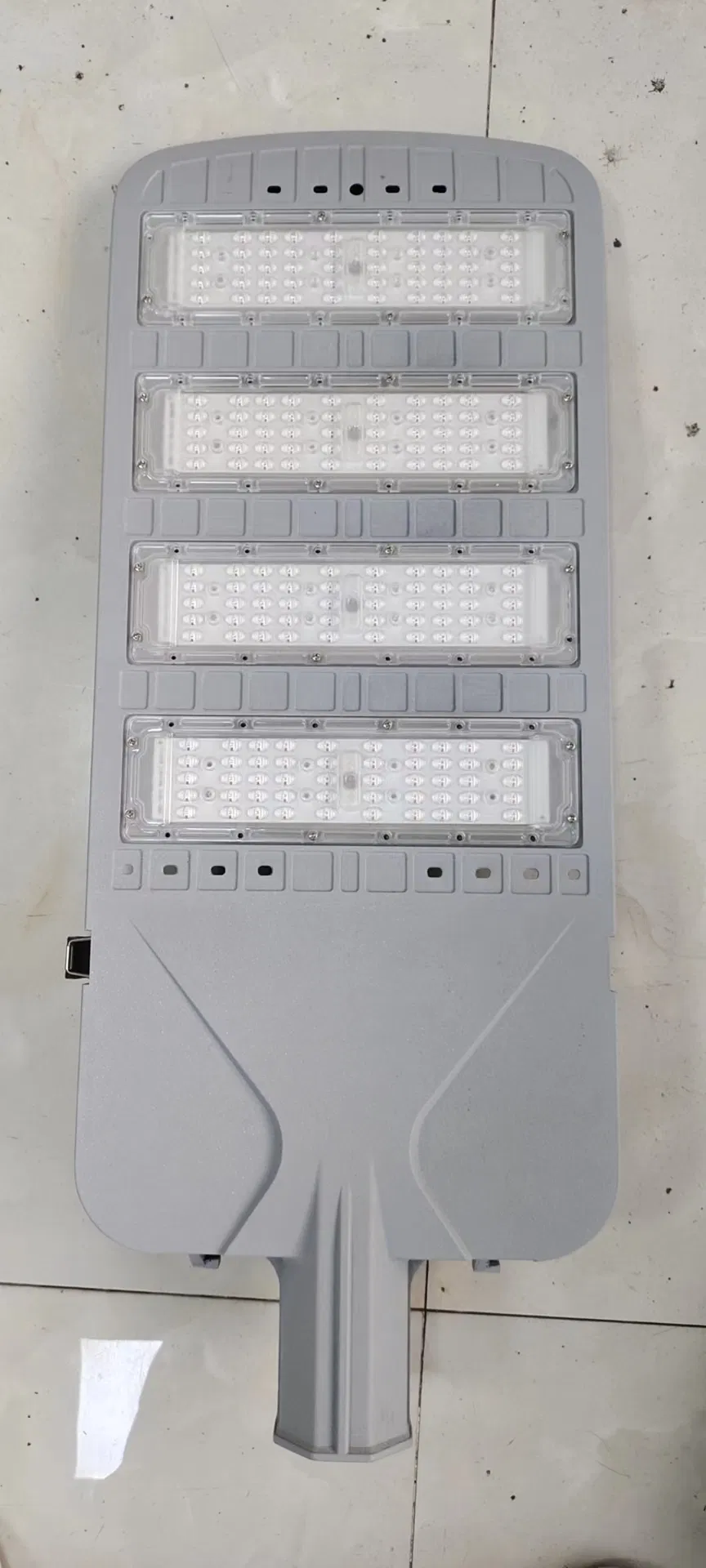

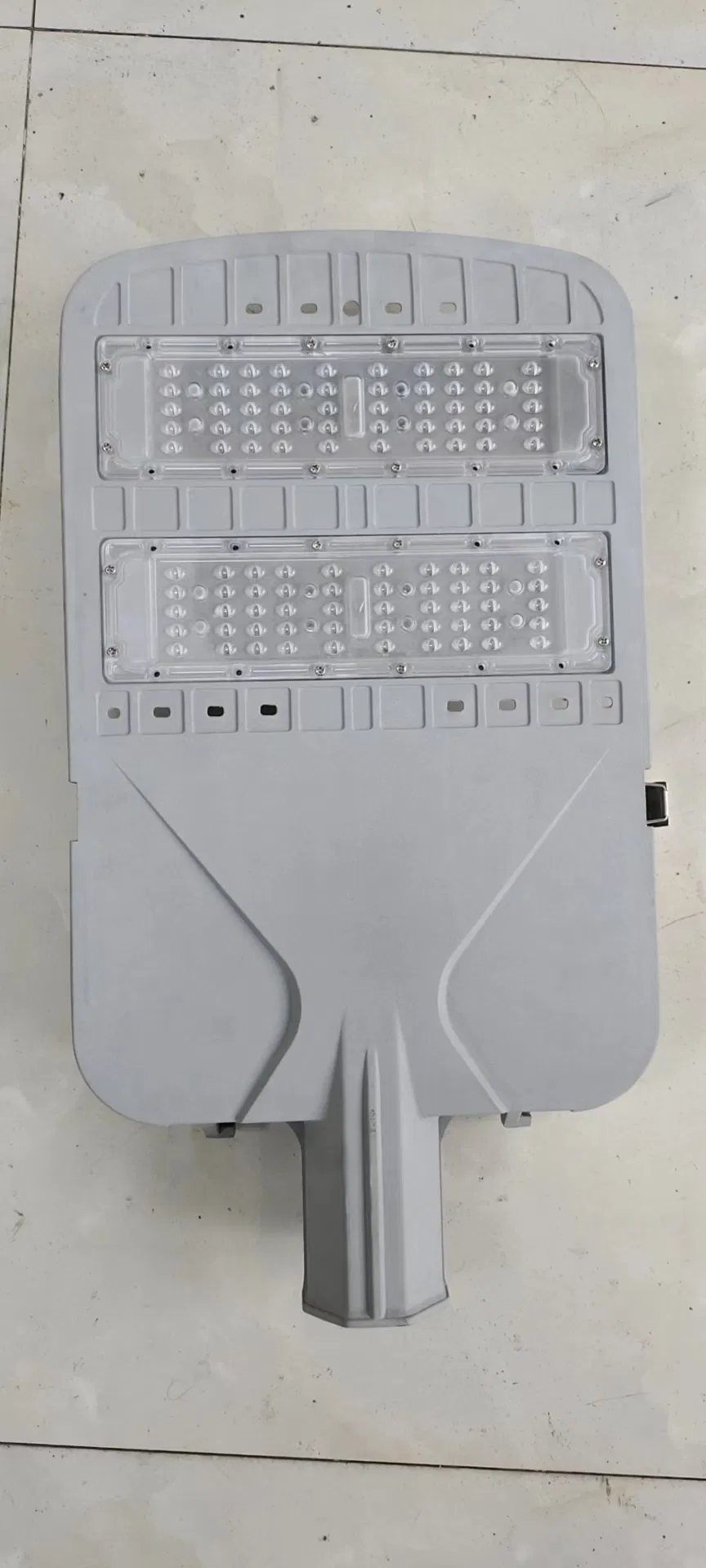

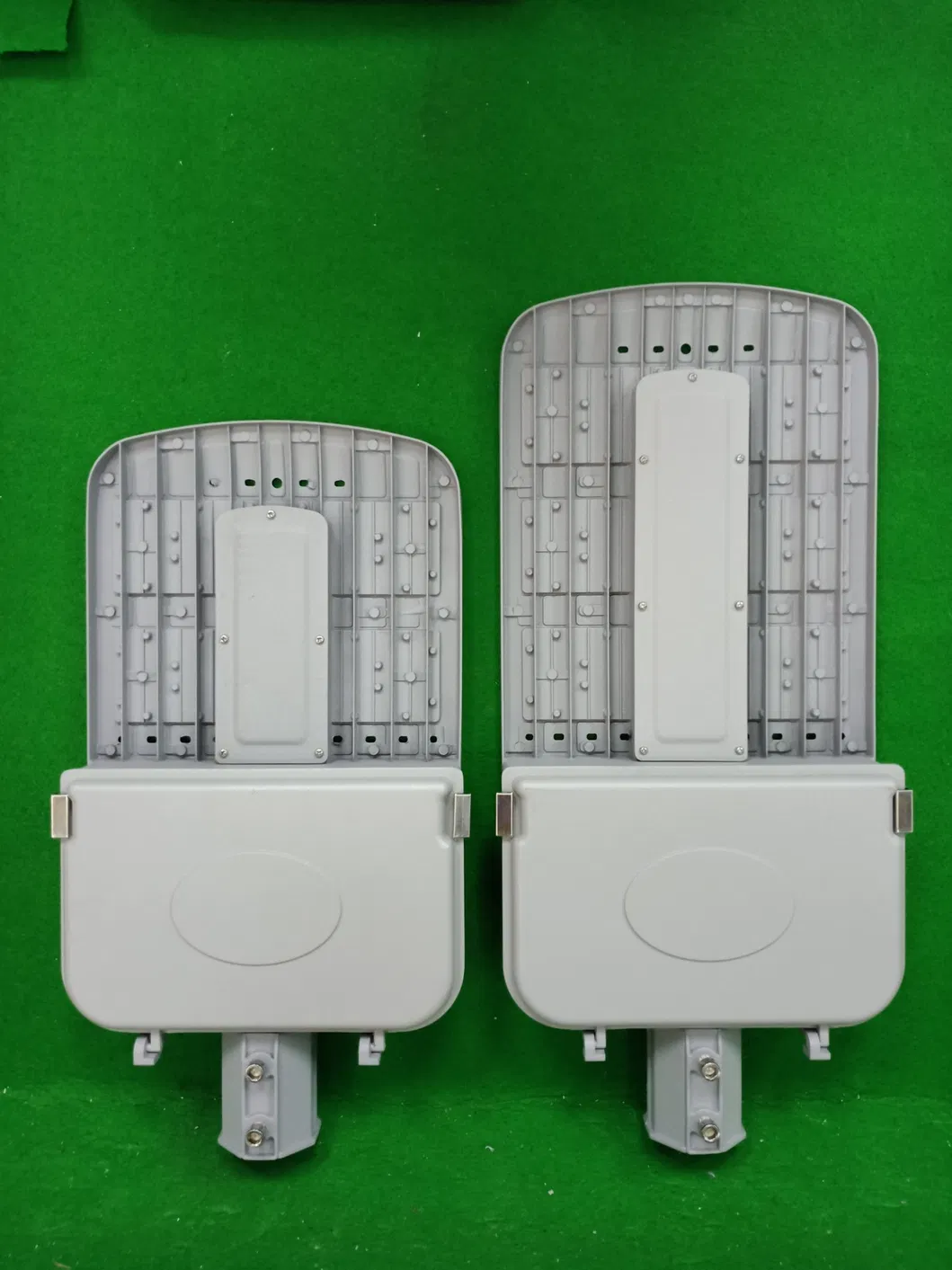

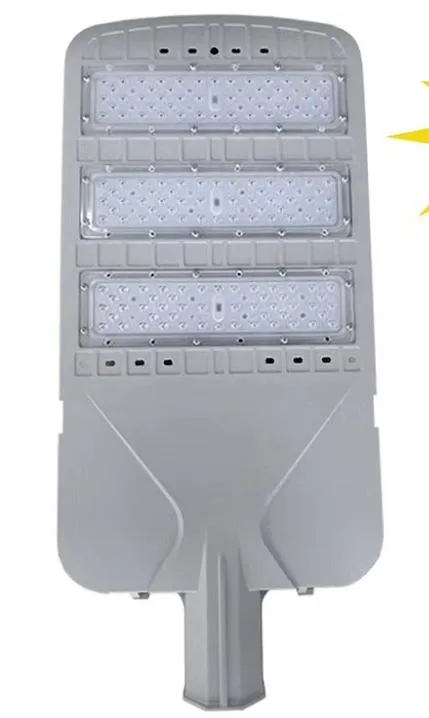

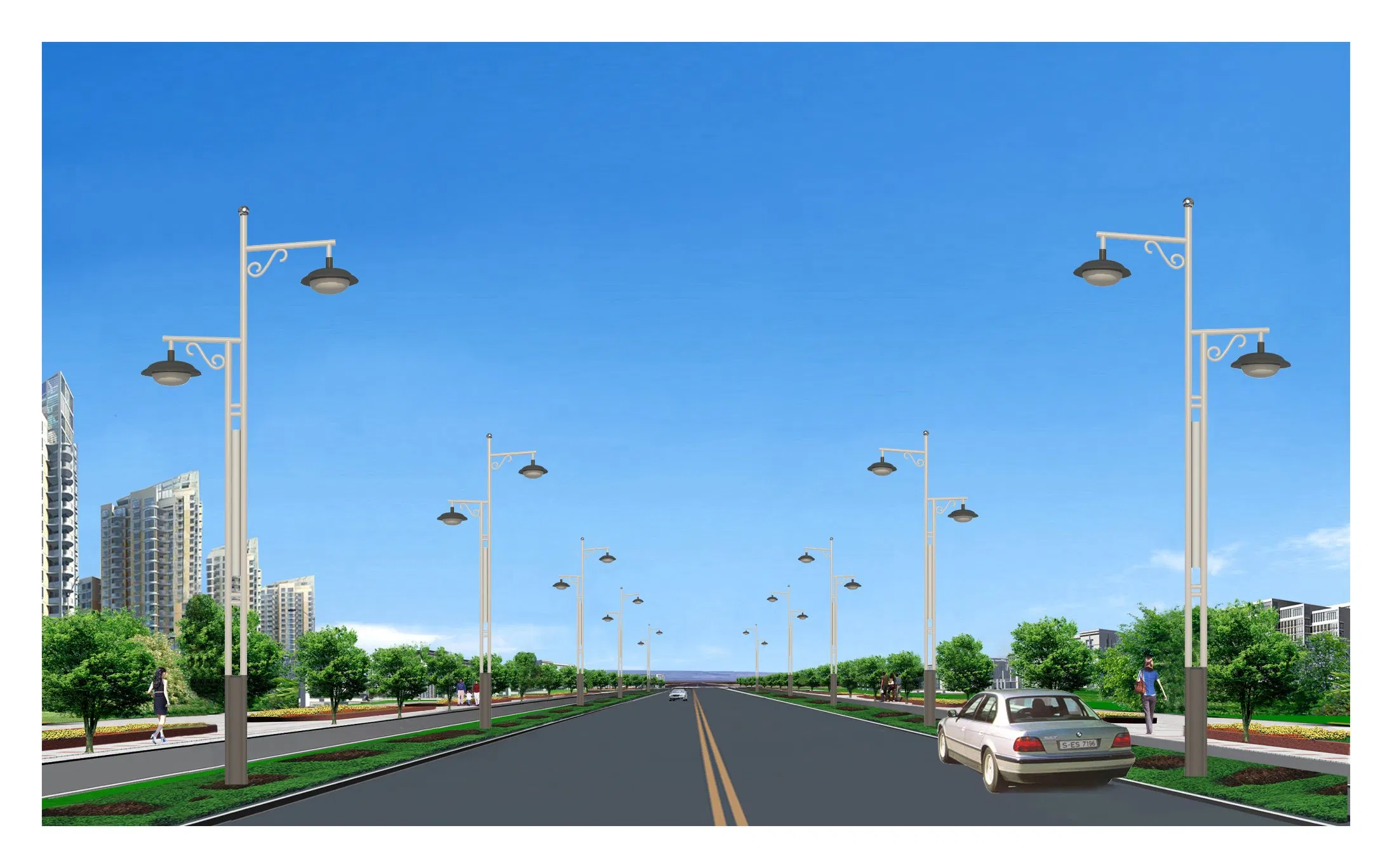

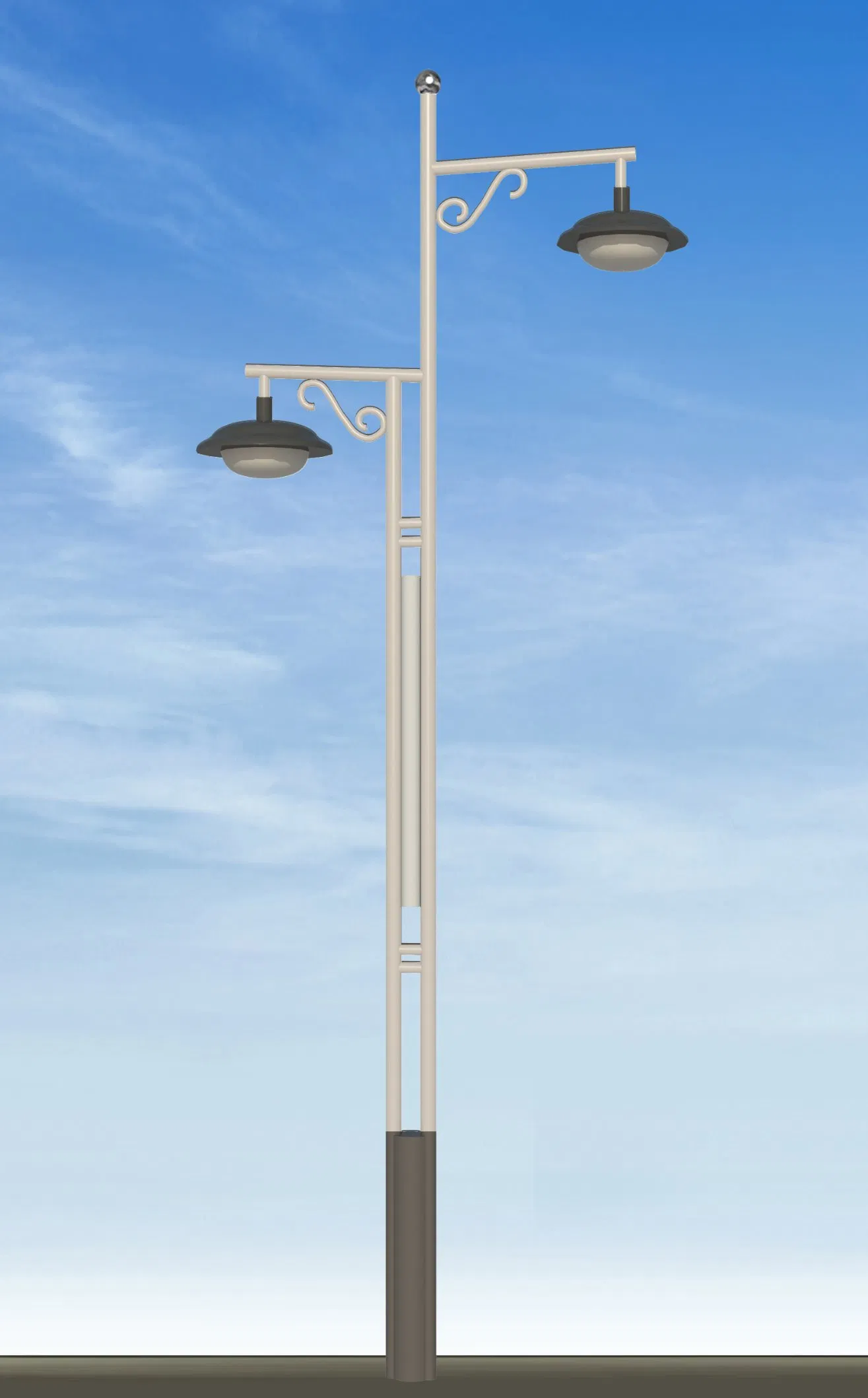

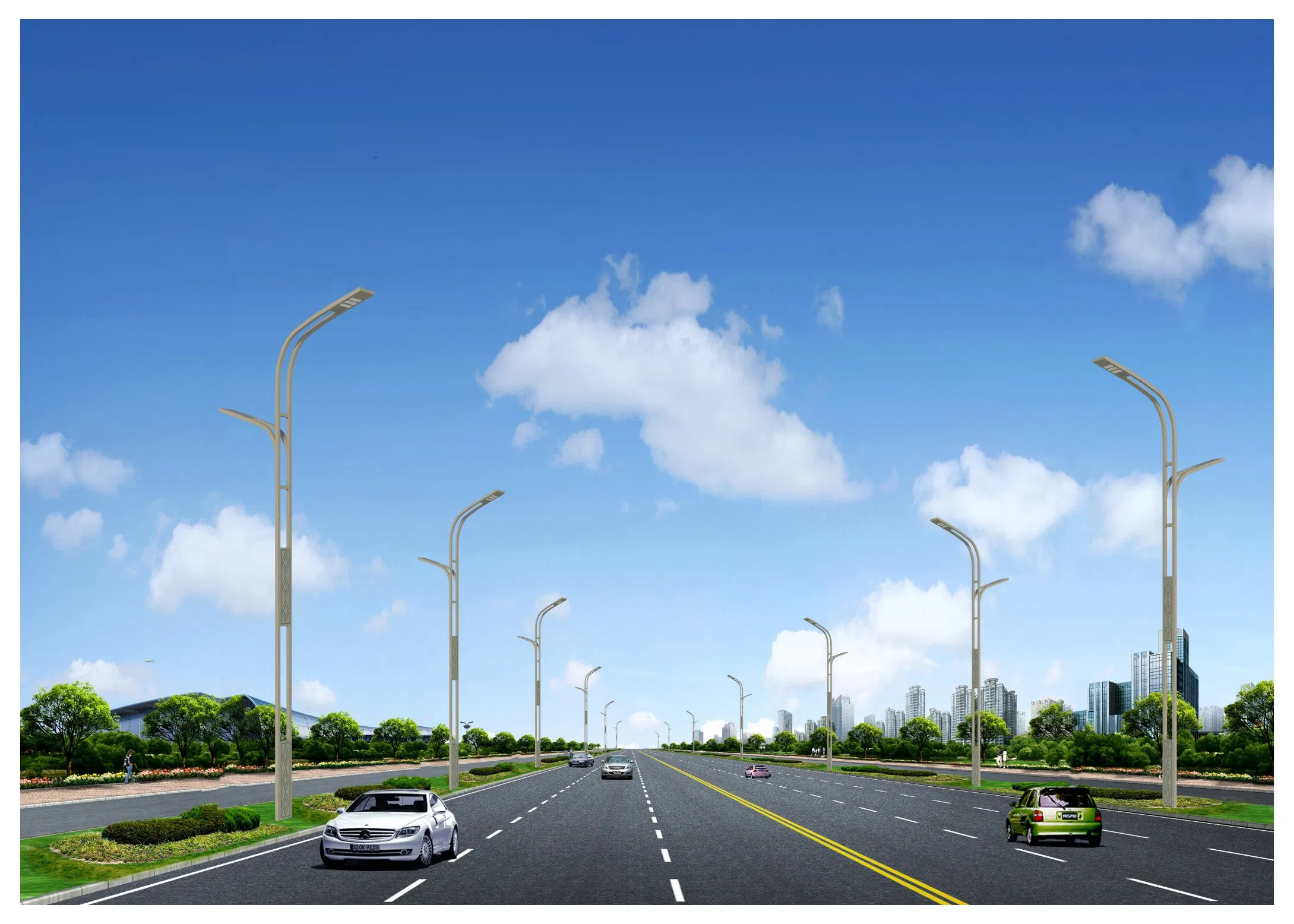

Product Display

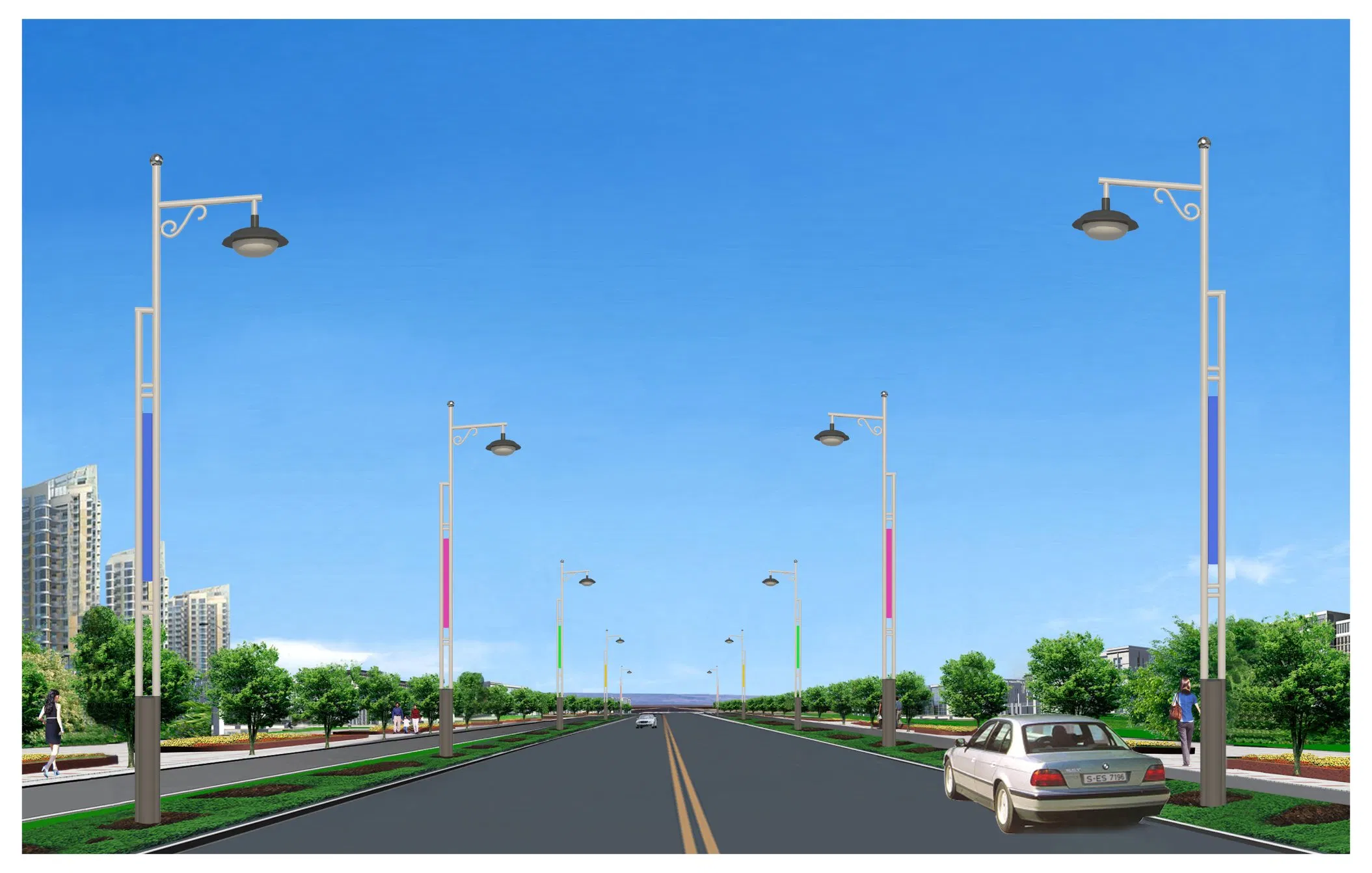

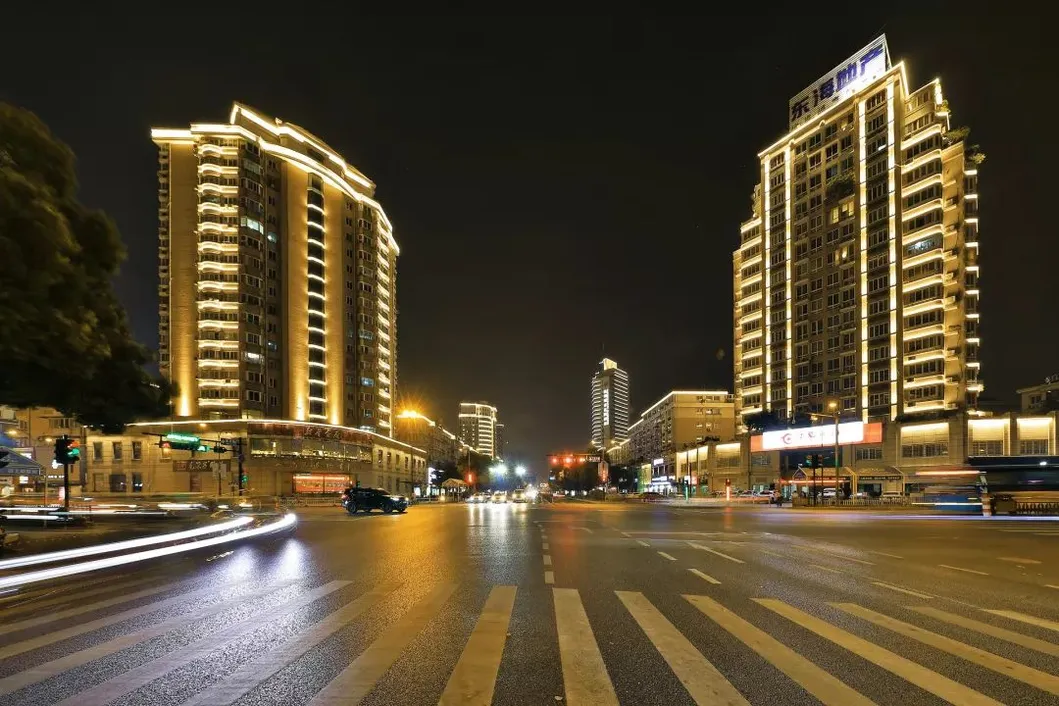

Scope of Application

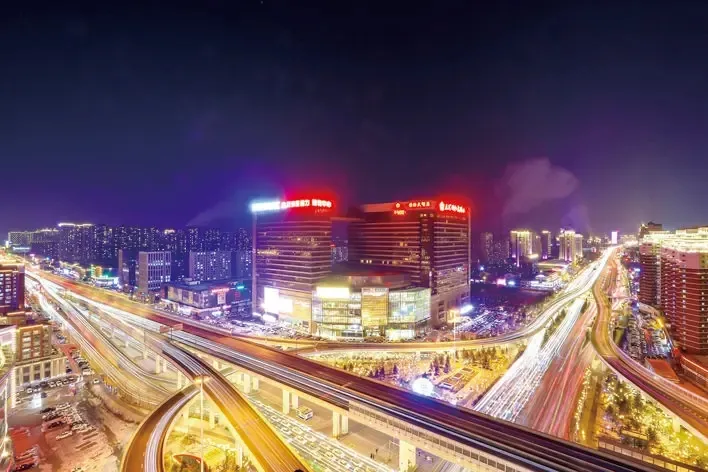

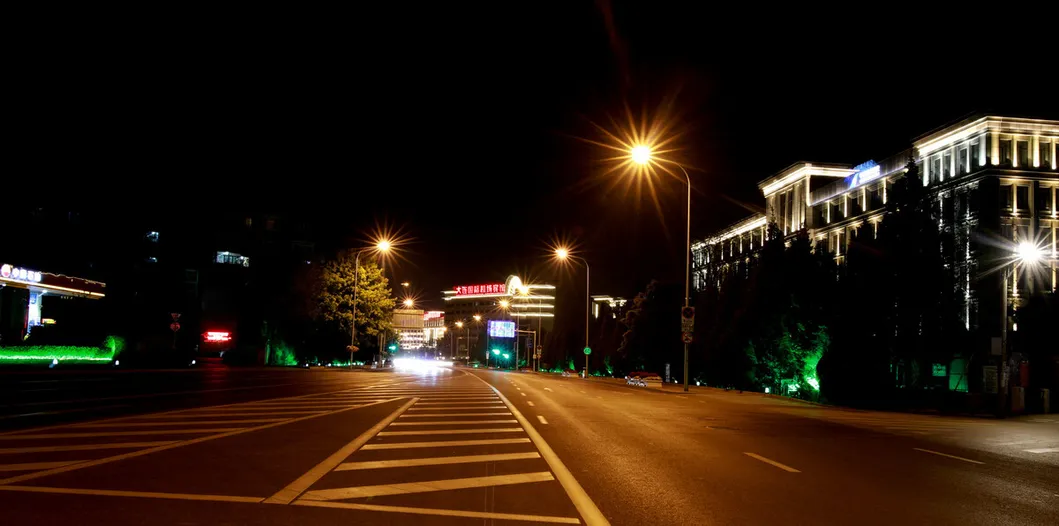

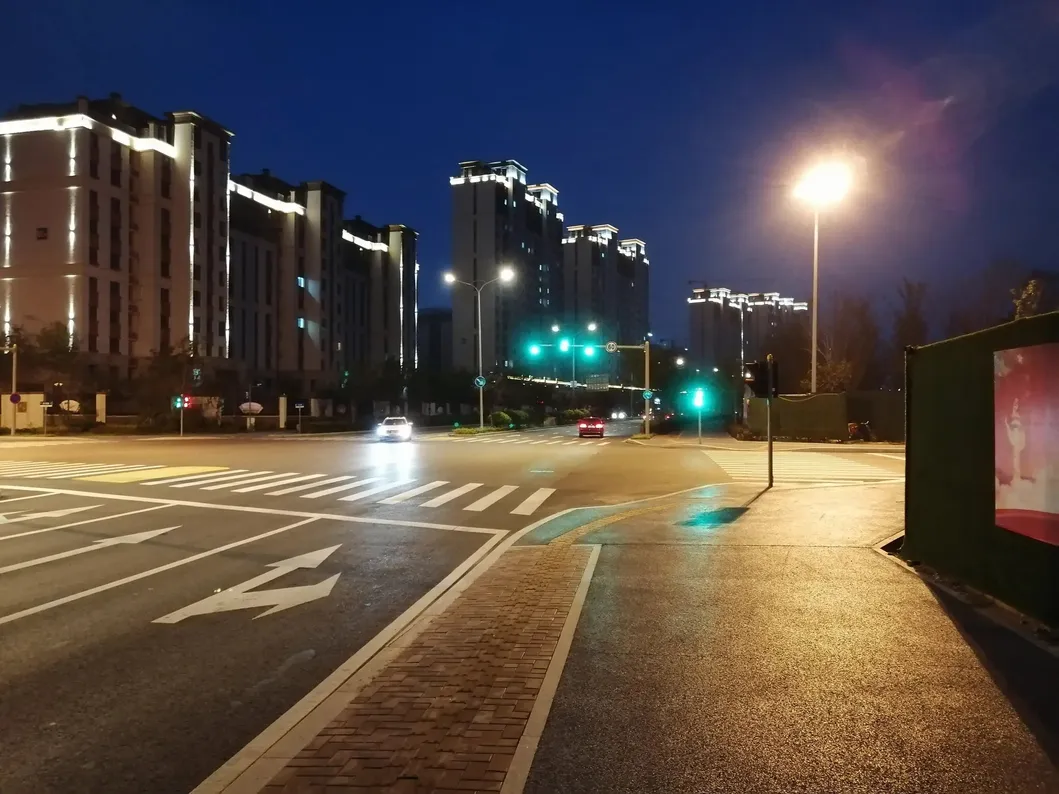

Ideal for urban expressways, main roads, government agency entrances, large public buildings, and commercial center roads.
Frequently Asked Questions
1. What is the power range available for these LED street lights?
We offer a wide range of power options from 50W to 200W to suit different municipal and commercial requirements.
2. Are these lights suitable for extreme weather conditions?
Yes, with an IP66 protection rating and an operating temperature range of -40ºC to +70ºC, these lights are designed for harsh environments.
3. What kind of LED chips are used in the lamps?
We utilize high-quality chips from brands like CREE, Osram, and Puri to ensure high luminous efficiency and longevity.
4. Is the angle of the light adjustable?
Yes, the lamp features an adjustable angle design to fit various types of lamp poles and optimize lighting coverage.
5. Does the system support intelligent control?
Absolutely. The lamps are compatible with Lora, PLC, and mobile phone systems for smart area or group control.
6. What is the standard warranty period?
Depending on the configuration, we provide a warranty of 2 to 5 years, ensuring reliable performance for over 50,000 hours.
