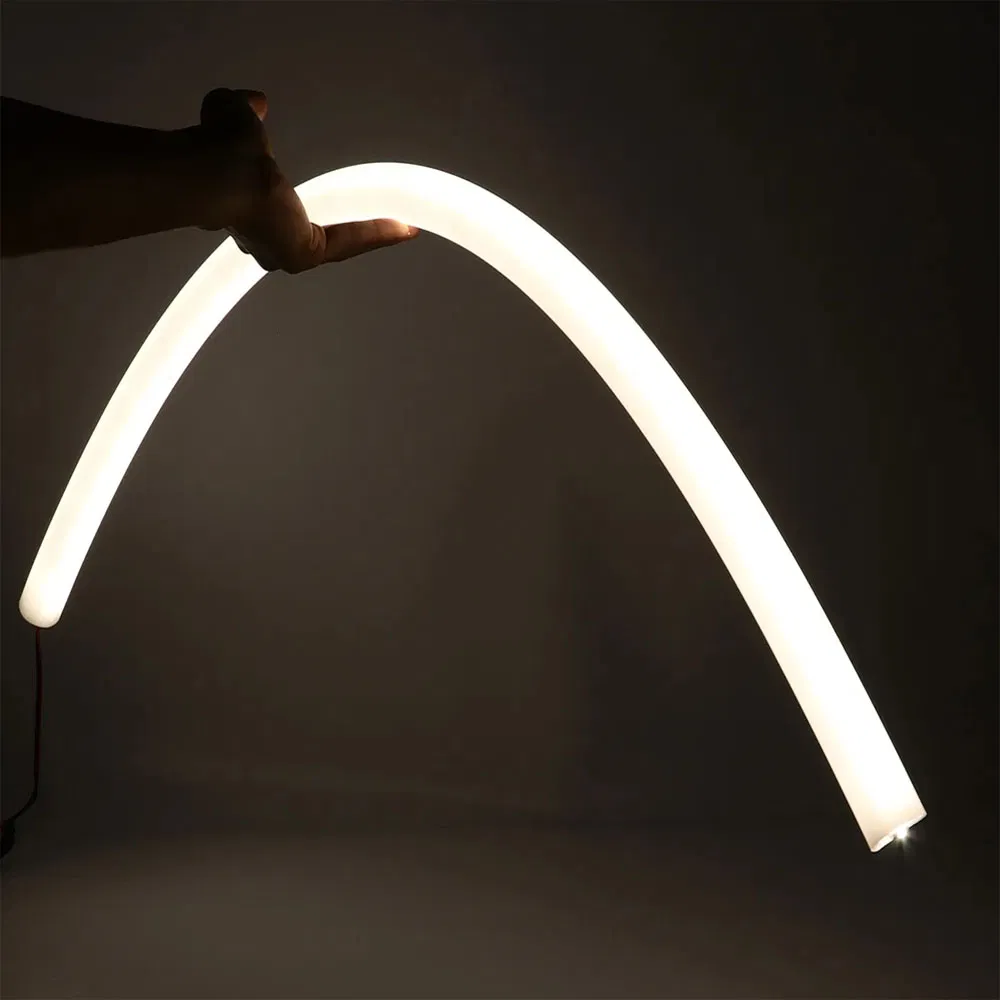

360 LED Flexible Neon Strip 22/25/30/40mm Neon Strip Flexible Neon Tubes 24V/12V/5V DC 360 Degree Emitting Silicone Round LED Neon Strip Light
Product Description
Basic Specifications
Model NO.
ATA-NS22D08240
Emitting Color
White
Voltage
DC24V 12V 5V
IP Rating
IP67 / IP65 / IP68
PCB Width
8mm, 10mm, 11.5mm, 12mm, 13.5mm, 15mm, 20mm
LED Type
3528 SMD / 2835 SMD
Lumen
30lm/LED
CRI
Ra90
LEDs Per Meter
240LEDs
Viewing Angle
360 Degree
Meter Per Reel
5meters
Warranty
2 Years
Production Capacity
500,000 Meters/Month
Product Description
Technical Parameters
- LED Light Source: 2835, 5050, SMD LED
- Viewing angle: 360 degrees
- Working voltage: DC12V, DC24V
- Color Options: White, Warm white, Natural white, Red, Green, Blue, Yellow, RGB
- Waterproof rate: IP65, IP67, IP68
- Waterproof method: Surface Epoxy Plated, Silicone Pipe, Full Silicone Gel
- Working temperature: -20~+60 celsius degree

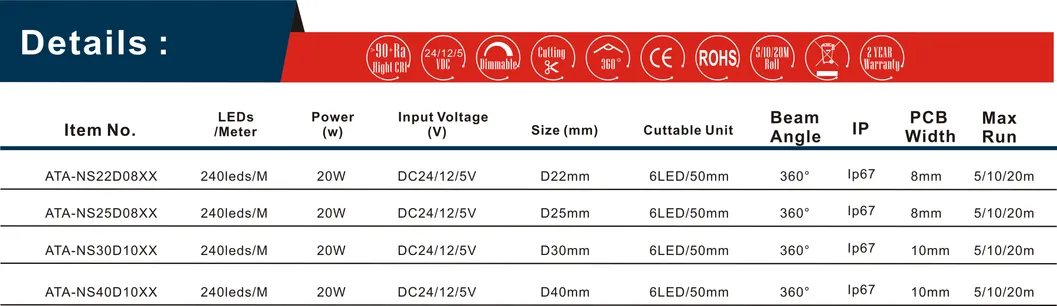

| SMD 2835 Qty/M | Max.W/M | Input Voltage | CRI | FPCB (mm) | Size (mm) | M/Roll | Colour | Cut Size | Item No. |
|---|---|---|---|---|---|---|---|---|---|
| 240 | 20W | DC24V | ≥90 | 8mm | D22 | 5M | 2700K-6500K | 6LED/50mm | ATA-NS22D08240XX |
| 240 | 20W | DC24V | ≥90 | 8mm | D25 | 5M | 2700K-6500K | 6LED/50mm | ATA-NS25D08240XX |
| 240 | 20W | DC24V | ≥90 | 10mm | D30 | 5M | 2700K-6500K | 6LED/50mm | ATA-NS30D10240XX |

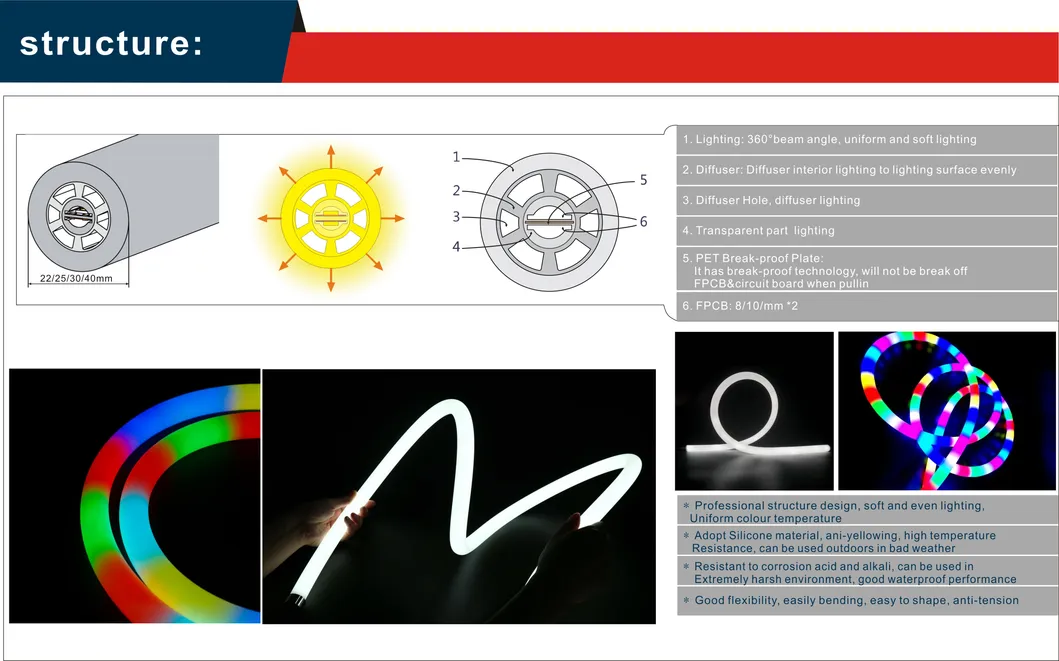

Structure Features
- 360° Beam Angle: Uniform and soft lighting without dark spots.
- Diffuser Design: Distributes interior lighting to the surface evenly.
- PET Break-proof Plate: Integrated technology to prevent FPCB breakage when pulling.
- Silicone Material: Anti-yellowing, high temperature resistance, and weather-proof.
- Harsh Environment Ready: Resistant to corrosion, acid, and alkali.

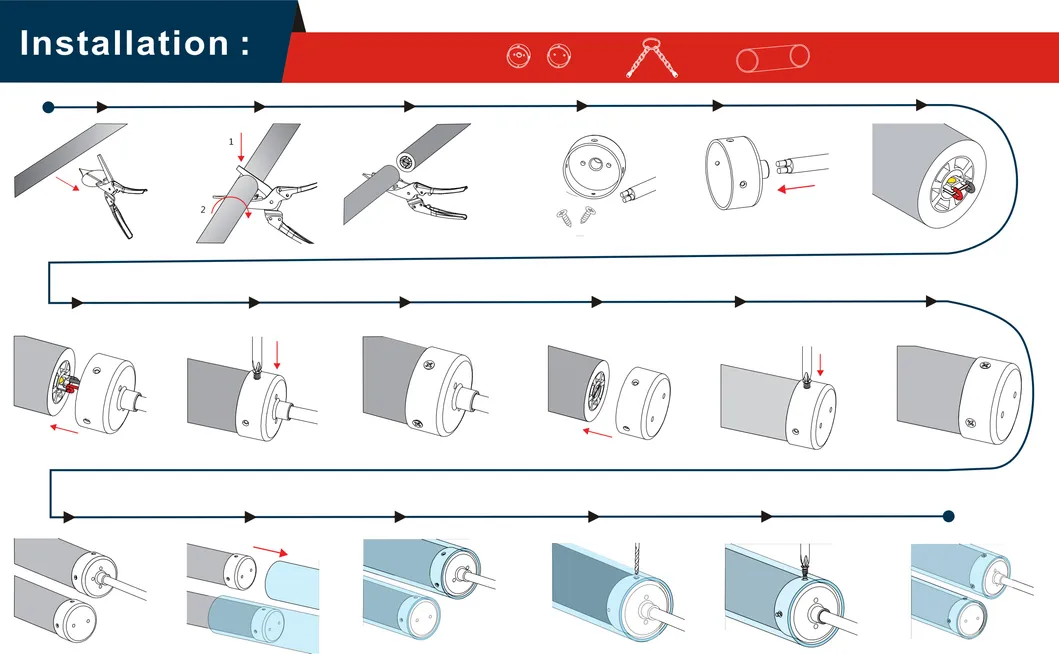

Installation & Safety
Designed for easy room and decorative lighting installations. Low power consumption combined with high brightness output. Compatible with various dedicated connectors for easy setup after cutting.
Safety Guidelines:
- Avoid mechanical stress on the SMD light ribbon.
- Observe correct electrical polarity during installation.
- Parallel connection is highly recommended for safe operation.
- Ensure power supply capacity matches the total load.
- Follow standard ESD precautions during handling.

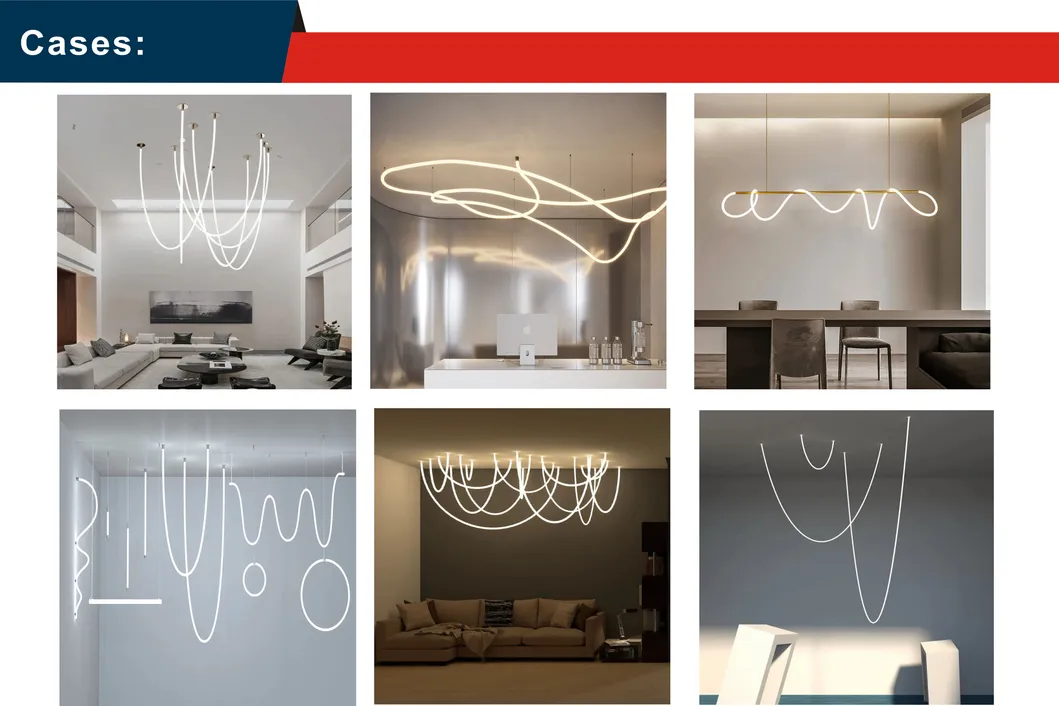

Applications
- Indoor and outdoor decoration lighting.
- Advertisement, Large scale backlights, and Cabinet lighting.
- Architectural outlines: Bridges, Villas, and Buildings.
- Commercial spaces: Restaurants, Hotels, and Show rooms.
- Emergency lighting, advertising signs, and festival displays.
Quality Control Process
- Stability TEST: 100% aging test for at least 48 hours.
- Lighting TEST: 100% inspection before final packing.
- Drop TEST: Ensuring protection via reinforced packaging.
Frequently Asked Questions
1. What is the beam angle of this LED Neon Strip?
This product features a 360-degree beam angle, providing uniform and soft lighting in all directions.
2. Can this neon strip be used outdoors in rainy conditions?
Yes, with IP65, IP67, or IP68 waterproof ratings available, it is designed for both indoor and outdoor applications, including harsh weather.
3. What is the standard warranty for these LED strips?
The product comes with a 2-year warranty to ensure long-term performance and reliability.
4. What input voltages are supported?
It supports multiple voltage options including DC24V, DC12V, and DC5V, depending on your specific requirements.
5. Can the strip be cut to a specific length?
Yes, the strip is designed with cut points. For example, the 240LED model can be cut every 6 LEDs (50mm).
6. What certifications does this product hold?
The product is certified with UL, TUV, GS, CB, SAA, LVD, EMC, FCC, CE, and RoHS standards.
