Adjustable 1/2/3m Magnetic LED Track Light - Aluminum Rail for Fabric Stretch Ceiling
Product Description
i
Basic Information
Model NO.
Magnetic track
Power
48W
Emitting Color
White /Black
Base Type
Track Bar
Wire
4 Wired
IP Rating
IP26
Certification
CCC, CE, REACH, RoHS
Input Voltage
48V
LED Chips Brand
Osram
Length
1m/2m/3m
Warranty
3 Years
Light Source
LED
Application

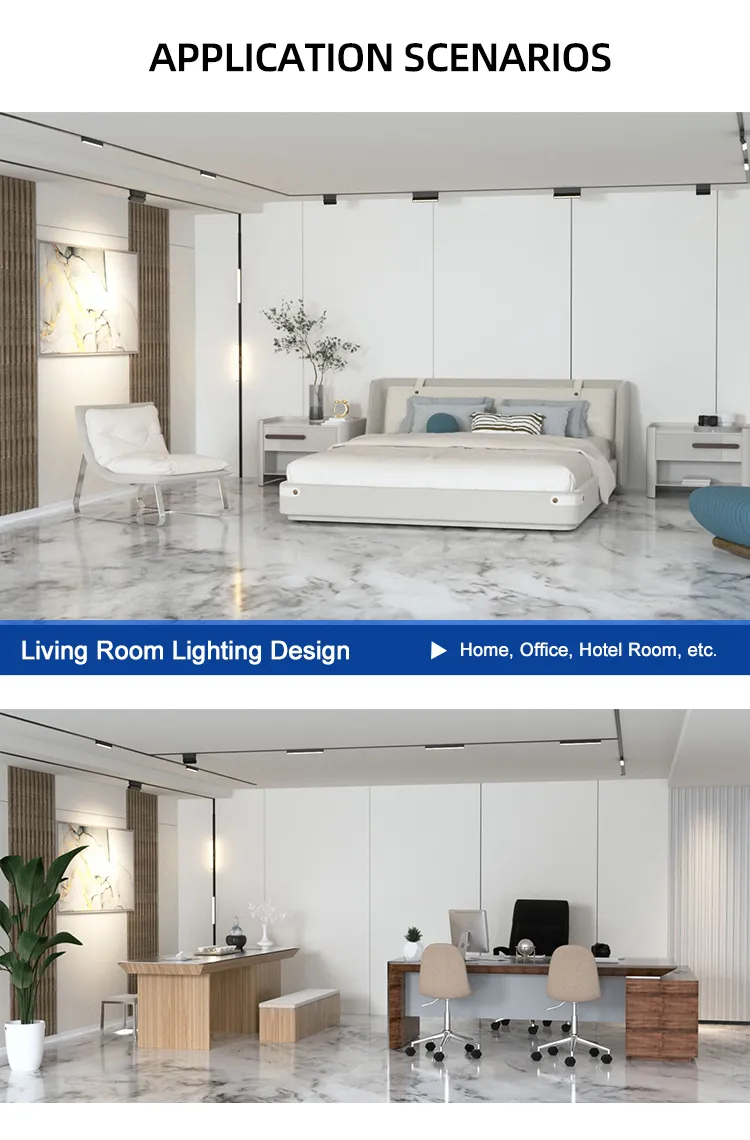

Shop, Office, Residential, Indoor
Working Lifetime
30,000 Hours
Production Capacity
500,000 PCS/Month
P
Packaging & Delivery
Package Size
302.00cm * 40.00cm * 50.00cm
Gross Weight
2.000kg
Lead Time
5 days (1 - 999 Pieces)
Negotiable (> 999 Pieces)
Negotiable (> 999 Pieces)
D
Product Description

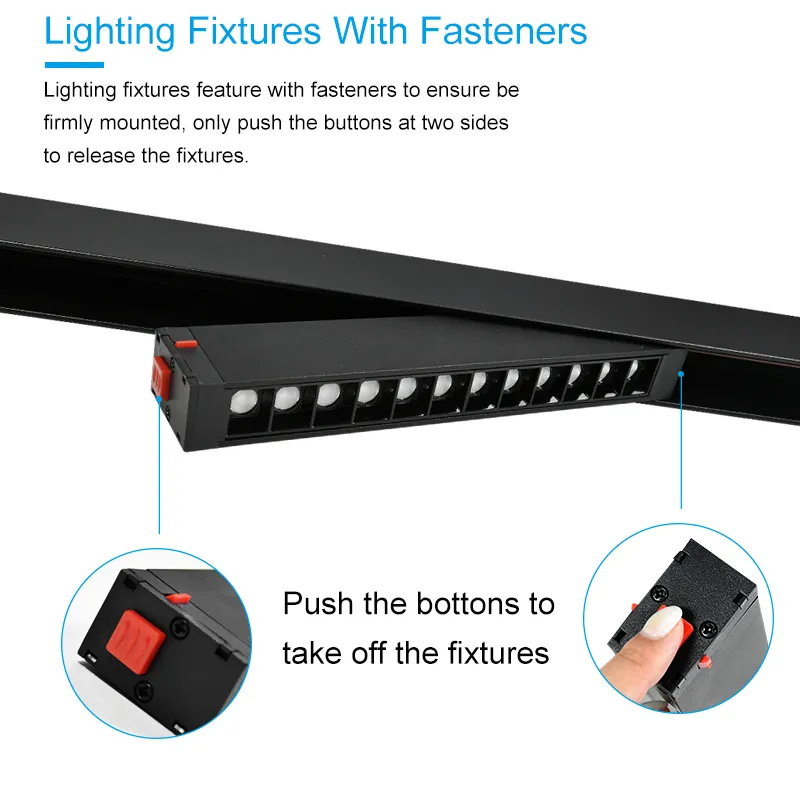

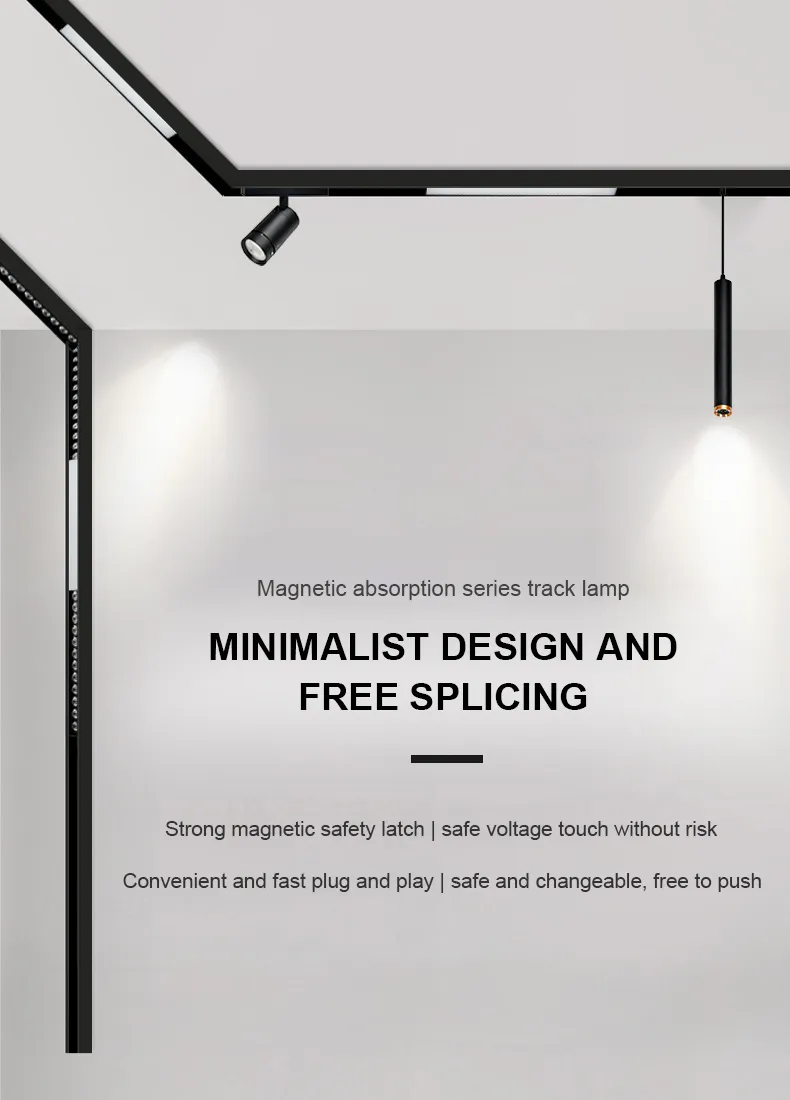

Aluminum Rail for Fabric Stretch Ceiling: Magnetic track lamp attaches the lamp component to the track through a magnetic system. Ensuring a reliable connection, it offers convenient and flexible installation and disassembly of the lamp component, making daily maintenance simple. The lamp assembly can be adsorbed on the track easily and fixed with a single insert.
Because the track operates on a low-voltage power supply, the lamp body can be removed from the drive, allowing the entire track and lamps to be extremely small and delicate—perfect for high-end residential and commercial use.
- Simple Installation: Lay the track in advance and snap the lamps into place in seconds.

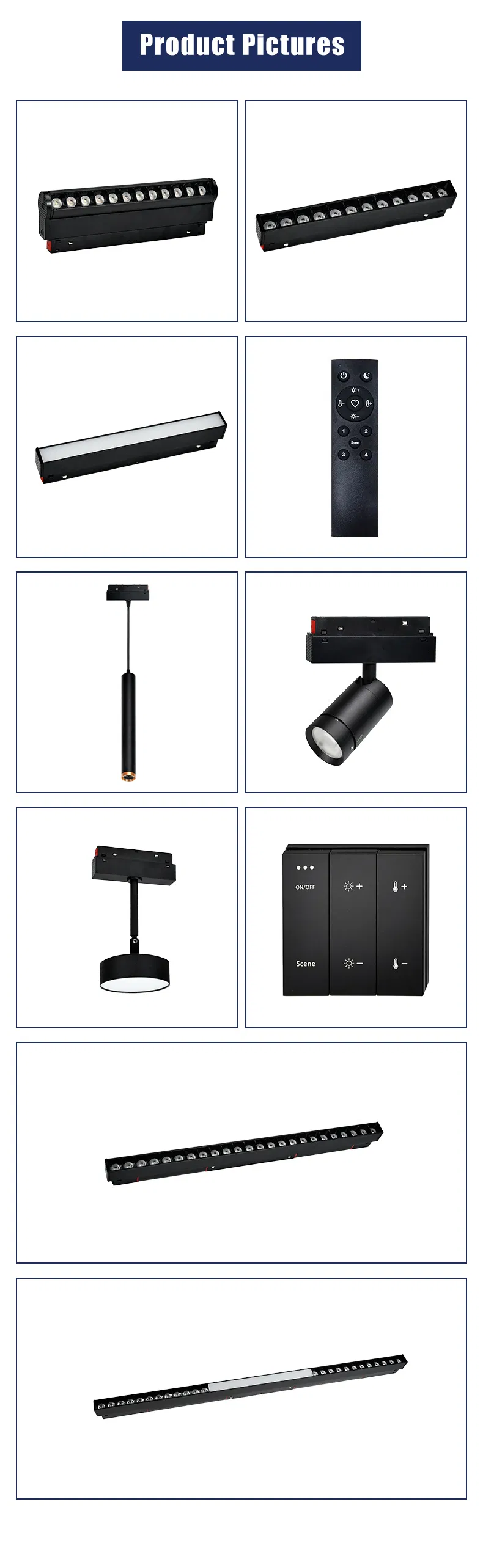

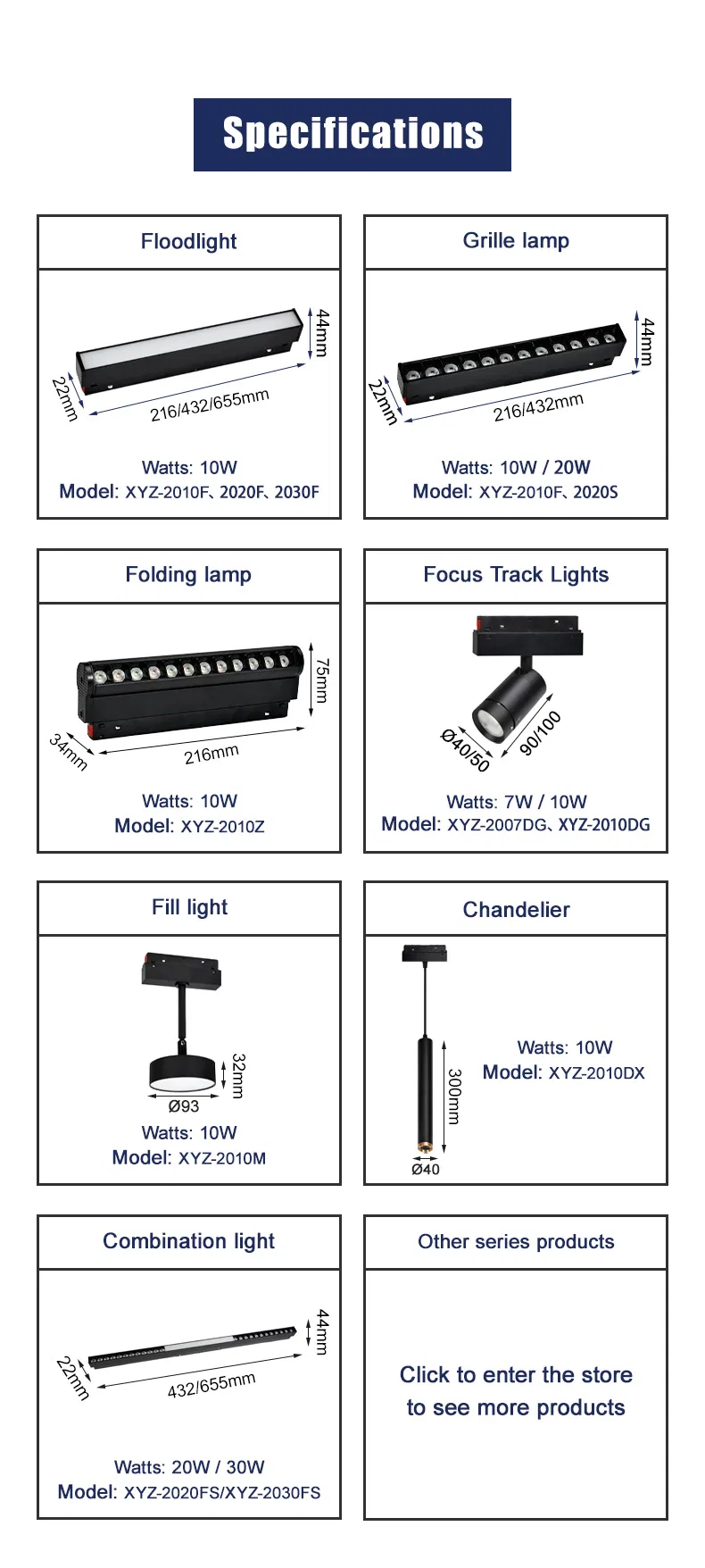

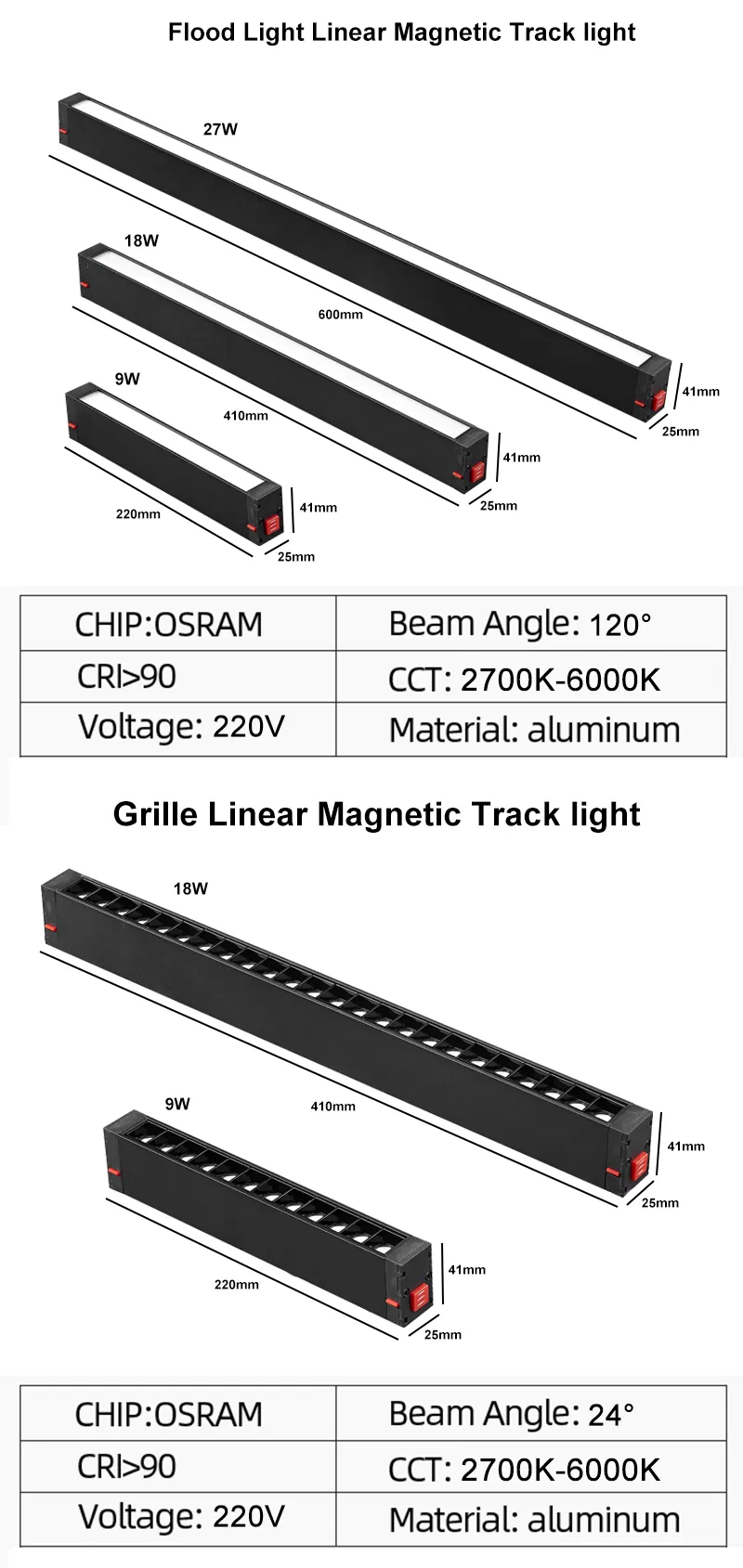

- Versatile Compatibility: Suitable for various modules including downlights, spotlights, grid lights, floodlights, and chandeliers.
- Modular Design: The number of lamps can be freely increased or decreased without limit.

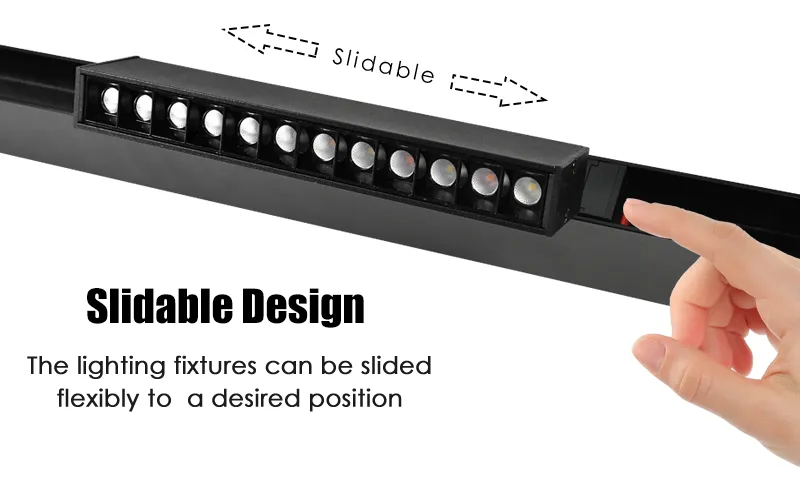

- Flexible Adjustment: Move and adjust the light source angle freely according to space needs.
- Low Voltage Safety: 48V system ensures no contact risk during maintenance or adjustment.
T

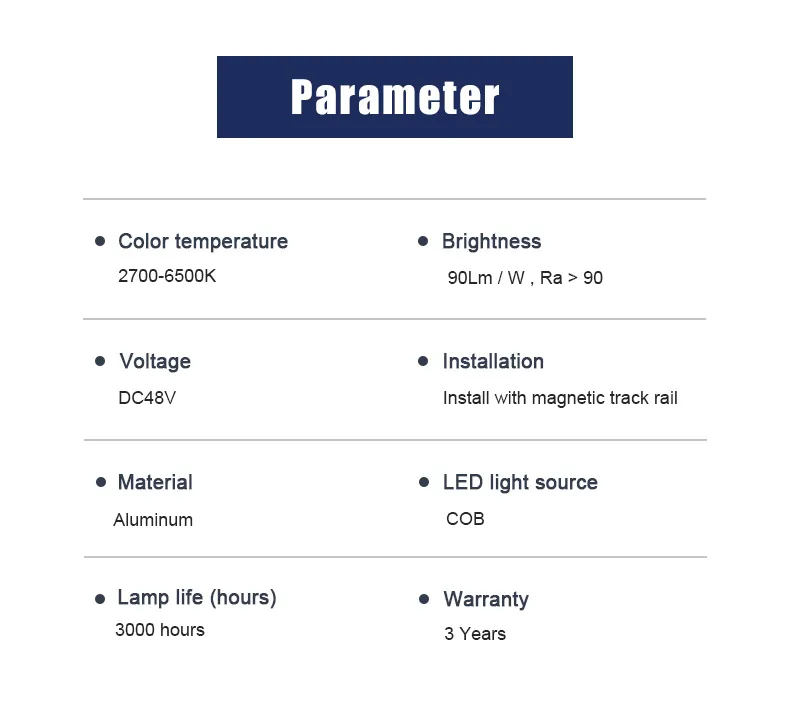

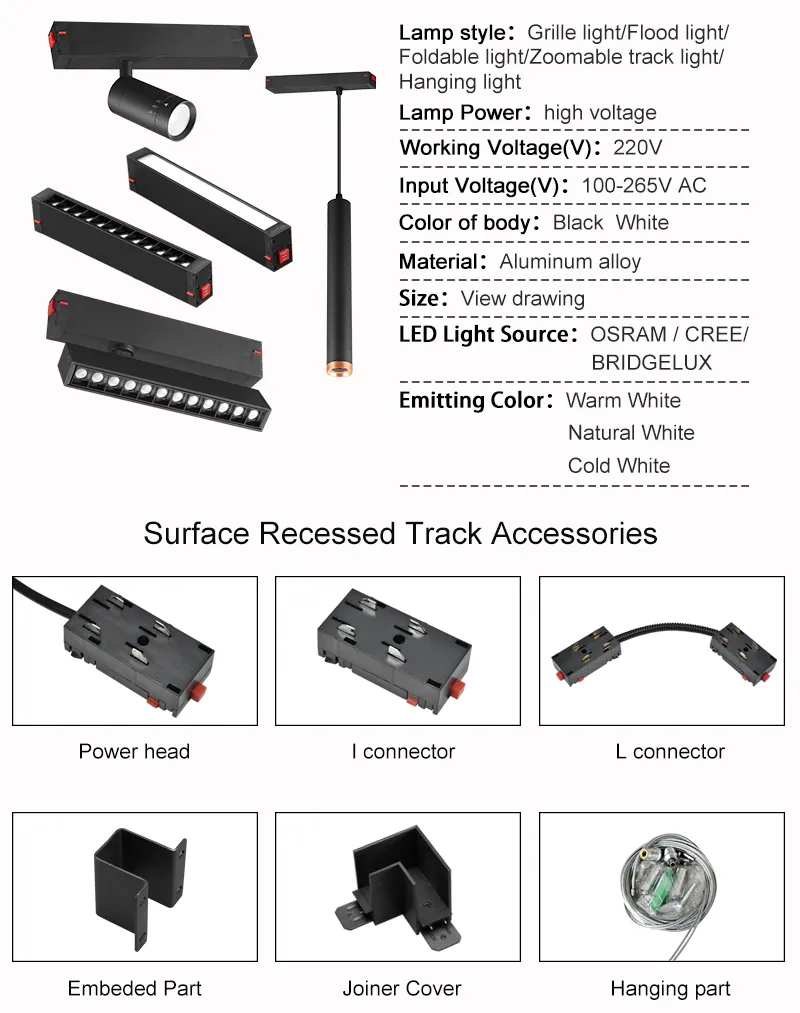

System Specifications
| Part Name | Description / Usage | Color | Input / Size |
|---|---|---|---|

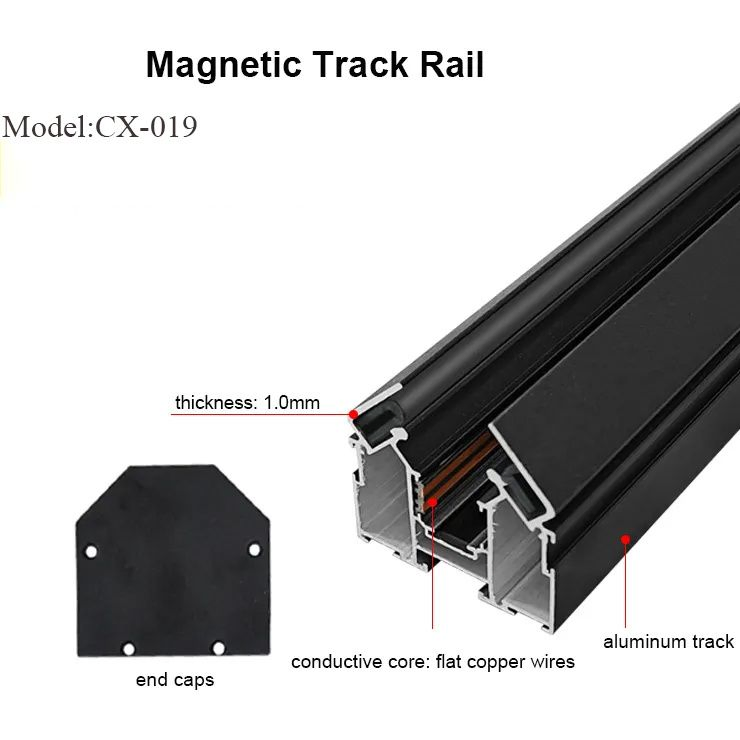

| Magnetic Track System | Main Rail System | Black/White | DC48V |
| Power Head | 4-Wire Connection (Power & Signal) | Black | Input DC48V |
| I Type Connector | Rail to rail splicing | Black | Input DC48V |
| Flexible Connector | Corner stitching use | Black | Input DC48V |

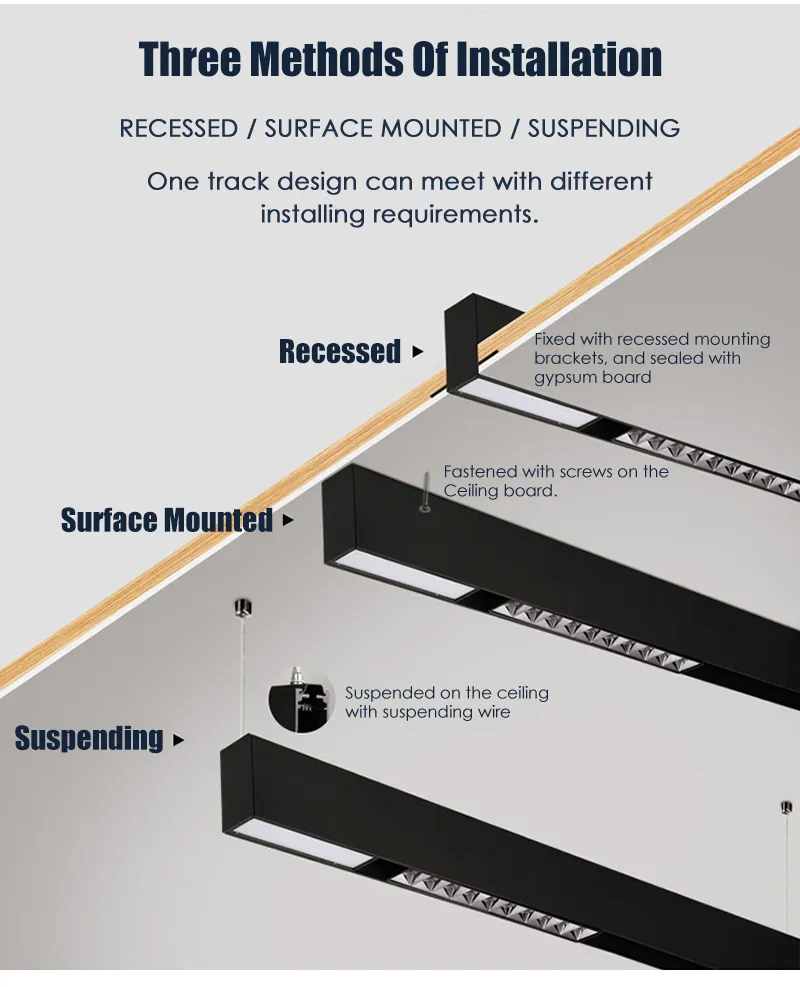

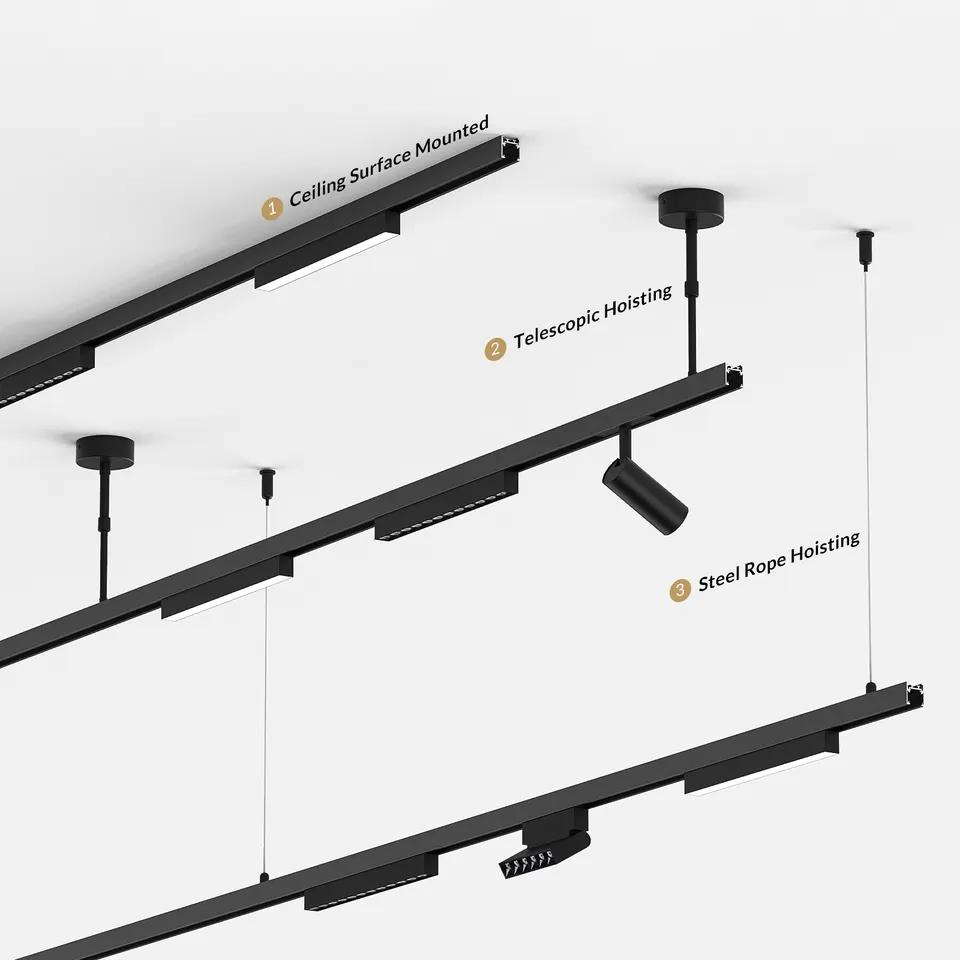

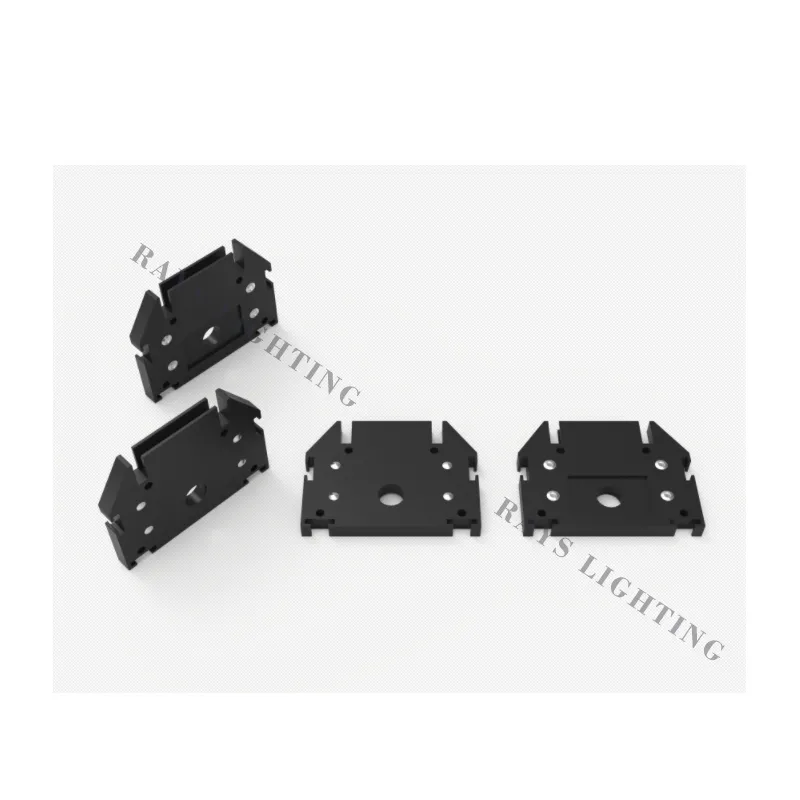

| Surface Corner | Surface mounting/suspend | Black | 80*80mm |
| Recessed Ceiling Corner | Cut out 34mm | Black | 100*100mm |
| T / X Connectors | Multi-directional joints | Black | 160*160mm |
| PC Cover | R20/35 PC cover | Black | 3M/PCS |
| Transformer | External Power Supply | / | 48V 150W-350W |

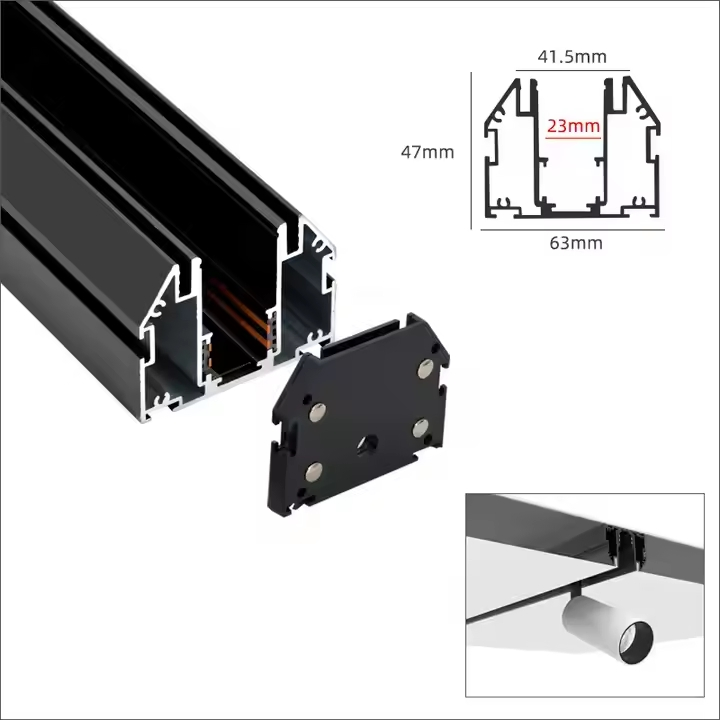

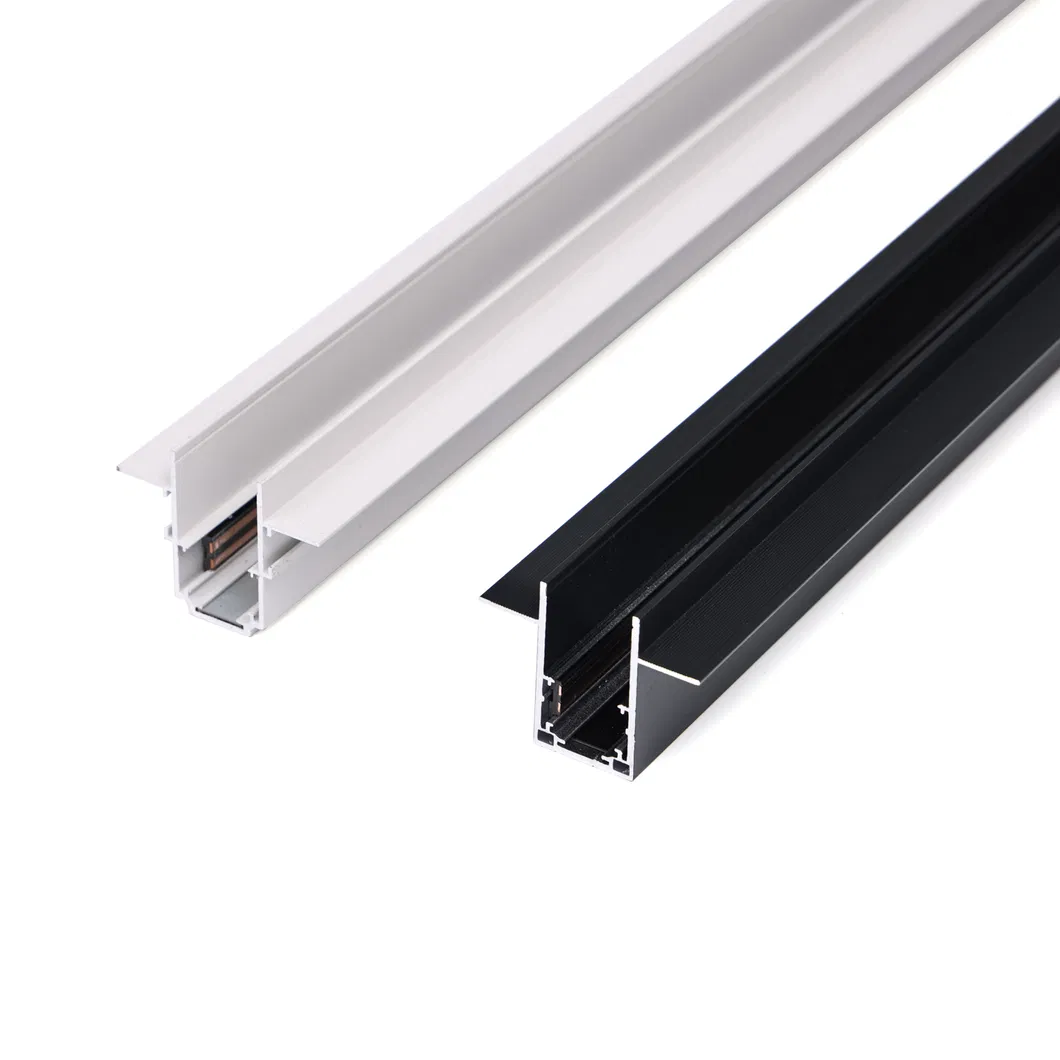

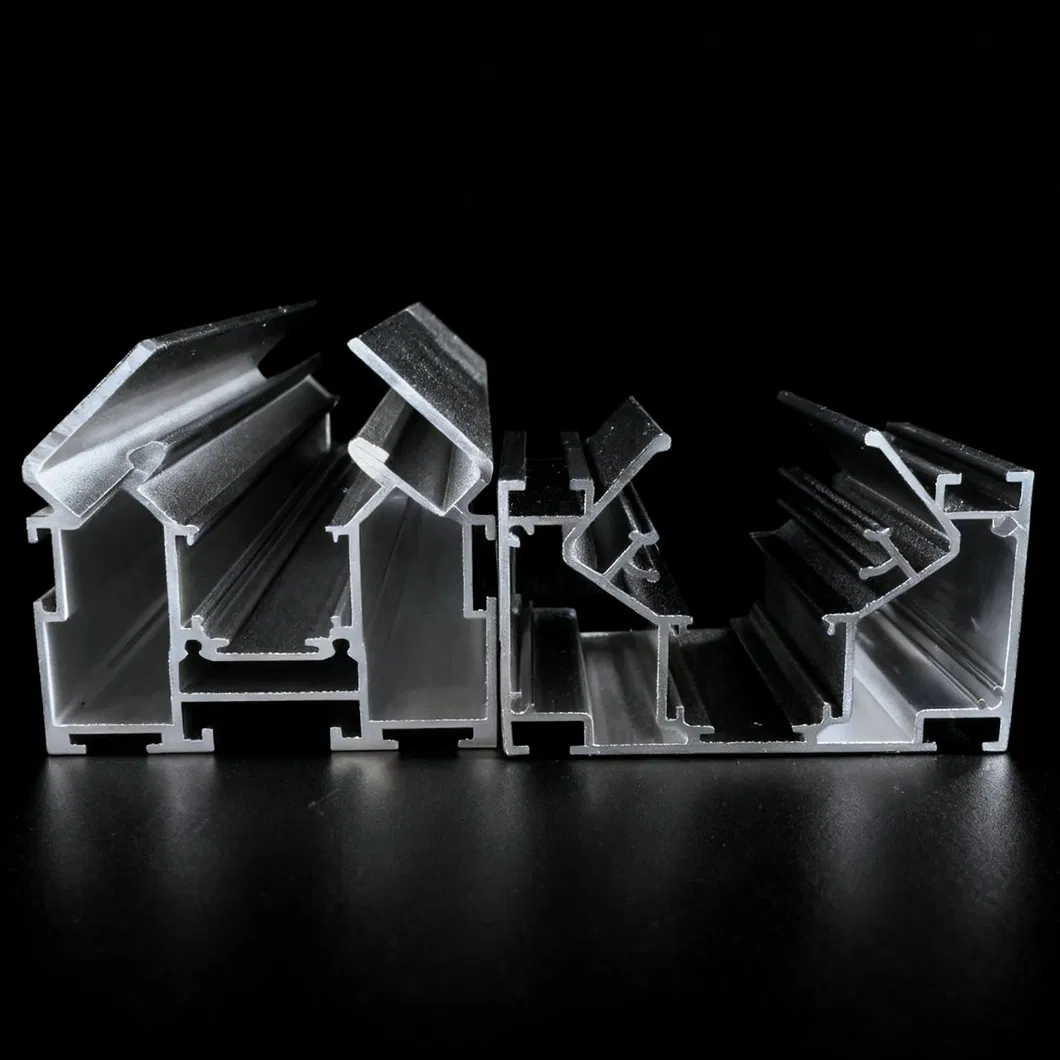

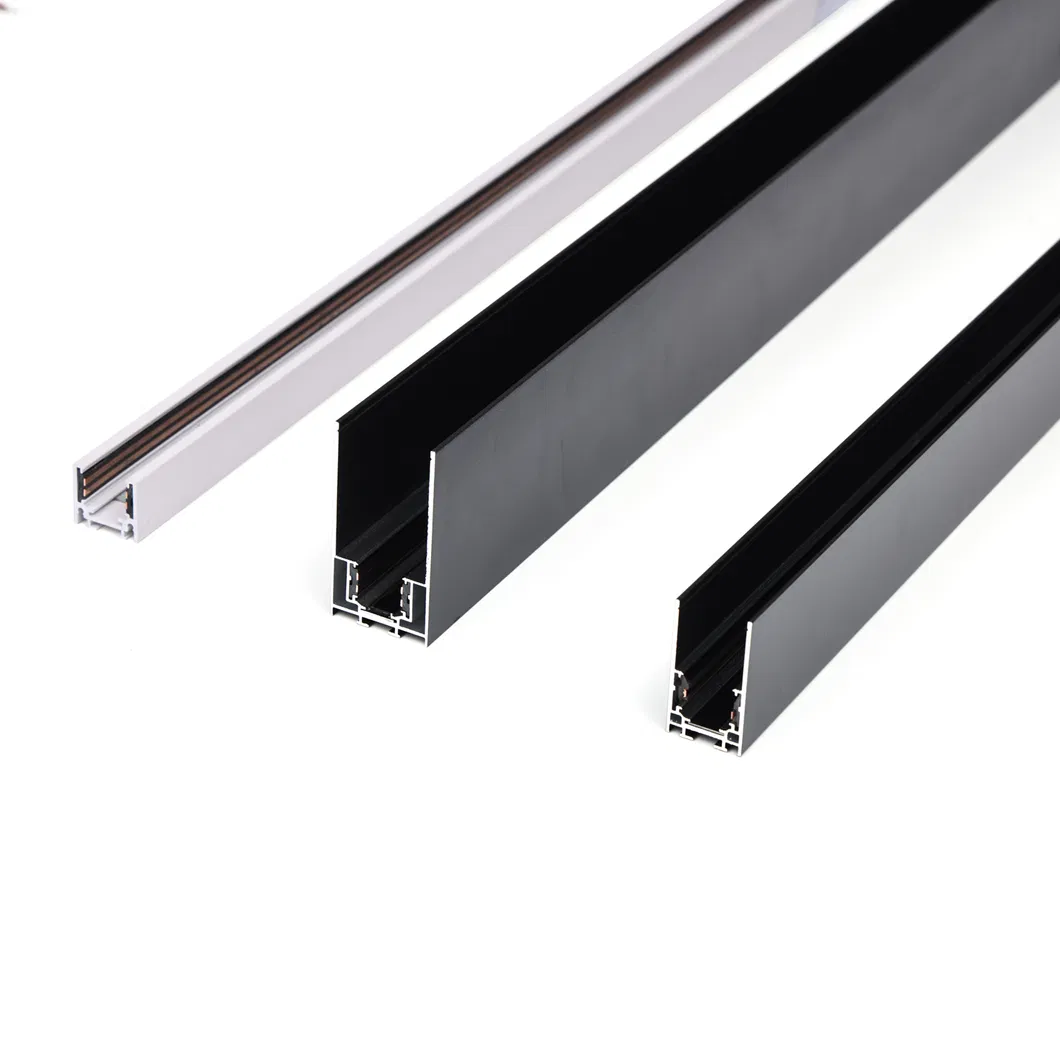

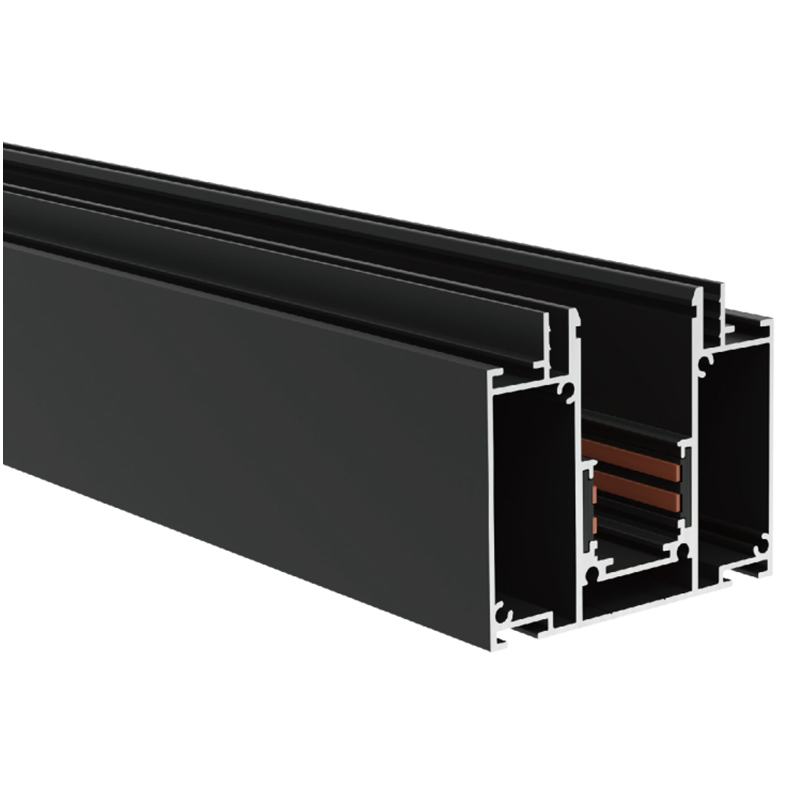

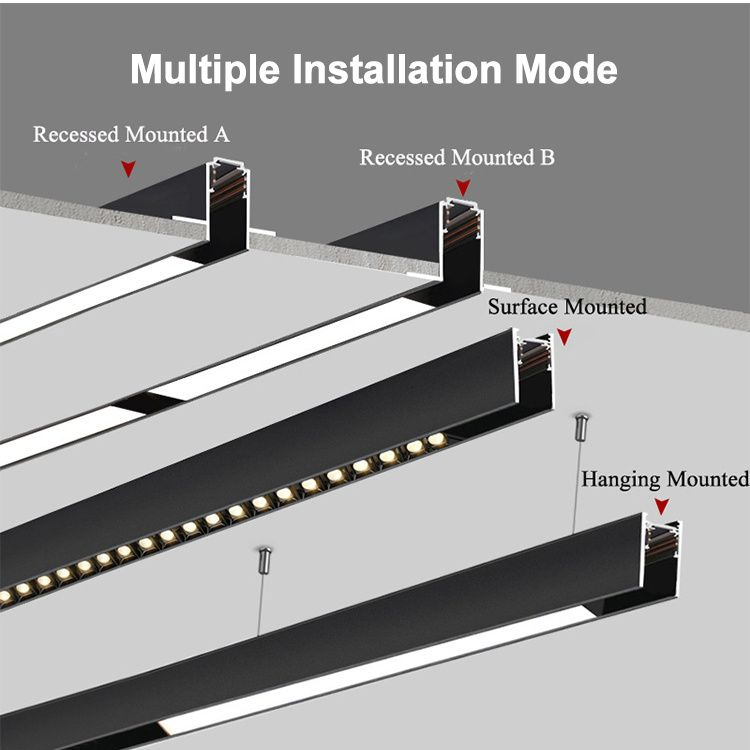

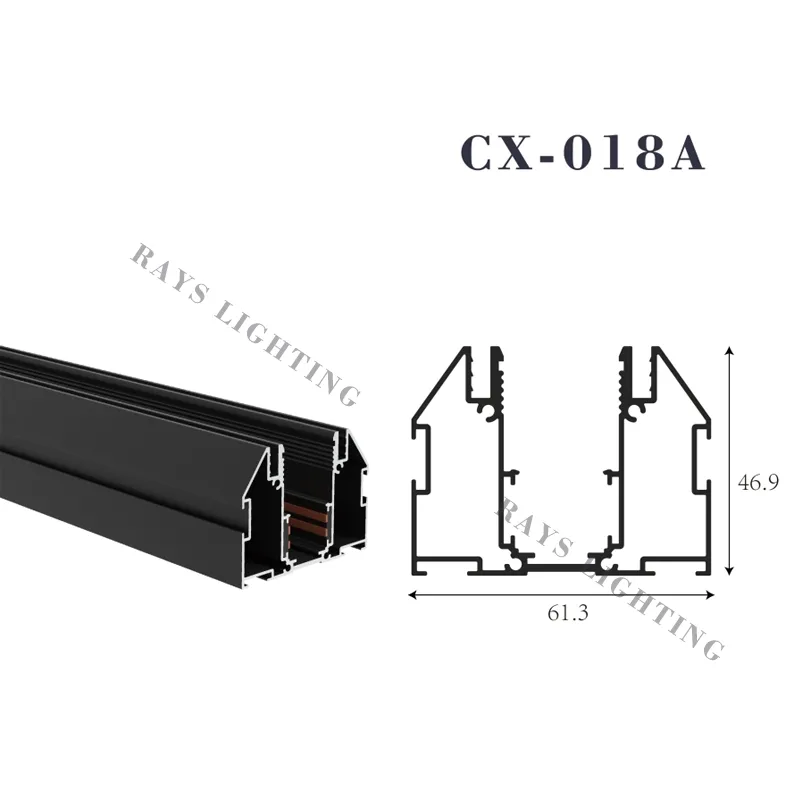

| Track Rail | Surface/Recessed Type | Matte Black | 1M/2M/3M |
?
Frequently Asked Questions
1. Is the magnetic track system safe to touch when powered?
Yes, the system operates on DC48V low voltage, which is safe for human contact and eliminates the risk of electric shock during adjustment or maintenance.
2. Can I cut the magnetic track to a custom length?
Yes, the aluminum rails can be cut to fit your specific space requirements. Ensure you use the proper end caps and connectors to maintain electrical continuity.
3. How many lights can I install on one meter of track?
There is no strict limit on the number of lamps, but you must ensure the total wattage of all lamps does not exceed the capacity of your transformer (e.g., 100W, 200W, or 350W).
4. Do I need a professional electrician for installation?
While snapping the lamps into the track is a simple DIY task, the initial wiring of the 48V transformer to your main power supply should be performed by a qualified professional.
5. Can I mix different types of light modules on the same track?
Absolutely. You can combine spotlights, floodlights, and pendant lights on a single magnetic track to create a layered lighting effect in your room.
6. What is the advantage of using Osram LED chips in this system?
Osram chips provide superior color rendering, higher efficiency, and a longer working lifetime (up to 30,000 hours), ensuring consistent light quality for years.
