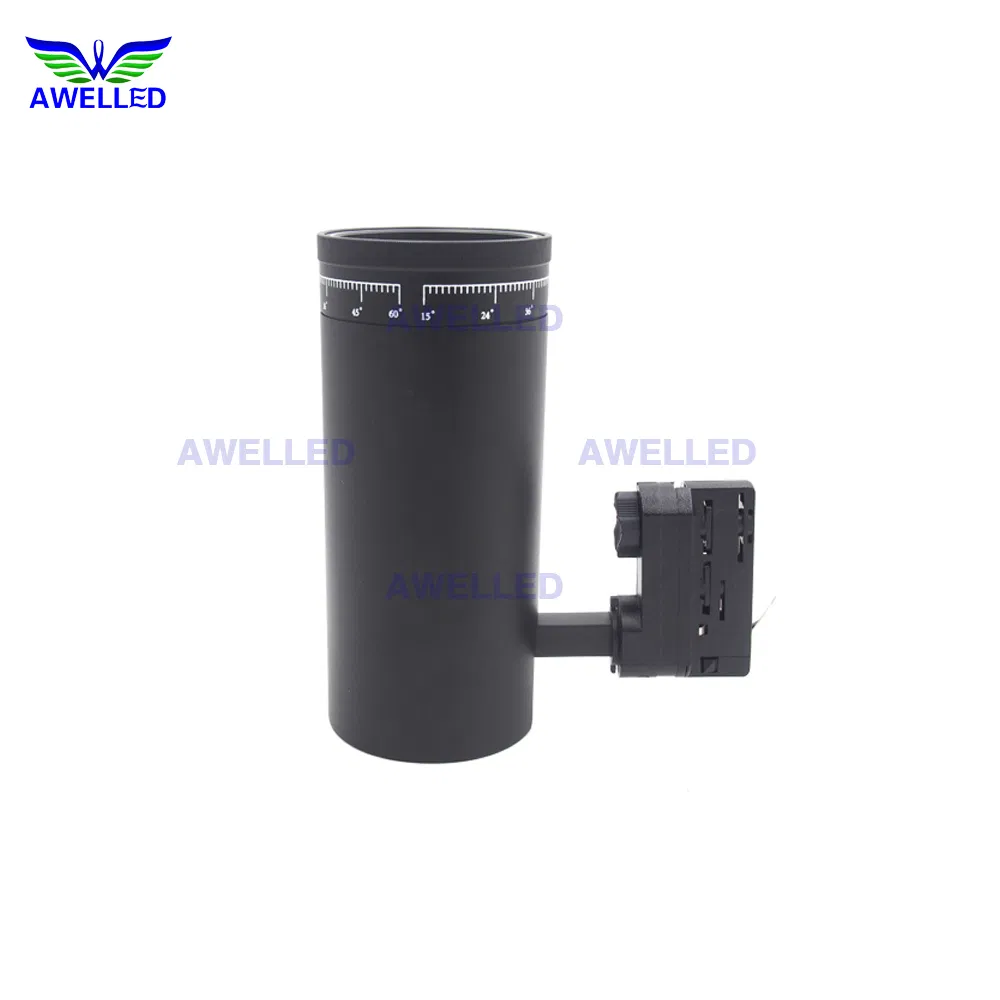

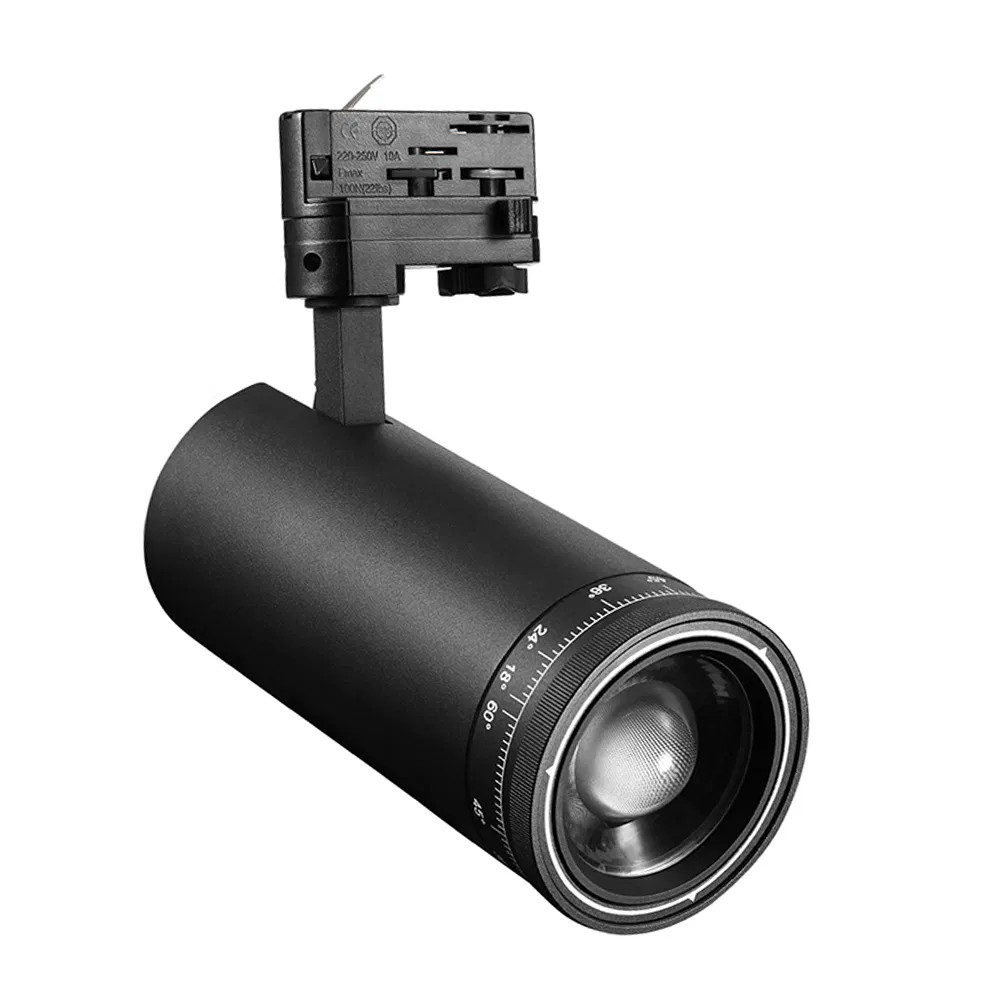

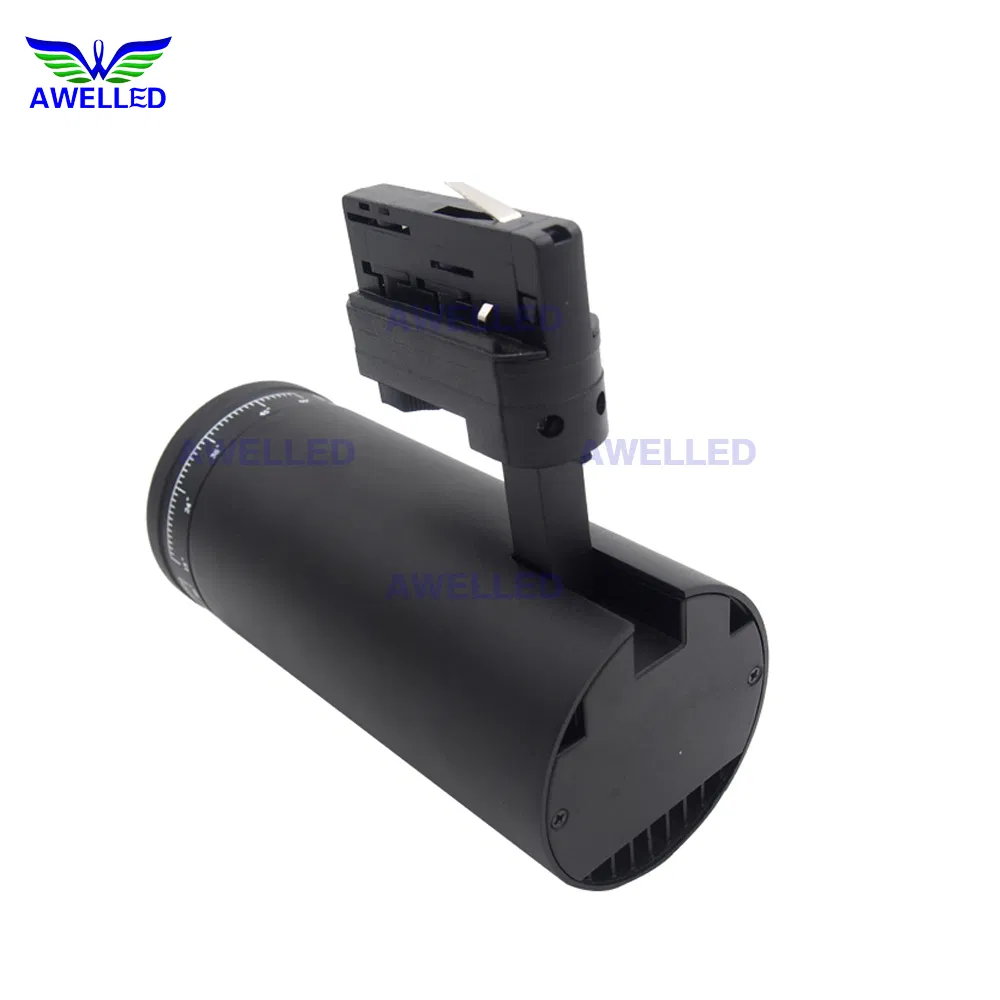

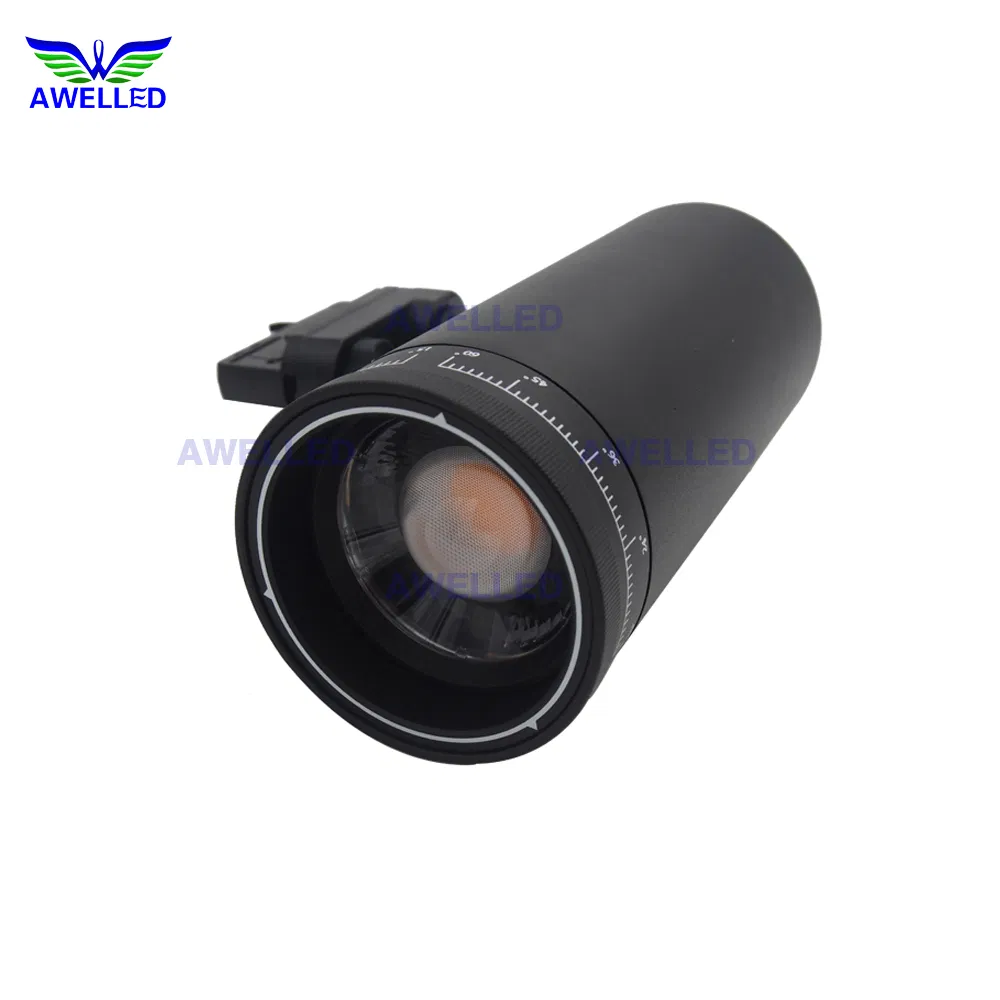

High-Quality 35W 4wires 3 Phase LED Track Light with Adjustable Zoom
Product Description
📊
Basic Specifications
Model NO.
AW-TL35D92Z
Power
31-40W (Rated 35W)
Emitting Color
Warm White
Base Type
4 Wires 3 Phase Track Light
IP Rating
IP44
Certification
CE, EMC, ETL, LVD, RoHS
Input Voltage
220V / AC90-130V
LED Chips
Citizen COB
Beam Angle
15°-60° Zoomable
Lumen
100lm/W
CRI
>92 (97 Available)
Warranty
5 Years
Dimming
Dali / Triac / 0-10V
Material
6063 Brushed Aluminum
💡
Product Description
The zoomable LED track light kits provide a professional lighting solution for modern spaces. With 100LM/W energy efficiency and advanced optics, these fixtures offer high-quality lighting with significant energy savings. The modular design allows for easy access to customizable lighting solutions, compatible with 4-wire, 3-circuit, 2-wire, and single-phase systems.
Key Features
Continuous 350° rotation and 90° pivot
Flicker-free internal or external driver
15-60° adjustable beam angle
High CRI >92 for true color rendering
Advanced 6063 aluminum heat dissipation
Multiple installations: Track, Pendant, Ceiling
⚙️
Technical Parameters
Optical & Electrical Performance
| Parameter | Specification |
|---|---|
| Light Source | Citizen COB LED (Japan, 3rd Gen) |
| Dimensions | Ø92×210mm |
| Housing Color | Black / White (RAL 9005 / 9010) |
| CCT Options | 3000K / 4000K / 5000K |
| Luminous Efficiency | 80-100lm/W @ CRI80 |
| Driver Specs | PF >0.95 / THD <15% / Flicker-Free |
| Safety Standard | ENEC / CE / RoHS / IEC 61347 |
Applications
Ideal for retail shops, hotels, museums, restaurants, art galleries, showrooms, jewelry stores, fashion boutiques, shopping malls, and professional exhibitions.
🏢

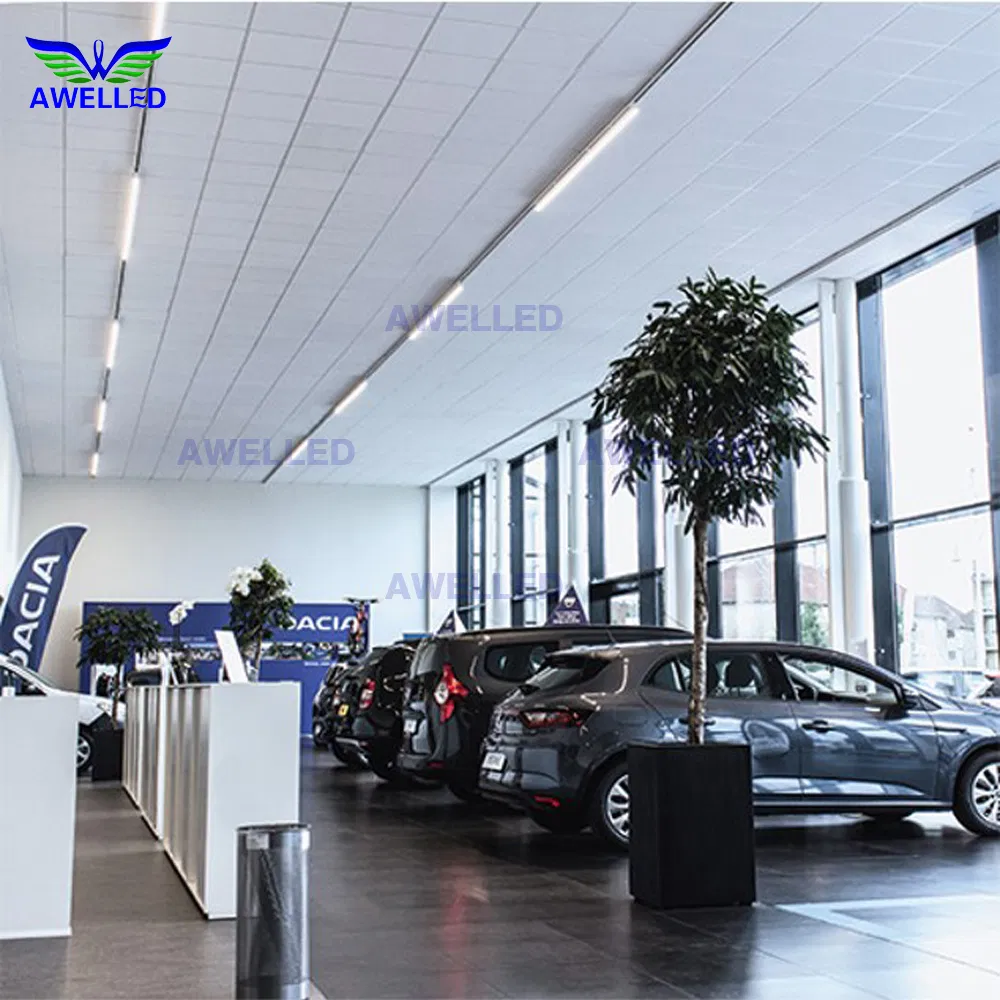

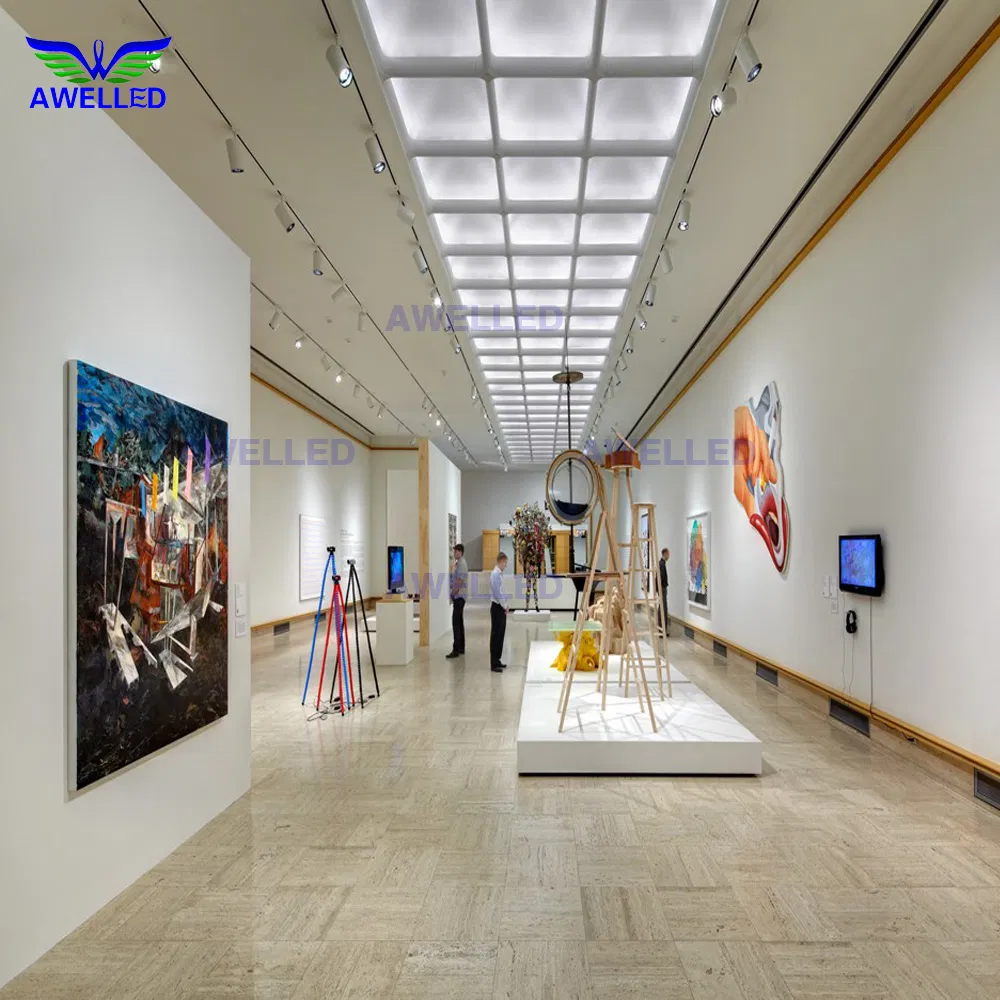

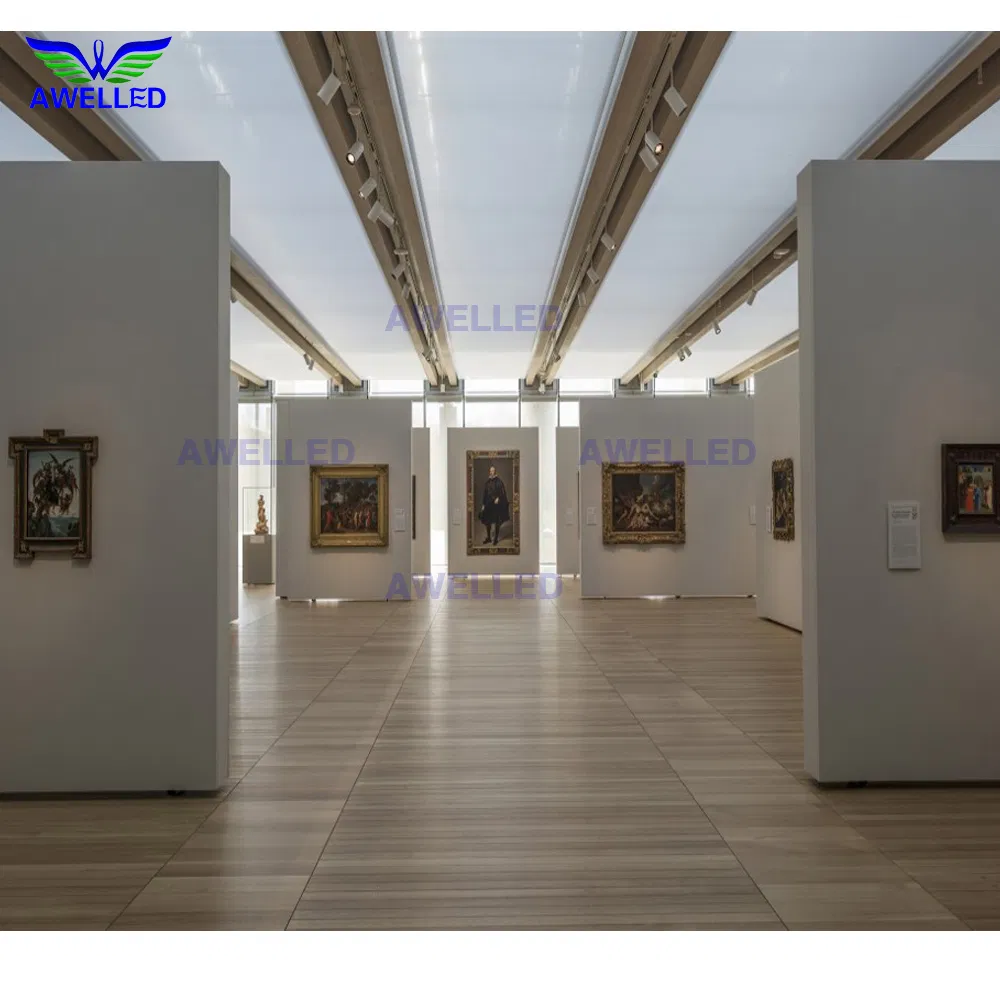

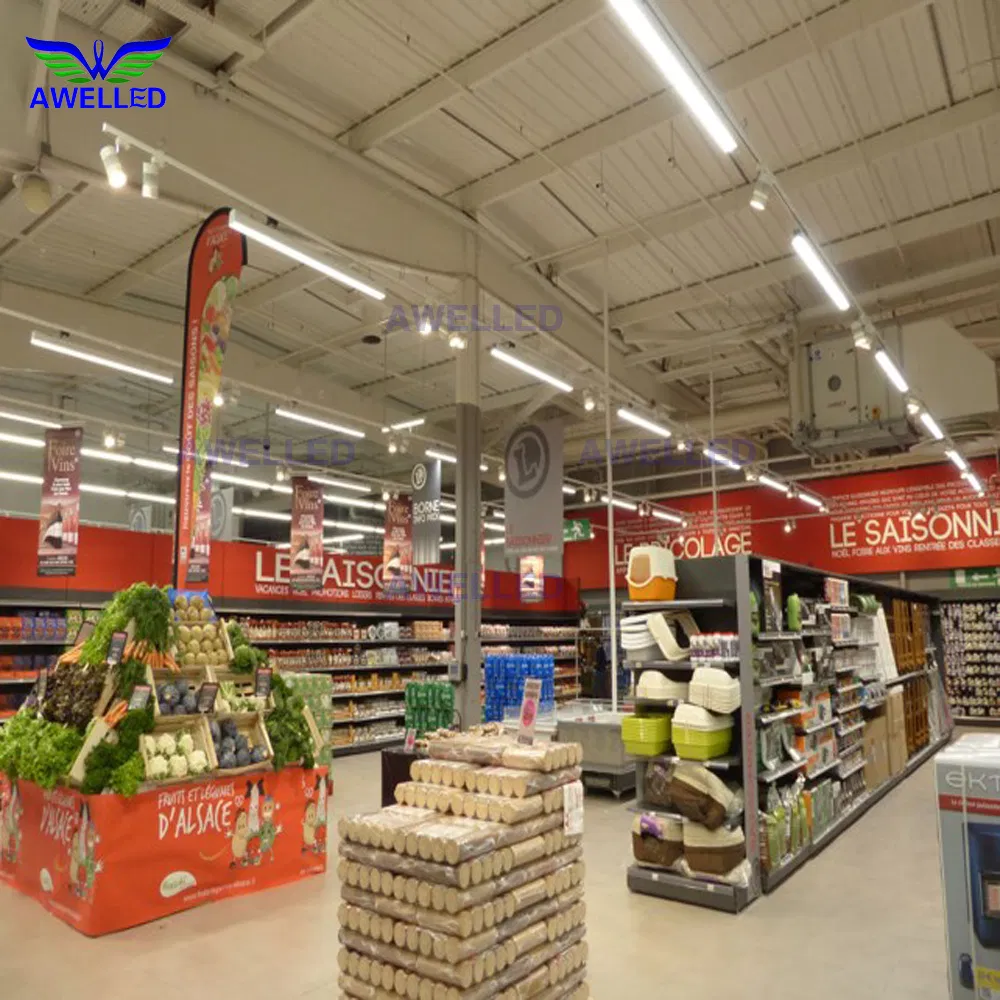

Classic Projects
🔧

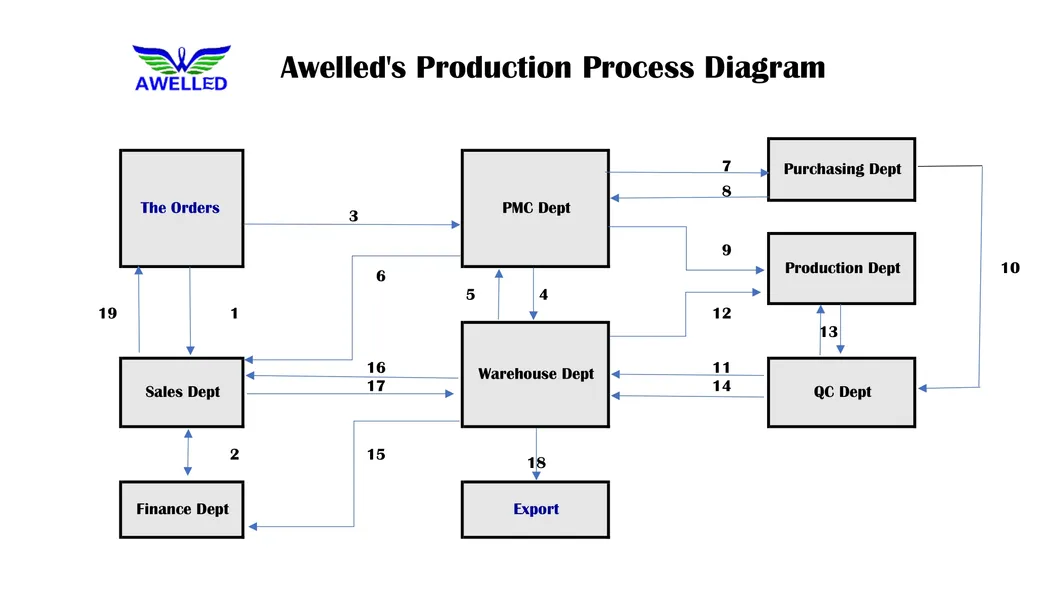

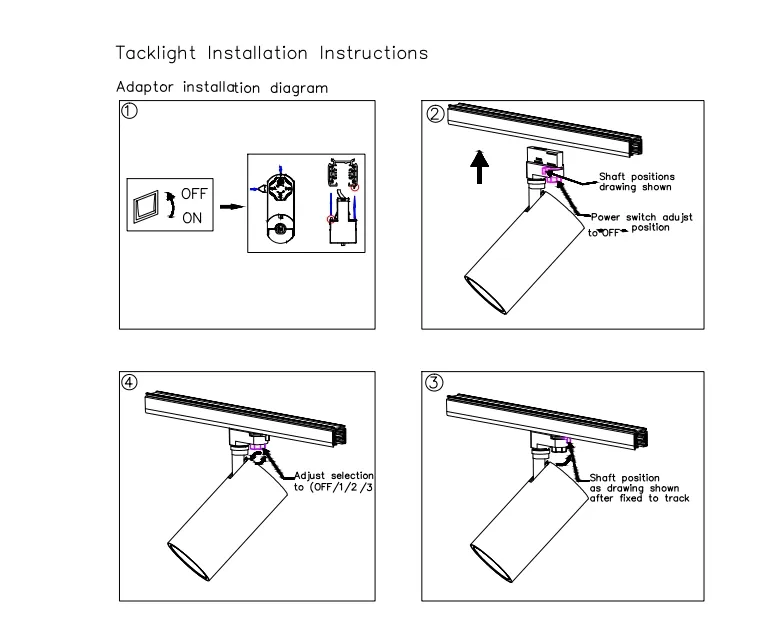

Installation & Manufacturing
❓
Frequently Asked Questions
How do I proceed with an order for zoomable track lights?
Contact us with your specific requirements. We will provide a quote, prepare samples for confirmation, and move to production once the deposit is received. We provide tracking information upon shipment.
What is your MOQ and delivery timeline?
We have no strict MOQ; 1 sample is available. Samples typically take 1-3 days, while bulk orders are delivered within 7-15 days.
Can you customize the lights with our logo?
Yes, we can apply your logo and company info to stickers for both the lamp and packaging. Laser and silk printing are also available for larger quantities.
How do you handle faulty products under warranty?
Our products are manufactured under strict quality control with a defect rate below 0.3%. If a quality issue occurs during the 5-year warranty, we will send free replacements or new items in advance.
What shipping methods do you use?
We usually ship via DHL, UPS, FedEx, or TNT (3-7 working days). Air and sea freight options are also available for larger orders.
What dimming protocols are supported?
Our zoomable track lights support DALI, TRIAC, and 0-10V/1-10V dimming protocols to ensure compatibility with various control systems.
