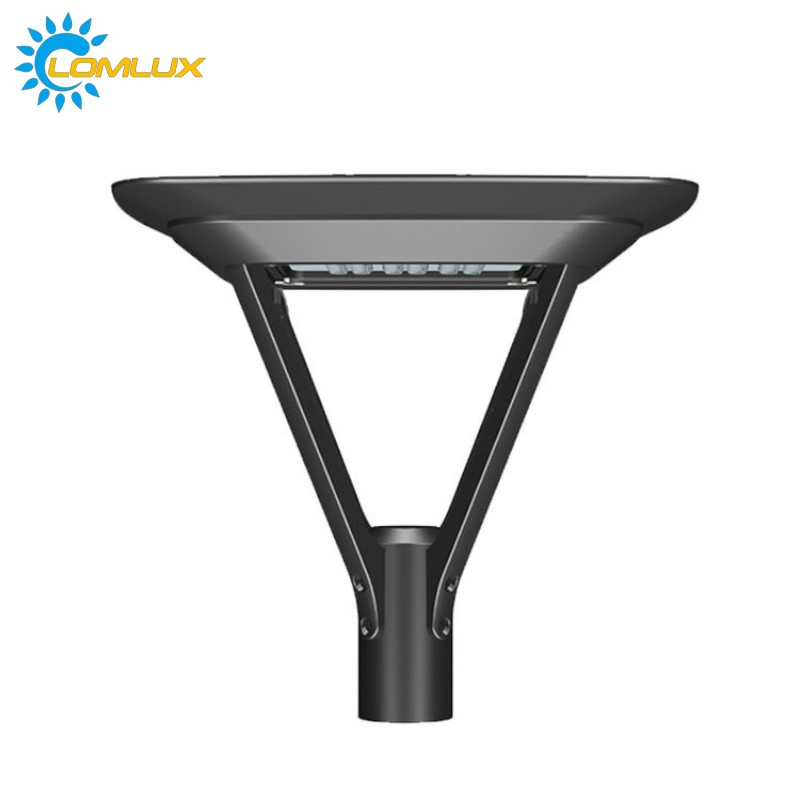

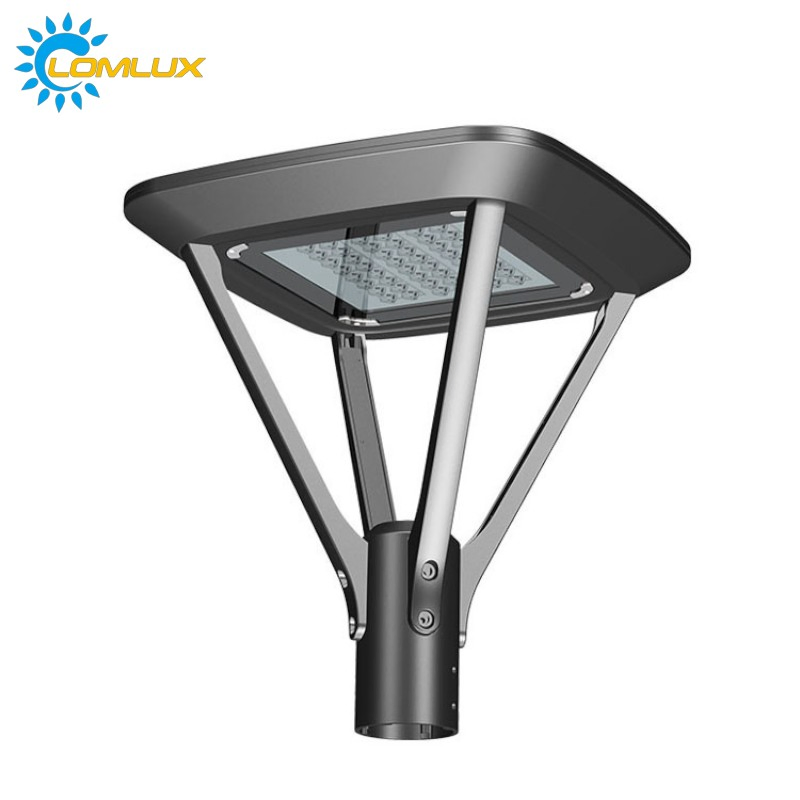

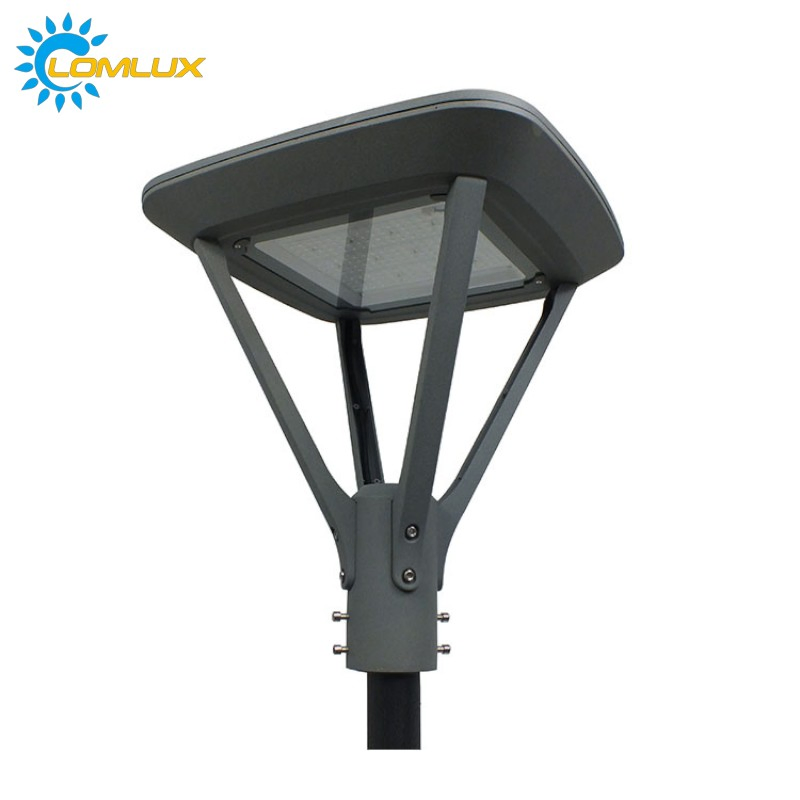

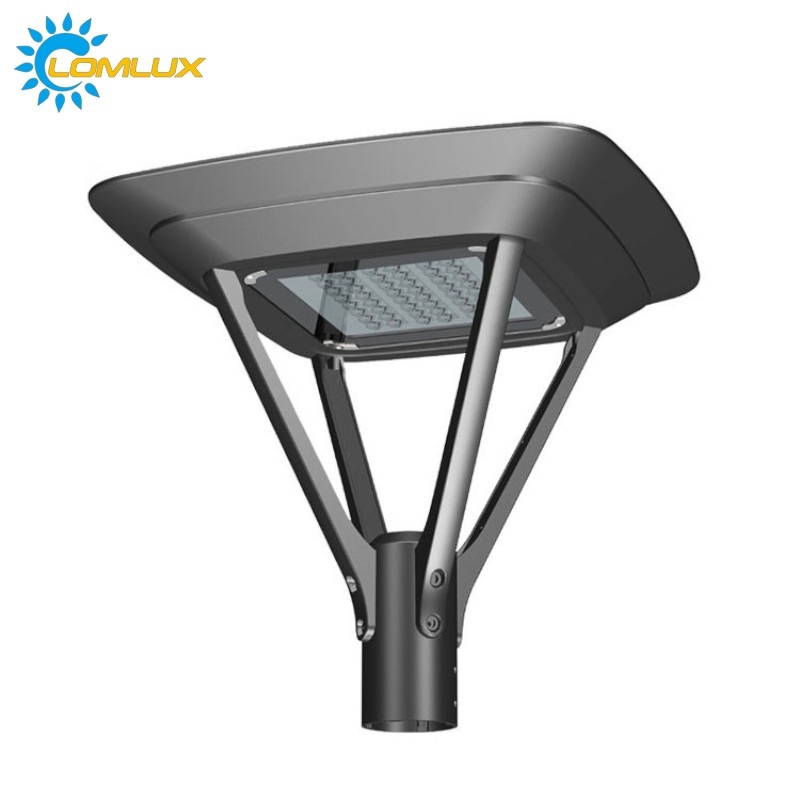

IP66 Waterproof ENEC+ SAA RoHS Certificates LED Garden Park Light
Product Description
Basic Information
Model NO.
LM-GSL01A
Power
20-120W
Warranty
5 years
IP Rating
IP66
Certification
CE, EMC, LVD, RoHS, SAA
Voltage
85-265V
Beam Angle(°)
150*75
Lifespan (Hours)
50000
SPD
10kv. 20kv
Working Temp
-30-65℃
Packaging & Delivery
Package Size
62.00cm * 52.00cm * 53.00cm
Gross Weight
11.500kg

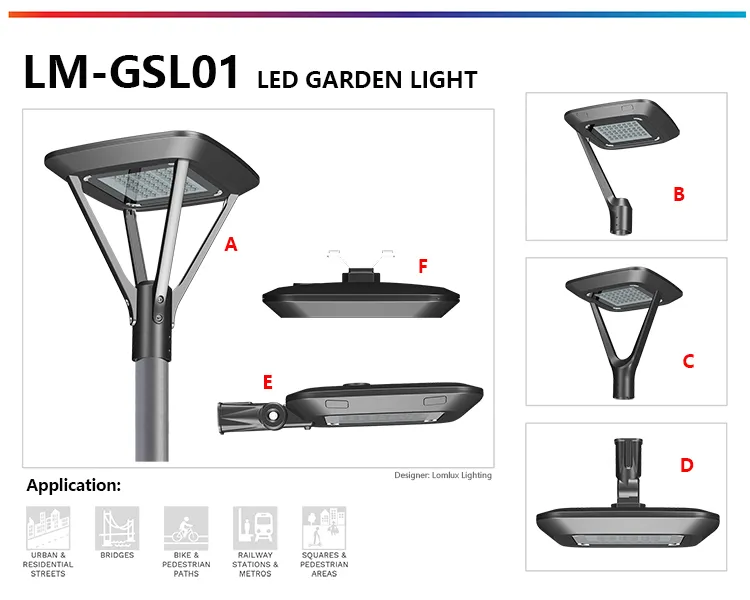

LED garden light LM-GSL01A
Main Advantages
🛡️
Durability & Heat Dissipation
The die-cast aluminum ensures effective heat dissipation, while maintaining high durability of the LED luminaire. Power-coated body provides ideal protection against corrosion.
💡
High Efficiency Savings
The high efficiency LED luminaire (150lm/W) reduces electricity costs by over 50% with a Power Factor >0.94.
⚡
Advanced Protection
Built-in over voltage protection 10KV 20KV SPD as optional to ensure long-term stability.
🌐

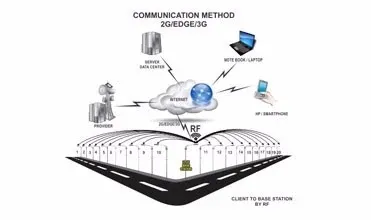

Smart Lighting Ready
Supports 3/5/7Pin NEMA, Photocell, 1-10V / PWM / DALI Dimming and smart city lighting systems.
📜
Certified Quality
Compliant with ENEC+, ENEC, CB, SAA, CE, EMC, RoHS, IP66, IK09, LM79, TM21.

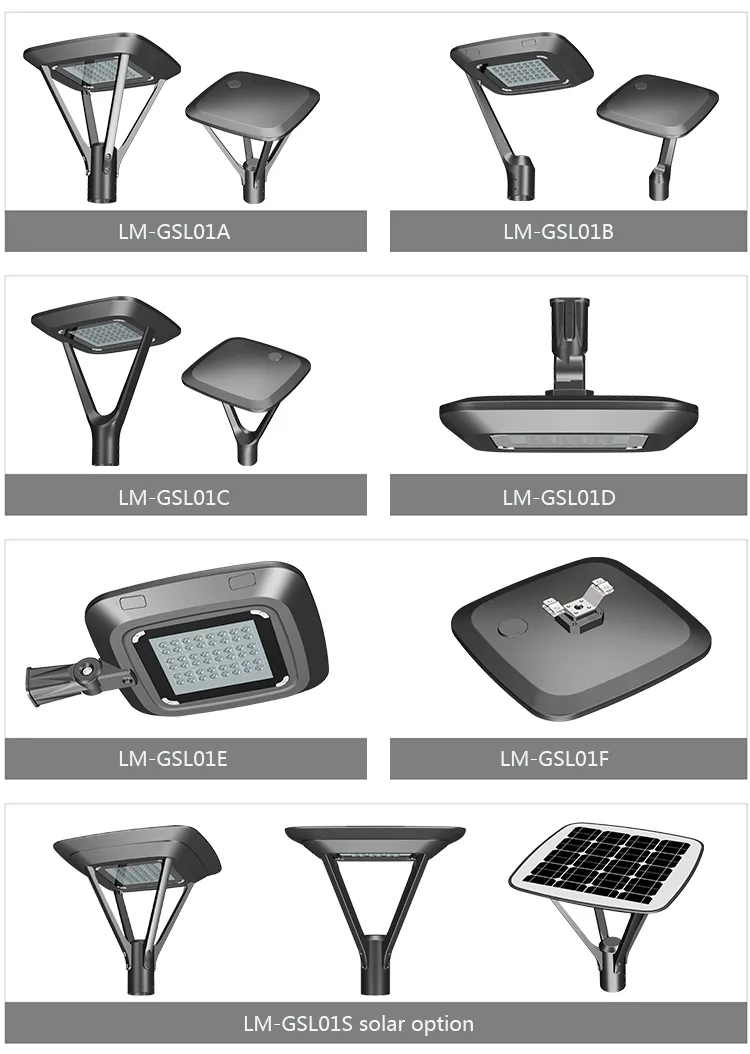

Technical Specifications
| Model | LM-GSL01A | LM-GSL01B | LM-GSL01C | LM-GSL01D | LM-GSL01E | LM-GSL01F |
|---|---|---|---|---|---|---|
| Size | D480*H538mm | D480*H567mm | D480*H567mm | D480*H275mm | 647*480*99mm | D480*H147mm |
| Power | 20-120W | |||||
| Luminous Flux | 135-155lm/W | |||||
| Material | Aluminum, LED Chip, Lens, Toughened Glass | |||||
| LED Chip | 3030SMD, 5050SMD, CREE | |||||
| IP Level | IP66 | |||||
| CCT | 3000K, 4000K, 5000K, 5700K, 6500K | |||||

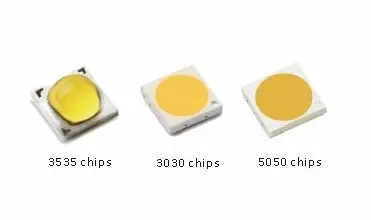

High Efficacy LED Source
Luminous source providing excellent lumen output and long-lasting stability. The efficiency of 5050 chips is more than 175 lm/w.

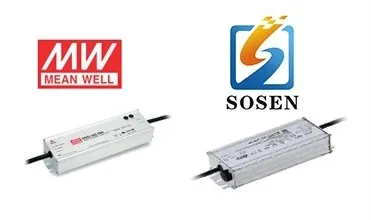

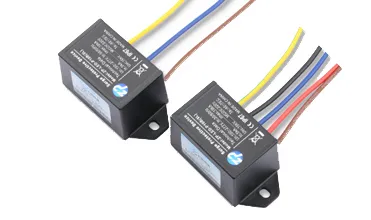

High-End LED Driver
Programmable LED driver, 4KV / 6KV surge protection, optimal stability, and excellent lifespan.

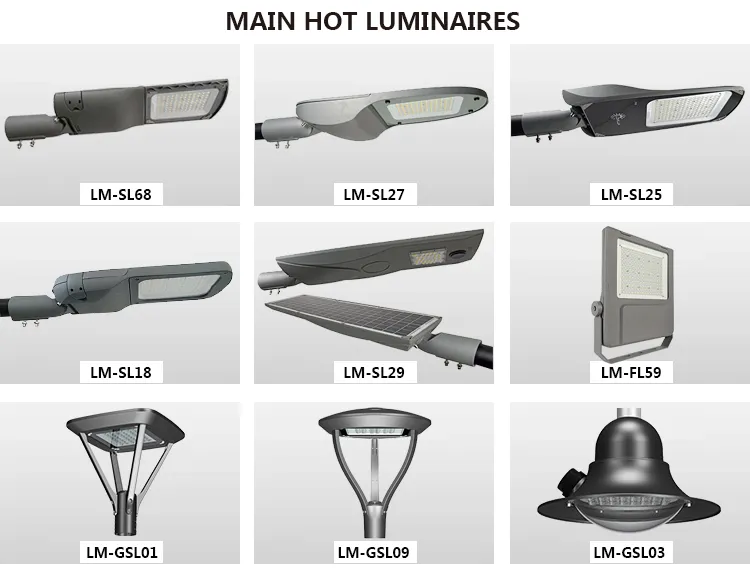

Main Product Family
Frequently Asked Questions
Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than expected requirements.
Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products depending on the specific model and requirements.
How to proceed an order for led light?
Firstly let us know your requirements or application. Secondly We quote according to your needs. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange production.
