LED Backup Light, LED Emergency Recessed Downlight
Product Description
Basic Specifications
Product Overview

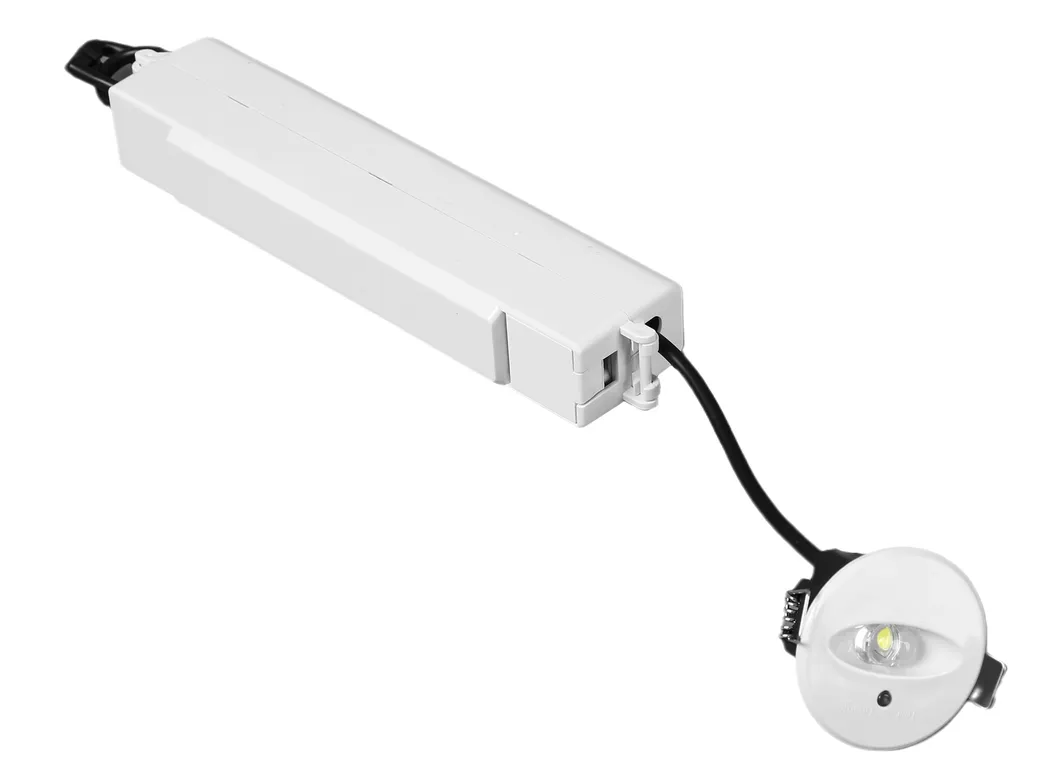

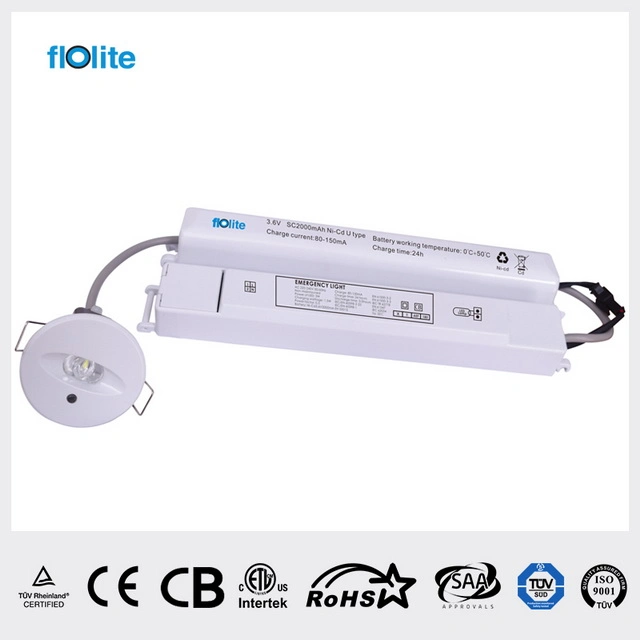

CB Approved 3W LED Emergency light with Ni-Cd batteries - 3 Hours Backup Duration
Compliance & Standards
| EN 60598-1 | EN 61000-3-2 | IEC 60598-1 | IEC 61000-3-2 |
| EN 60598-2-22 | EN 61000-3-3 | IEC 60598-2-22 | IEC 61000-3-3 |
| EN 61347-1 | EN 62471 | IEC 61347-1 | IEC 62471 |
| EN 61347-2-13 | EN 62493 | IEC 61347-2-13 | IEC 62493 |
Technical Parameters
| Battery: Ni-Cd, 3.6V 2000mAh | LED Chips: CREE XT-E |
| Power Consumption: 3W | Input Voltage: AC220-240V~50/60Hz |
| Emergency Duration: 3 Hours | Function: AUTO Test |

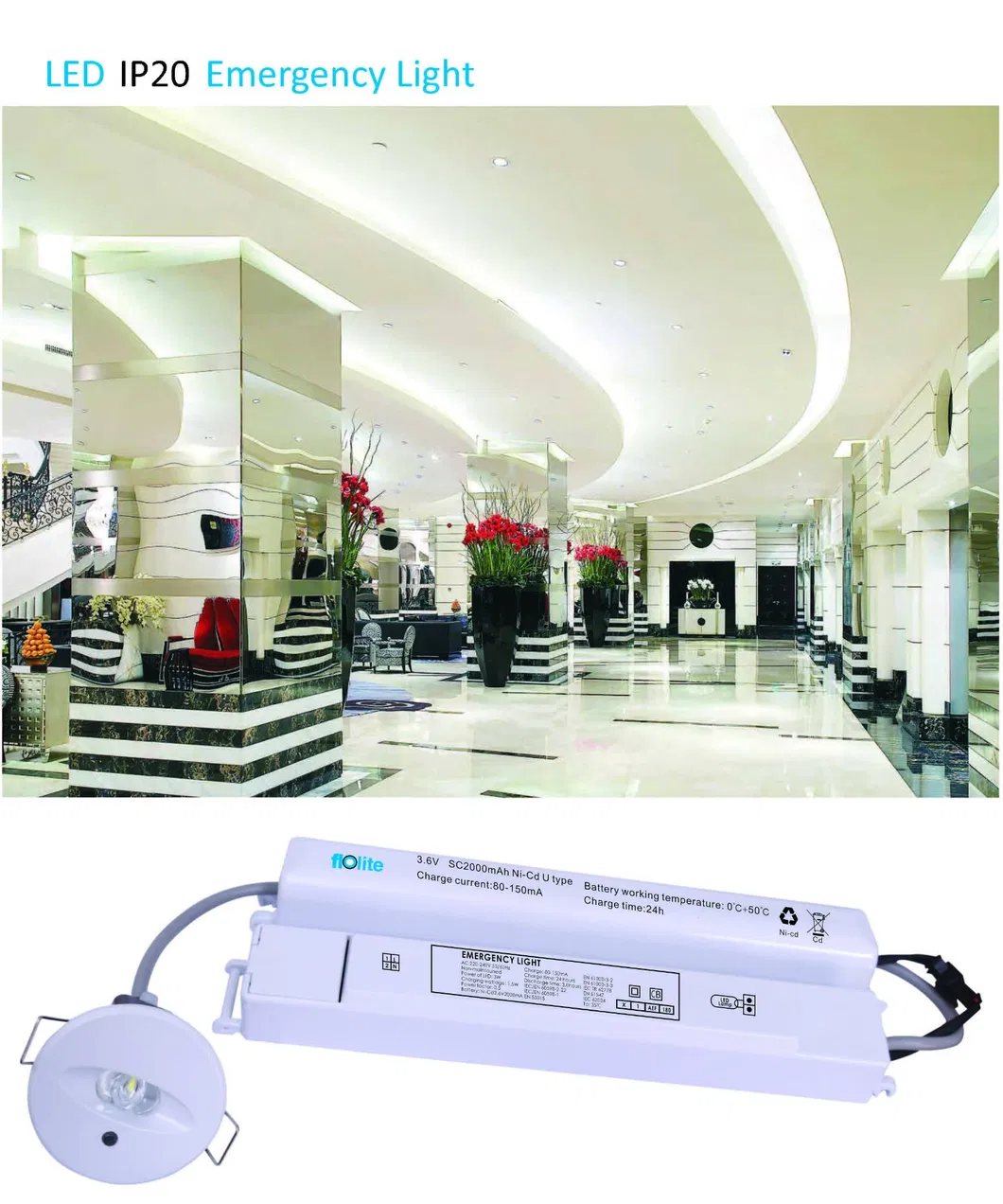

| Protection Class: II | IP Rating: IP20 |

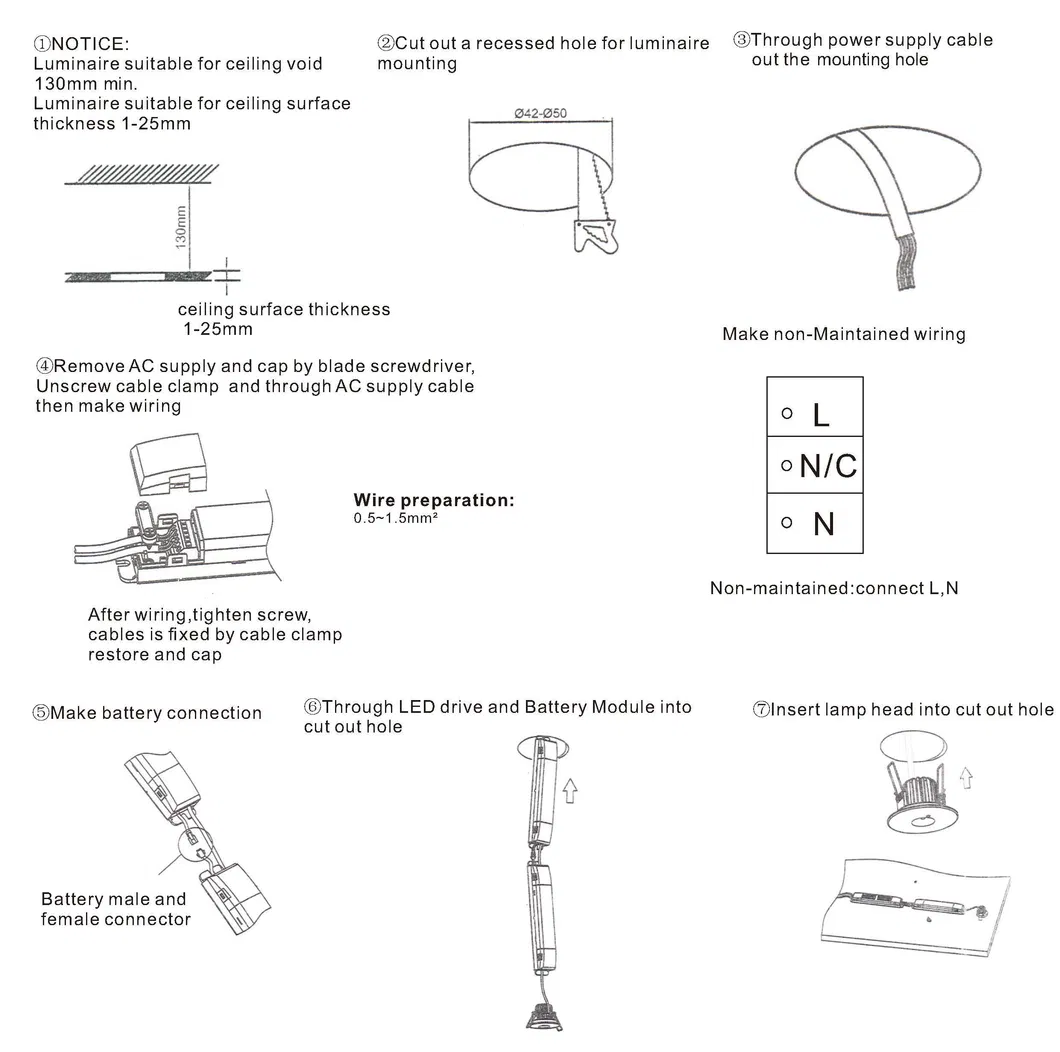

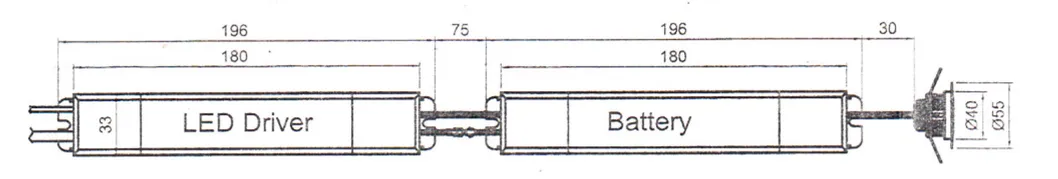

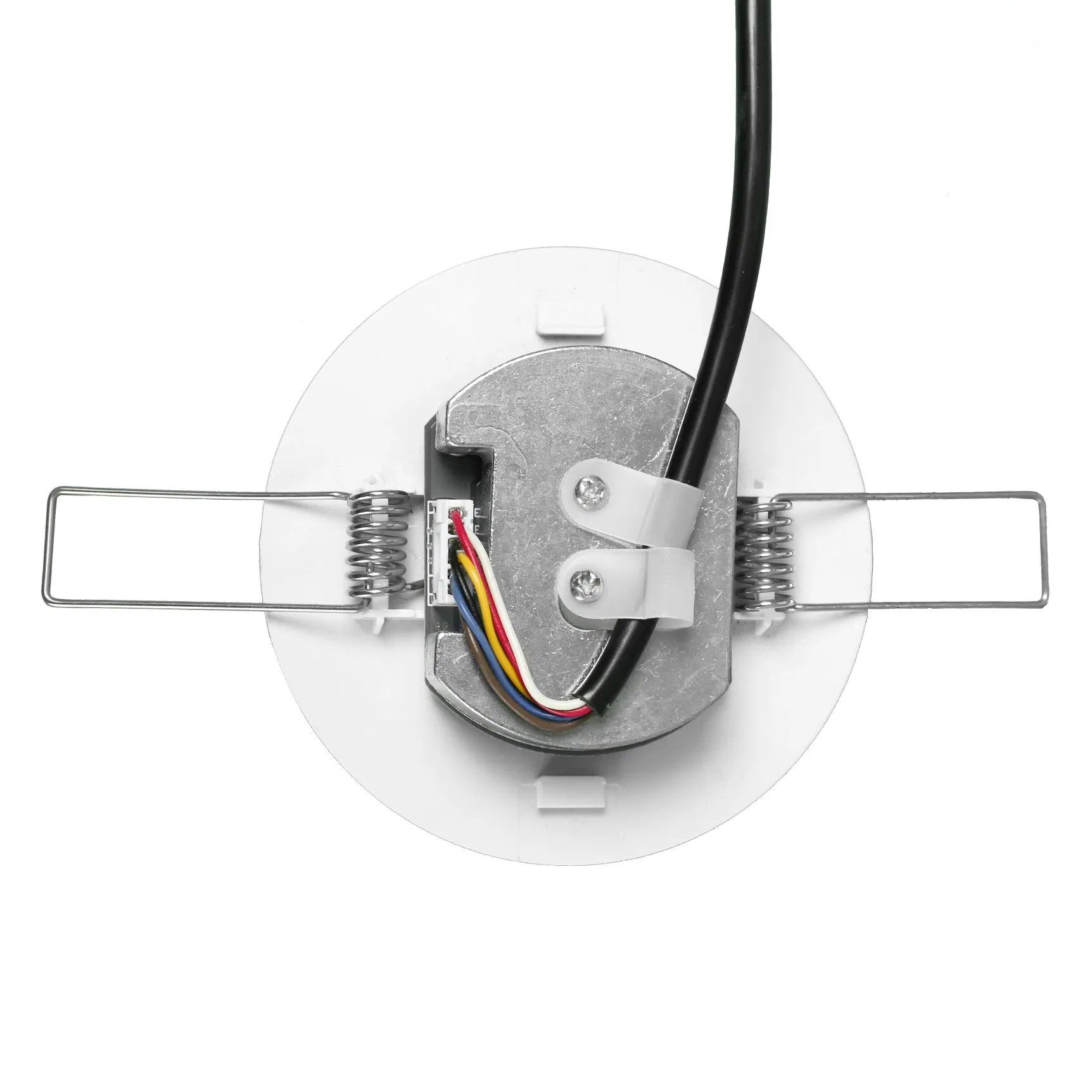

Dimensions & Installation
Wire Preparation: 0.5 ~ 1.5mm²
Cutout Hole: 40mm diameter
Smart AUTO Test System
| LED Indication | Status | Description |
|---|---|---|
| Permanent Green | Normal | System working correctly |
| 1 Flash (4s pause) | Battery Failure | Battery disconnected |
| 2 Flashes (4s pause) | Battery Failure | Short circuit or low voltage |
| 3 Flashes (4s pause) | Load Failure | LED failure |
| Green/Red Off | DC Mode | Emergency mode (battery operation) |
Safety & Installation Notes
Frequently Asked Questions
The LEK02-3NC provides a full 3 hours of emergency light backup using its high-capacity Ni-Cd battery.
Yes, it features an AUTO Test function that performs weekly functional checks and quarterly full-duration tests to ensure reliability.
The bi-color LED indicates system status: solid green for normal operation, and various flashing patterns to signal battery or load failures.

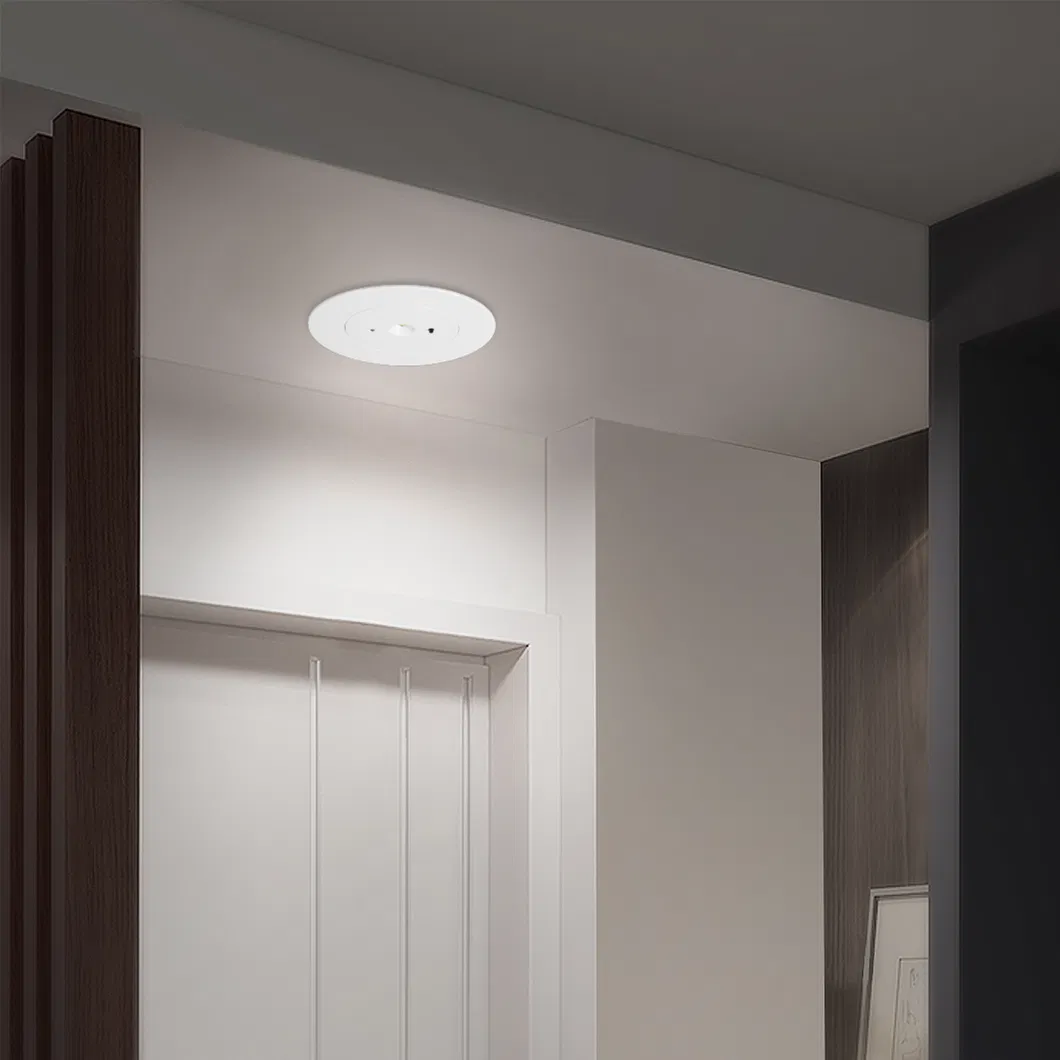

The light is designed for a standard 40mm cutout hole, making it ideal for discreet recessed mounting.
Yes, this model utilizes premium CREE XT-E LED chips, known for their efficiency and long-lasting performance.
We provide a 4-year warranty on this emergency light, covering its performance and safety standards.
