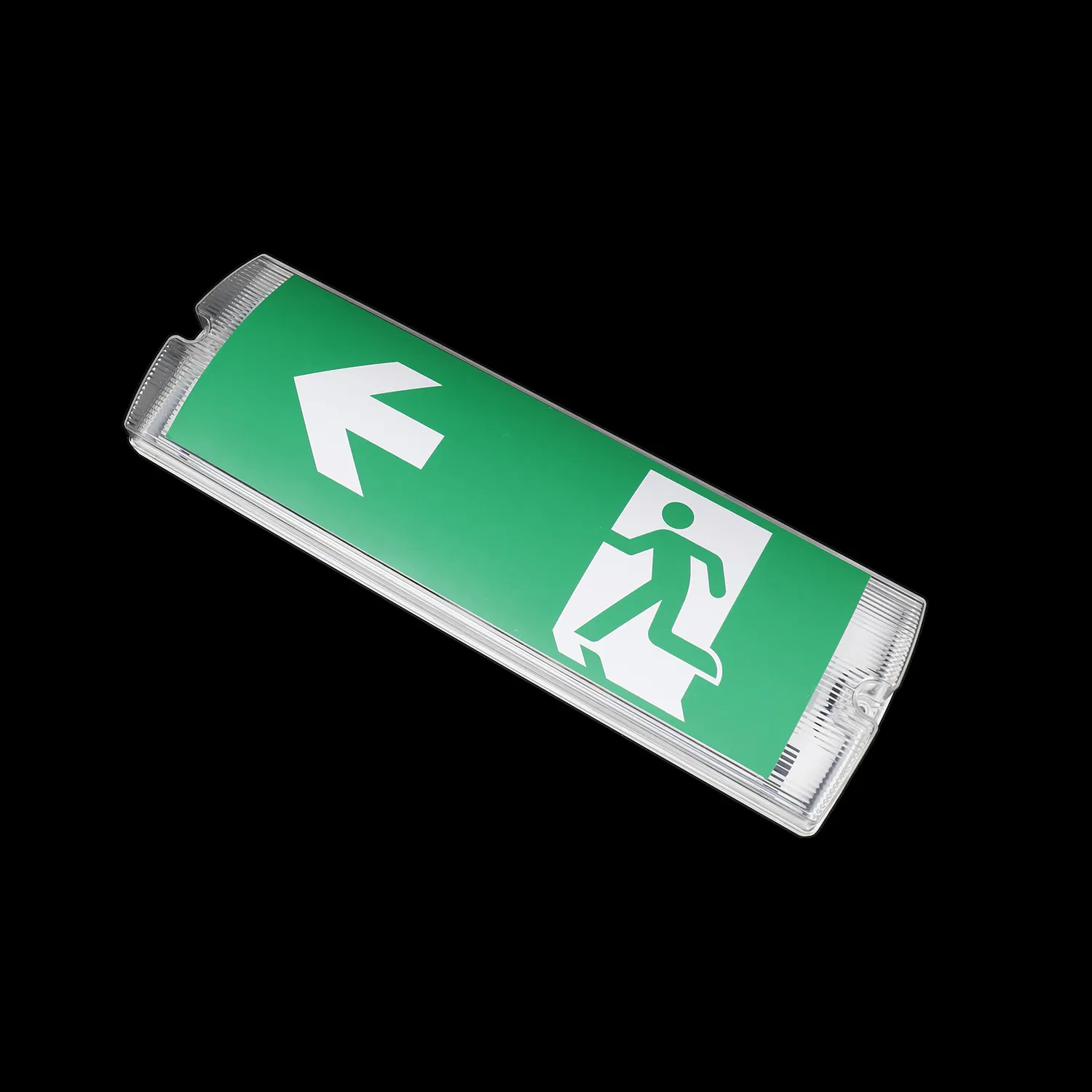

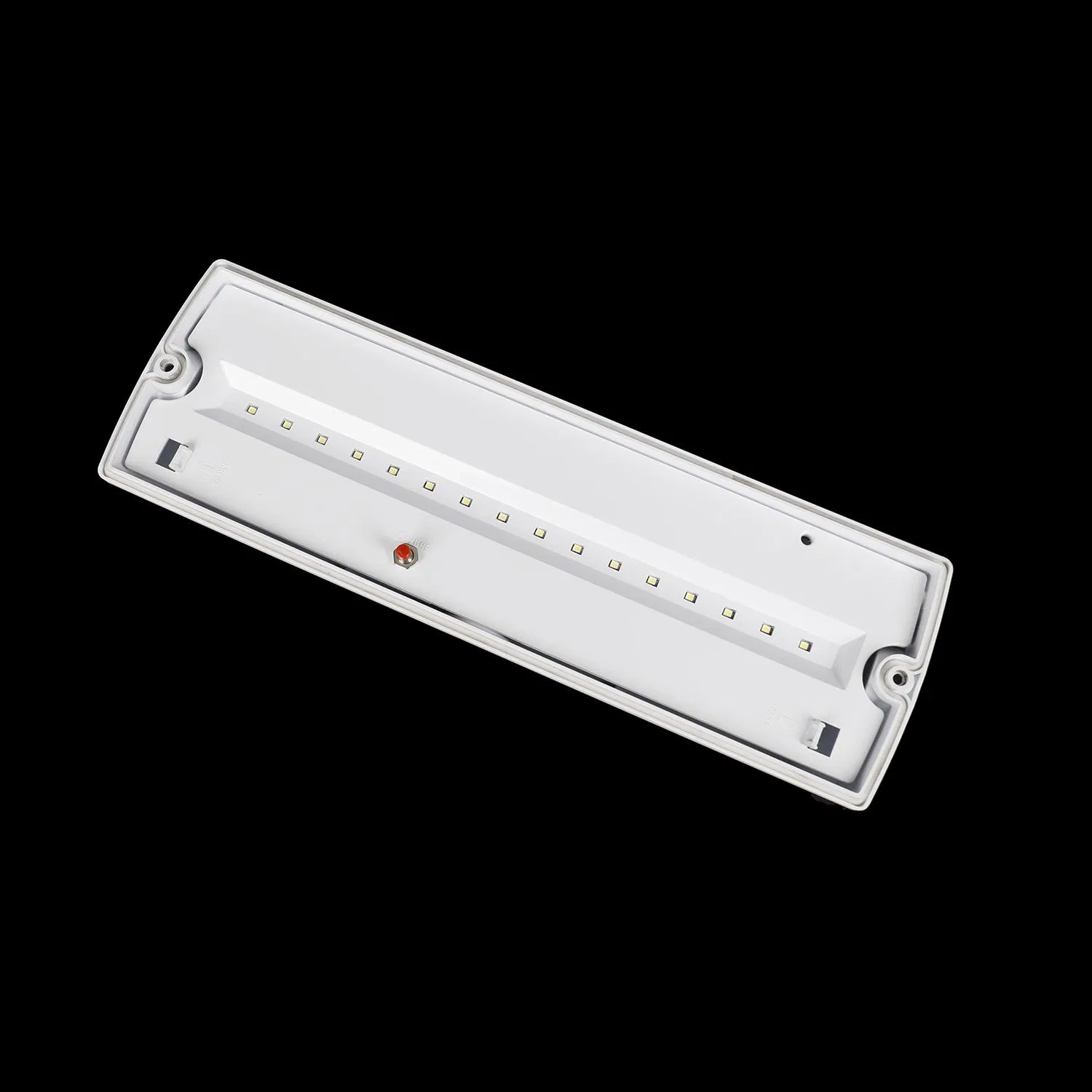

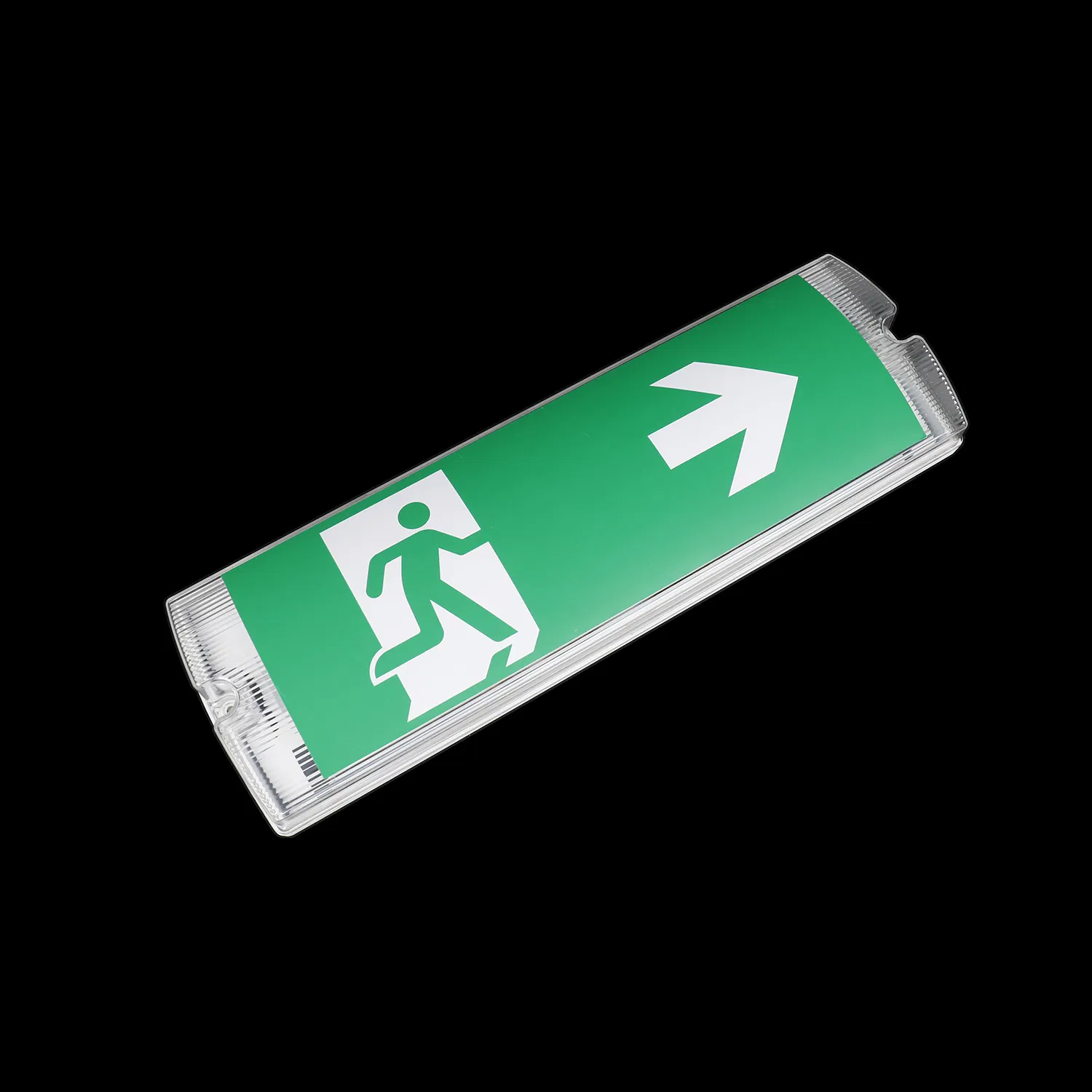

CE/CB/Ukca Certified IP65 Waterproof LED Emergency Bulkhead, Battery 3hours Backup, Rechargeable Emergency Exit Sign Light Lel03-7L
Product Description
i
Basic Information
Model NO.LEL03-7L
InstallationSurface/Wall Mounted
Color TemperatureCool White
IP RatingIP65
Operation ModeMaintained
Battery TypeLi-ion
MaterialPlastic
CertificationCE, RoHS, CB, Ukca
Warranty4 Years
Specification36.5*18*7cm
Production Capacity3000PCS/Day
HS Code9405429000
L
Product Description
Key Parameters:
- IP65 LED Emergency Bulkhead Light
- 14LEDs SMD3528 1W/LED
- 3.7V 1800mAh Li-ion Battery
- 3 hours emergency duration
- 24 hours recharging time
- CE-LVD/CE-EMC/UKCA/CB Certificate
- 4 Years warranty
|
Name | LEL03-7L |
| Housing | ABS | |
| Diffuser | PS | |
| Input Voltage | 220-240VAC 50/60Hz | |
| Power (AC) | 7W | |
| Power (Emergency) | 3W | |
| Lumen (AC) | 420lm | |
| Lumen (Emergency) | 220lm | |
| Mode | Maintained | |
| Viewing distance | 32m | |
| Led Q'ty | 14led SMD2835/1w | |
| Charging time | 24Hrs | |
| Duration | 3Hrs | |
| Battery | Li-ion 3.7V 1800mAh | |
| Working Temp. | 0ºC ~ +40ºC |
S

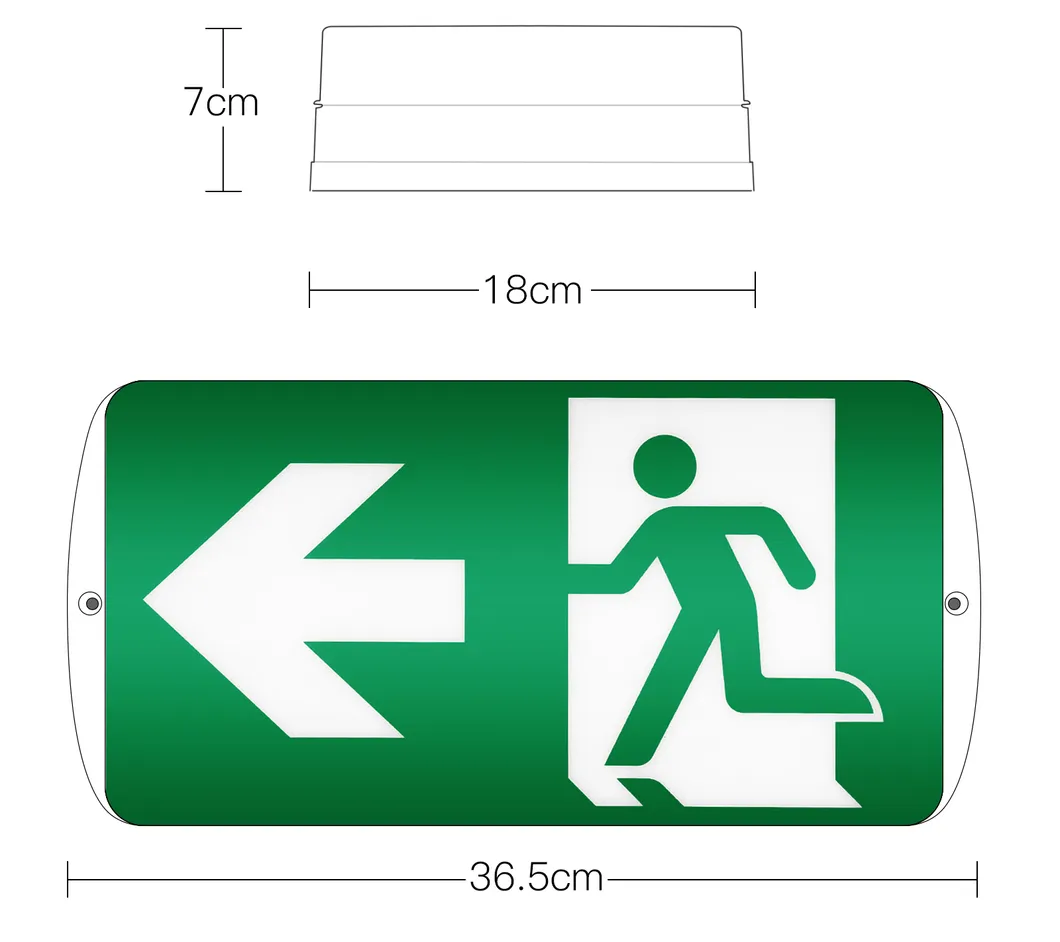

Dimension & Standards
Packaging: QTY: 10PCS/CTN | MEAS: 39x37.5x38.0CM
Relevant Standard: Manufactured to comply with IEC/EN60598-2-22, IEC/EN60598-1
F

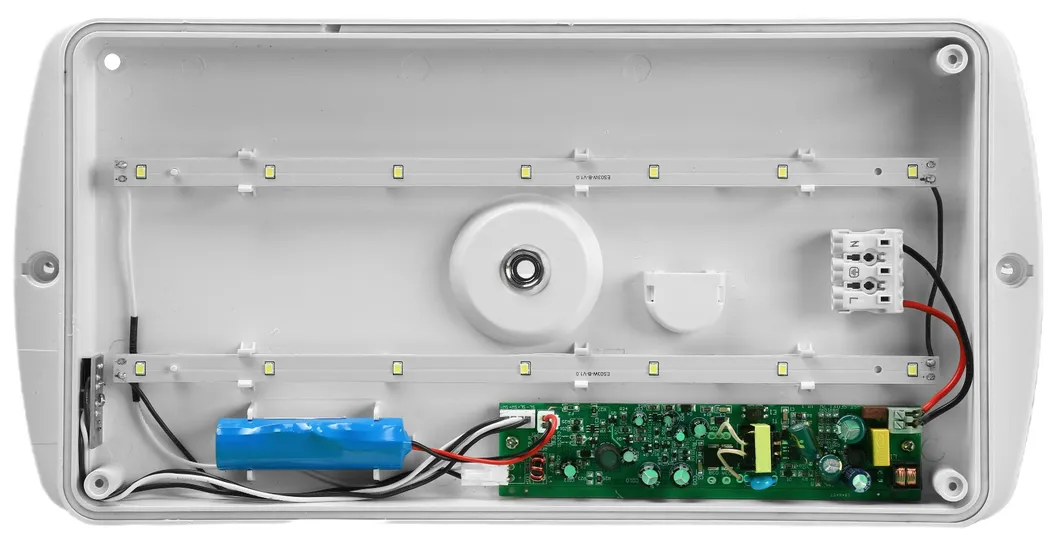

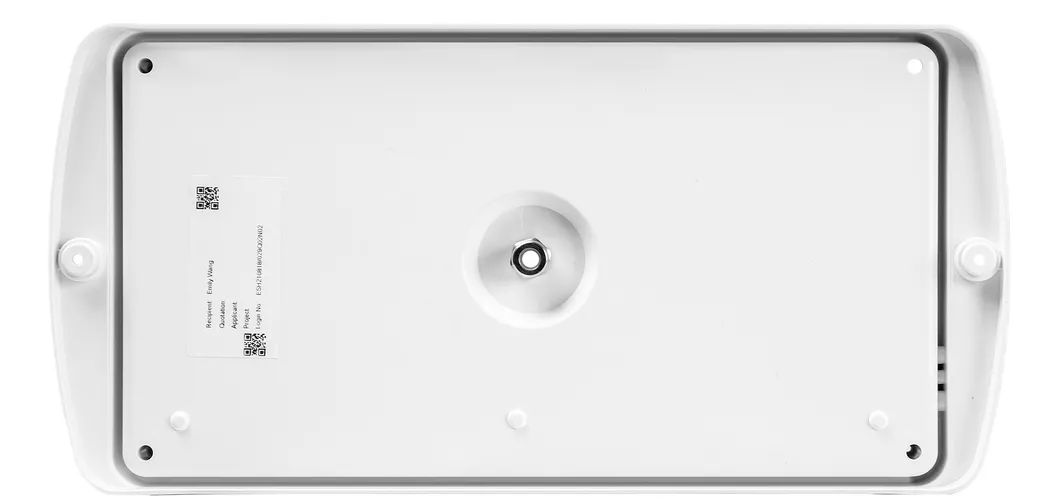

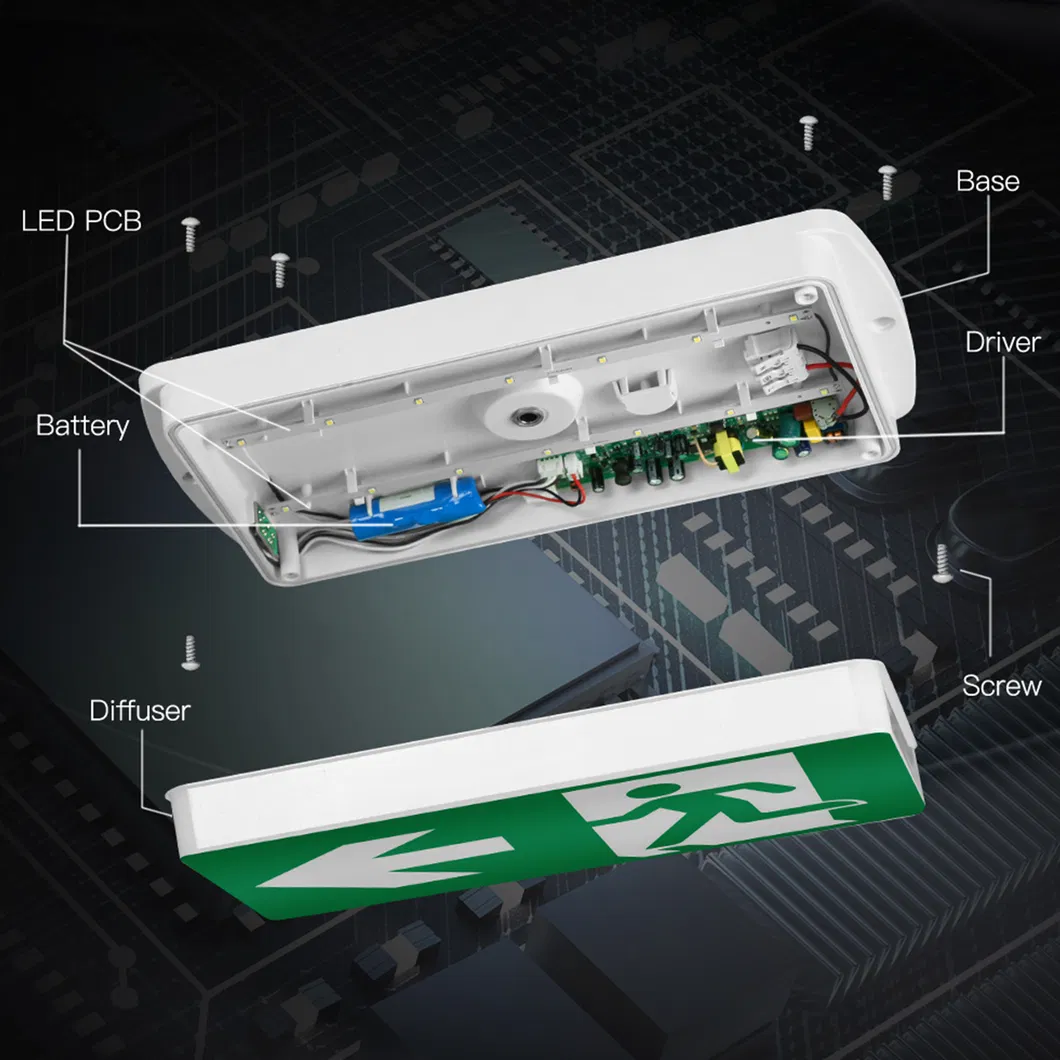

Product Features
M

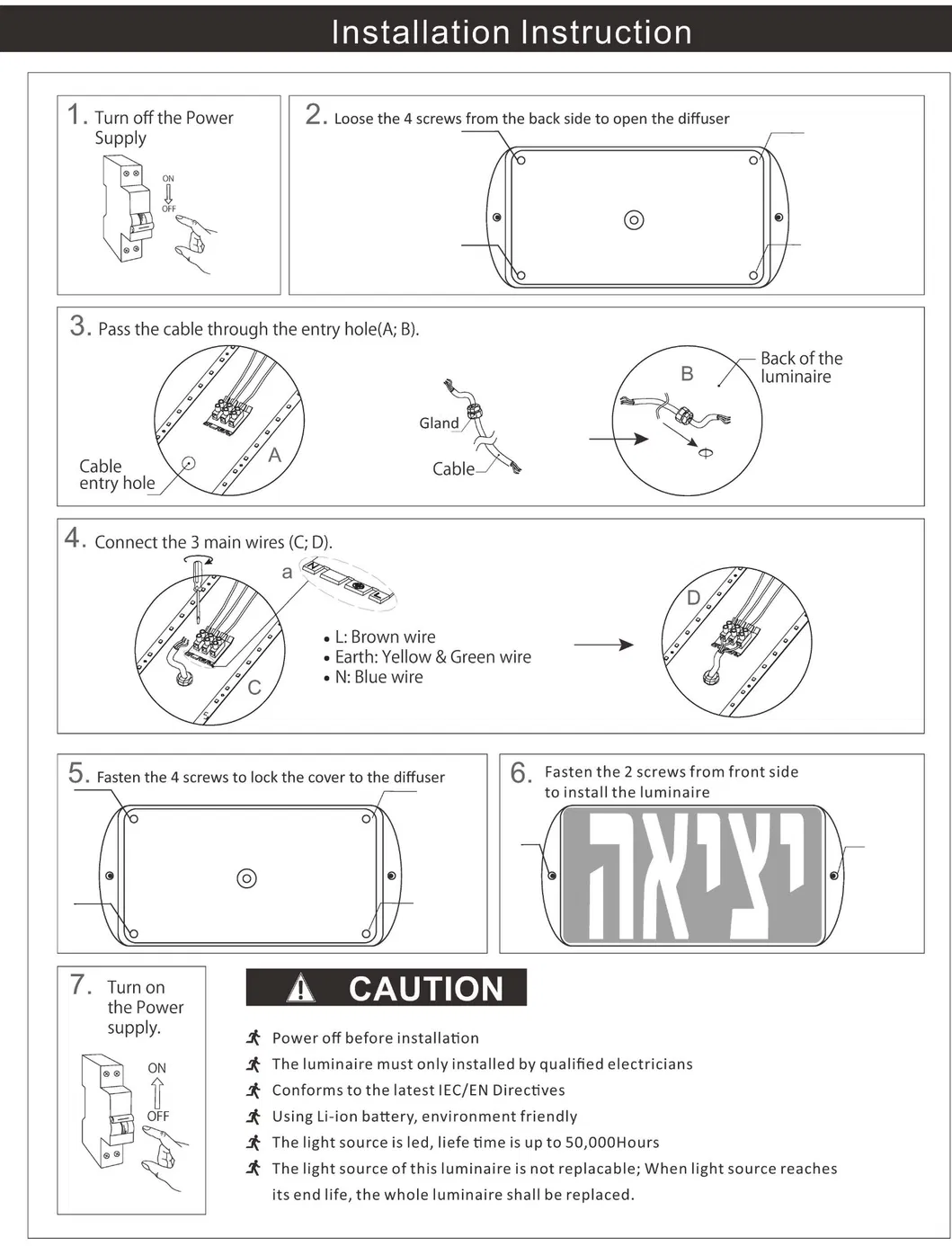

Installation Guide
A

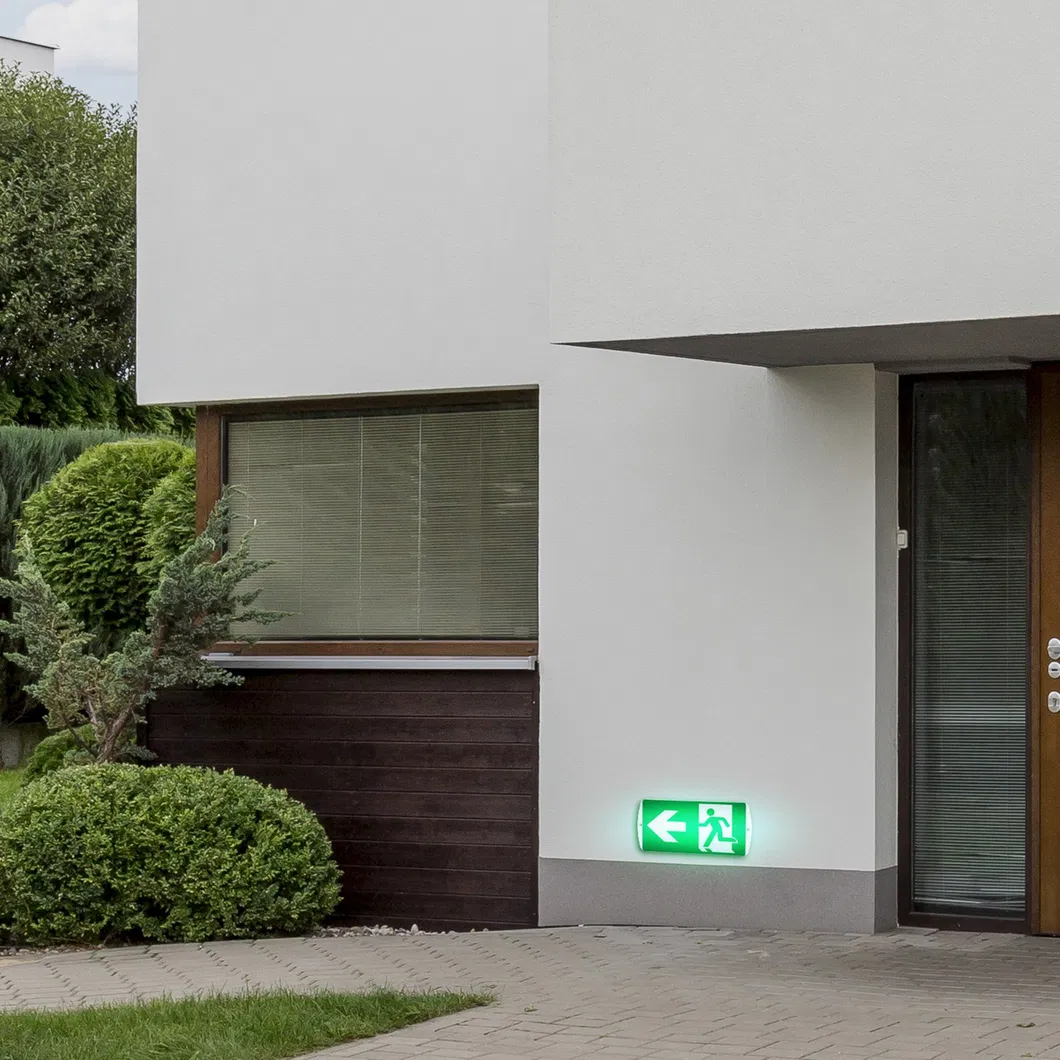

Application Scenarios
?
Frequently Asked Questions
What is the emergency duration of this bulkhead light?
This emergency light provides a minimum of 3 hours of illumination during a power outage.
Can this light be used outdoors?
Yes, it has an IP65 rating, making it dust-tight and protected against water jets, suitable for both indoor and outdoor wall-mounted installation.
What type of battery is included and how long does it take to charge?
The unit uses a 3.7V 1800mAh Li-ion battery and requires approximately 24 hours for a full recharge.
Does this product support Maintained operation mode?
Yes, the LEL03-7L is designed for Maintained mode operation, meaning it can stay on during normal power conditions and stay on during emergencies.

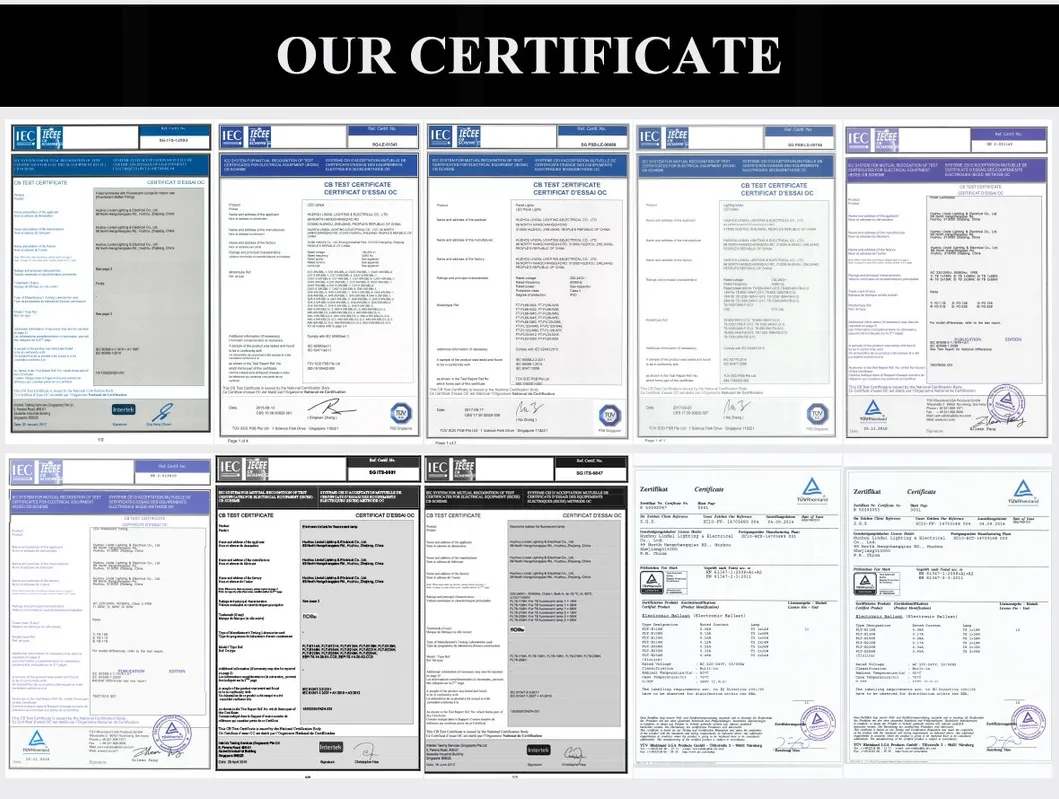

What certifications does the product hold?
The product is fully certified with CE (LVD/EMC), RoHS, CB, and UKCA, ensuring compliance with international safety standards.
What is the warranty period for this emergency light?
We provide a 4-year warranty for this model, reflecting its high-quality construction and durability.
