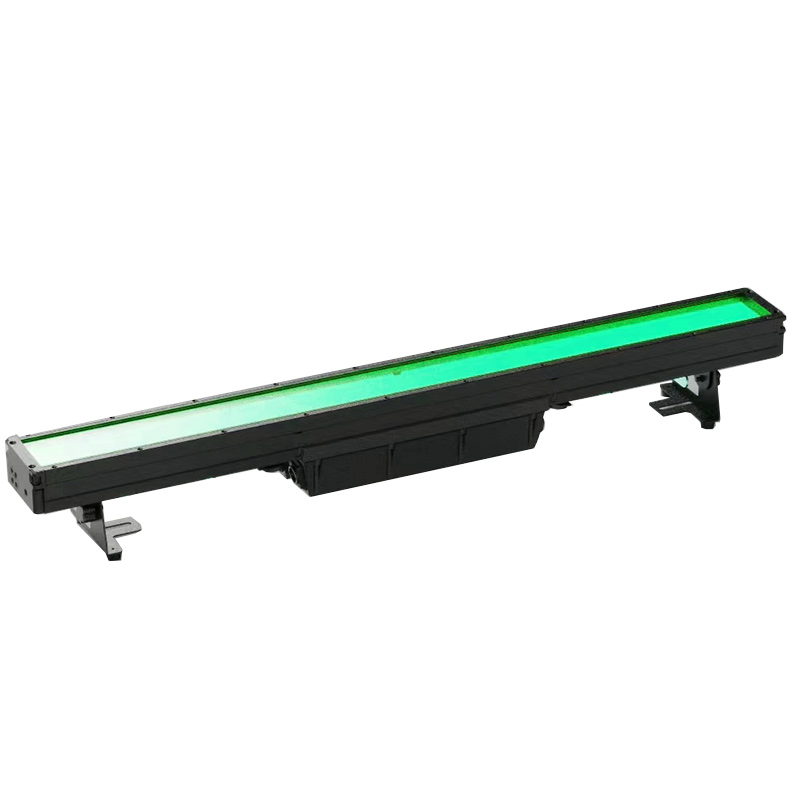

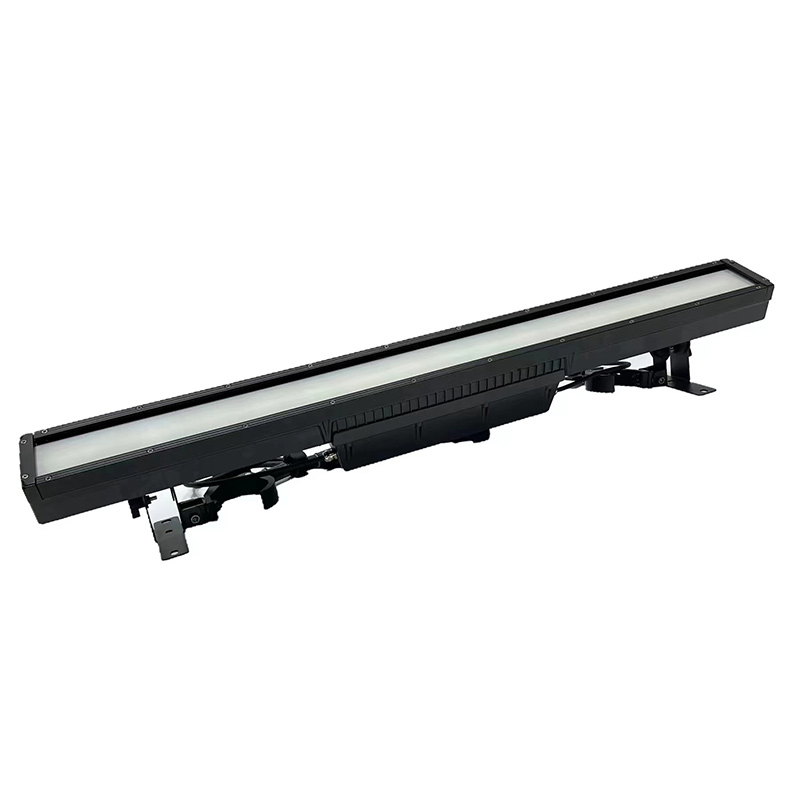

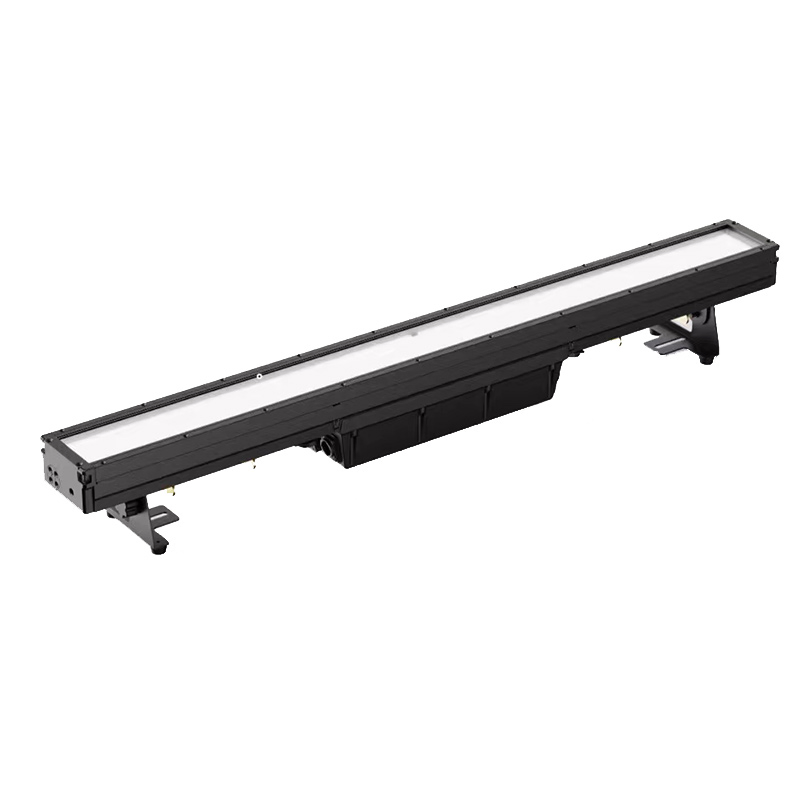

LED Stage Light Waterproof Bar Light Background Party Disco Wedding DJ LED Strobe Bar LED Pixel Line Light
Product Description
i
Basic Specifications
Model NO.
PIXEL LINE IP
Application
Stage, Dance Effect Lights, Film and Television
IP Rating
IP67
Certification
CE, RoHS, CCC
Net Weight
7.7kg
Gross Weight
8.7kg
Specification
1000 x 102 x 149 mm
HS Code
940540900
P
Product Description

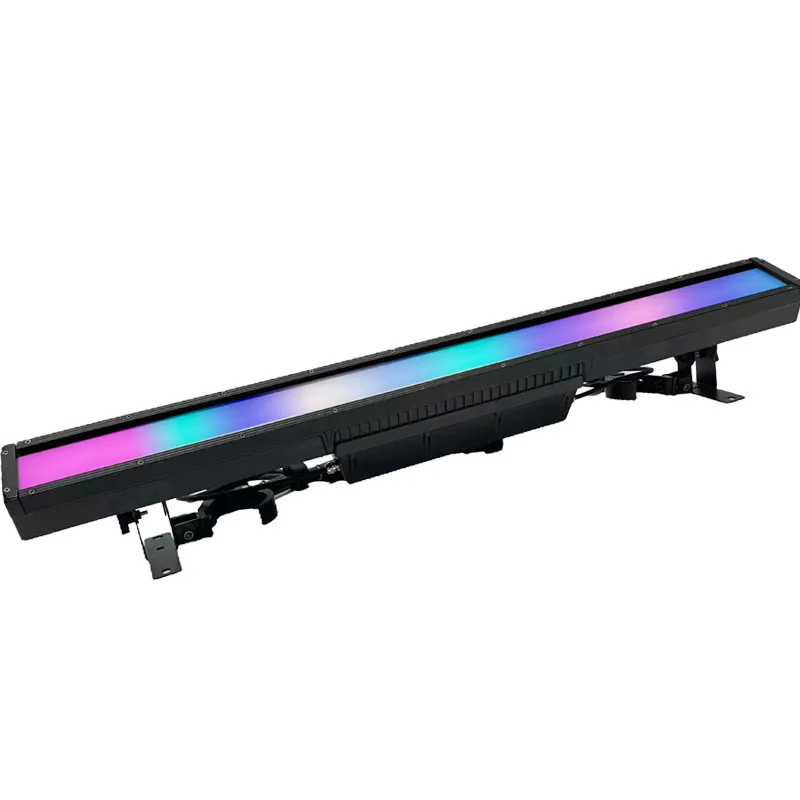

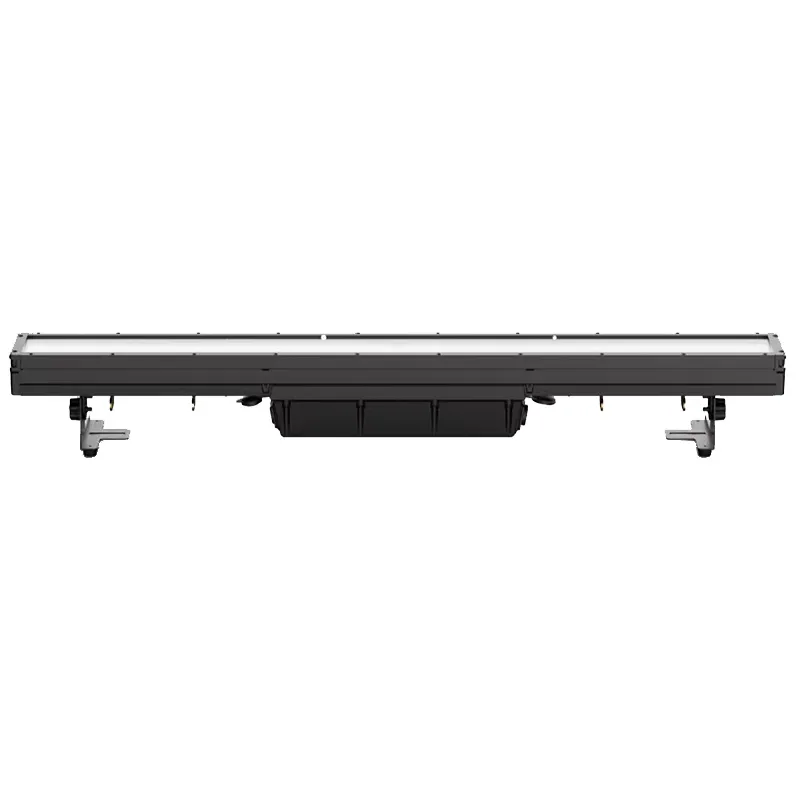

The PIXEL LINE IP strip light is a high-performance fixture designed for both indoor and outdoor applications. With its compact size, lightweight build, and IP66 rating, it offers uniform colors and exceptional versatility for any production environment.
Powered by 672 RGBW LEDs (divided into 32 sections) and 112 cool white LEDs (divided into 16 sections), this unit provides intense strobe effects and dynamic color mixing. It features patented Smart Glass Technology, allowing it to switch from a standard strip light to a soft frost mode via DMX, eliminating the need for external filters.
★
Key Features
- High-Density LED Array: 672pcs 0.5W RGB LEDs and 112pcs 3W CW LEDs.
- Precision Control: RGB controllable in 32 sections; CW in 16 sections.
- Wide Coverage: RGB beam angle of 101° and field angle of 149°.
- Smart Glass Technology: DMX-controllable frost effects for seamless transitions.
- Flexible Installation: Tool-less connection system for side-by-side mounting.
- All-Weather Performance: IP66/IP67 rating for robust outdoor durability.
⚙
Technical Specifications
Light Source & Optics
LEDs
672 x 0.5W RGB, 112 x 3W CW
Field Angle
RGB: 149°, CW: 152°
Control & Programming
Protocols
DMX512, RDM
DMX Modes
11 Modes (7 to 117 channels)
Display
OLED display with 4 touch buttons
Electrical & Physical
Power
100-240VAC, 420W Consumption

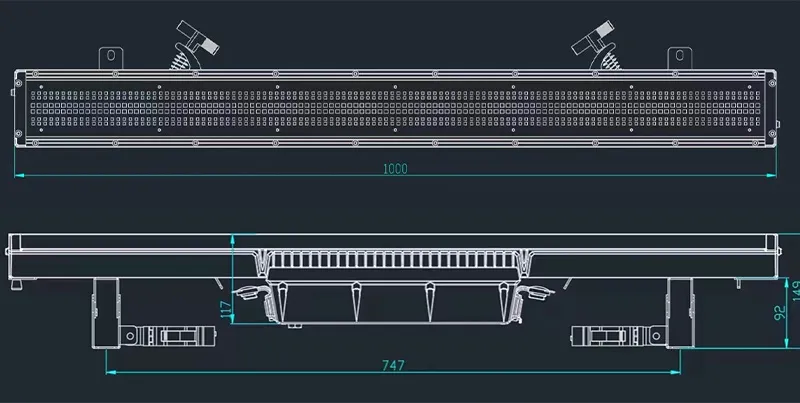

Dimensions
1,000 x 102 x 149 mm
Environment
IP66, Operating Temp: -10°C to 40°C
?
Frequently Asked Questions
What is the advantage of the Smart Glass Technology?
It allows the user to switch between a clear strip light and a soft frost light mode instantly via DMX control, removing the need for physical frost filters.
Is the PIXEL LINE IP suitable for outdoor use?
Yes, it features an IP66/IP67 rating and waterproof power/data connectors, making it fully protected against dust and heavy rain.
How many individual sections can be controlled?
The fixture allows for high-granularity control with 32 controllable RGB sections and 16 controllable white LED sections.
What mounting options are available?

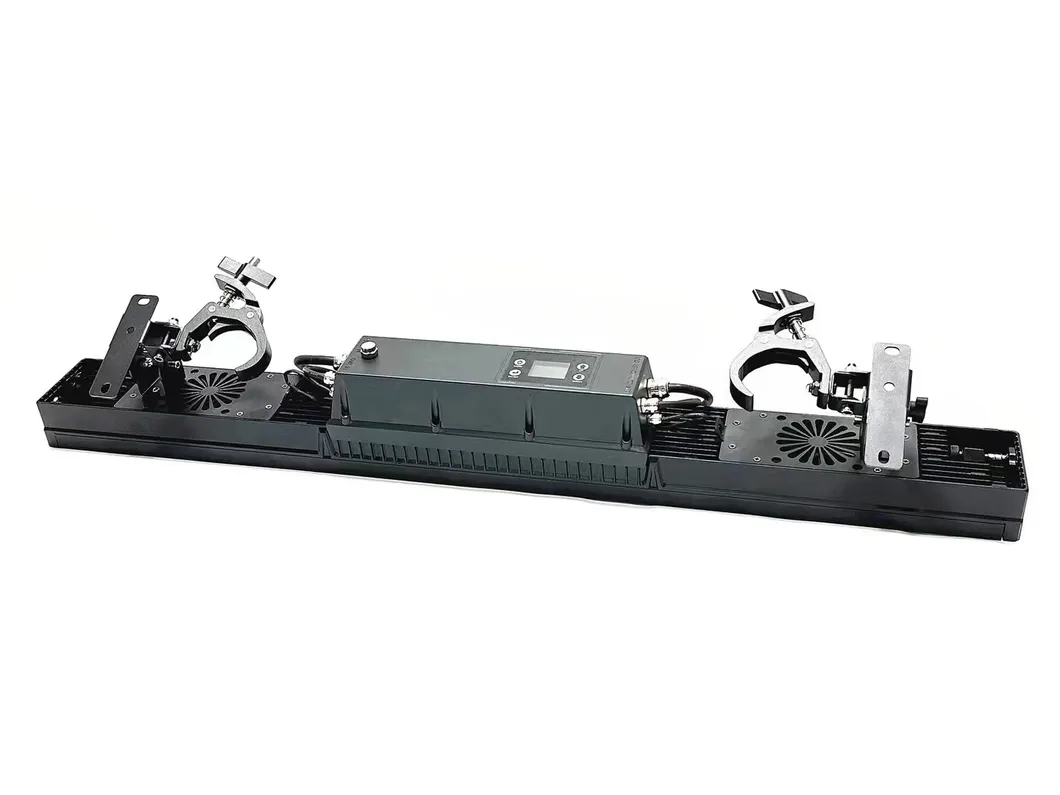

It can be mounted horizontally or vertically using foldable fixed clamps or omega brackets. It also features a tool-less side-by-side connection system.
Does the fixture support RDM?
Yes, the PIXEL LINE IP supports DMX512 and RDM protocols for easy remote management and configuration.
What is included in the package?
The standard package includes the PIXEL LINE IP fixture, a digital user manual, a waterproof power cable, and adjustable mounting clamps.
