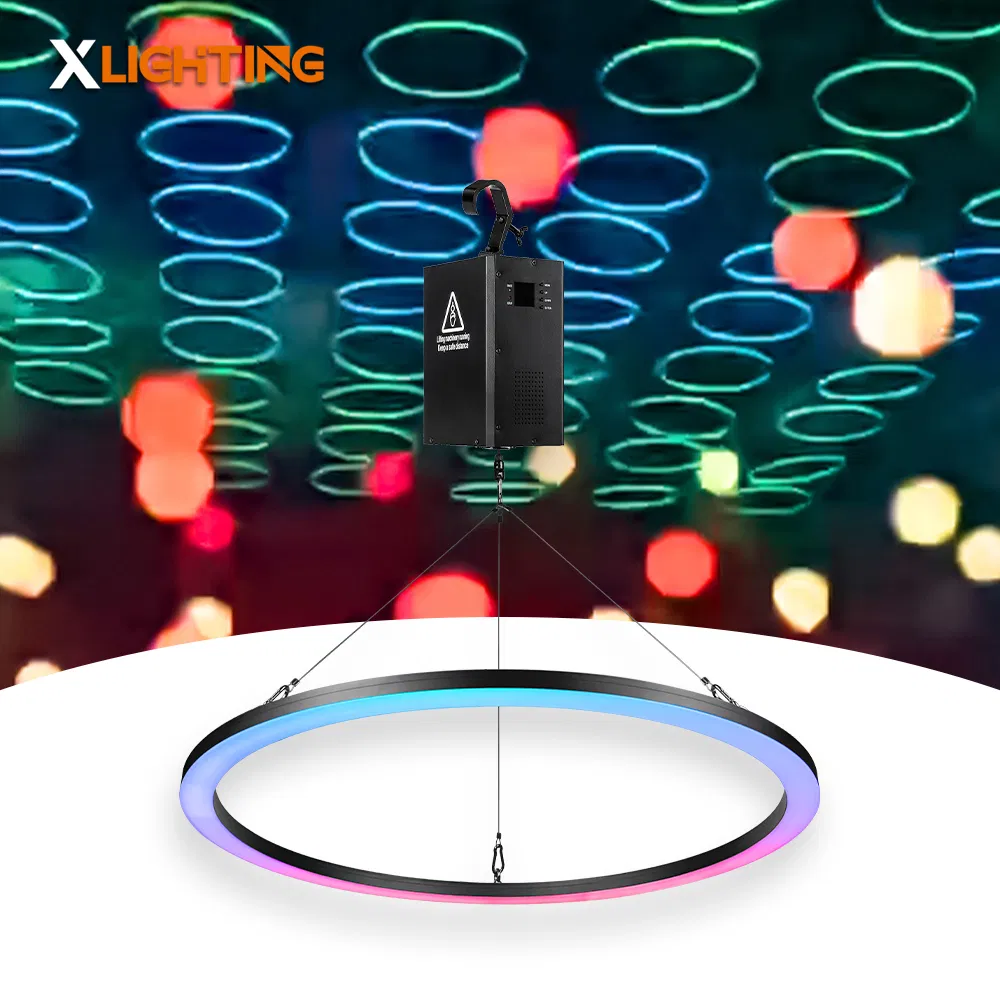

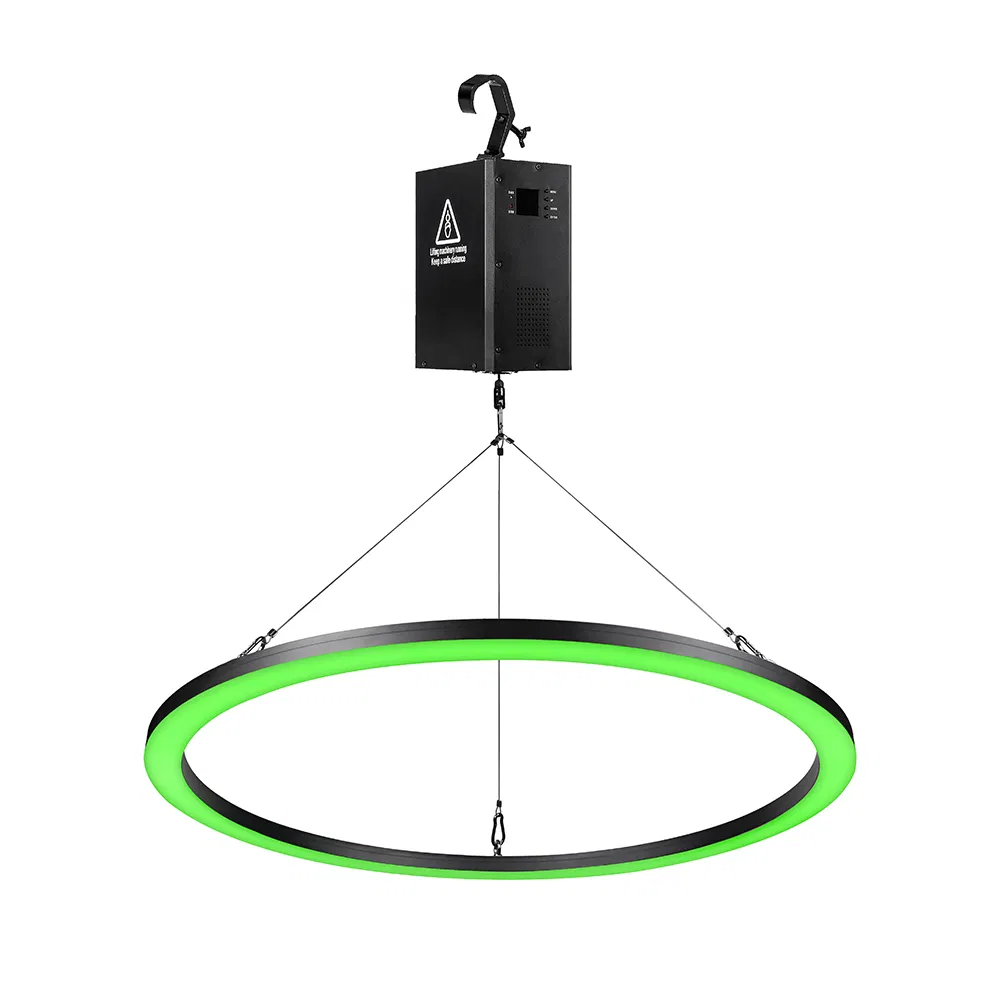

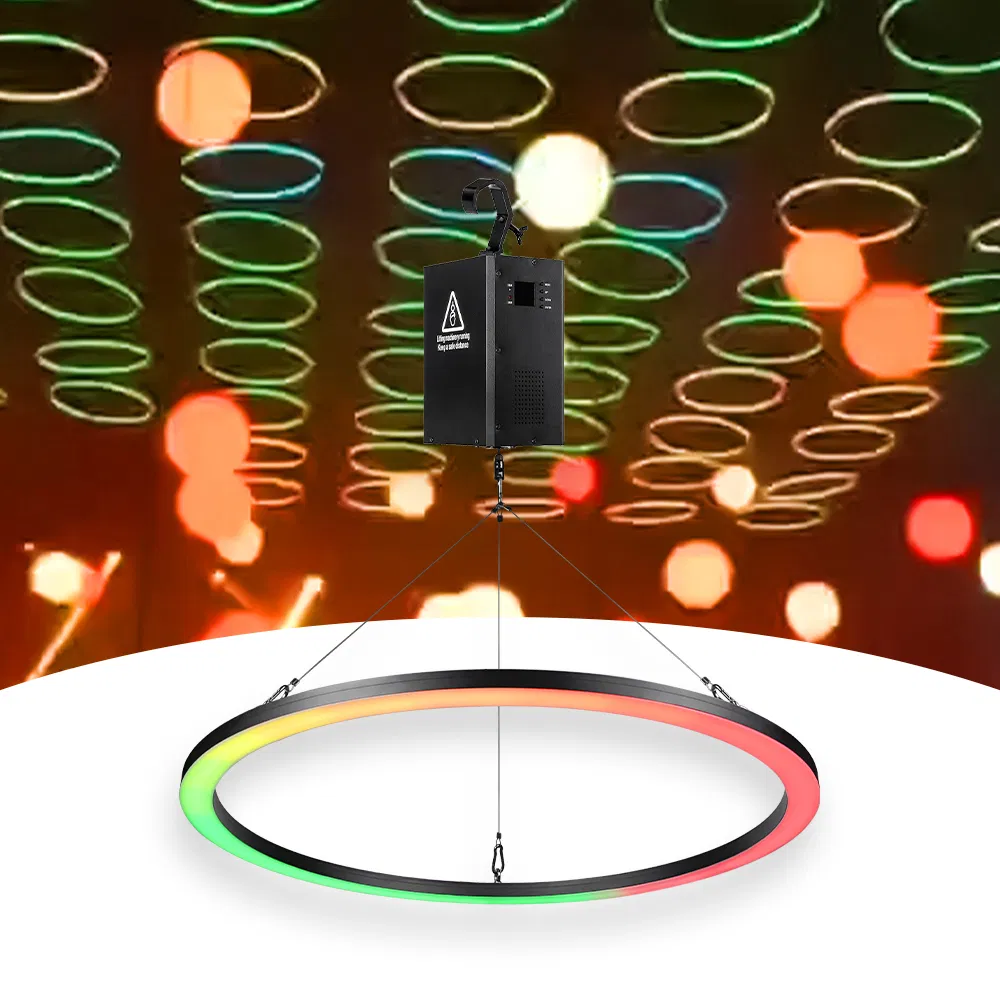

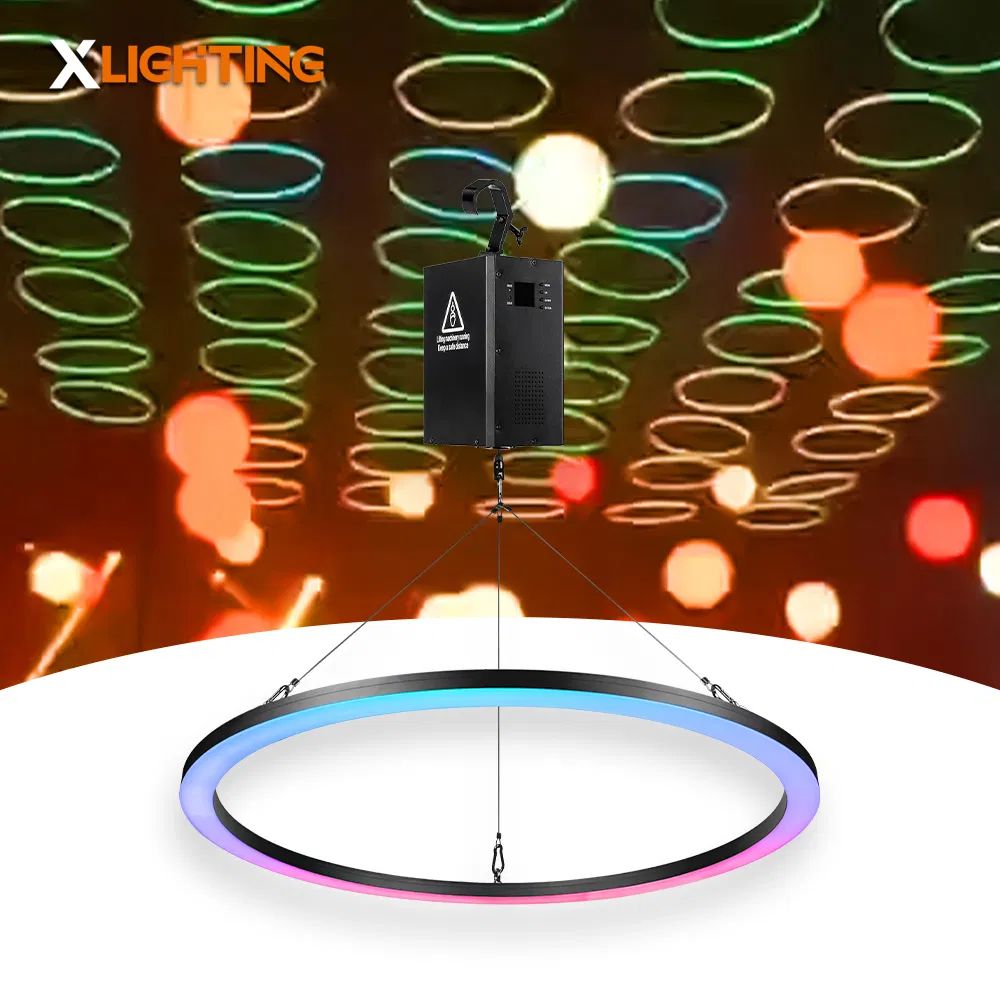

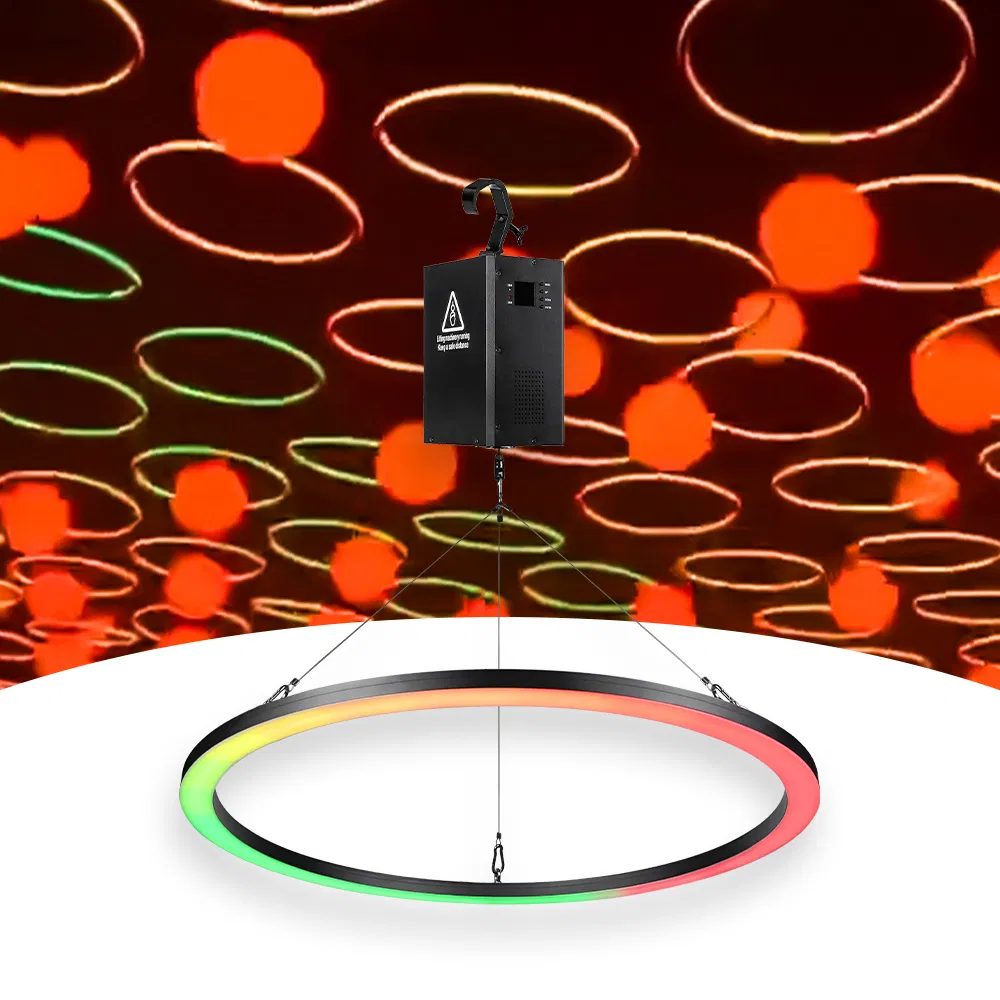

LED Stage Lights Kinetic Winch System Kinetic Light Ring for DJ
Product Description
Technical Specifications
Model NO.
X-K17E
Certification
CE, RoHS
Item Name
Stage Lights Kinetic Winch System
Dimmer
0-100% Linear Dimming
LED Ring Size
D80cm / 1.5kg
Lifting Height
0-9m (Customizable)
Control Channel
8/80CH
Control Model
DMX / Software
Light Source
144PCS RGB SMD LEDs
Motor
Silence Motor
Fall Protection
Physical Braking & Electronics
Warranty
1 Year
Product Overview
LED Kinetic Lights, also known as dance balls, are specialized lighting systems primarily used for film and television, high-end performances, entertainment venues, hotels, and exhibition halls. By adopting DMX512 signal control and equipped with high-speed, silent motors, the system allows for precise programming of lifts and movements.

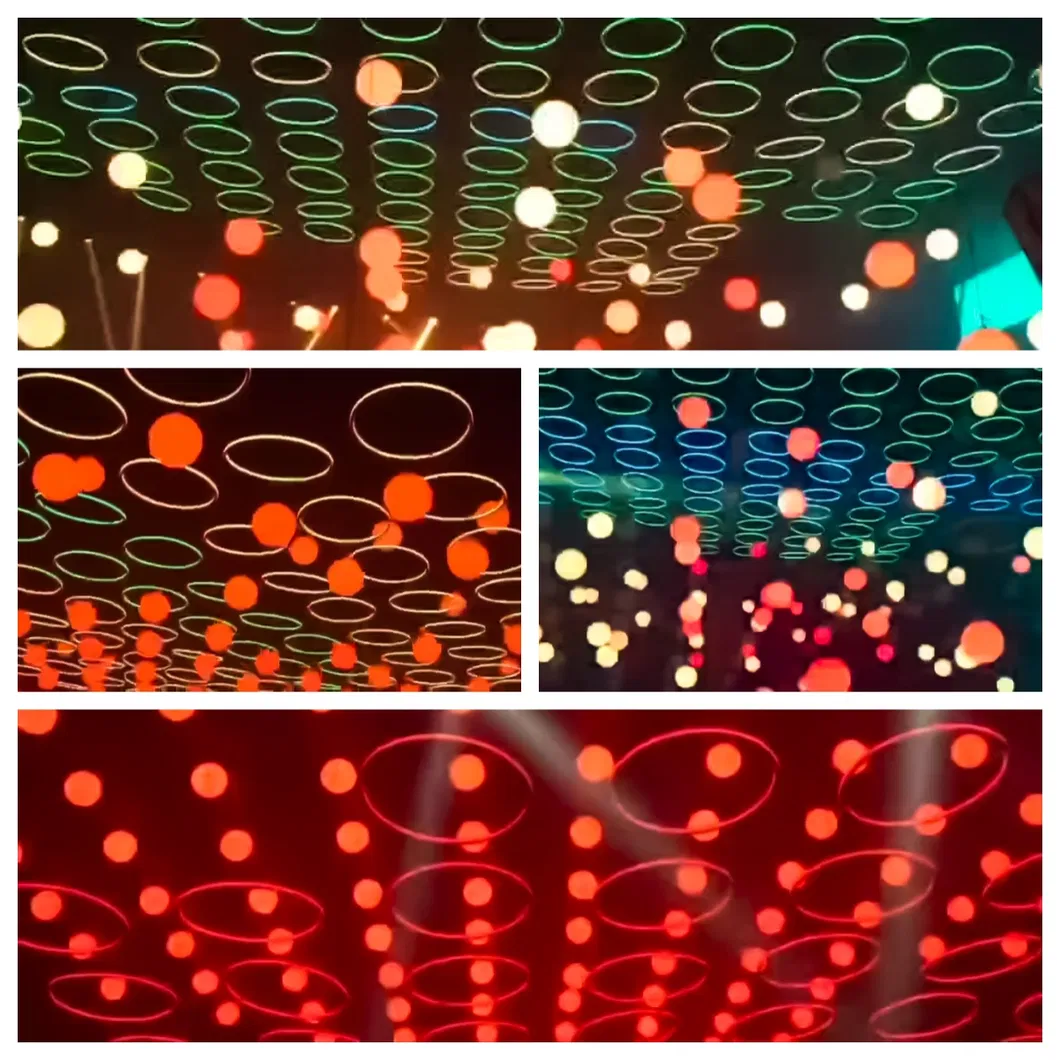

Through seamless color matching and lifting movements, you can create dynamic patterns, flowing clouds, and colorful visual effects that capture attention and become the centerpiece of any professional venue.
⚡
Energy-Efficient and Reliable
With a power rating of only 150W, the X-K17E offers exceptional brightness with minimal energy consumption, significantly reducing electricity costs for long-running events.
With a power rating of only 150W, the X-K17E offers exceptional brightness with minimal energy consumption, significantly reducing electricity costs for long-running events.
⚙️
Professional Control Compatibility

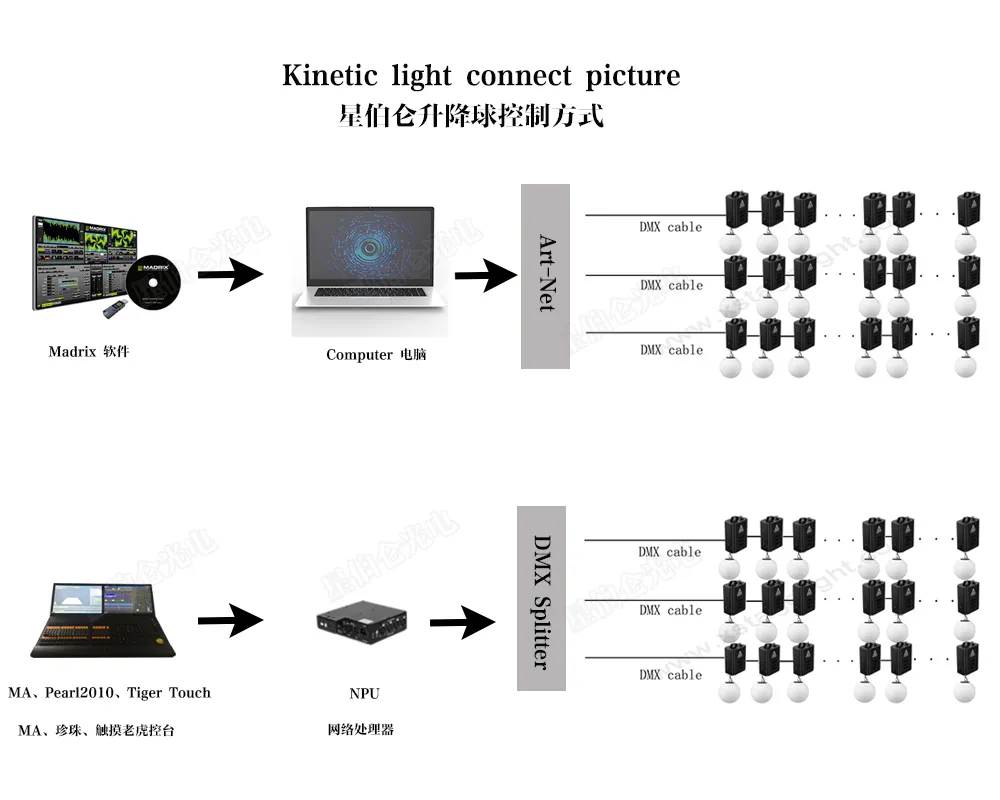

Full compatibility with DMX512 and professional software systems ensures smooth operation alongside existing stage equipment, allowing for enhanced lighting effects without overhauling setups.
Full compatibility with DMX512 and professional software systems ensures smooth operation alongside existing stage equipment, allowing for enhanced lighting effects without overhauling setups.
Detailed Parameters
| Voltage | AC 90/240V, 50/60HZ |
| Power | 150W |
| Winch Lifting Height | 1.5 / 3 / 6 / 9m |
| Led Ring Size | D80cm / 1.5kg |
| Display | Colorful display |
| Fall Protection | Physical Braking, Electronics Protection |
| Installation | Vertical hoisting |
| Connectors | 3 Pin / 5 Pin XLR connector in and out |
| Environment Temperature | -10ºC ~ 50ºC |
| Winch Case Material | Aluminum |
| Ball Material | PE |
| Chip | EUROPE |
| Quality | Most stable in the industry |
Frequently Asked Questions
What is the primary use of the Kinetic Winch System?
The system is mainly used for film and television productions, stage performances, entertainment venues, and exhibition halls to create dynamic, moving lighting patterns.
How is the lifting height controlled?
The lifting height (ranging from 0-9m) is controlled via DMX512 signal or professional software, allowing for precise up and down movement synchronized with music or effects.
What safety features are included?
The system includes professional fall protection featuring both physical braking and electronic protection to ensure safe operation during events.
Can the LED ring colors be customized?
Yes, the 144PCS RGB SMD LEDs allow for seamless matching of millions of colors and various programmed patterns through DMX control.
What certifications do these products hold?
Our products are fully compliant with CE and RoHS standards, making them suitable for the international market, including Europe and America.
Is the motor loud during operation?
No, the system is equipped with high-speed silent motors specifically designed for quiet environments like studios and theaters.
