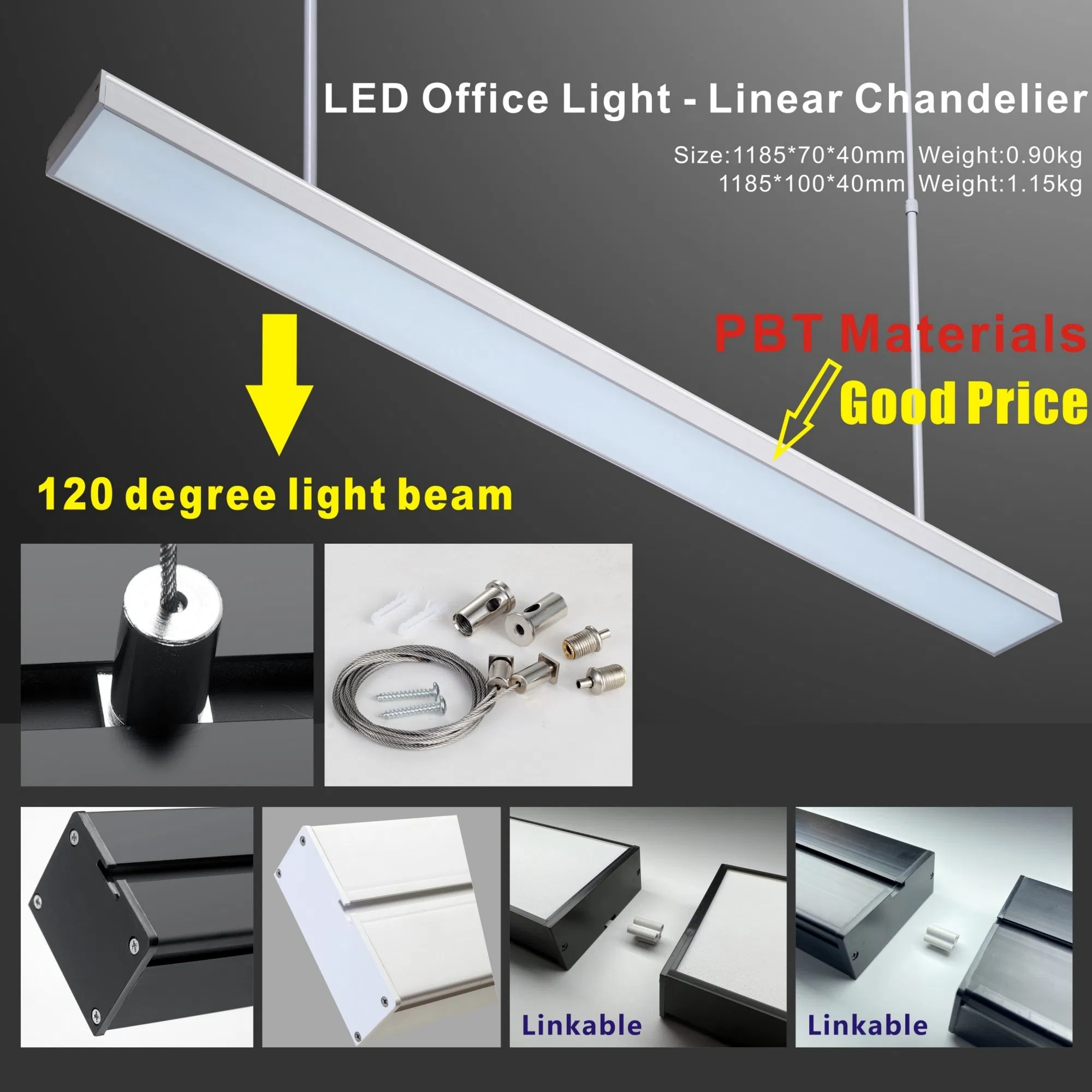

Commercial Indoor Lighting Linkable T8 Tube Chandelier Lamp Plastic Housing Surface Mounted Ceiling Suspended Batten Pendant LED Linear Light

Still deciding? Get samples of $ !
Order Sample

Product Description

Commercial Indoor Home Office Classroom School Corridor Lighting Linkable Tube Chandelier PBT Housing Ceiling Suspended LED Linear Pendant Light

📋 Basic Information
Model NO.
WD-DLX01-120B-48W
Cover Material
PC Cover
Style
Modern simplism style
Shape
Square
Base Material
PBT
Voltage
100~240V
Light Source
Included (SMD2835)
Beam Angle
120~180°
Certification
CE, RoHS
Power
36W / 46W
CCT
3000K-6000K Adjustable
HS Code
9405429000
💡 Key Features
PBT Housing: Lightweight and cost-effective material compared to aluminum.
PC Diffuser: High-quality PC cover for even light distribution.
Easy Installation: Simple DIY setup reduces installation costs.
Modern Design: Fashionable design, ideal replacement for T5/T8 tubes.
Versatile Mounting: Supports both suspended and surface-mounted installation.
Plug & Play: Wide voltage range AC 100~240V for global compatibility.
Color Options: Housing available in both Black and White finishes.
High Rendering: CRI 80 for natural color representation.
Efficiency: Luminous efficacy of 85~90 LM/W.

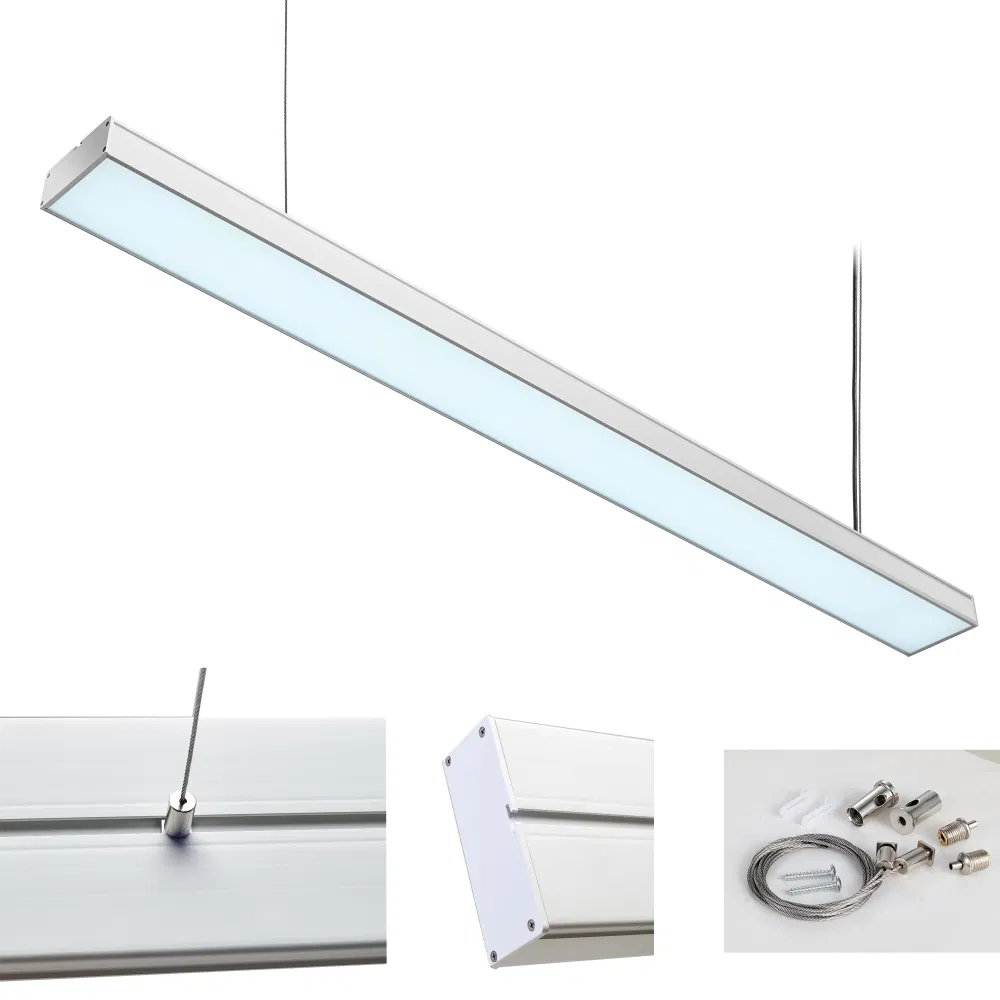

Linear Light View 1
Linear Light View 2

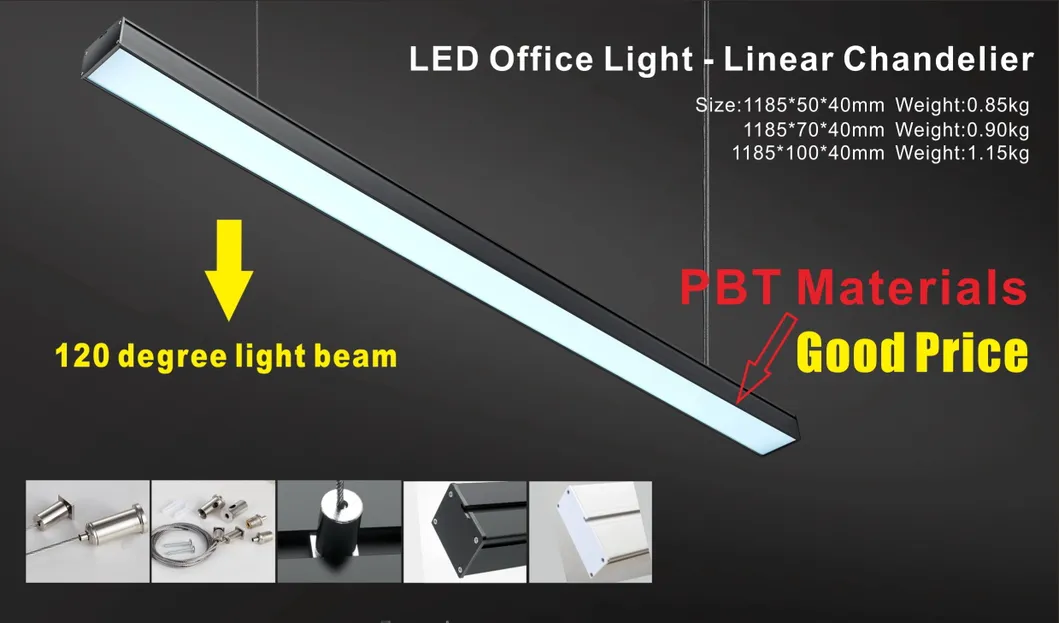

Linear Light View 3
📊 Technical Specifications
Model No Power Voltage Materials CCT (K) Lumen Outline Size Weight
WD-DLX01-120(B/W)-36W-70 36W (240pcs SMD) 100-240V PBT + PC + AL PCB 2700-6500K 3150 LM 1185*70*40mm 0.90kg
WD-DLX01-120(B/W)-36W-100 36W (240pcs SMD) 100-240V PBT + PC + AL PCB 2700-6500K 3150 LM 1185*100*40mm 1.15kg
WD-DLX01-120(B/W)-46W-100 46W (240pcs SMD) 100-240V PBT + PC + AL PCB 2700-6500K 4180 LM 1185*100*40mm 1.15kg
Linear Light Detail 1

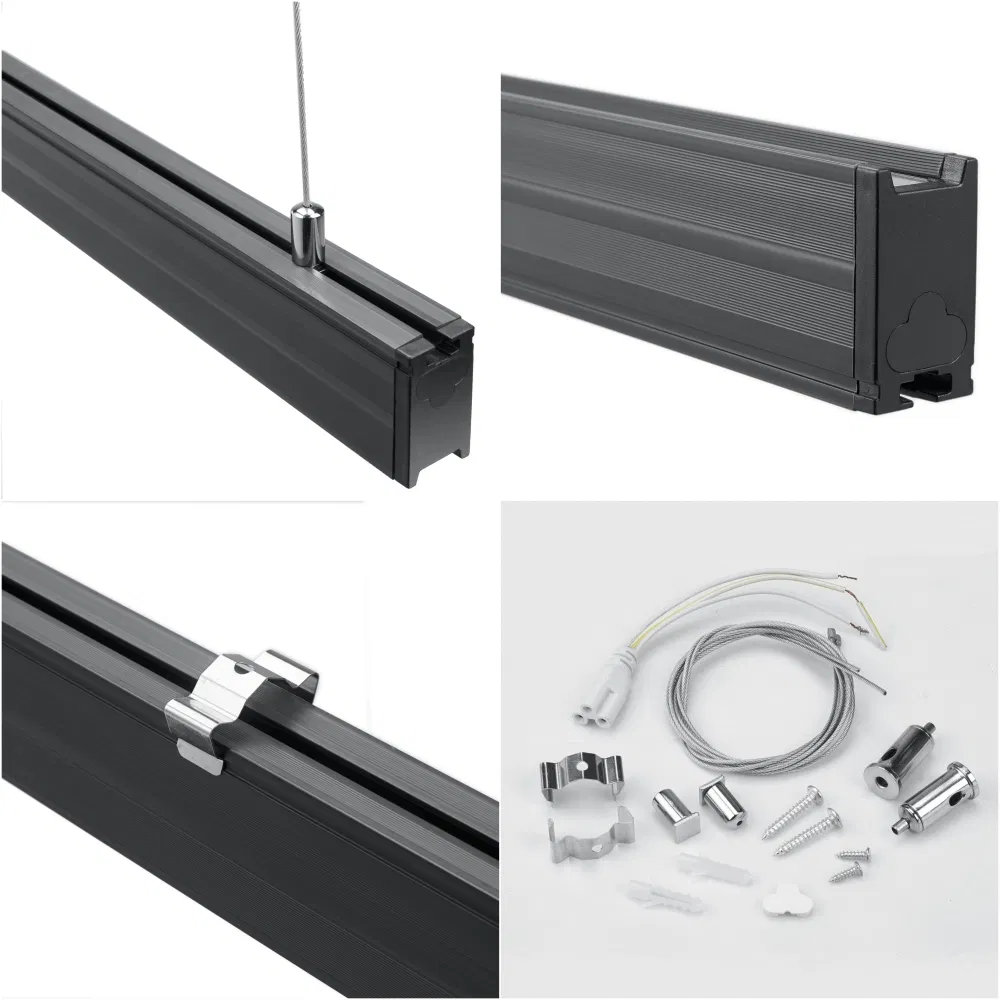

Linear Light Detail 2

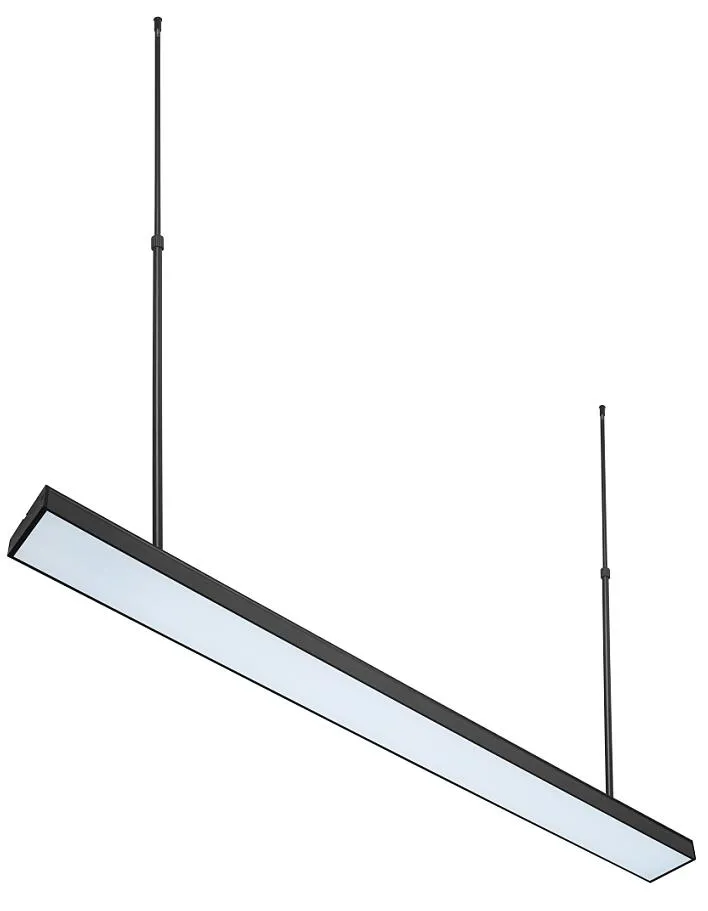

Linear Light Detail 3
🏢 Applications

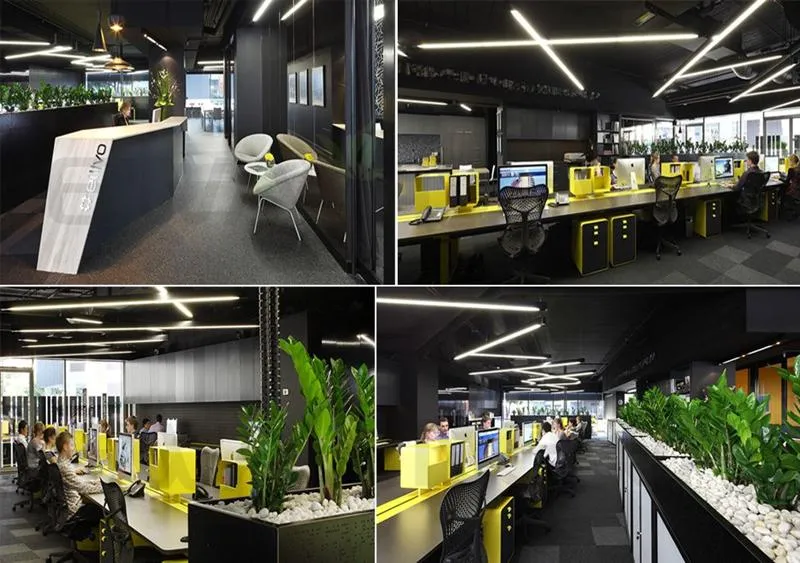

Widely used in supermarkets, stores, cabinets, ceilings, hotels, conference rooms, studio offices, dining rooms, libraries, and school corridors.

Application 1
Application 2
Application 3
Application 4

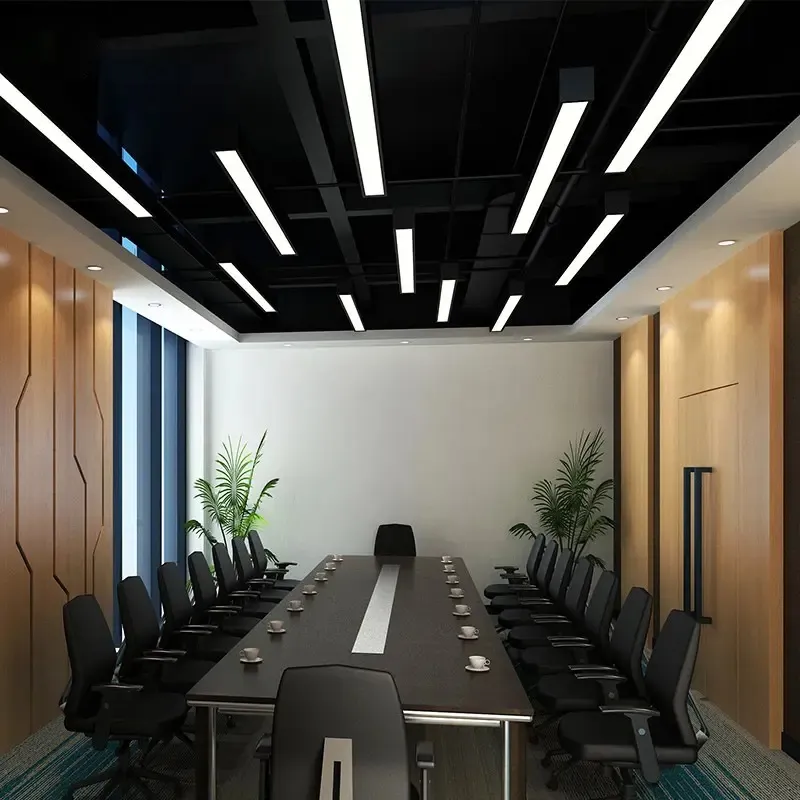

Application 5

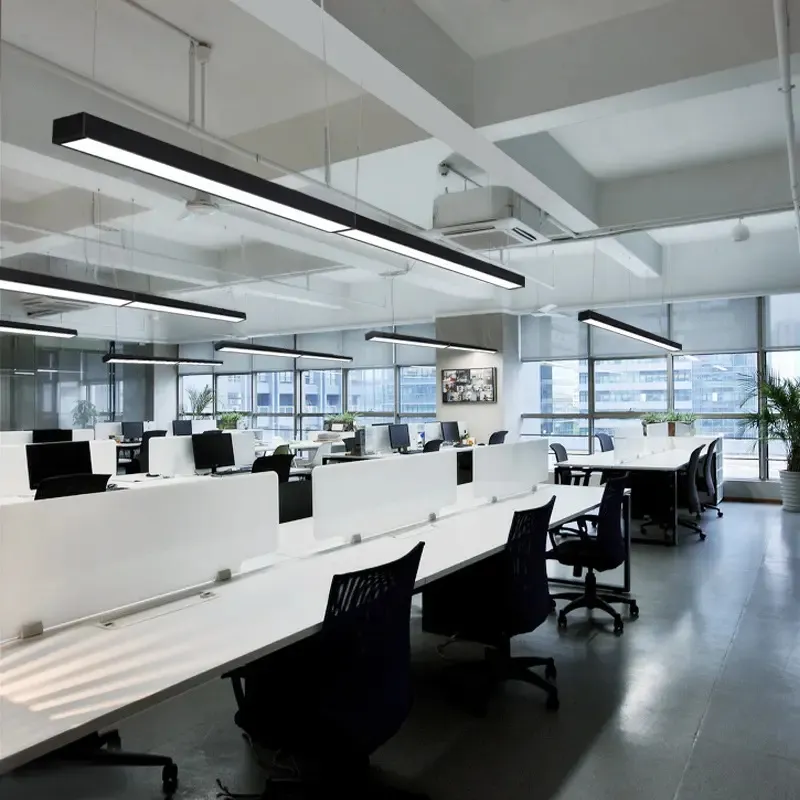

Application 6
📦 Packaging & Delivery
Package Size
125.00cm * 19.00cm * 27.00cm
Gross Weight
20.000kg (per bulk carton)
Lead Time
15 Days
Capacity
50,000 units / Month

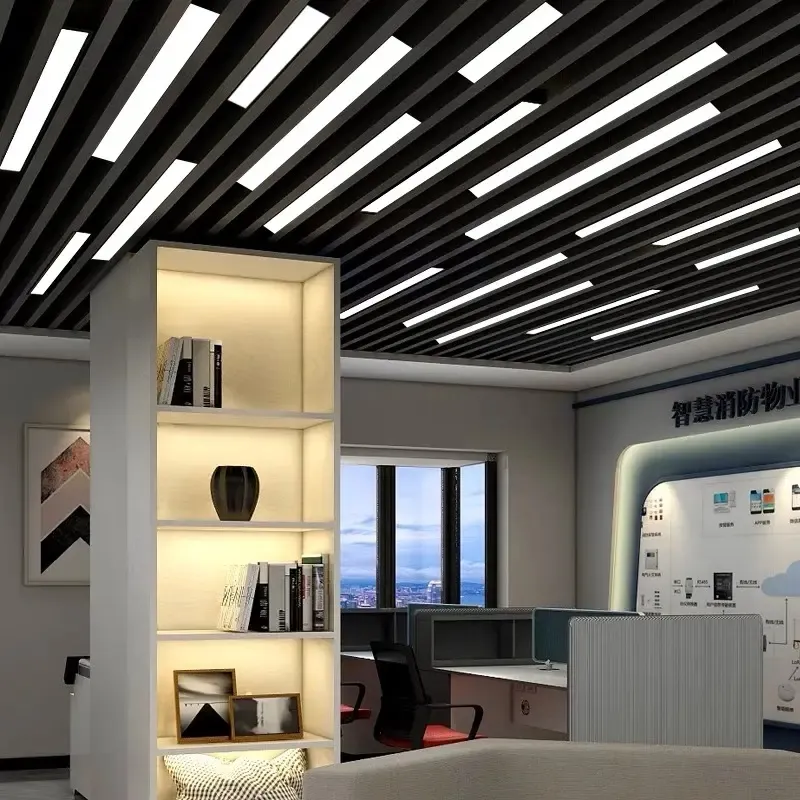

Packaging Detail

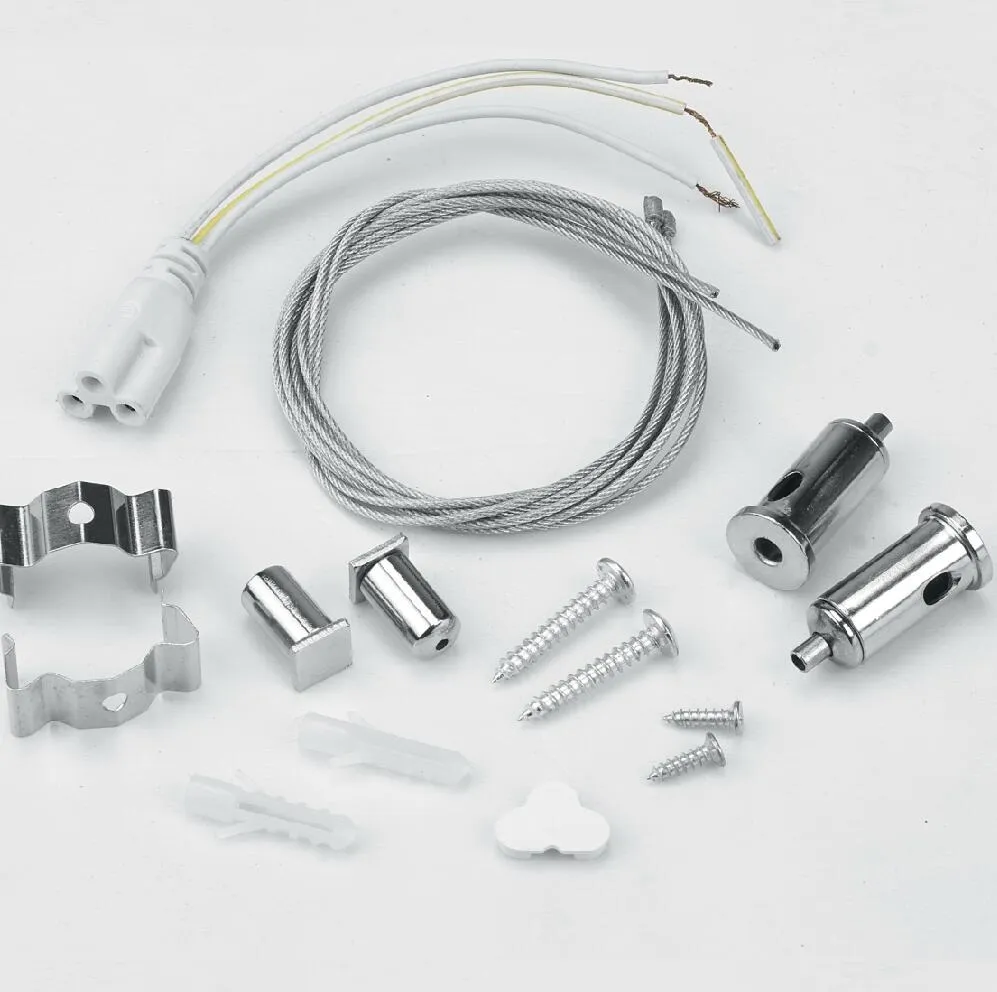

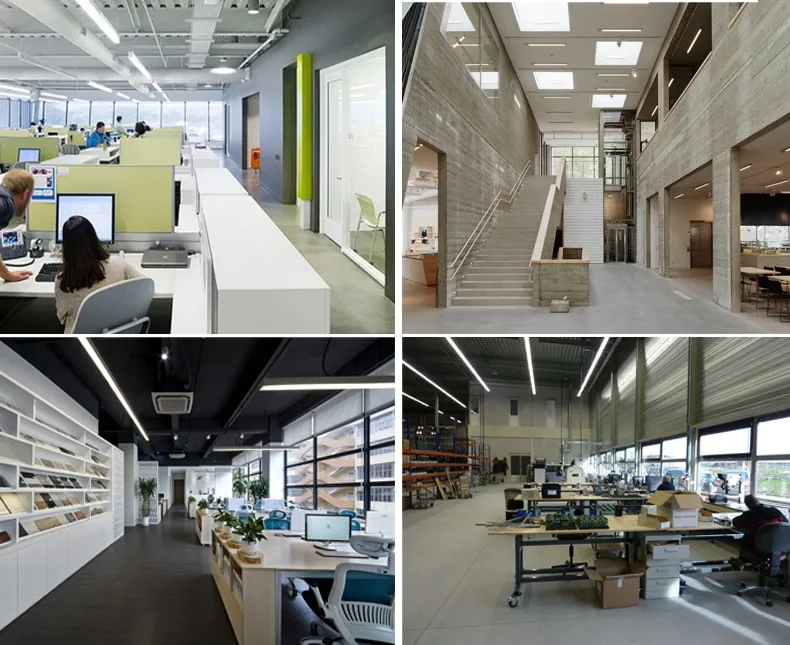

Installation Parts
Installation Guide
Frequently Asked Questions
1. What materials are used in the housing of this linear light?
The housing is made of high-quality PBT alloy plastic, which is much lighter and more cost-effective than traditional aluminum while maintaining durability.
2. Can I adjust the color temperature of the light?
Yes, the CCT (Correlated Color Temperature) is adjustable from 3000K to 6000K (or 2700K-6500K depending on the specific model selected).
3. What installation methods are supported?
This LED linear pendant light is designed for versatility and can be either suspended via cables or surface-mounted directly to the ceiling.
4. Is the light source included with the fixture?
Yes, the light comes with an integrated LED light source using SMD2835 chips, ensuring a high luminous efficacy of 85~90LM/W.

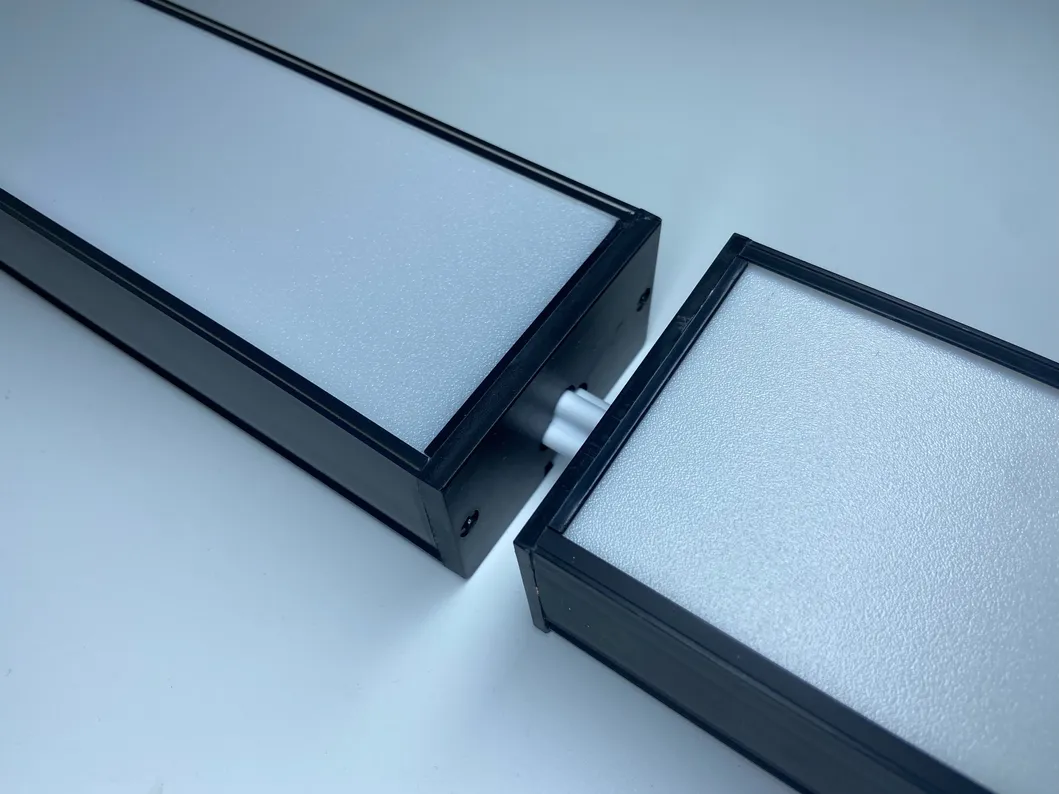

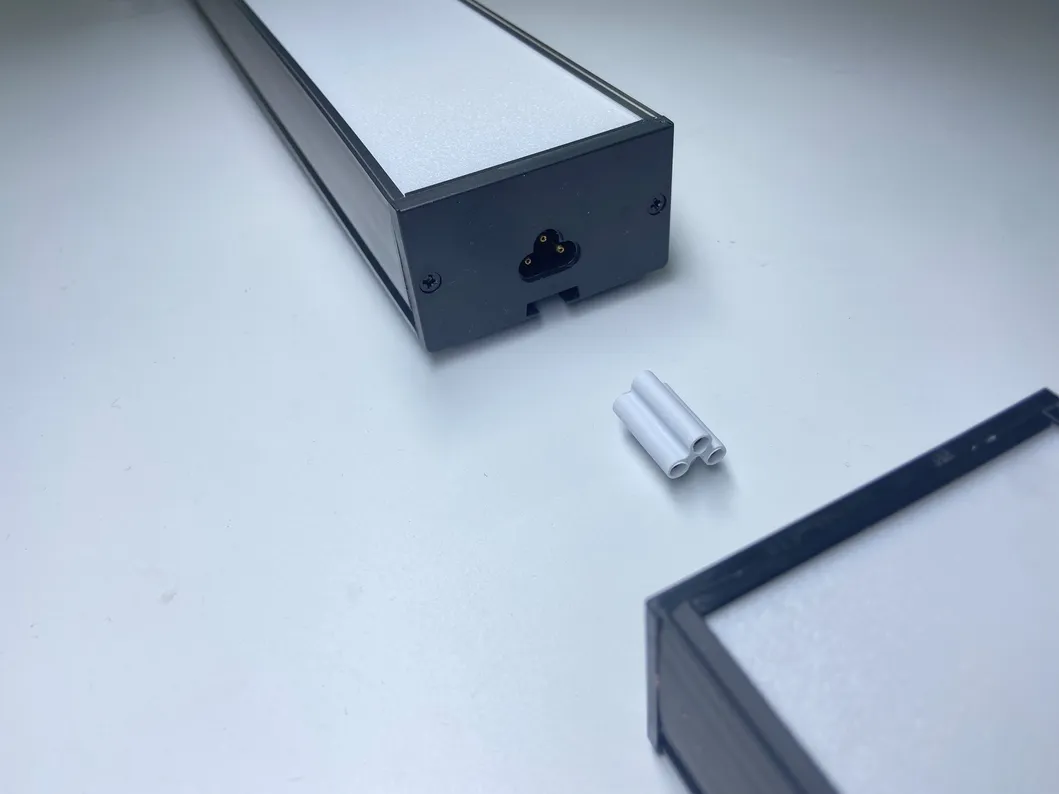

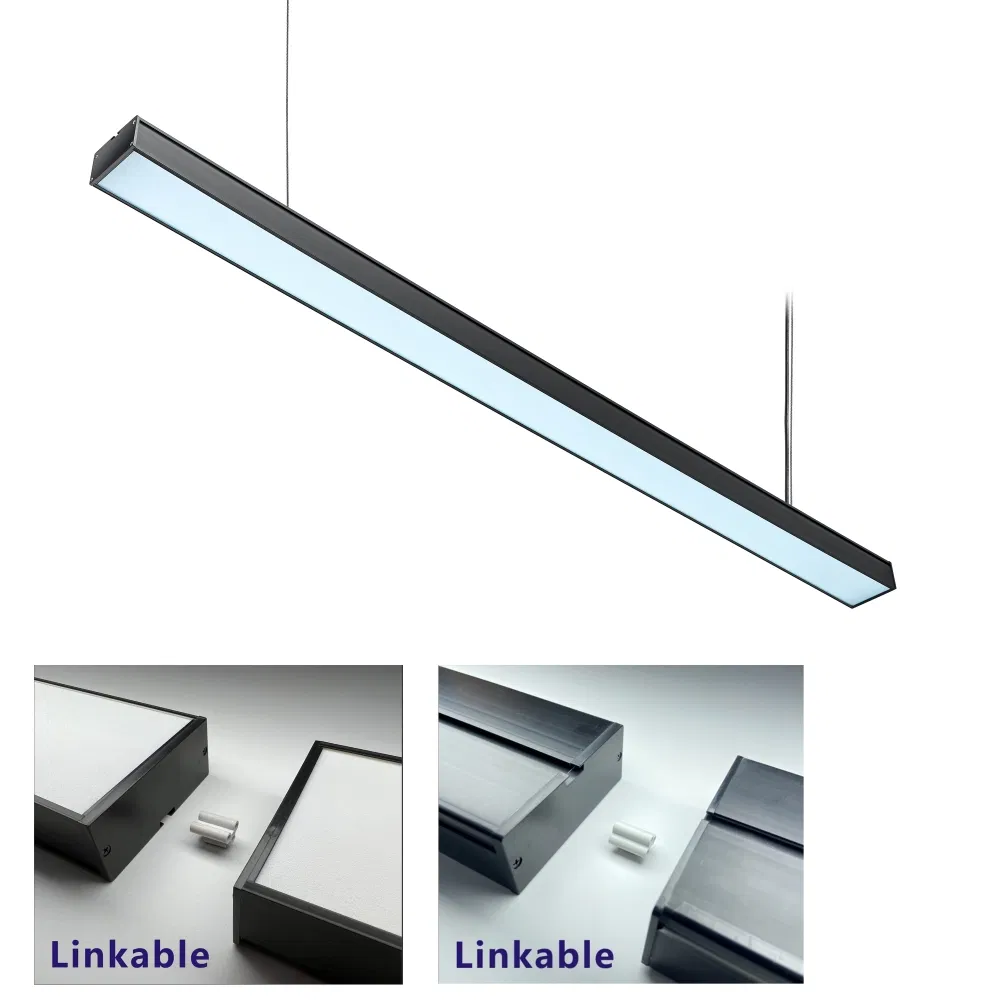

5. Are these units linkable for long corridor installations?
Yes, these fixtures are linkable, making them perfect for commercial spaces like classroom corridors, office hallways, and large supermarkets.
6. What voltage is compatible with this lighting system?
The lights operate on a wide voltage range of AC 100~240V at 50/60Hz, making them suitable for international use.
