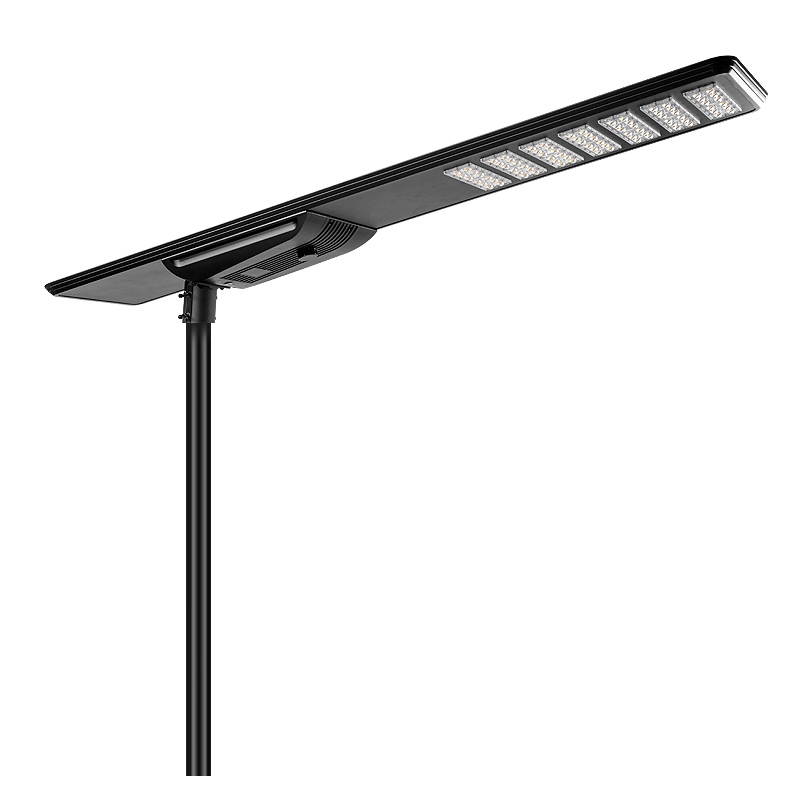

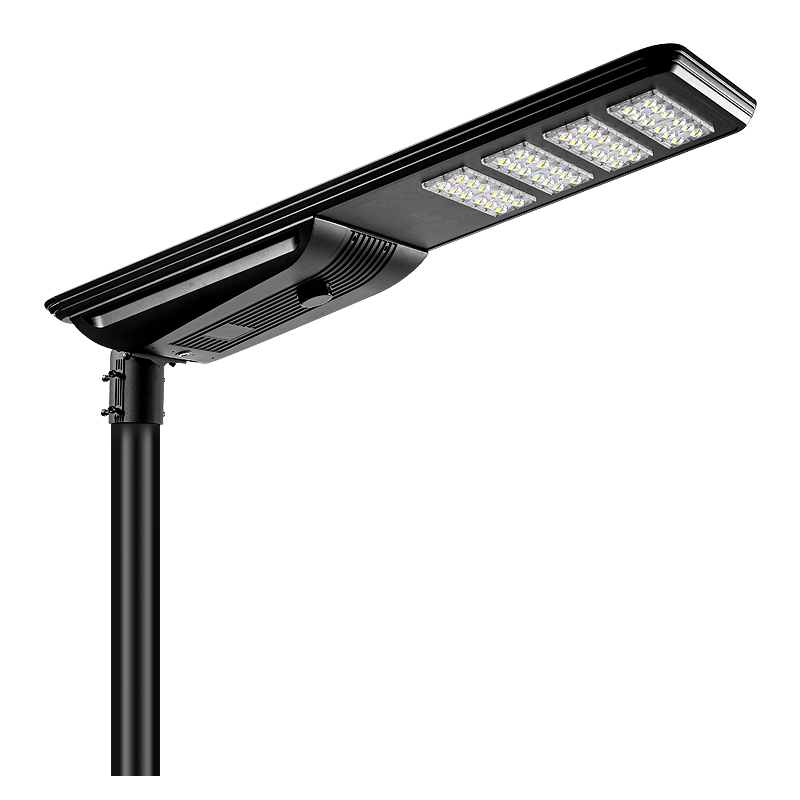

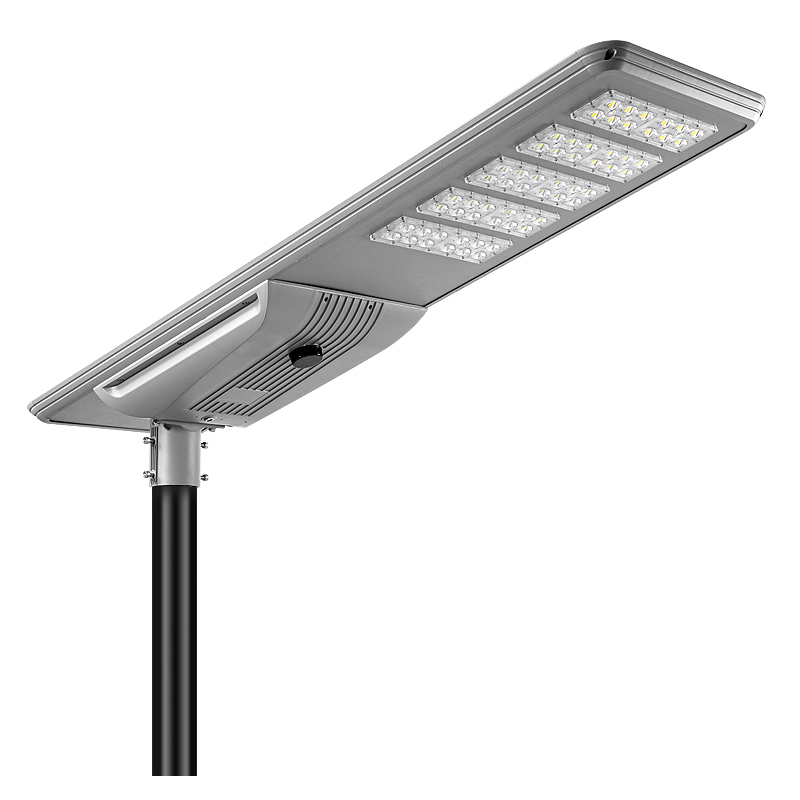

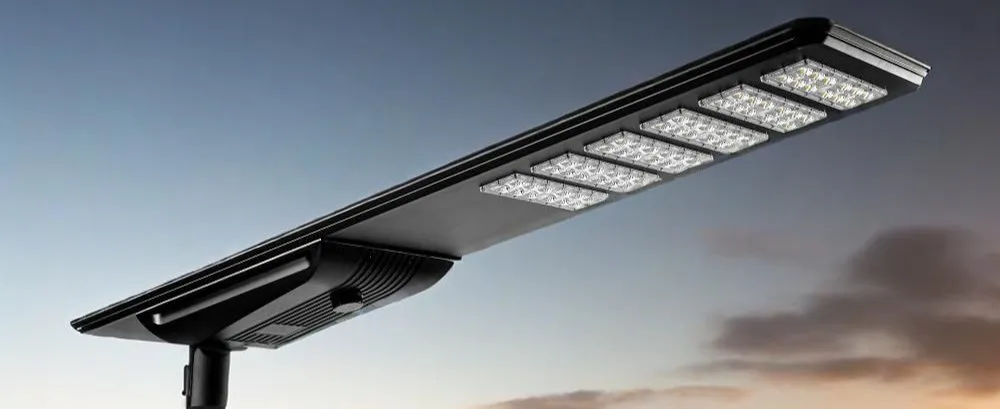

Factory Manufacturer Outdoor Waterproof IP66 60W/80W/100W/150W/200W/300W All in One Integrated Solar LED Street Light
Product Description
This model solar street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP66 and has passed CE certification. It is suitable for urban and suburban lighting, roads, parks, roadsides, factories, squares, etc. It has a warranty period of 3 to 5 years.

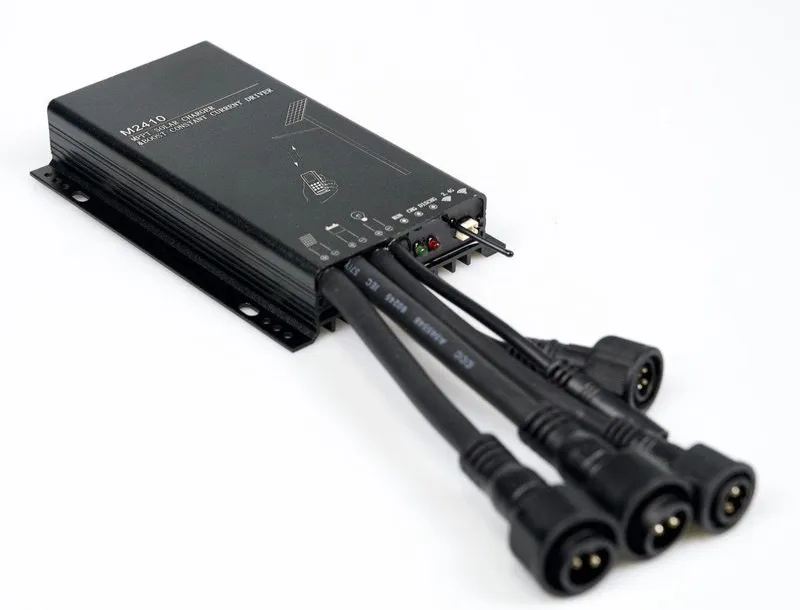

MPPT (Maximum Power Point Tracking) technology. Boasting a tracking efficiency of over 99% and a remarkable 97% charging conversion efficiency, it ensures optimal power utilization from solar panels. With a maximum photovoltaic power of 260W/12V and 520W/24V, it suits various solar setups.
Compatible with 12V and 24V batteries, including lead-acid and lithium-ion types. It comes with infrared and microwave sensing functions with adjustable sensing delay times.

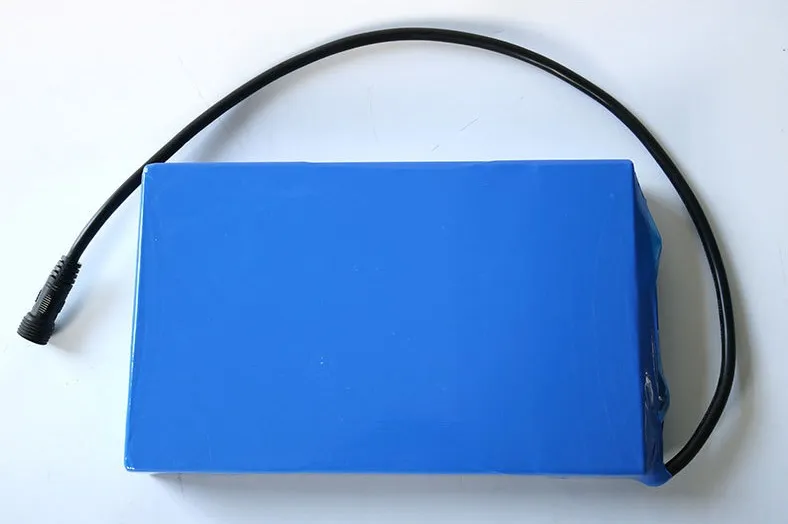

Using LiFePo4 battery technology for solar lighting products. Multi-functions protection of the PCB, charge and discharge protected to make the performance working at optimum status.
- DOD cycles more than 2500 times
- Lifespan: 10 years
- Voltage: 12V/24V
- IP67 waterproof

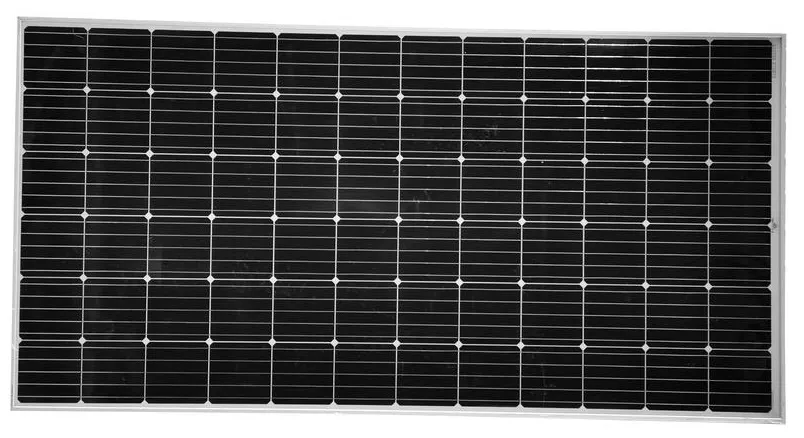

Mono crystalline PV panel, reaching 25% conversion efficiency. New technology of half cells (182mm) providing higher power.
- Working life: more than 25 years
- 18V, 36V or tailored voltage
- Working range: -40℃ to 85℃

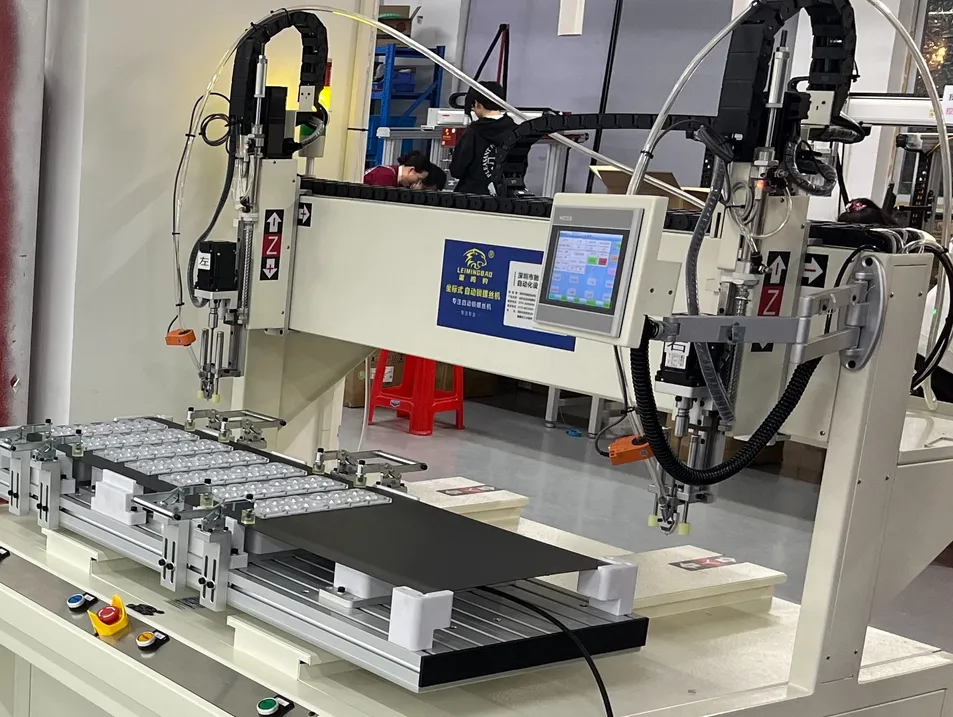

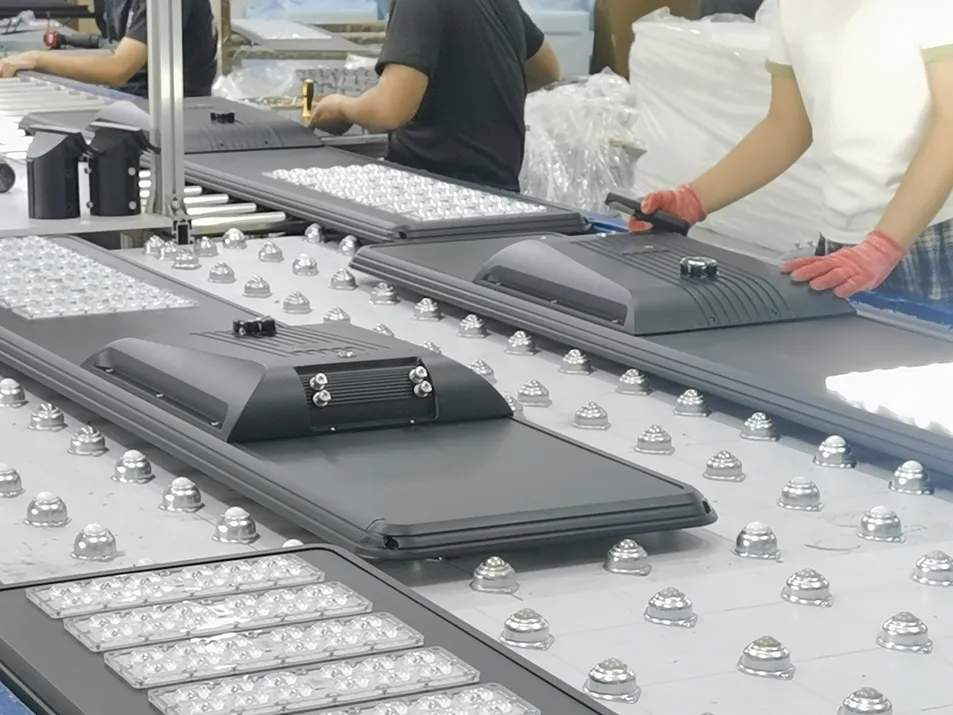

After assembly, a rigorous quality inspection is performed, checking functions, performance, CCT, and programming to ensure 100% qualification. Automated machinery helps improve efficiency and ensures accurate delivery times.

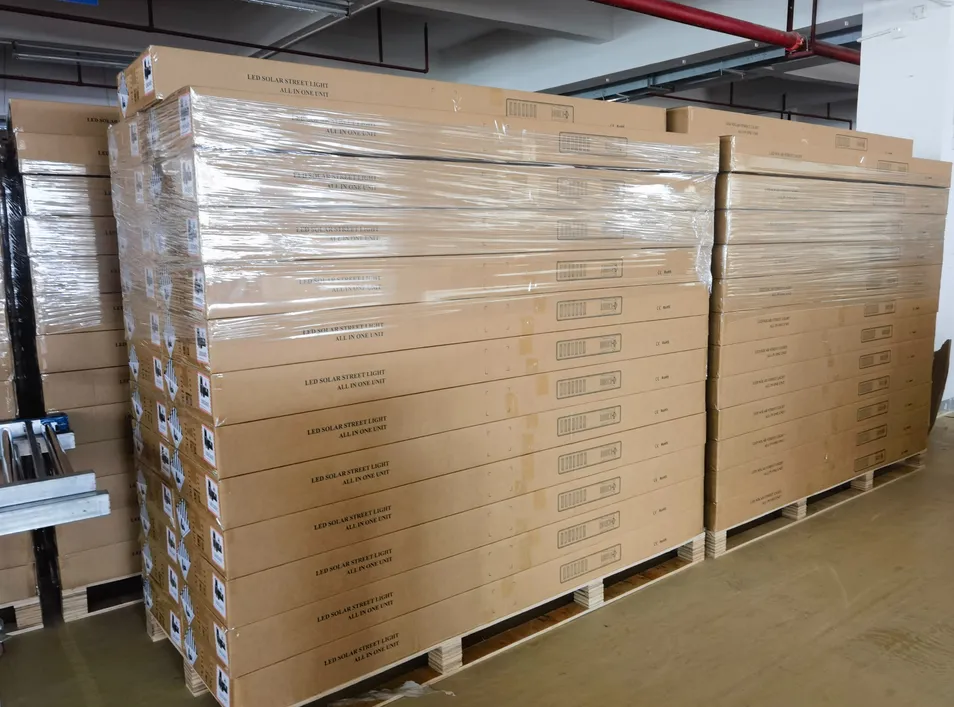

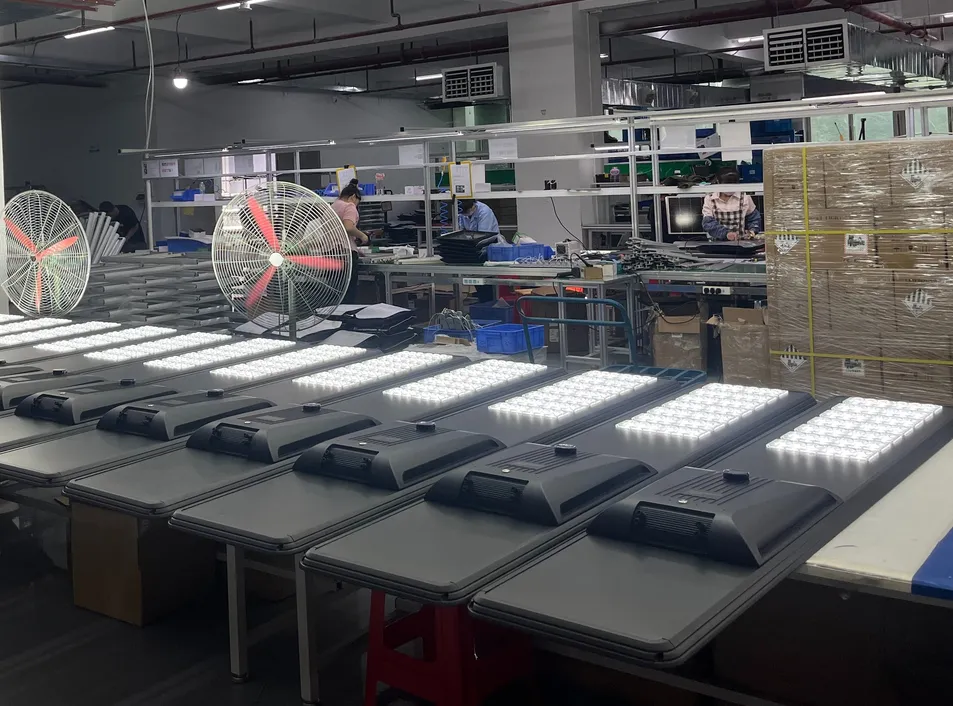

M25 solar street lights undergo a standard aging procedure with several charge and discharge cycles. For protection, units are packed in tailored EPE frames inside cartons to avoid scratches during transportation.
Regarding different solar radiation levels globally, customization of technical specifications is accepted. Below is the general tech spec for reference.
| MODEL | M25-30-AIO | M25-60-AIO | M25-80-AIO | M25-100-AIO | M25-120-AIO |
|---|---|---|---|---|---|
| POWER | 30W | 60W | 80W | 100W | 120W |
| LUMINOUS FLUX | 5400LM | 10800LM | 14400LM | 18000LM | 21600LM |
| PV PANEL | 60WP/MONO | 90WP/MONO | 110WP/MONO | 140WP/MONO | 160WP MONO |
| LFP BATTERY | 320WH 3.2V | 384WH 12.8V | 576WH 12.8V | 768WH 12.8V | 960WH 12.8V |
| CONTROLLER | MPPT | MPPT | MPPT | MPPT | MPPT |
| CHARGE TIME | 5 HRS | 5 HRS | 5 HRS | 6 HRS | 6 HRS |
| DISCHARGE TIME | 12 HRS | 12 HRS | 12 HRS | 12 HRS | 12 HRS |
