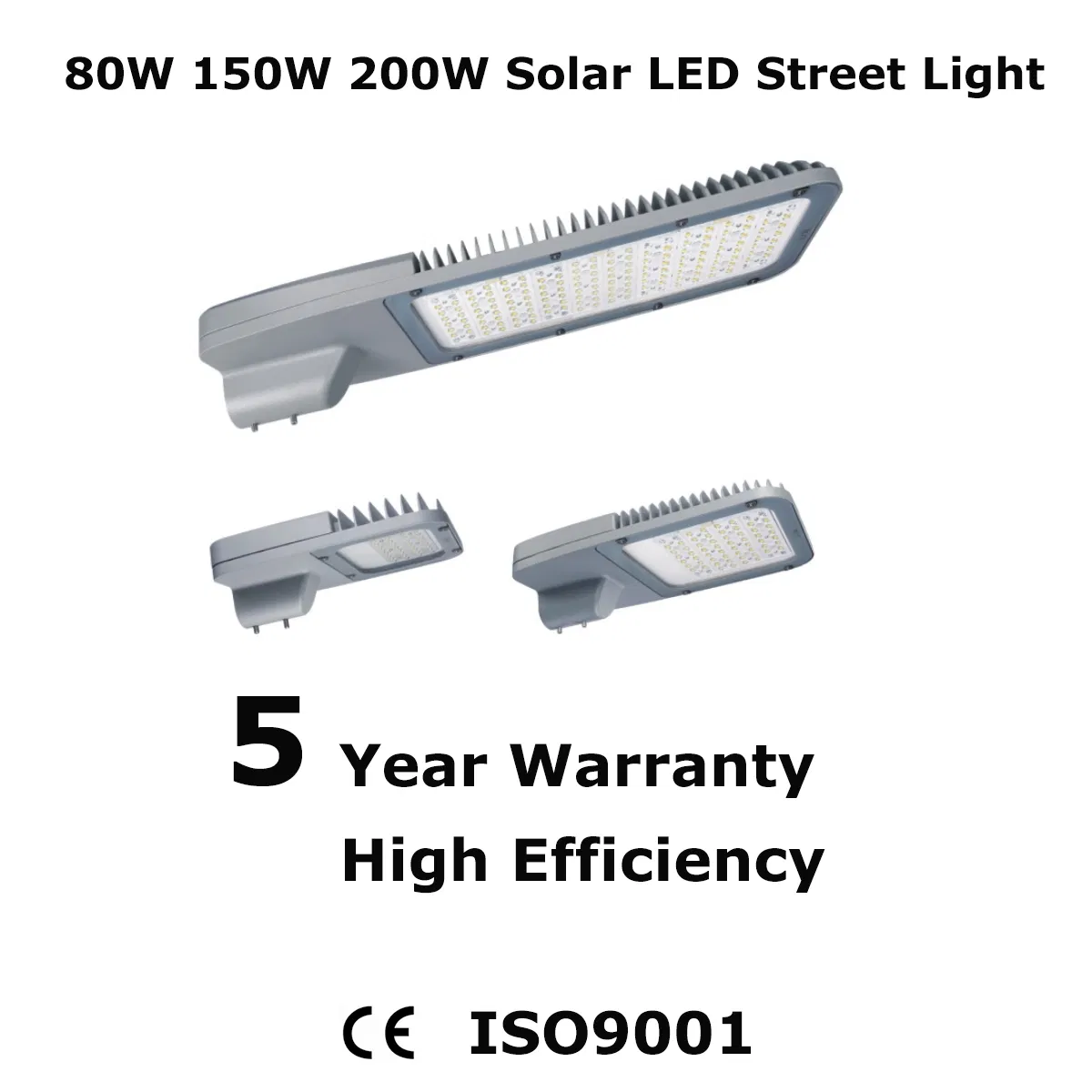

Photocell Integrated Public Lighting Waterproof Wall Aluminum LED Street Light with Pole
Product Description
i
Basic Specifications
Model NO.
DLA013
Material
Dia Cast Aluminum
Power Range
60W-300W Options
Application
Square, Highway, Garden, Parking Lot
IP Rating
IP67
LED Chips
CREE / SMD3030
Input Voltage
100-240V / 100-277VAC
Driver
Meanwell / Inventronics
Lumen Efficiency
140lm/W
Warranty
5 Years
IK Class
IK10
Dimmable
0-10V Available
📦
Packaging & Delivery
Package Size
60.00cm * 30.00cm * 20.00cm
Gross Weight
4.000kg
Package Type
Pallet with Carton
★
Product Description

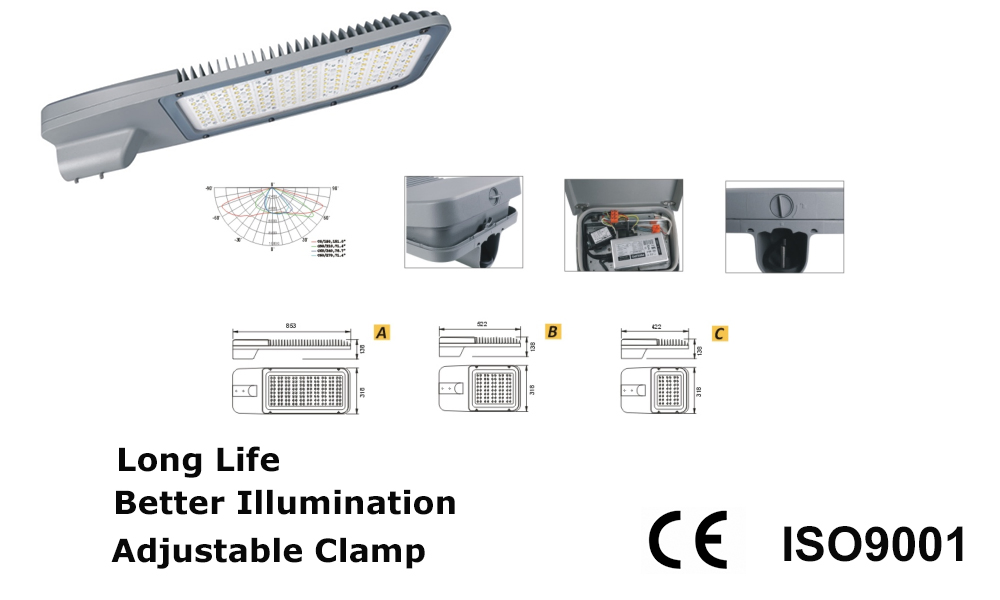

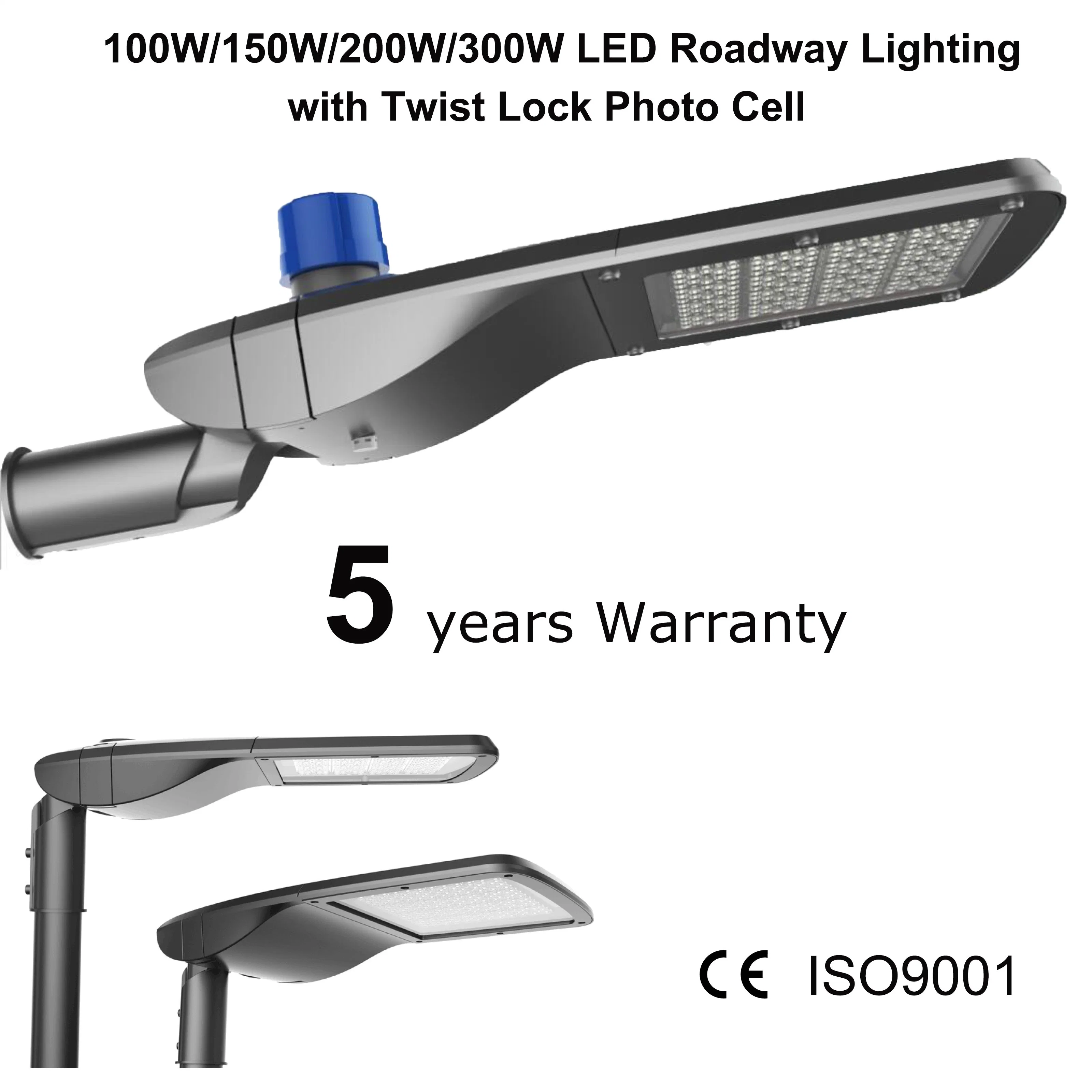

LED Roadway Lighting Fixture with Twist Lock Photo Cell

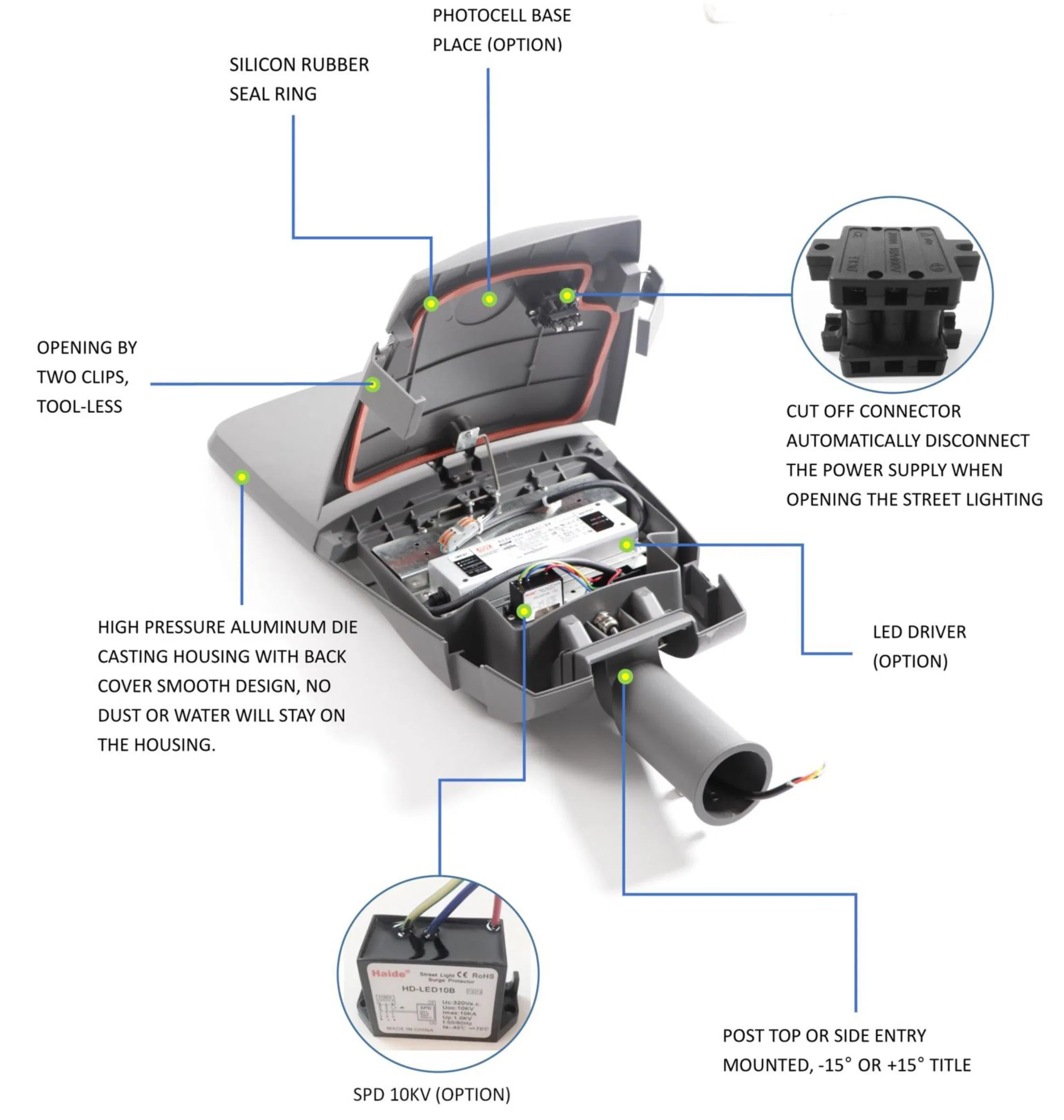

- Heavy duty cast aluminum housing and removable door 3G vibration rated for longevity.
- Housing completely sealed against moisture and environmental contaminants.
- Available in IES Type 2, 3 distributions.
- Optics precisely designed to maximize efficiency and application spacing.
- Standard drivers feature electronic universal voltage.
- Greater than 0.9 power factor, less than 20% harmonic distortion.
- Suitable for operation in -40ºC to 45ºC ambient environments.
- LED drivers mount to die-cast aluminum back housing for optimal heat sinking.
- Adjustable clamp for use with 48 and 60mm diameter pipe.
Powerful illumination covering wide areas while remaining durable for long periods of time. Our great collection of LED roadway lighting solutions provides customizable options including various wattages, voltages, lumens, and dimensions to meet your exact specifications.
⚙

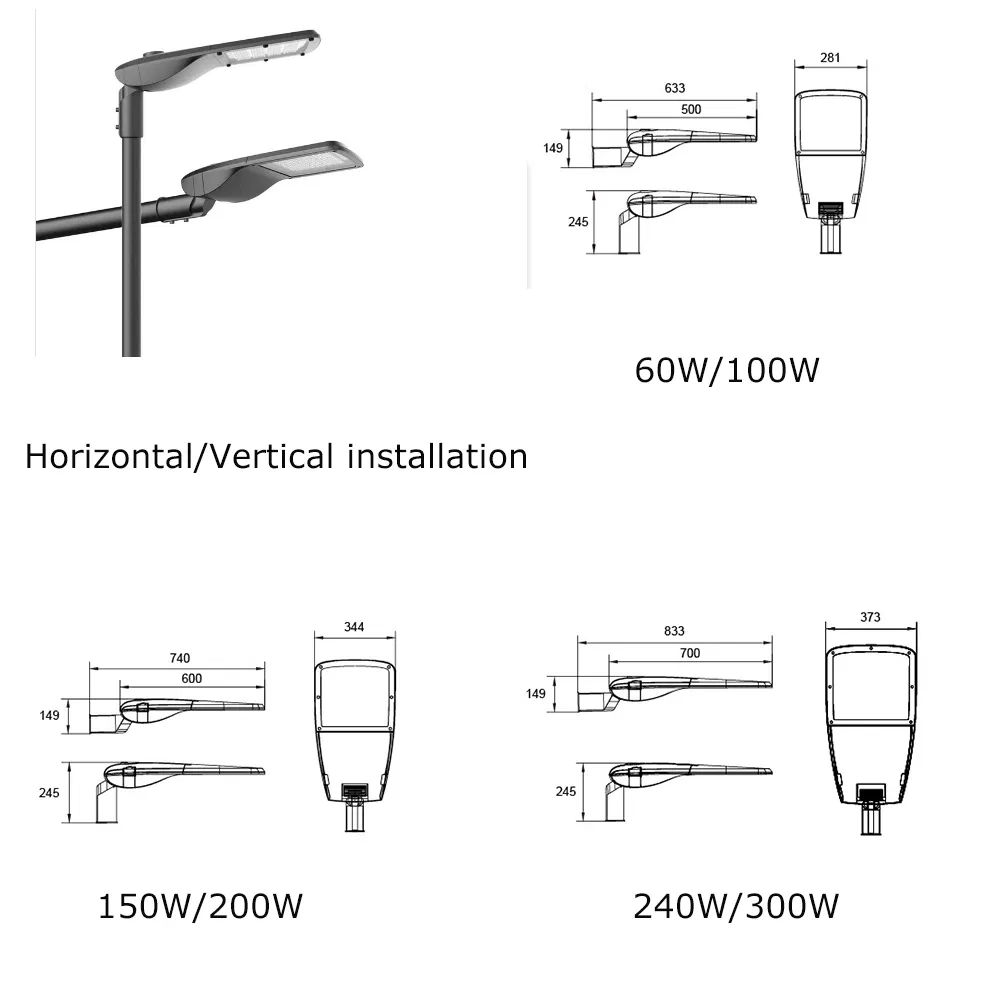

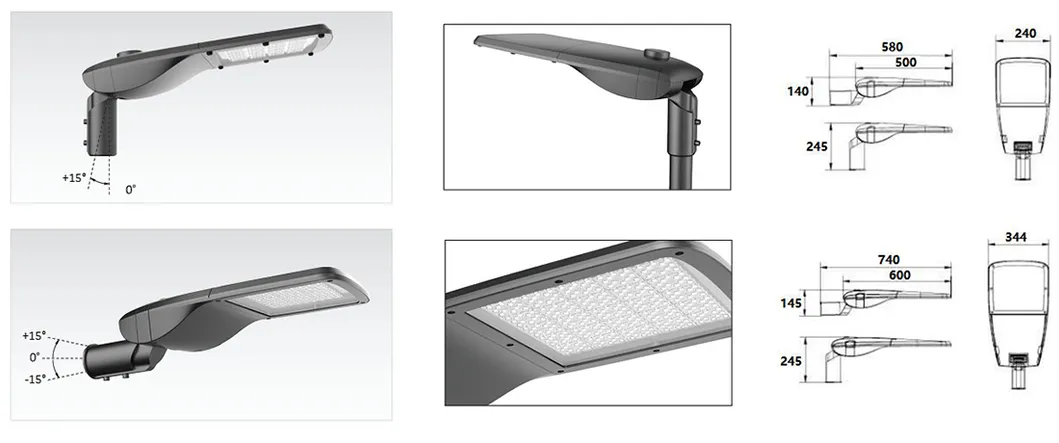

Technical Parameters
| Type | LED Power | IP Class | Body Dimension | Design Altitude | Photo Controller | Spigot Mounting |
|---|---|---|---|---|---|---|
| SLA | 100w | IP66 | 490*330*193mm | 6M-8M | Without | 42/48/60mm |
| SLA | 150w | IP66 | 576*330*193mm | 8M-10M | Without | 42/48/60mm |
| SLA | 200w | IP66 | 661*330*193mm | 8M-10M | Without | 42/48/60mm |
| SLA | 300w | IP66 | 831*330*193mm | 8M-10M | Without | 42/48/60mm |
| DLA | 120w | IP66 | 740*340*150mm | 8M-10M | With | 42/48/60mm |
| DLA | 150w | IP66 | 740*340*150mm | 8M-10M | With | 42/48/60mm |
| HLA | 60w | IP66 | 638*270*80mm | 6M-8M | Without | 42/48/60mm |
| HLA | 120w | IP66 | 780*300*85mm | 8M-10M | Without | 42/48/60mm |
📷

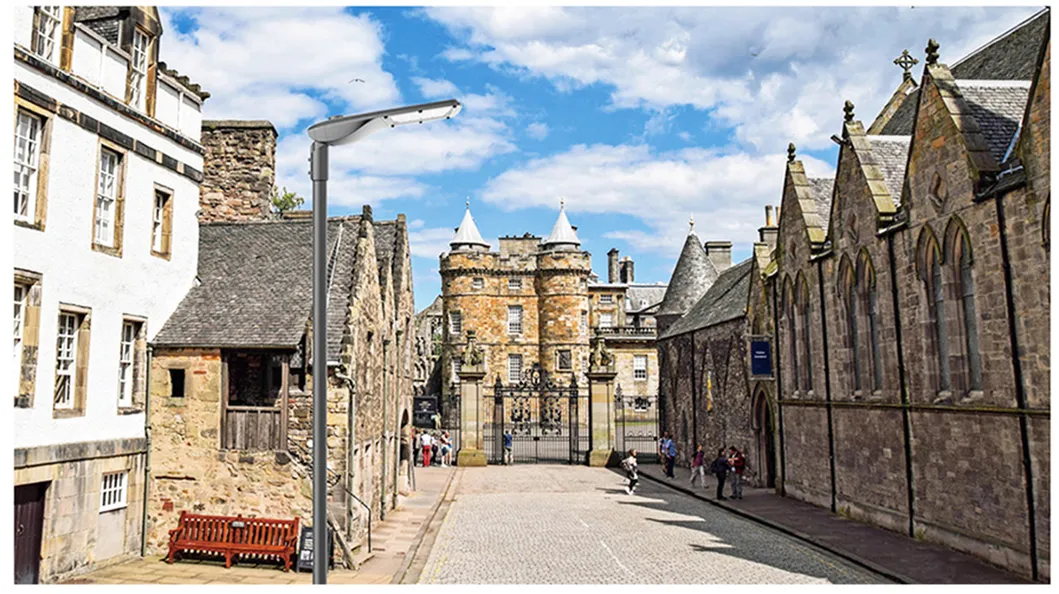

Product Showcase
?
Frequently Asked Questions
What is the lumen efficiency of these LED street lights?
The fixtures provide high efficiency ranging from 120lm/W to 140lm/W, depending on the specific model and configuration.
Are these lights suitable for harsh outdoor environments?
Yes, they feature an IP67 rating and a heavy-duty die-cast aluminum housing, making them completely sealed against moisture and contaminants.
Do you offer a warranty on this lighting system?
We provide a comprehensive five-year warranty on our LED roadway lighting solutions.
Can these street lights be dimmed?
Yes, the standard drivers support 0-10V dimming functionality for better energy management.
What LED chips and drivers are used in the construction?
We use high-quality CREE LED chips (SMD3030) and reliable Meanwell or Inventronics drivers to ensure longevity and performance.
Is a photocell sensor included?
A photo controller sensor is available as an option, with certain models like the DLA series featuring it as standard.
