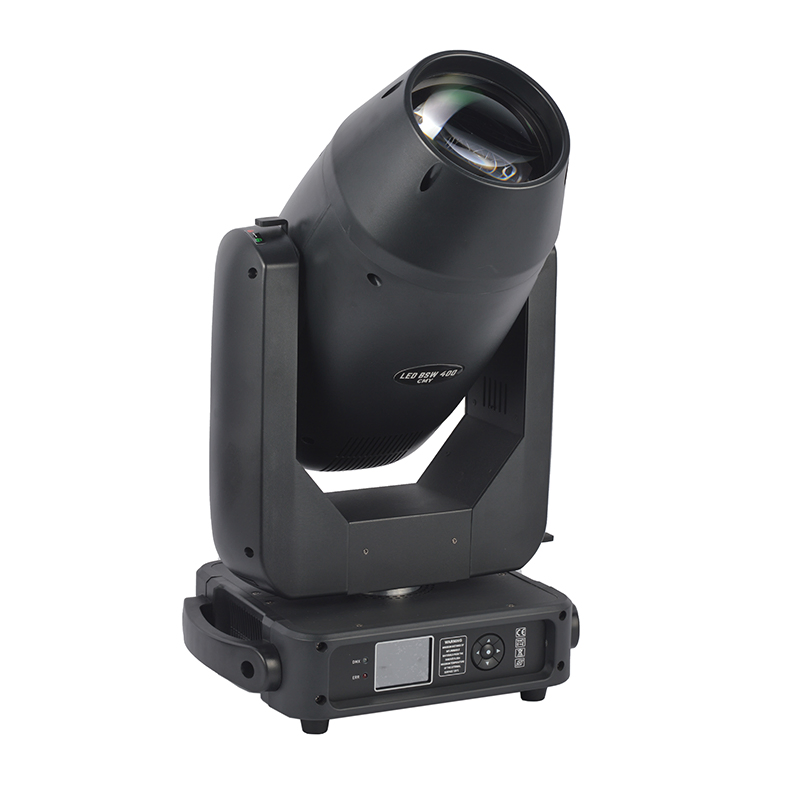

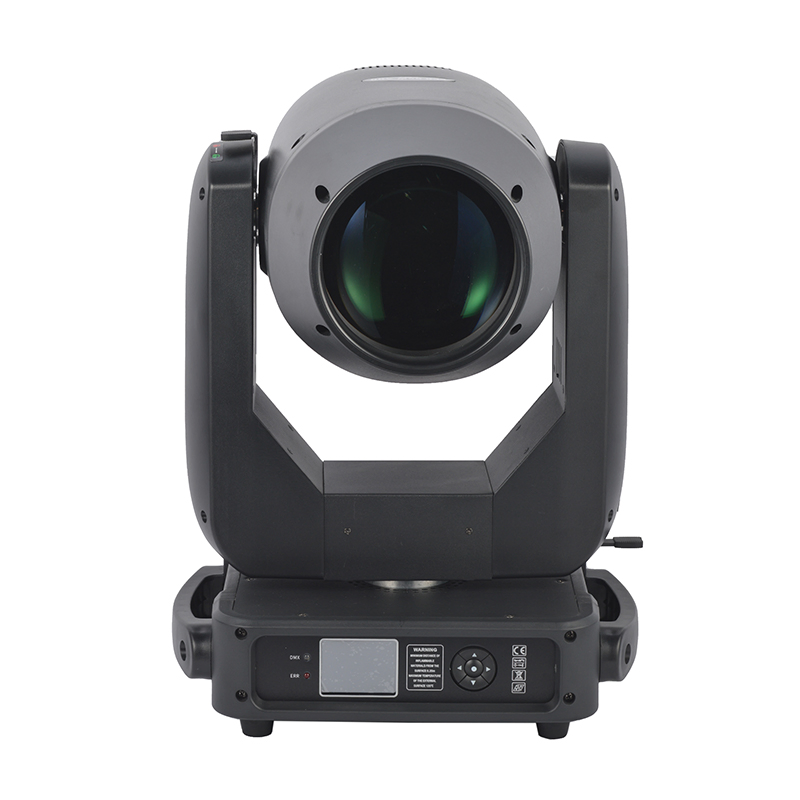

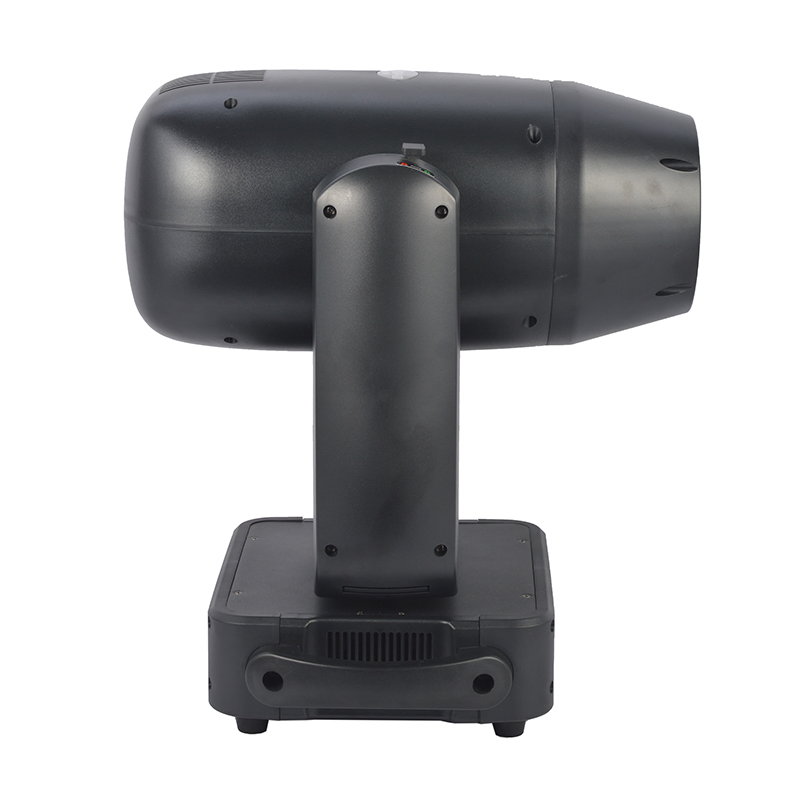

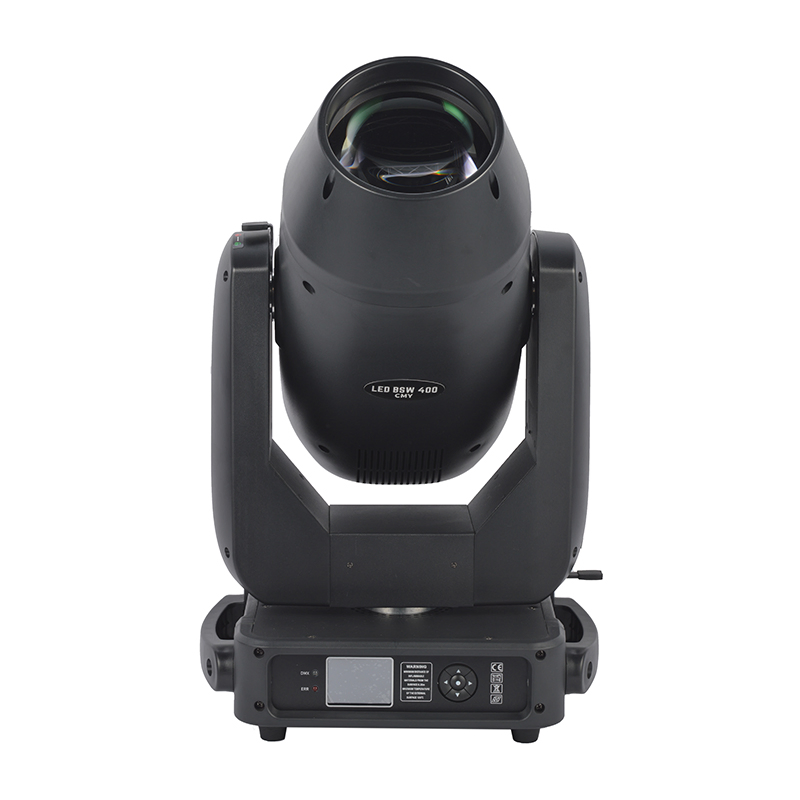

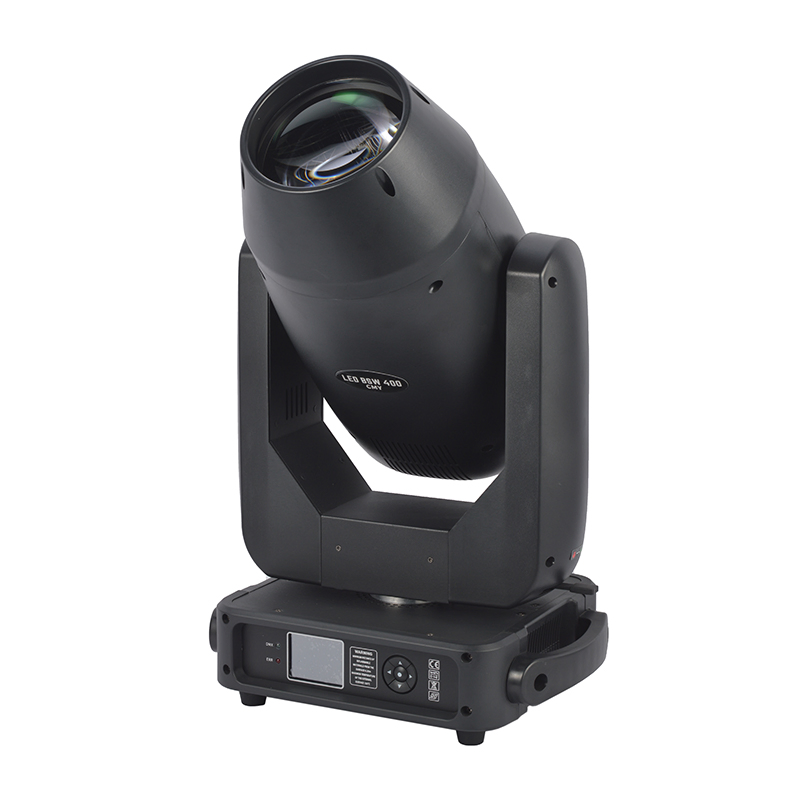

Professional Cmy and CTO 400W LED Beam Spot Wash 3in1 Moving Head Stage DJ Equipment Light
Product Description
Product Overview
The LED Spot 460 is a versatile LED moving head light designed to deliver powerful spot, beam, and wash effects in a single fixture. Equipped with a high-performance 400W white LED module, it offers an expansive zoom range from 4° to 50°, ensuring exceptional brightness and visual impact for any stage production.

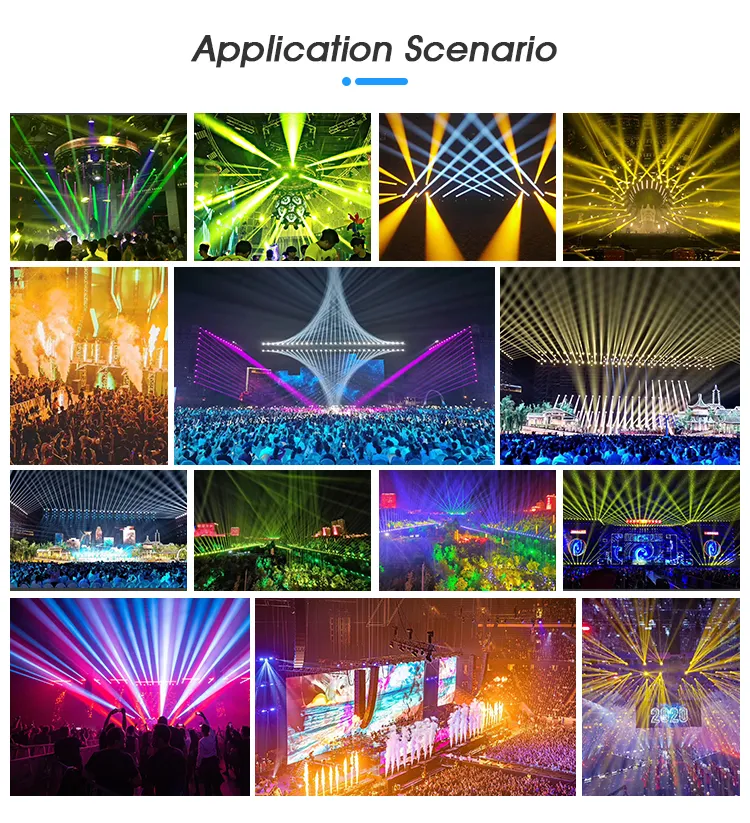

Featuring advanced color management through a CMY system and linear CTO, plus a comprehensive gobo system (7 rotating and 12 fixed gobos), two rotating prisms, and a frost filter, this unit provides uniform light distribution across all apertures. It is an ideal lighting solution for concerts, theaters, churches, and high-end events.
Technical Specifications
| Model No. | MJ-1460 | Light Source | 400W White LED Module |
| Input Voltage | AC100-240V, 50/60Hz | Power | 460W |
| Zoom Angle | Spot: 4°-35°; Wash: 10°-50° | Color System | CMY + Linear CTO + 8 Colors |
| DMX Channels | 22 / 26 CH | IP Rating | IP20 (Indoor use) |
| Pan/Tilt | 540° Pan / 270° Tilt (16-bit) | Strobe | 0-20Hz Electronic Strobe |
| Rotating Gobos | 7 HD Glass Gobos + Open | Static Gobos | 12 Gobos + Open |
| Prisms | 3-Facet & 8-Facet Rotatable Prisms | Dimming | 0-100% Linear Dimmer |

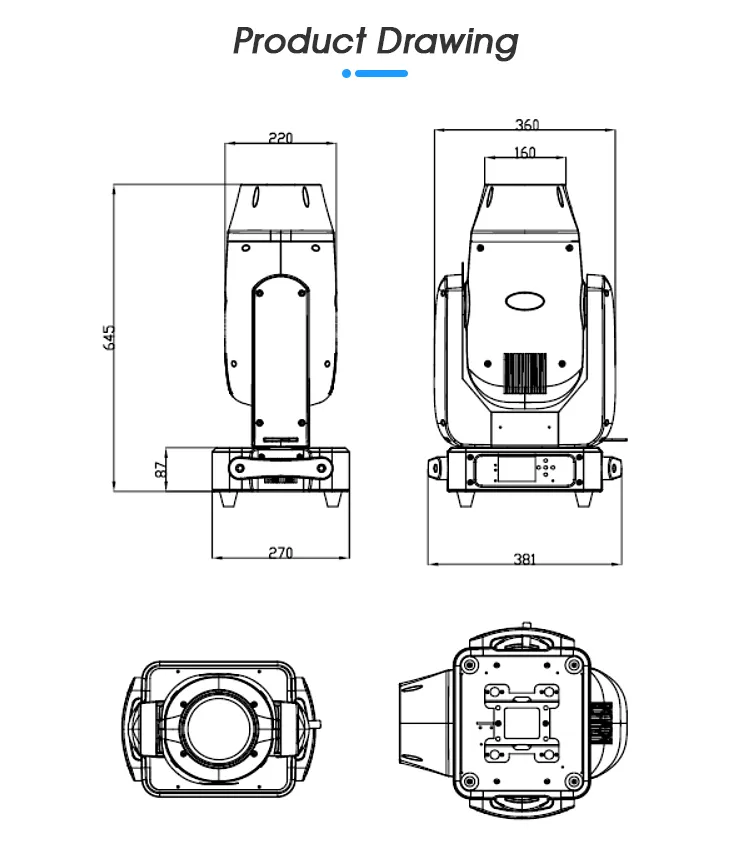

| Net Weight | 23kg / 25kg | Dimensions | 381*270*613mm |
Key Features
- High-efficiency 8500K LED bulb with 50,000 hours lifespan.
- Total Lumen output of 20,000 lm with Ø 138mm front lens.
- Scan position memory with auto repositioning after unexpected movement.
- Special designed optical system with uniform light spot distribution.
- Variable direction rainbow effect with speed adjustable half-color function.
- Gobo morphing function (overlay) and bidirectional water effects.
- Linear electronic focus and linear frost filter for soft wash effects.

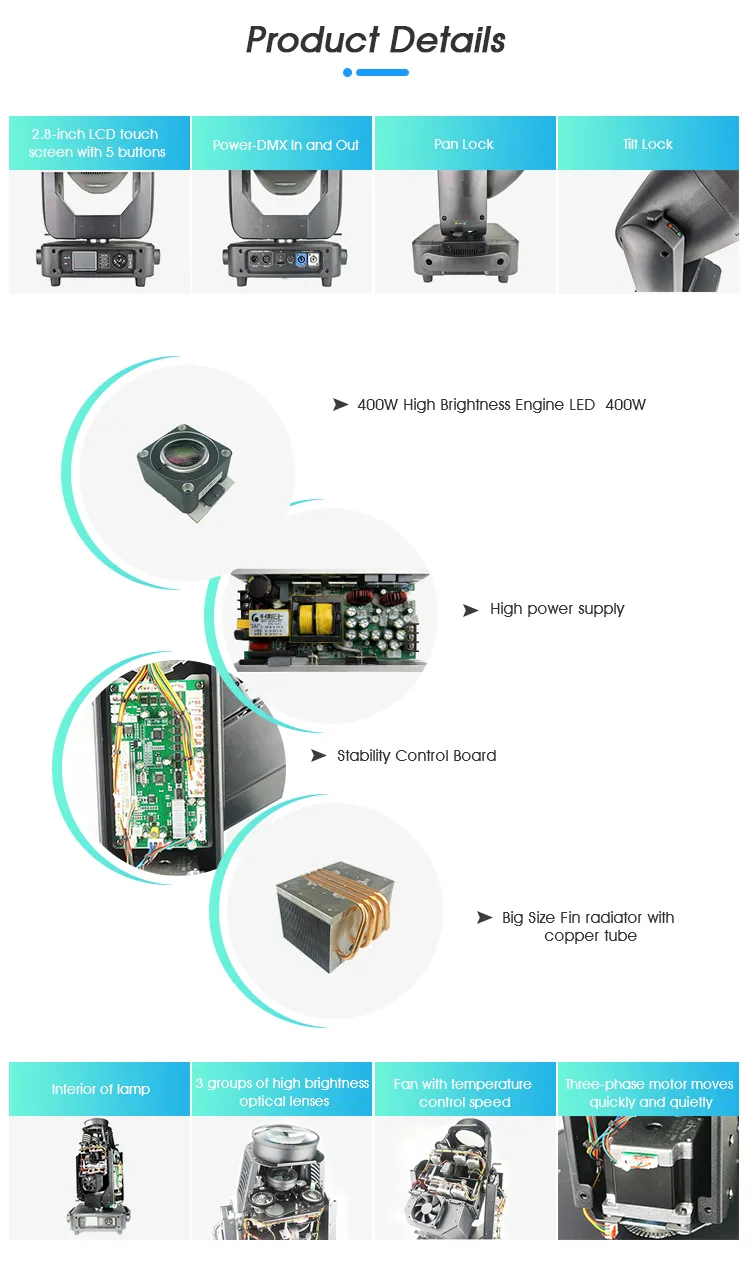

- 2.8-inch LCD touch screen with 180-degree automatic reverse display.
- RDM function for online software upgrades and remote address setting.
- Advanced cooling system combining fan and copper tube technology.
Product Gallery

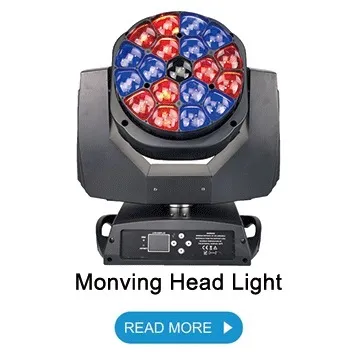

Explore More Products
Quality Control & Feedback
Frequently Asked Questions
What are the primary functions of the LED Spot 460?
The LED Spot 460 is a 3-in-1 hybrid fixture that provides professional-grade Beam, Spot, and Wash effects, making it versatile for various lighting scenarios.
Does this light support color mixing for customized palettes?
Yes, it features a CMY + Linear CTO color mixing system, along with a separate 8-color wheel, allowing for seamless and infinite color transitions.
What is the range of the electronic zoom?
The zoom range is highly adaptable: in Spot mode, it adjusts from 4° to 35°, and in Wash mode, it expands from 10° up to 50°.
What control protocols are compatible with this fixture?
It supports international DMX512 (22/26 channels), RDM for remote management, Master-Slave synchronization, Sound-active mode, and Auto-run programs.
How is the heat management handled in the MJ-1460?
The unit utilizes a high-efficiency cooling system that combines low-noise fans with copper tube technology, including electronic temperature monitoring and automatic overheating protection.

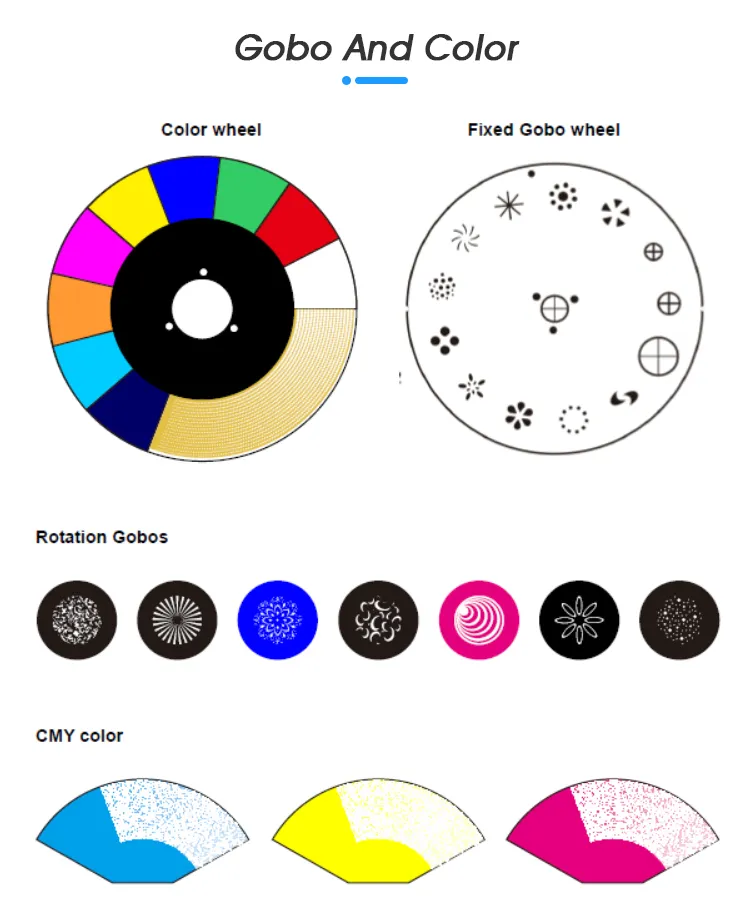

What kind of gobo effects can I expect?
The fixture includes one rotating gobo wheel with 7 HD glass gobos and one static gobo wheel with 12 gobos. Both wheels support shake effects, water effects, and bidirectional rotation.
