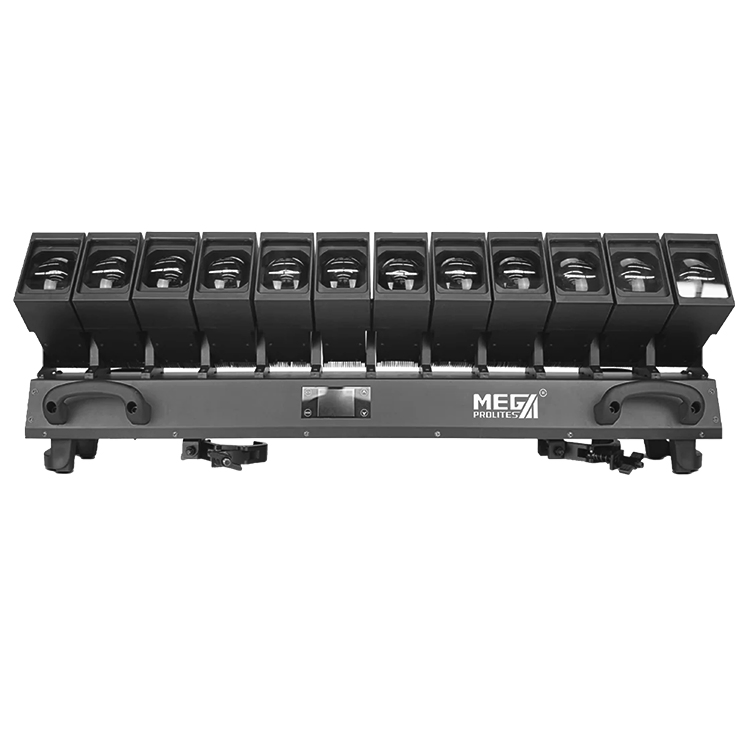

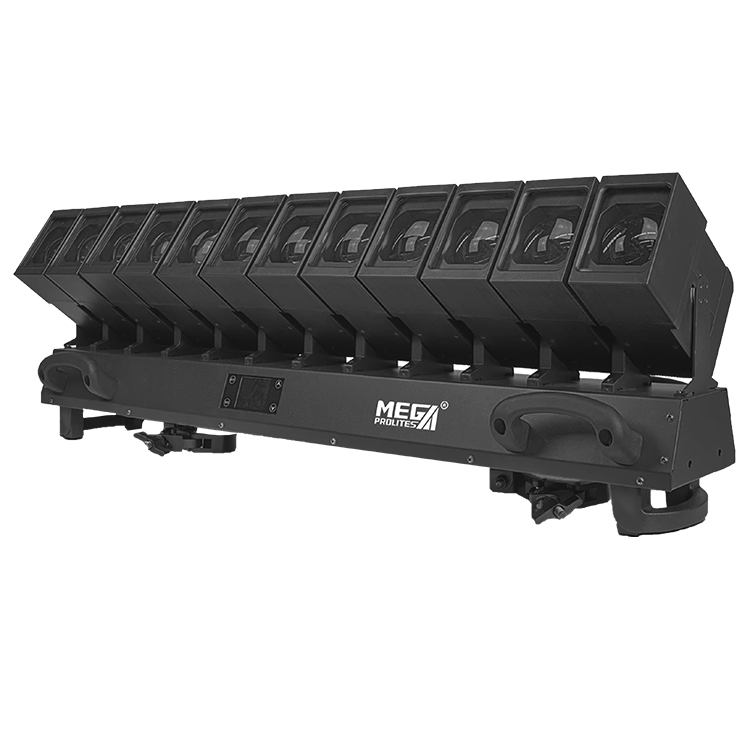

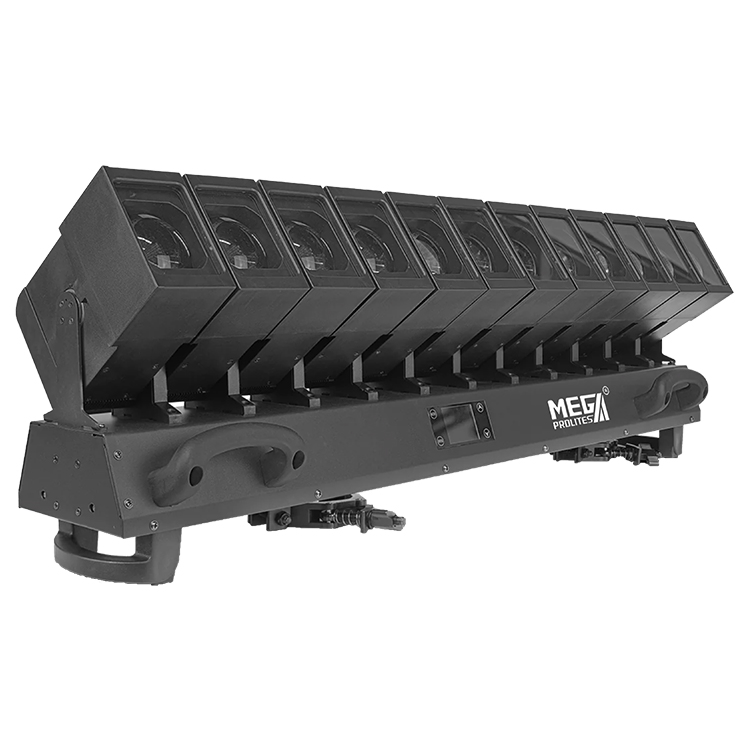

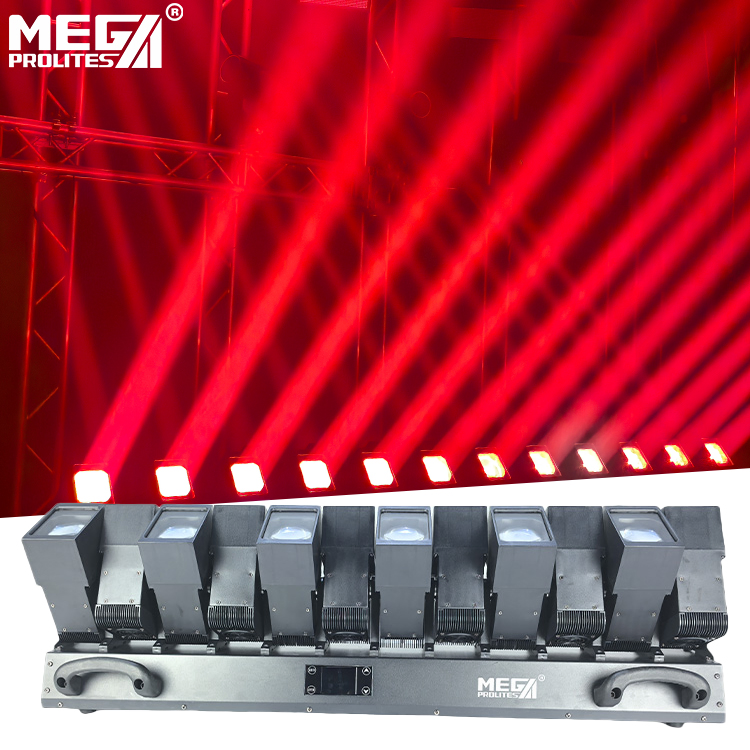

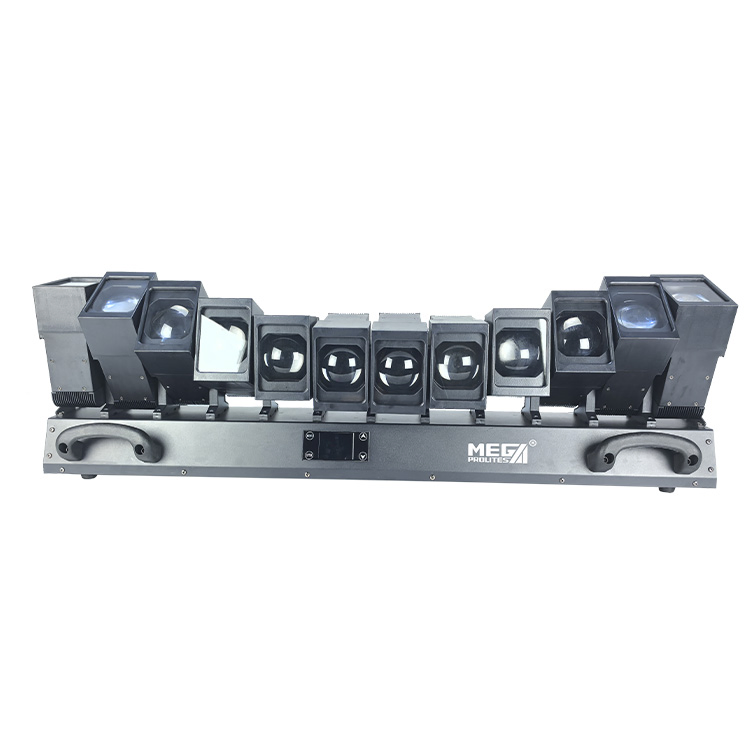

12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
Product Description
📋
Basic Specifications
Model NO.MJ-1262
Emitting ColorChangeable
Control Channel14/22CH
StrobeElectronic Strobe
Control ModeDmx Signal Control
IP RatingIP20 / IP33
CertificationCE, RoHS
Voltage100-240V
LED Source12 X 60W RGBW 4in1 LEDs
Beam Angle4°-36° Zoom
Net Weight29kg
Gross Weight31.5kg
💡
Product Description
12x60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
| Input Voltage | AC100-240V, 50-60Hz |
| Power Consumption | 1280W (R:290W; G:330W; B:330W; W:330W) |
| LED Quantity | 12 x 60W RGBW 4IN1 LEDs |
| Control Signal | DMX512, RDM, Master-slave, Sound, Internal Program/Manual |
| Control Channel | 20/53/101/155/169/179 CH switchable |
| Zoom System | 4°-36° Beam Angles |
| Dimming | 0-100% smooth linear dimmer |
| Strobe | 0-25Hz, multiple strobe effects, and adjustable speed |
| Tilt Movement | 200° Tilt Movement |
| Control Panel | LCD screen with 4 button touch control panel |
| Connectors | Power connector in/out; 3-pin XLR connector in/out |
| Special Effects |
* Outstanding color macro and mixing effects * 12 individual light heads with independent tilt control * Pixel mapping capabilities * Sharp and saturated beam effects |
📦
Packaging & Delivery
Product Size1000*215*340mm
Packing Size1160(D)*490(W)*340(H)mm
Transport PackageCarton or Flight Case
📸
Visual Display
❓
Frequently Asked Questions
What are the main lighting effects of this pixel bar?
This light features 12 individual light heads with independent tilt movement, allowing for complex beam, wash, and pixel-mapping effects. It provides sharp, saturated colors and smooth dimming.
What is the zoom range of the beam?
The motorized zoom system offers a wide range from a tight 4° beam to a broad 36° wash, making it versatile for different stage requirements.
How many DMX channels does it support?
The unit is highly flexible with multiple DMX channel modes: 20, 53, 101, 155, 169, or 179 channels, depending on the level of individual pixel control required.
What is the movement capability of the light?
The fixture features a 200° Tilt movement. Each of the 12 LED heads can be controlled individually for dynamic, wave-like motion effects.
Is the firmware upgradable?
Yes, the firmware can be conveniently upgraded via the DMX link, ensuring the fixture stays up to date with the latest software improvements.
What power and data connections are used?
It uses professional Power In/Out connectors for easy daisy-chaining and 3-pin XLR connectors for DMX data input and output.
