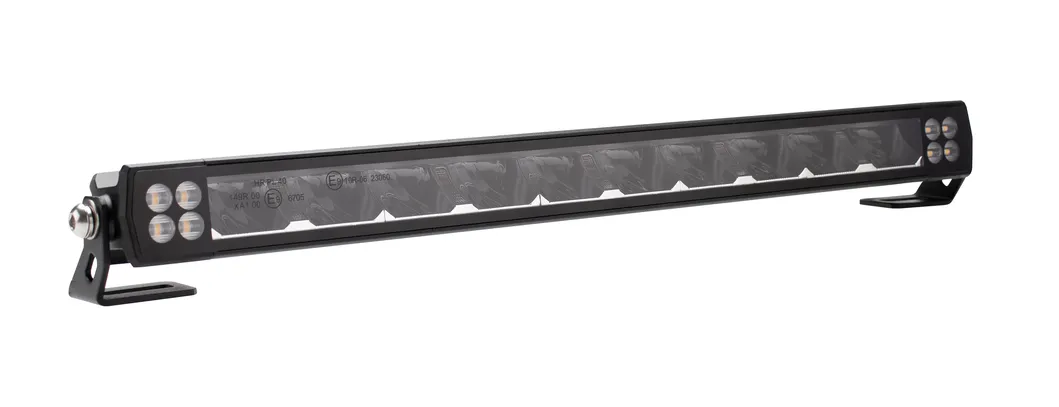

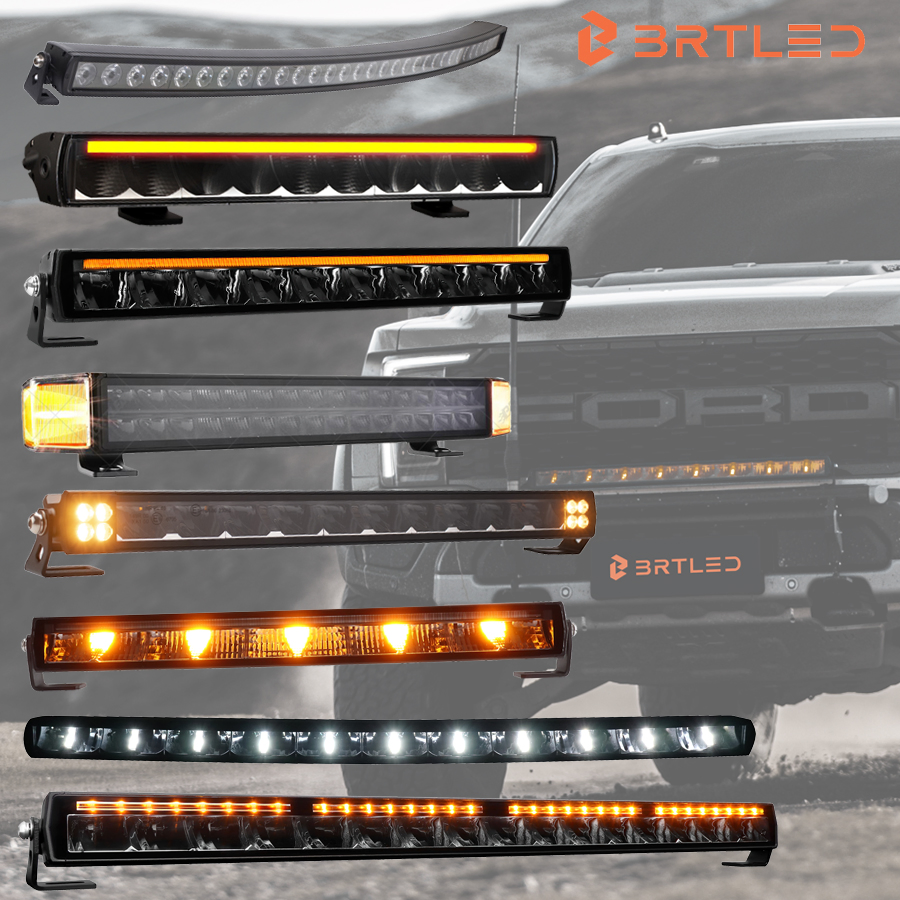

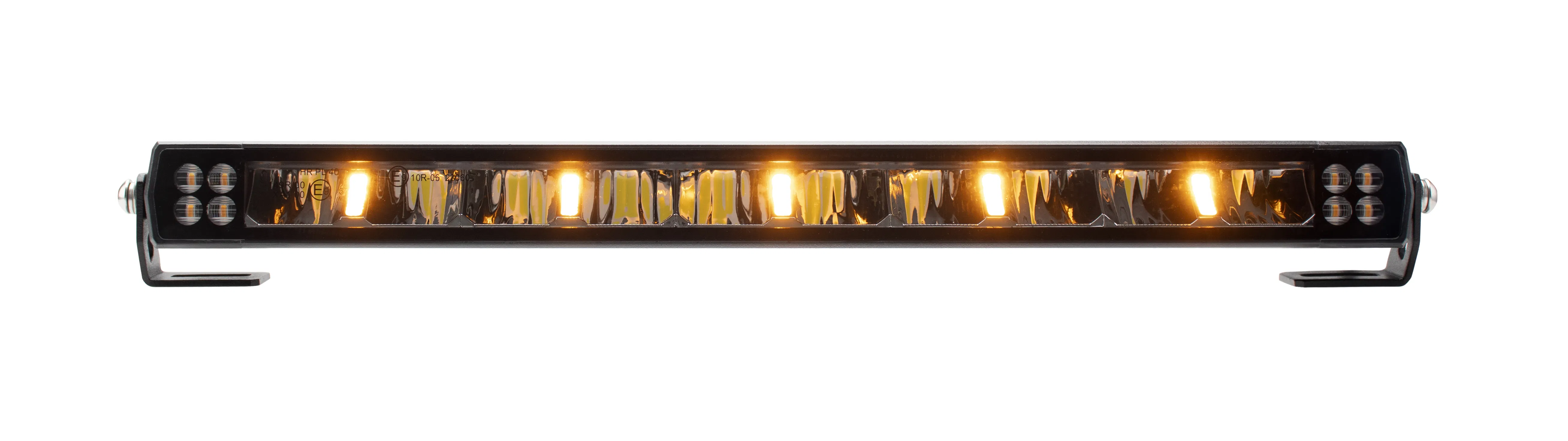

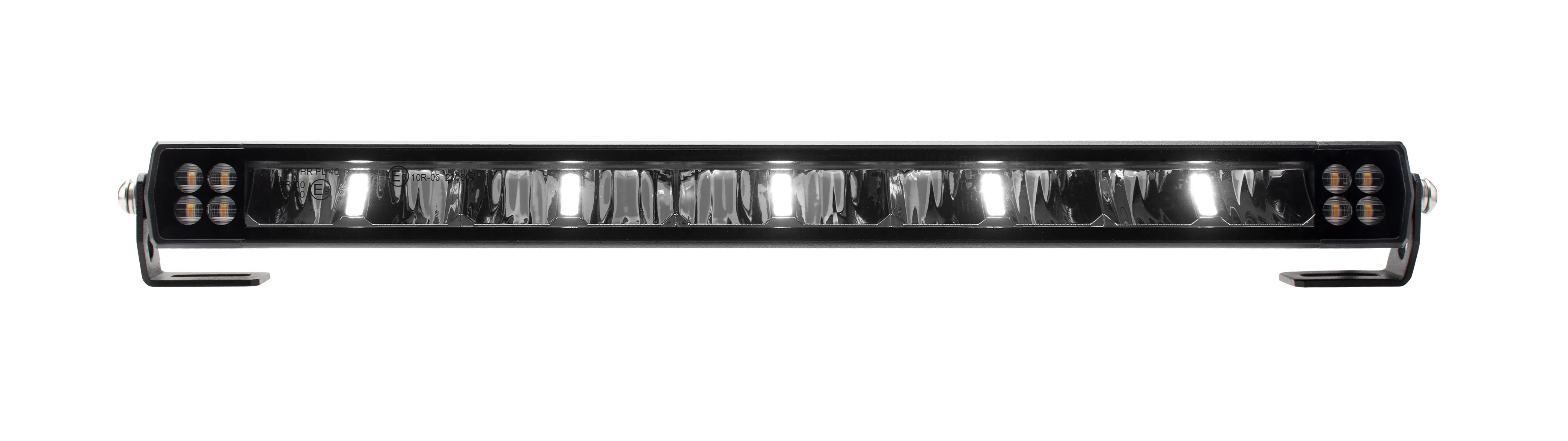

Straight Slim Light Bars 19 Inch Driving Beam White Amber DRL LED Lights for Car off Road Truck Warning Emergency Light Bar
Product Description
📋
Basic Information
Model NO.BLWL1508S-P
CertificationRoHS, CE, ISO, ECE R10, R112, R7, R65, SAE595
VoltageDC 9-36V
Light ColorWhite
ApplicationBar, Lighting, Car, Universal Vehicle
Size19 inch (484*40.5*52.5mm)
Watts100W
Luminous Flux11000lm

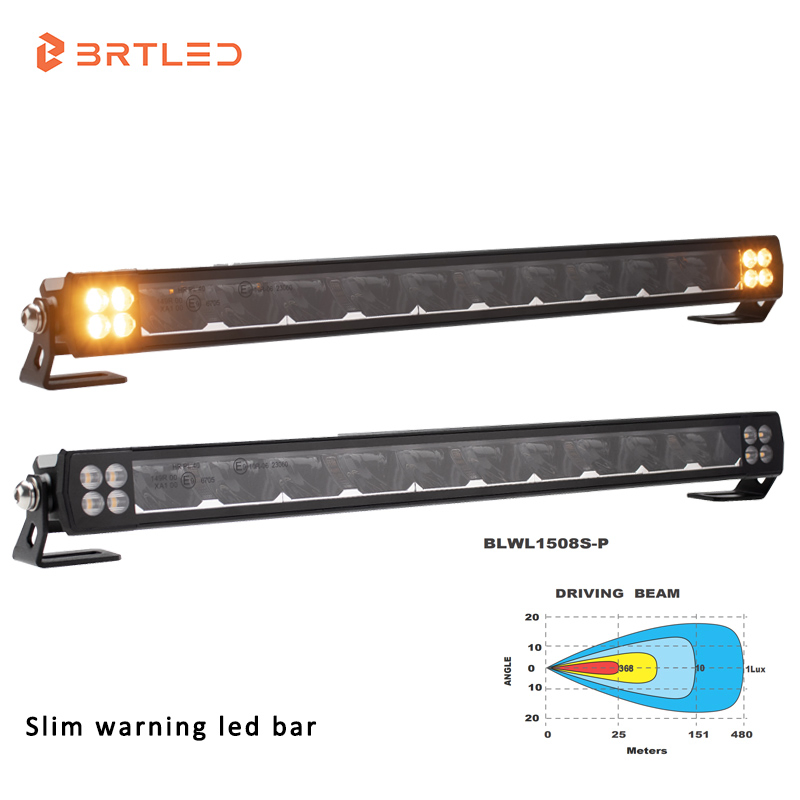

Beam PatternDriving Beam (35°) + Amber White DRL + Warning LED
FeaturesUltra Slim (Height 40.5mm), ETM Function
✨
Product Description
| Specification | Standard Model | Position Light Model |
|---|---|---|
| LED Configuration | Driving beam + Warning light | Driving beam + Warning + Park light |
| Wattage | 120W | 100W |
| Beam Pattern | Combo (25°) | Combo (35°) |
| Lumen | 11000lm | |
| Waterproof Rate | IP68 / IP69K | |
| Special Features | Standard | Amber White Position Light |
⚙️
Technical Specifications
- 100W Power: 10PCS x 10W high-intensity LEDs

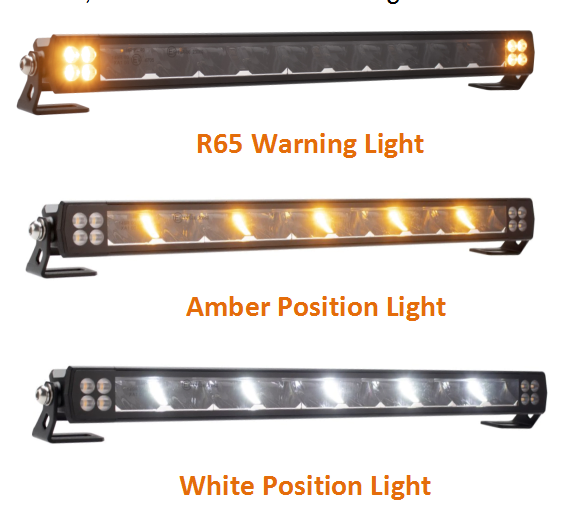

- Dual Function: White & Amber DRL with Warning mode
- Extreme Brightness: 11000 Raw Lumens / 9800 Effective Lumens

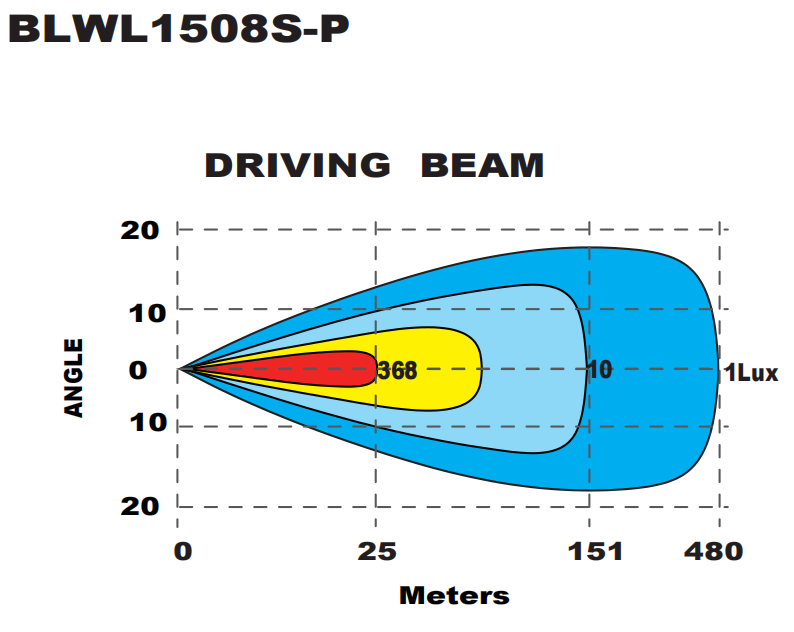

- Long Range: Light intensity 1Lux @ 480m
- Voltage Range: Supports 9-36V DC systems
- Protection: Reverse Polarity Protection & ETM (Electronic Thermal Management)
- Optic System: Side-Reflecting system for maximum efficiency
📦
Packaging & Manufacturing
🏭

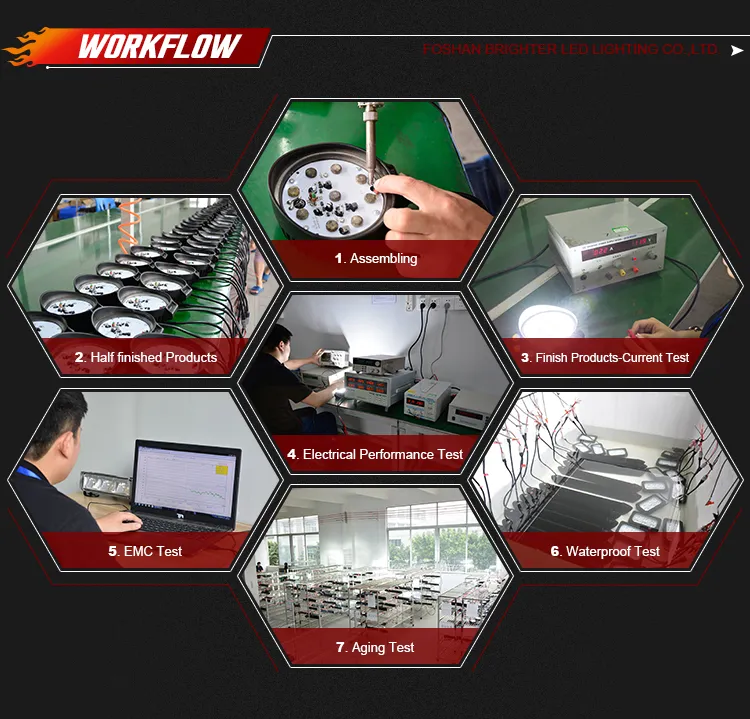

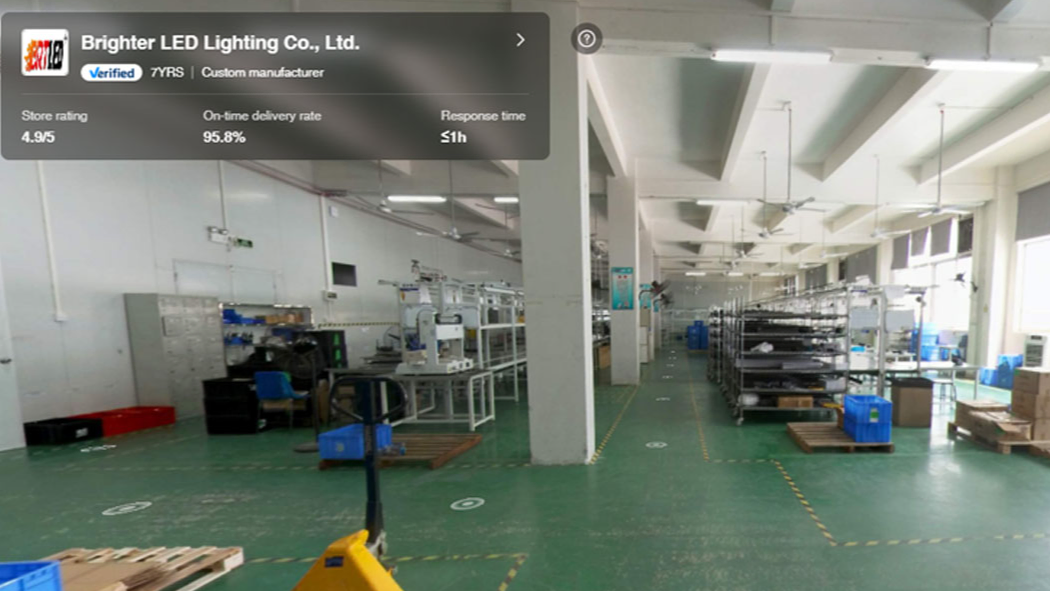

Professional Testing & Facilities
❓
Frequently Asked Questions
What is the main advantage of the "Ultra Slim" design?
With a height of only 40.5mm, this light bar can be installed in tight spaces such as front grilles or under roof racks while maintaining high output and a sleek aesthetic.
Does this light bar support warning functions?
Yes, it features a built-in Warning LED function alongside the white driving beam and amber/white DRL, making it ideal for emergency and off-road use.
How does the Electronic Thermal Management (ETM) work?
The ETM system monitors the heat of the LEDs and automatically adjusts the current to prevent overheating, significantly extending the lifespan of the light bar.
What is the waterproof rating of this product?
It is fully compliant with IP68 and IP69K ratings, meaning it is completely dust-tight and can withstand high-pressure water jets and submersion.
What certifications does the light bar carry?
The product is approved by ECE R10, R112, R7, R65, CE, RoHS, and SAE595, ensuring it meets international safety and quality standards.

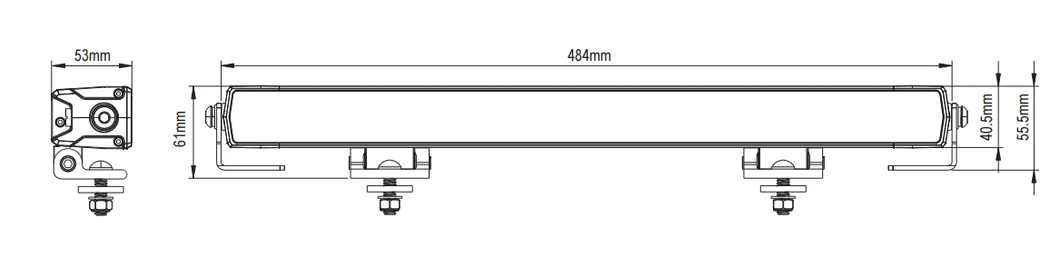

What are the dimensions and installation options?

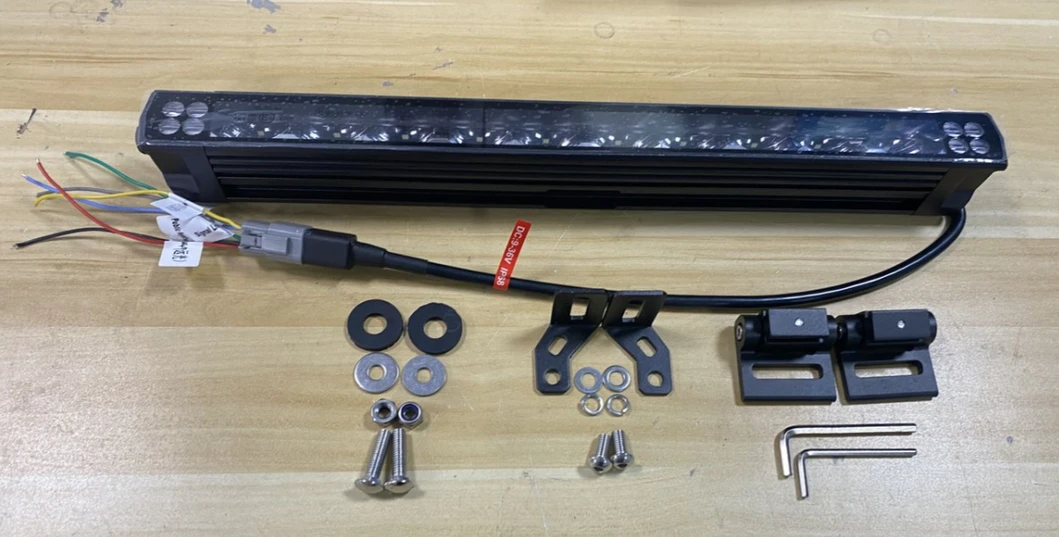

The light bar is 19 inches (484mm) long and comes with both side and bottom brackets, offering flexible mounting options for various vehicle types.
