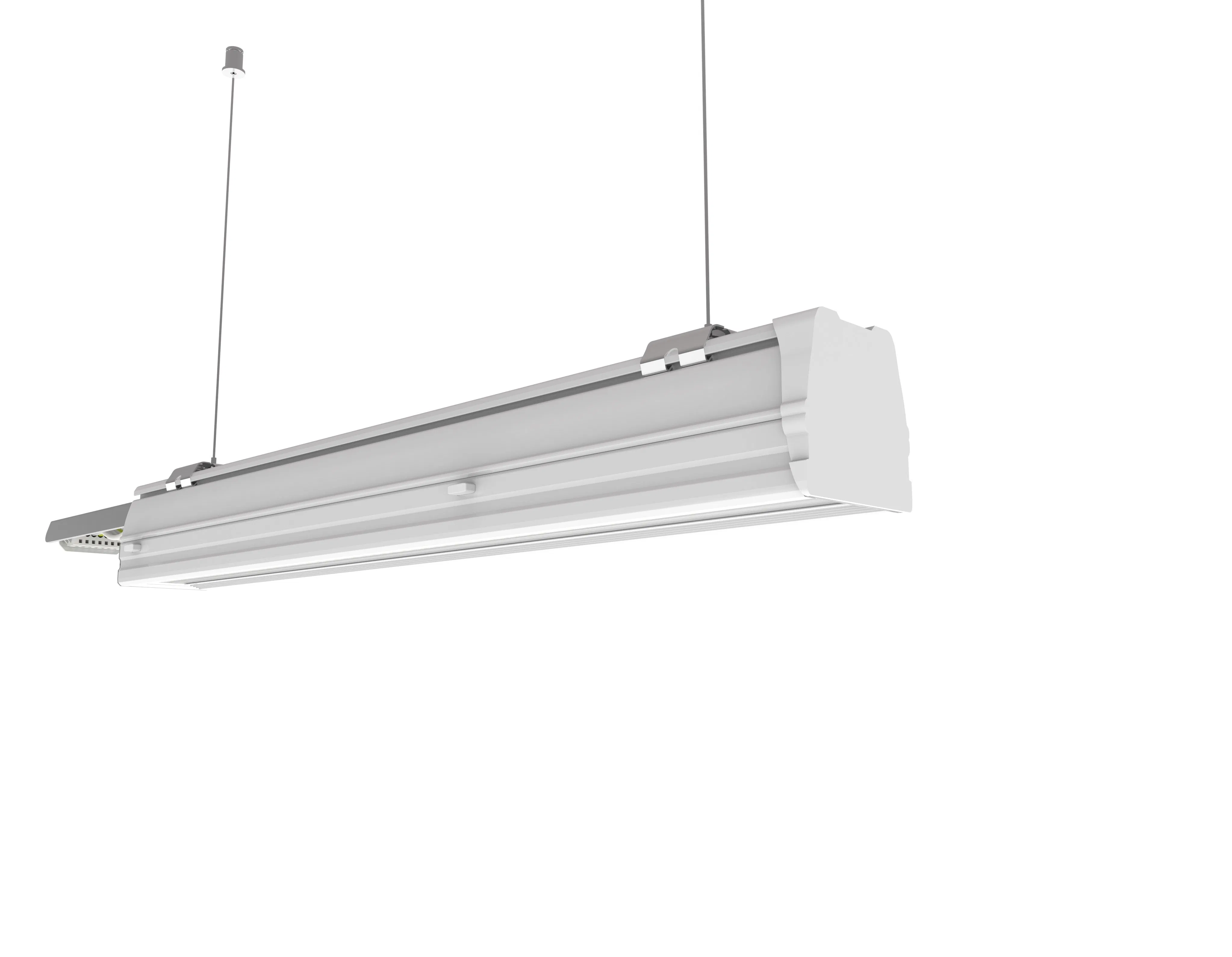

Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Product Description
Basic Specifications
Product Description
Saso cUL Ce CB 28W-150W shop light Best Array Dimmable Industrial Linkable LED Track Linear Lights

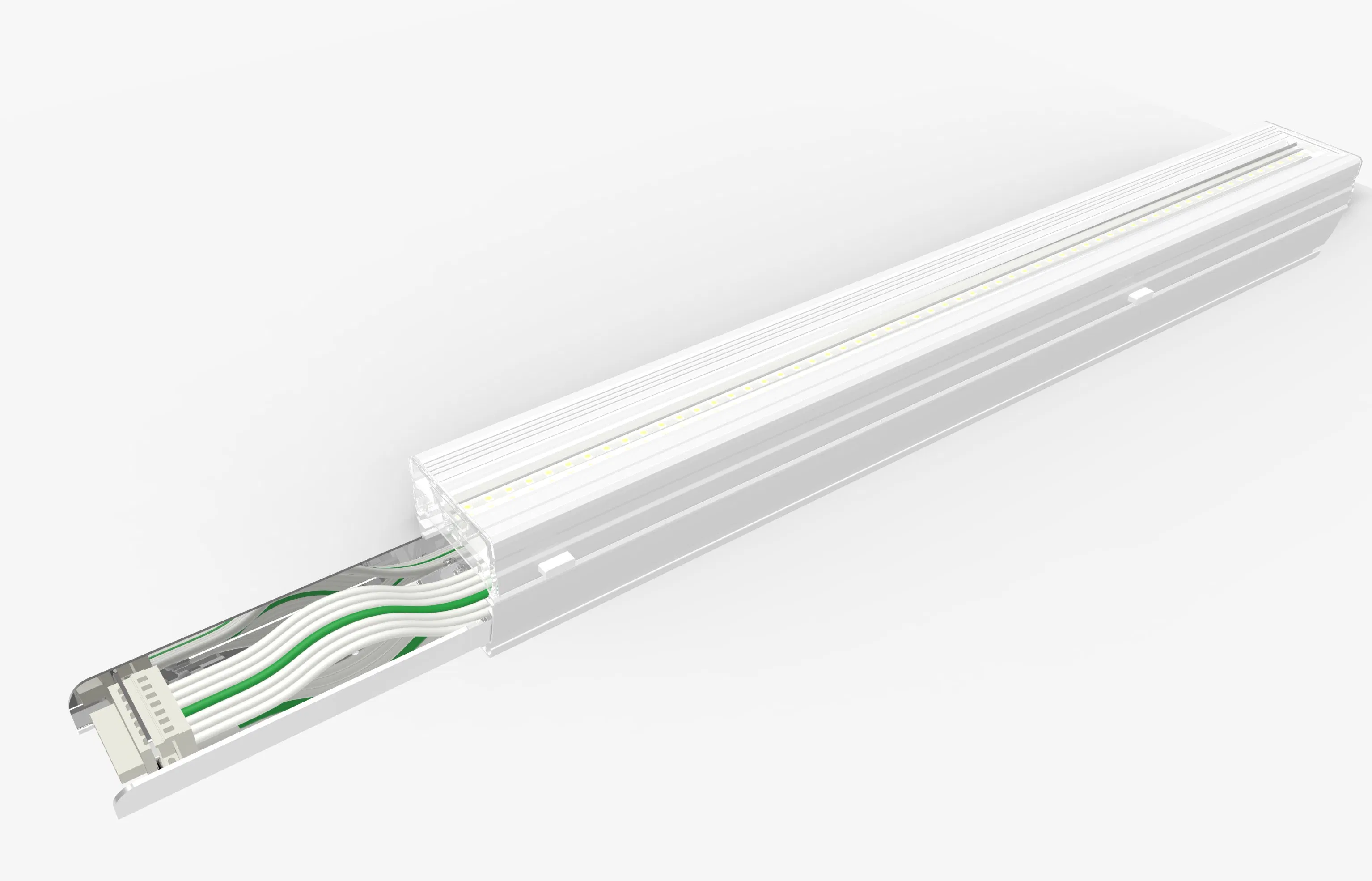

A continuous-row LED lighting system could be created only by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other as array dimmable linkable LED linear lights.
- Power Range: 28W-150W
- Rated Voltage: 100-277V
- Rendering Index: Ra>80 (Optional Ra>95)
- Dimming Options: NON / 1-10V / DALI / 3CCT
- Beam Angles: 30°/60°/90°/Single/Double Asymmetric
Technical Data Overview
| Item No. | Length | Power | Lumen |
| YB01Z0632 | 577mm | 28W | 4160Lm |
| YB01Z1575 | 1432mm | 75W | 9750Lm |
| YB01Z30150 | 2861mm | 150W | 19500Lm |
| YB01Z45225 | 4297mm | 225W | 29250Lm |
LED Linear Lighting System Performance
The LED linear lighting system is an energy-efficient, low maintenance alternative to traditional linear fluorescent in industrial and commercial applications. Due to its low installation cost and tool-less assembly, it saves both time and costs when installing lighting systems.
Wide Application Range
Business Lighting: Office, Store, Workshop, Warehouse, Lobby, Accent, and Exterior Lighting.
Home Lighting: Living Room, Kitchen, Bathroom, Bedroom, and Outdoor Lighting.

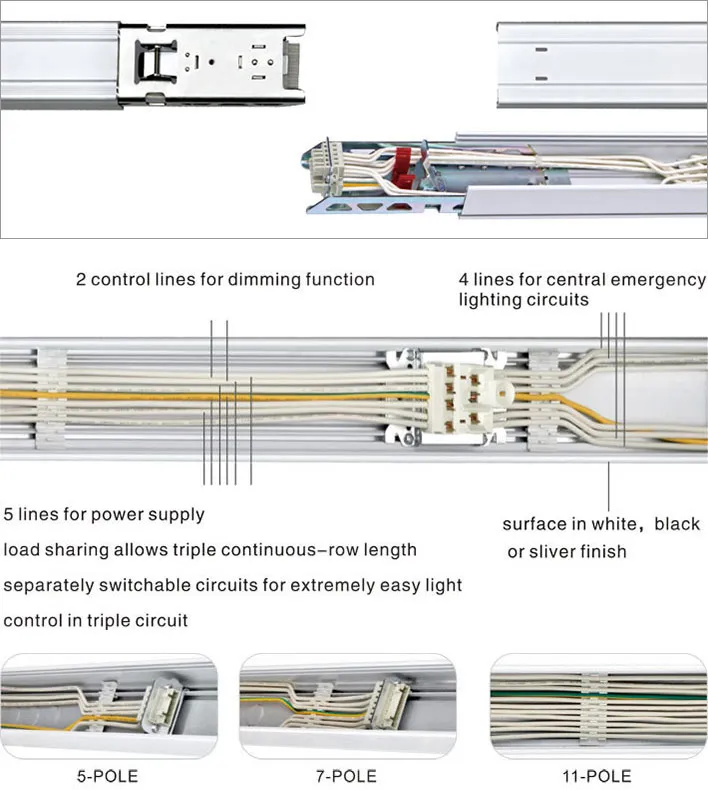

Flexible Trunking Rail System

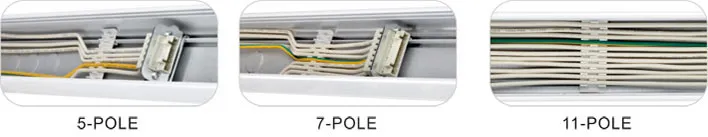

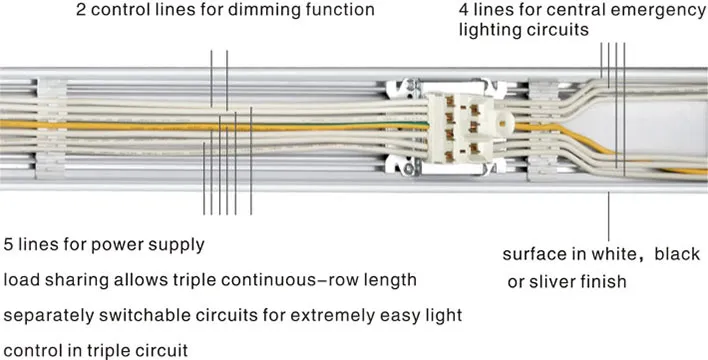

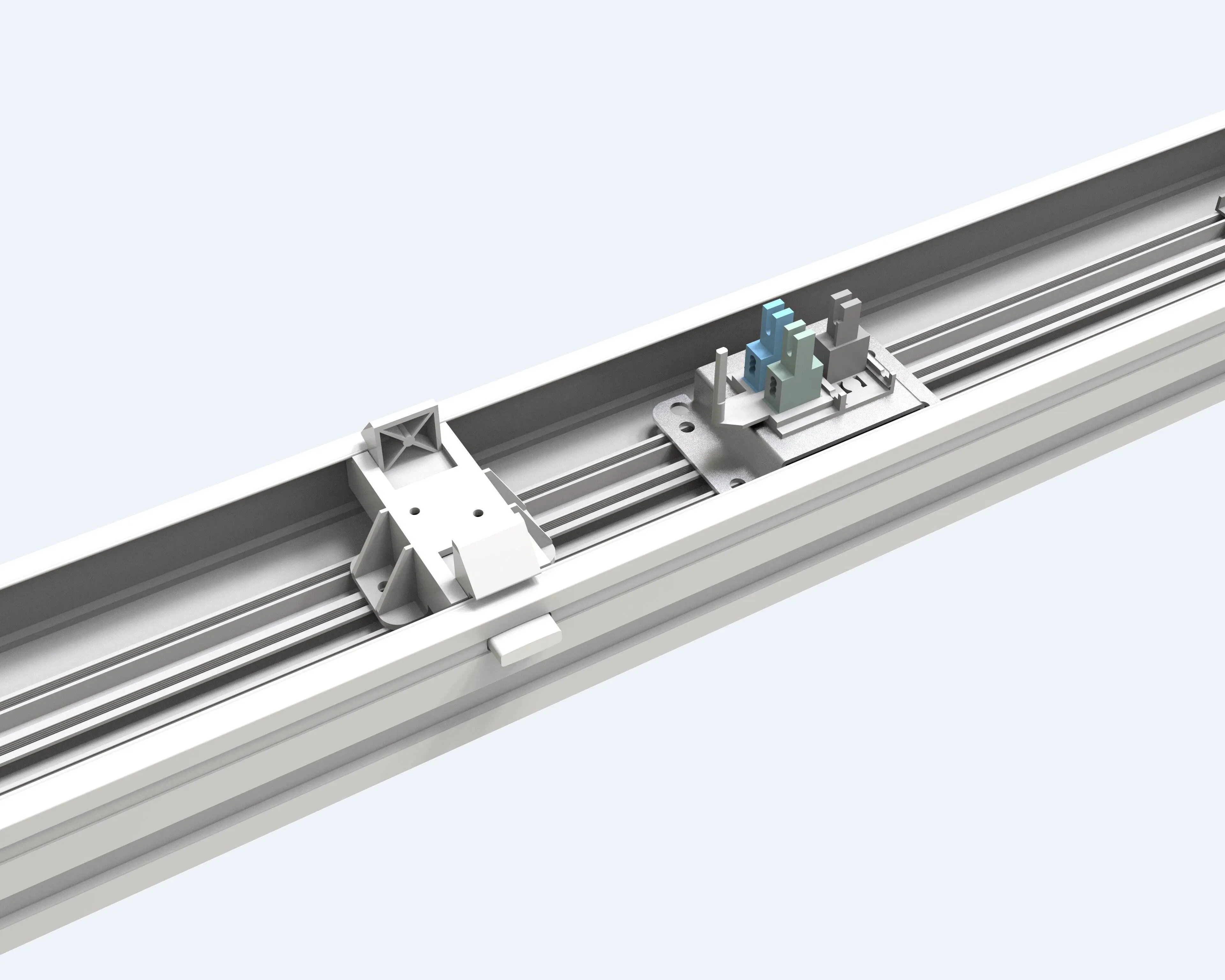

The system features an 11-pole current conducting section built into its trunking. It supports power supply, lighting control, and emergency functions. Nodes enable connection in different directions.
- Pre-wired 3-phases system.

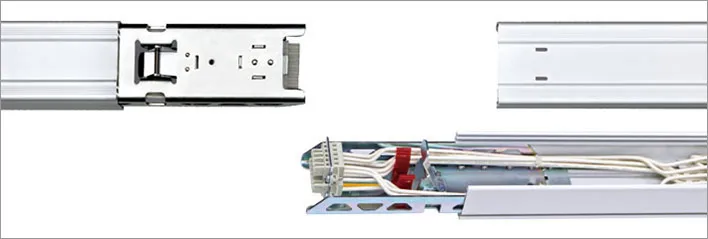

- Tool-free installation.
- Max 16A and 200 meters trunking length.
- Phase conversion function with connector.

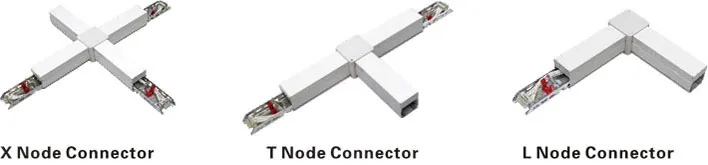

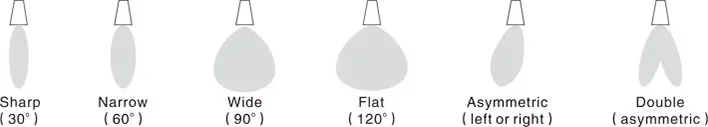

Node Connector & Beam Angles

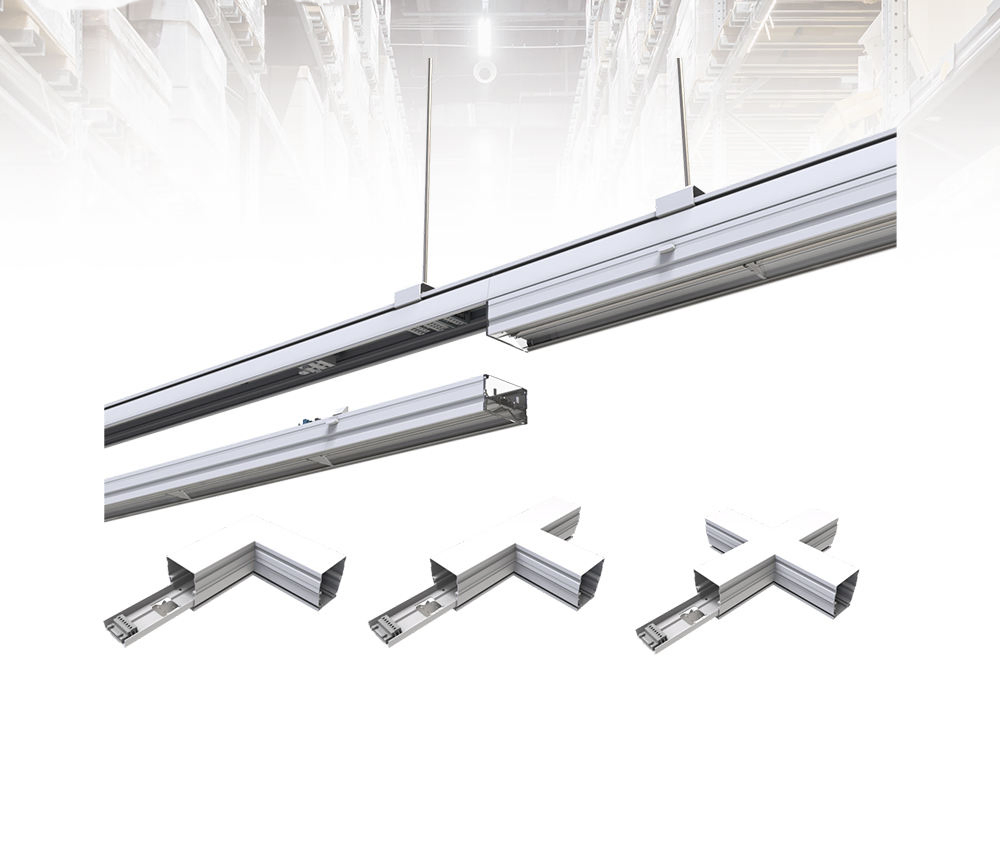

L, T, and X connectors expand the system's application range. Various optics are available for specific distribution needs.
Advanced Control & Emergency Features
Supports DALI, 1-10V, and DIM switch systems. High-quality Ni-MH battery for emergency use (1.5 - 3 hours). Multi-sensor systems combine motion and daylight sensing for maximum energy savings.

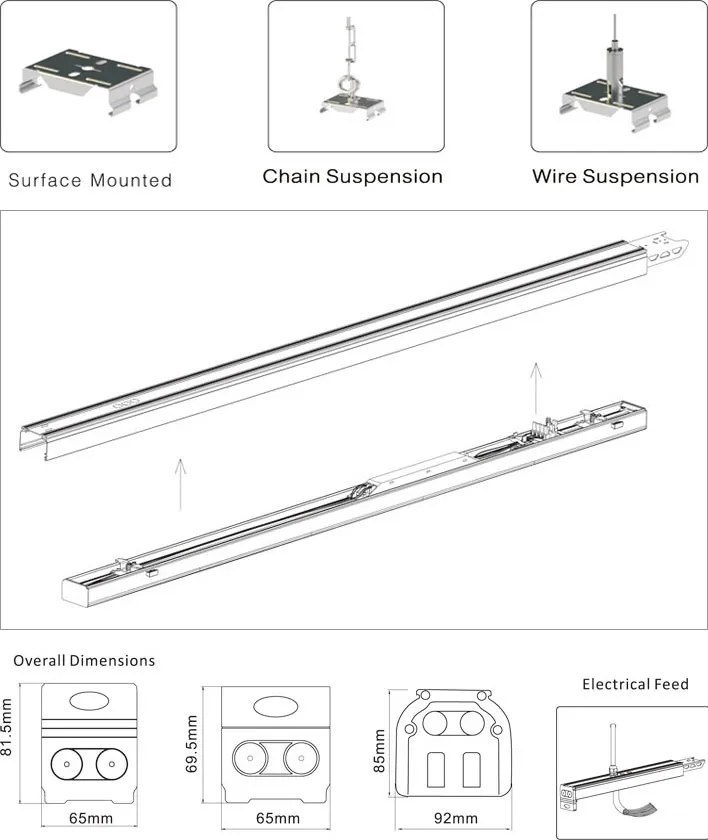

Installation Methods
Flexible installation with fewer suspension points. Ceiling mounted, wall mounted, and pendant options are all supported.
