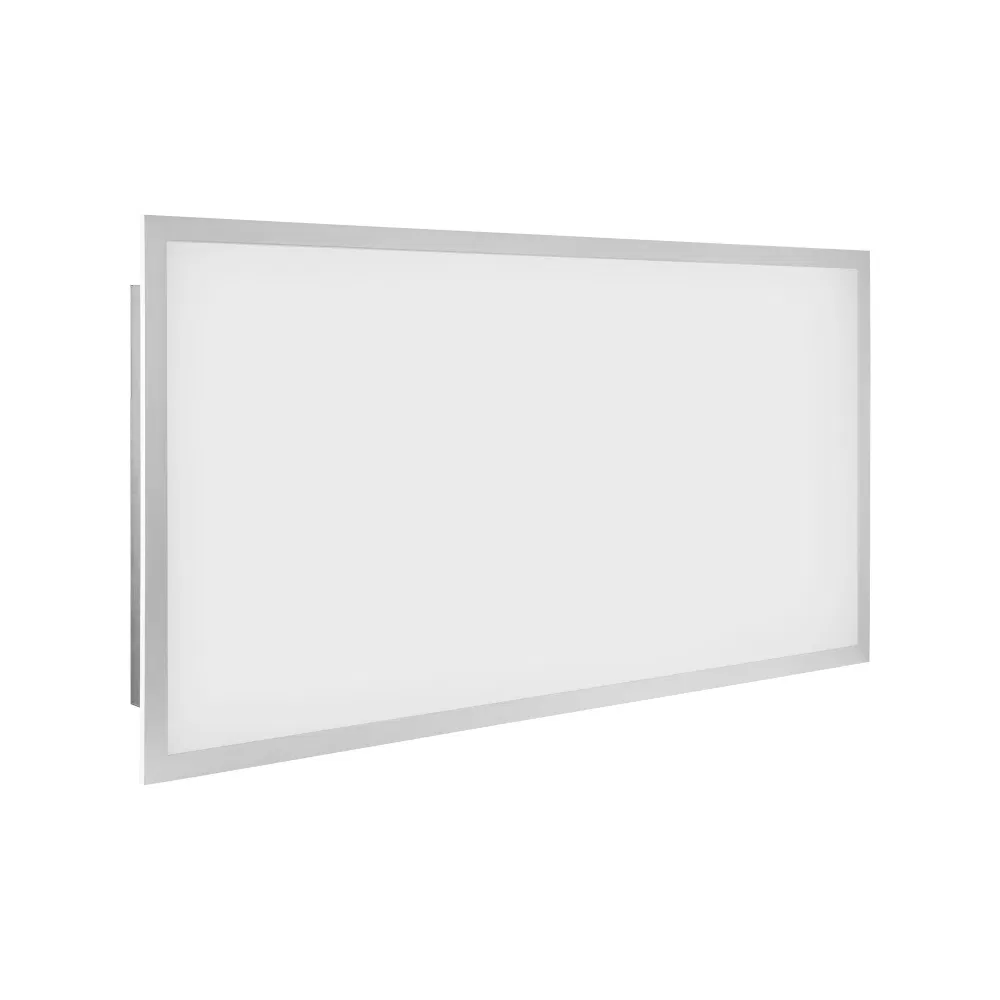

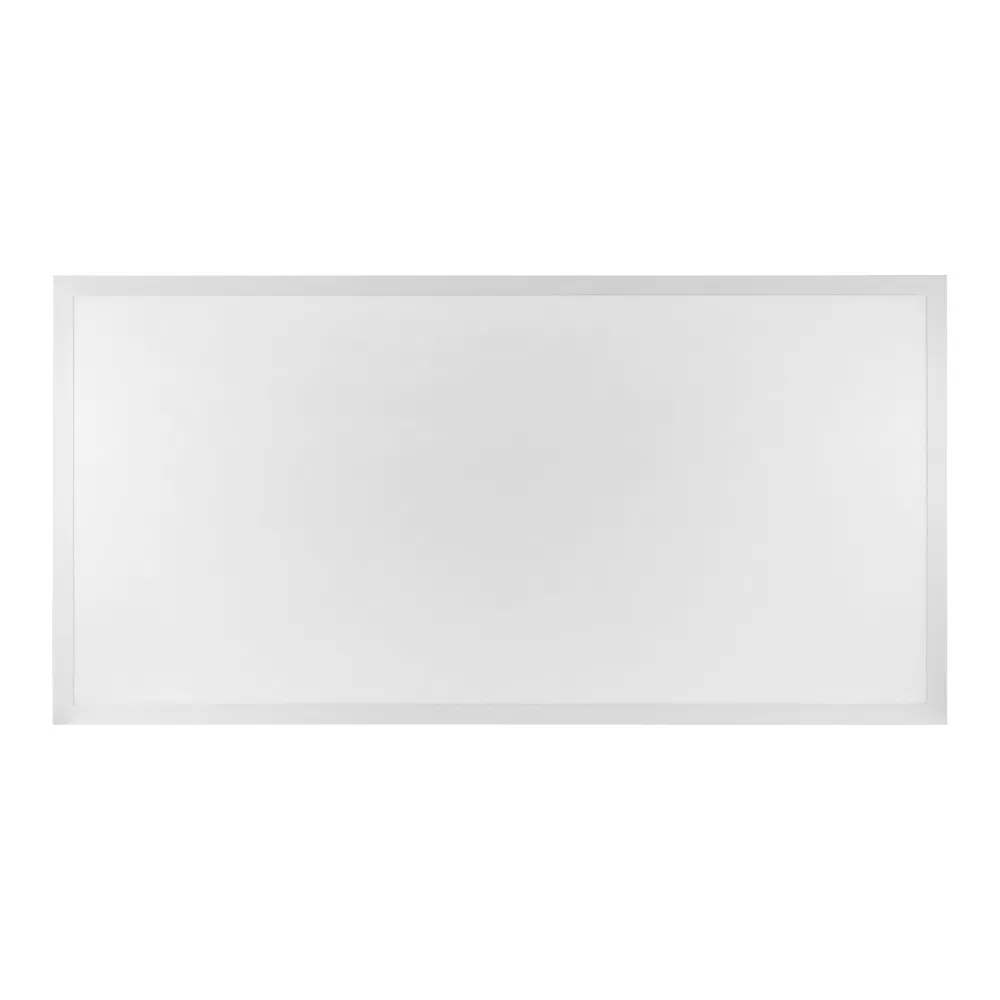

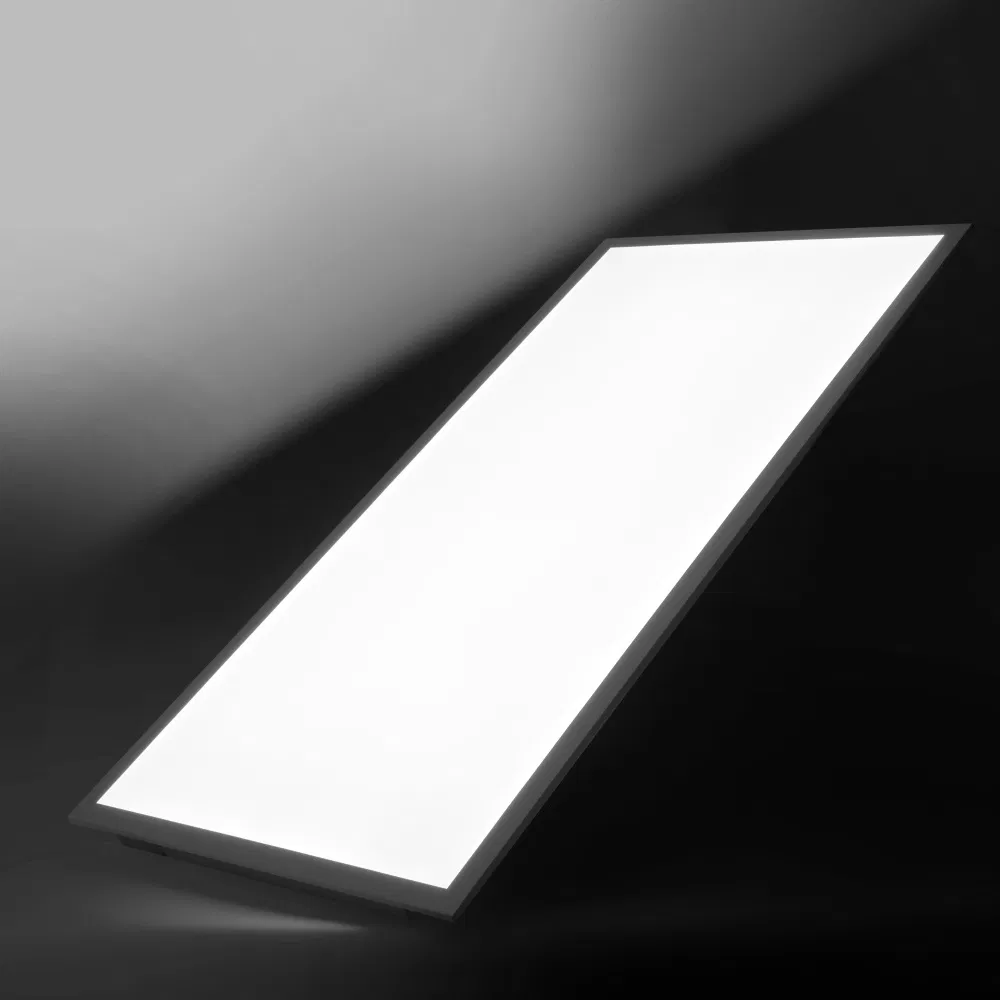

UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
Product Description
📋
Basic Specifications
Model NO.
us-P22f40Wx
Emitting Color
White
Dimmable
With Dimmable
Appearance
Square
Type
Ceiling
Certification
CE, RoHS, SAA, UL, DLC
Voltage
100-277V / 120V
Beam Angle
120°
LED Type
SMD 2835
Luminous Flux
125lm/W - 130lm/W
Color Temp
3000K, 4000K, 5000K, 6000K
IP Rating
IP40
💡
Product Overview
UL/DLC Approved LED Panel Light for North American Market
Our LED panel light design is ideal for ceiling fixtures, combining world-class technology with exceptional brightness and energy efficiency. Perfect for both commercial and residential applications, these panels are engineered for durability and ease of installation.
- Higher power and light uniformity with reinforced frames.
- Thermoplastic coating for extreme scratch resistance.
- Quick connect system operating from 100V to 277V.
- Perfect Light Uniformity with fire-rated junction box design.
- Energy-efficient LED lasts 5 times longer than traditional fluorescent panels.
📊

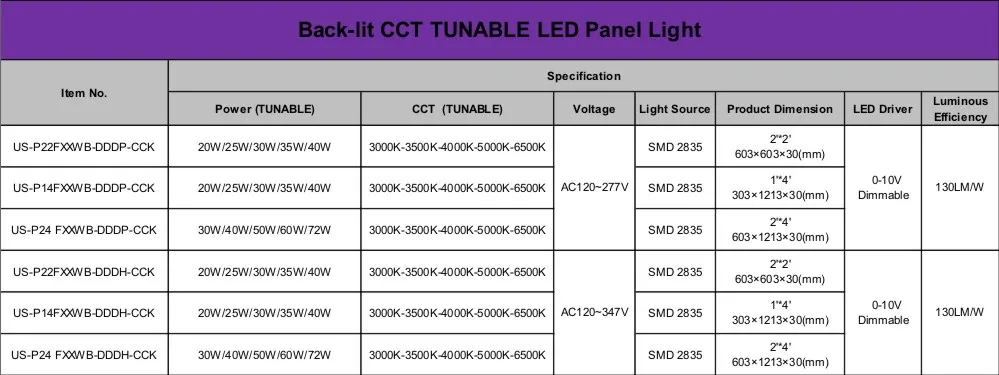

Technical Specifications
| Light Source | SMD 2835, LM80 |
| High Efficiency | 130lm/W |
| Driver Efficiency | >89% |
| Parameters | CRI(Ra)>83, PF>0.95, THD<15%, UGR<19 |
| Working Voltage | AC100~277V / 347V |
| Power Options | 20W / 30W / 36W / 40W / 45W / 50W / 60W / 72W |

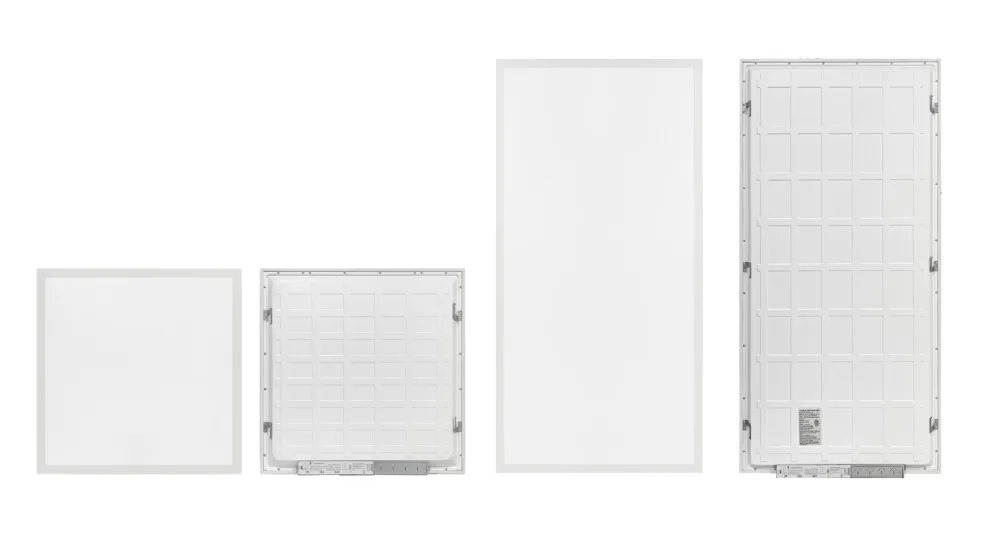

| Available Sizes | 603X603mm / 303X1213mm / 603X1213mm |
| Function | 0-10V dimmable, daylight & microwave sensor, Emergency |
| Material | AL+PMMA Diffuser |
| Warranty | 5 Years |
🛠️

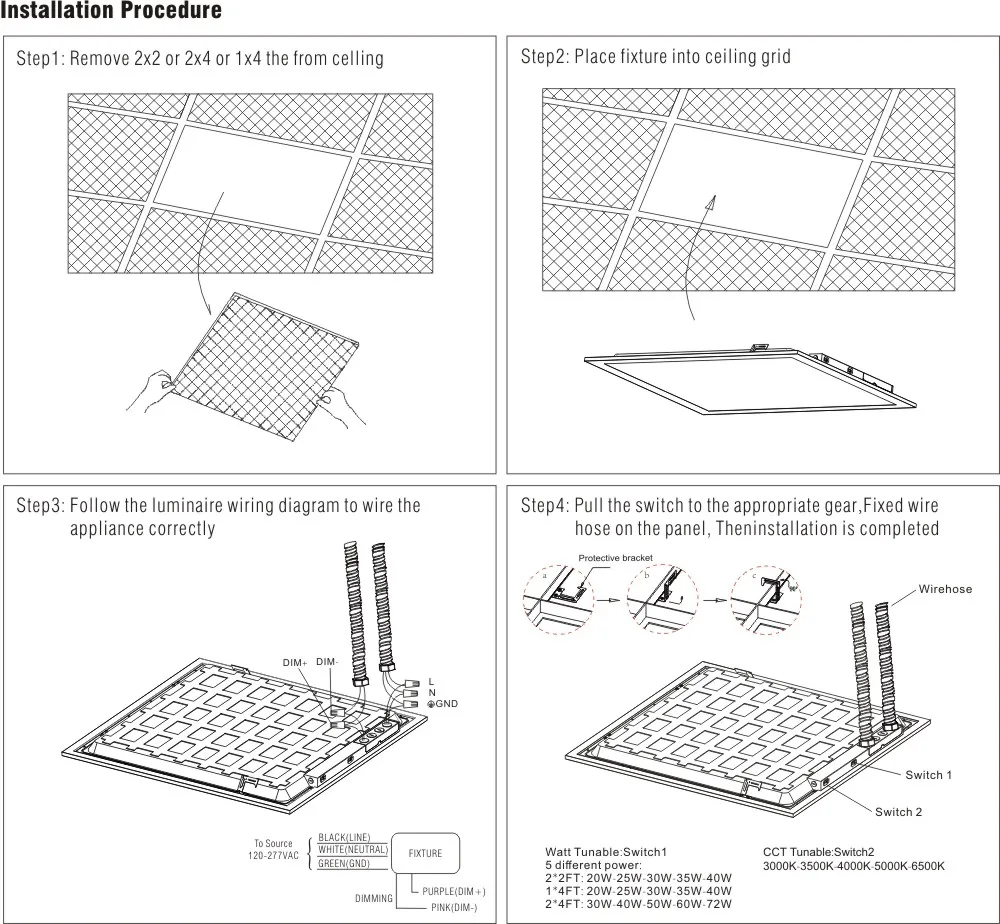

Installation Methods
- Embedded (No accessories required)
- Suspending with wire rope
- Surface mounting fixture with frame
- Earthquake proof with hook
🛡️
Quality Control Process
- Stability TEST: 100% of lamps undergo aging tests for at least 48 hours.
- Lighting TEST: 100% of lamps are tested for illumination before packing.
- Drop TEST: Ensuring every single light is well-protected by its packaging.
❓
Frequently Asked Questions

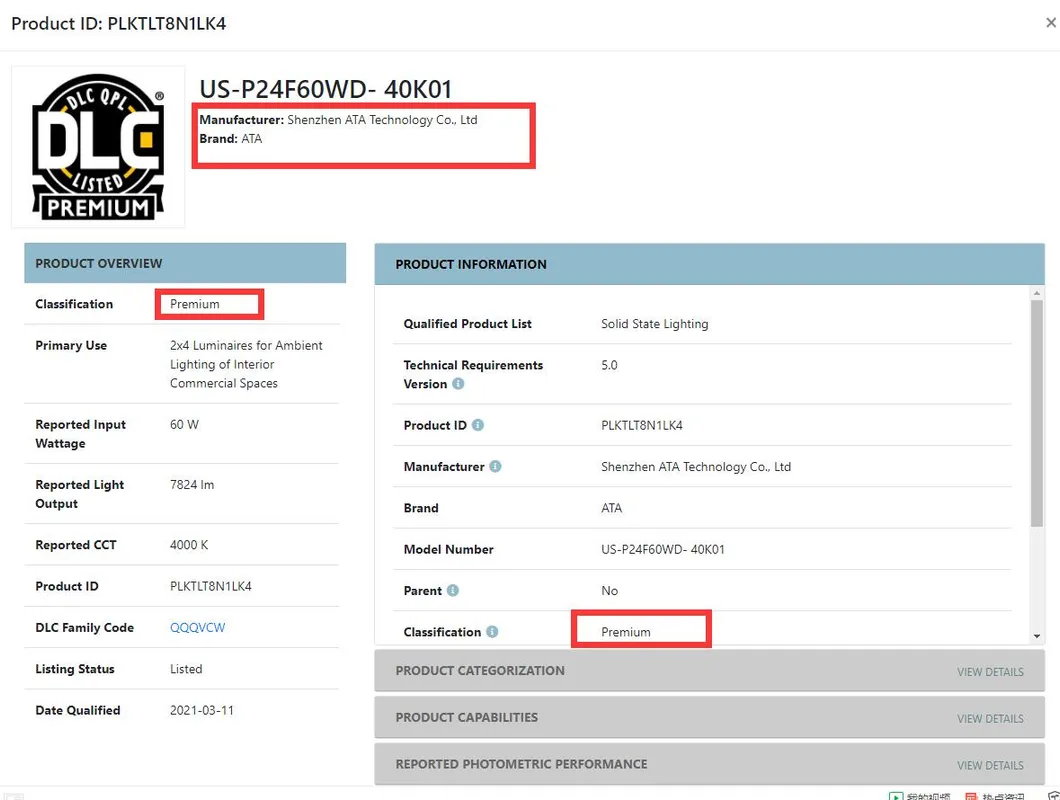

What certifications do these LED panels have for the North American market?

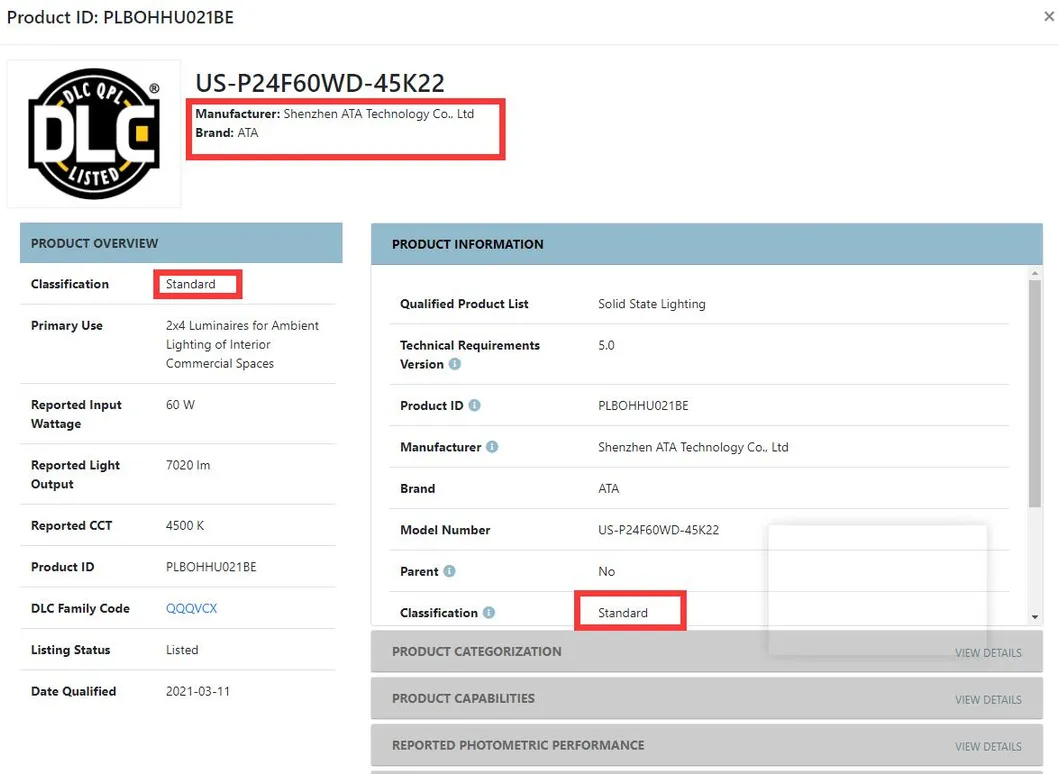

These panels are UL, cUL, and DLC approved, making them eligible for various government rebates and ensuring high safety standards.
Are the LED panel lights dimmable?
Yes, they support 0-10V dimming and PWM dimming modes for flexible light control in different environments.
What is the lifespan and warranty of these lights?
Our LED panels are energy-efficient and last up to 5 times longer than fluorescent panels. We provide a 5-year warranty for peace of mind.
Which installation methods can I use?
You can choose from four main methods: Embedded (no accessories needed), Suspending with wire rope, Surface mounting with a frame, or Earthquake-proof installation with hooks.
What are the available sizes and wattages?
Standard sizes include 1x1ft, 2x2ft, 1x4ft, and 2x4ft. Power ranges from 20W up to 75W depending on your specific lighting requirements.
Where can these LED panel lights be used?
They are perfect for commercial, residential, and decorative applications such as offices, schools, hospitals, hotels, restaurants, and retail shops.
