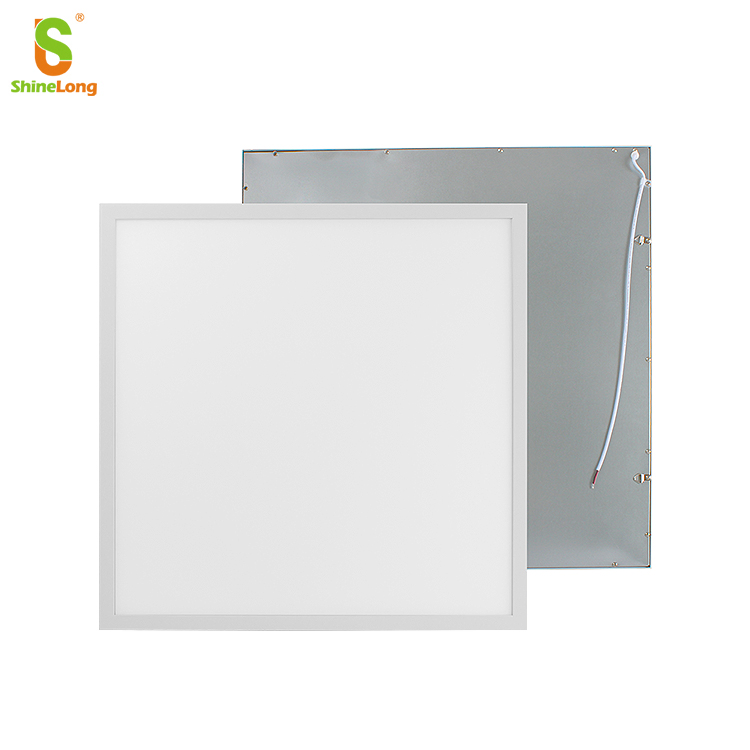

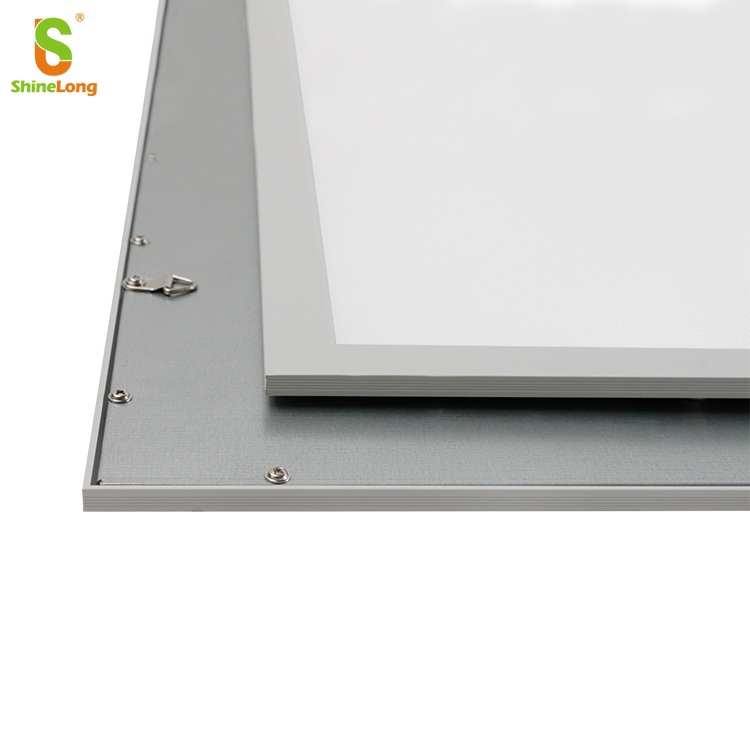

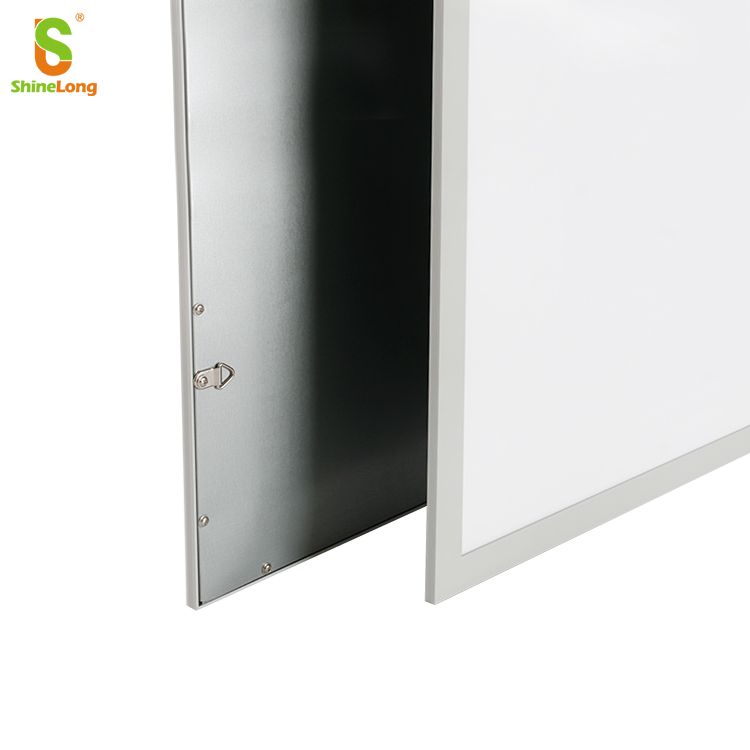

Ultra-Slim Ugr<19 LED Panel Light With125lm/W Efficiency
Product Description
i
Basic Specifications
Model NO.SL-P1112-X-26B
Emitting ColorWhite
DimmableWith Dimmable
AppearanceSquare
TypeSuspending & Ceiling Mounted & Recessed
Base MaterialPlastic
CertificationCE, RoHS
Voltage100-240V
Beam Angle120°
Wattage12W 25W 40W 60W
CRI>80
CCT3000K/4000K/5000K/6000K
DC Input30-42V
Lifespan50,000hrs
Warranty5 Years
HS Code9405409000
★
Core Features

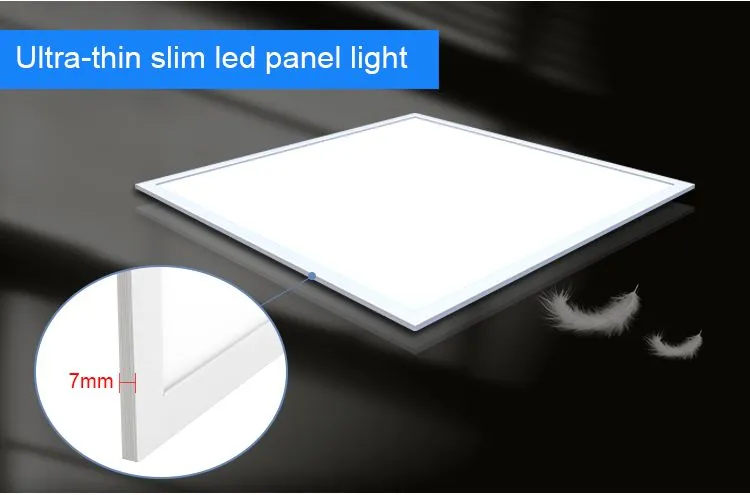

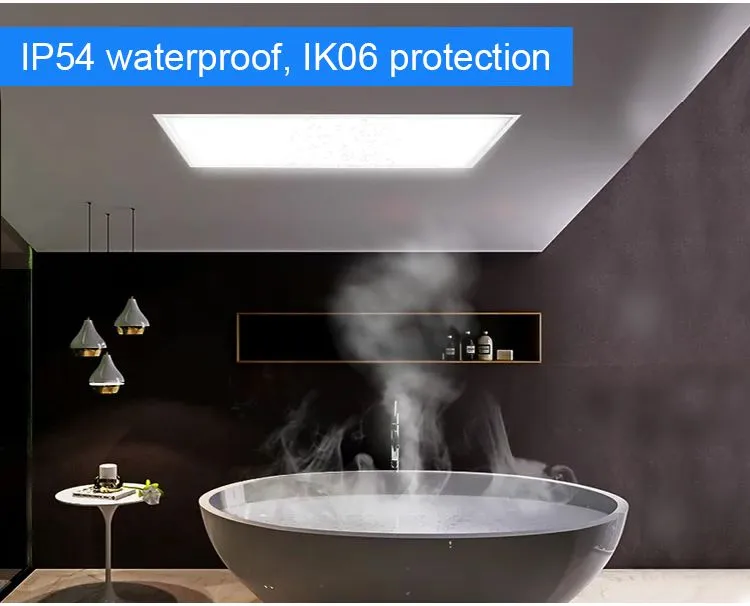

- ✔Ultra-thin Slice LED panel light, IK06 & IP54 approved.

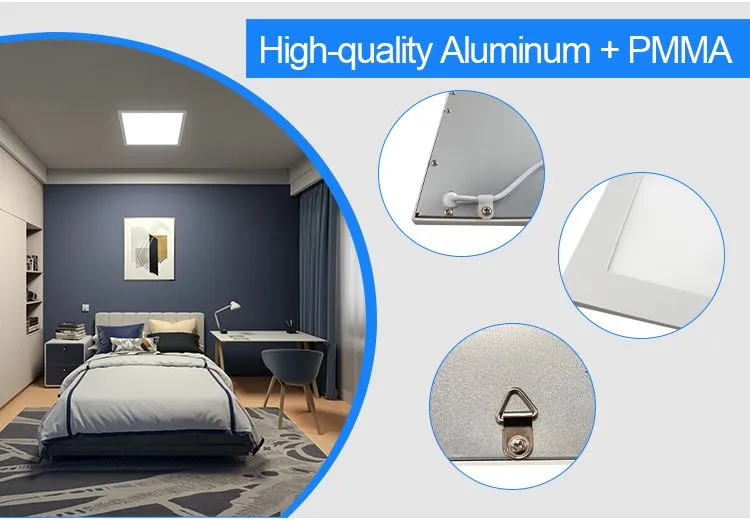

- ✔High-quality Aluminum + PMMA material for durability.
- ✔Efficacy up to 125lm/w ±10% for superior brightness.
- ✔Supports 1-10V and DALI dimming drivers.

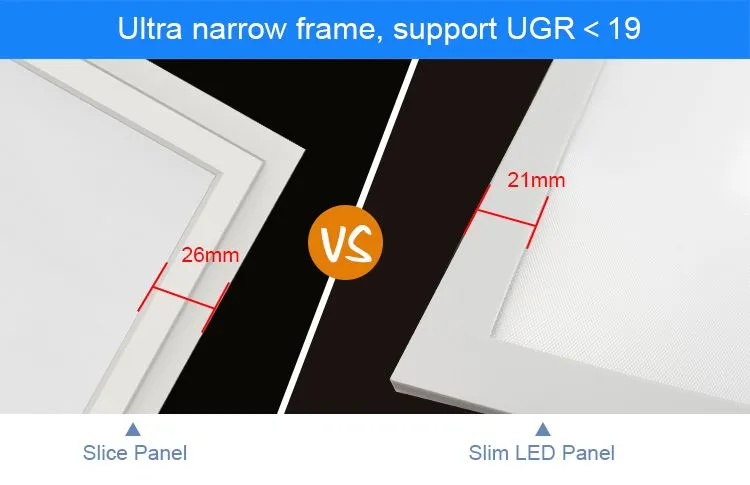

- ✔Ultra narrow Frame with UGR<19 support for eye comfort.

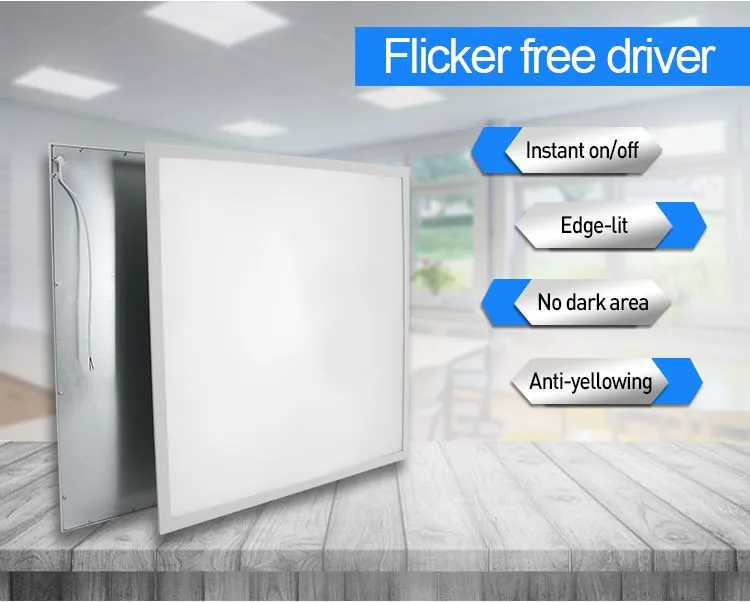

- ✔Anti-yellowing edge-lit design with no dark areas.
- ✔High CRI (Ra>80) and low SDCM (<4) for true color.
- ✔Versatile installation: Suspending, Ceiling, or Recessed.
📏
Product Dimensions
📋
Technical Data Sheet
| Article Number | Dimension (mm) | Power (W) | Lumen (lm) |
|---|---|---|---|
| SL-P1112-X-26B | 295*295*7 | 12 | 1100 |
| SL-P1225-X-26B | 295*295*7 | 25 | 2500 |
| SL-P2240-X-26B | 595*595*7 | 40 | 4000 |
| SL-P2240-X-26B2 | 620*620*7 | 40 | 4000 |
| SL-P1440-X-26B | 1195*295*7 | 40 | 4000 |
| SL-P2460-X-26B | 1195*595*7 | 60 | 6000 |
* The "X" represents CCT: W(3000K/4000K), P(5000K), C(6000K).
Efficacy Version Comparison
Frosted Cover Standard: 100lm/w | Premium: 125lm/w
🖼

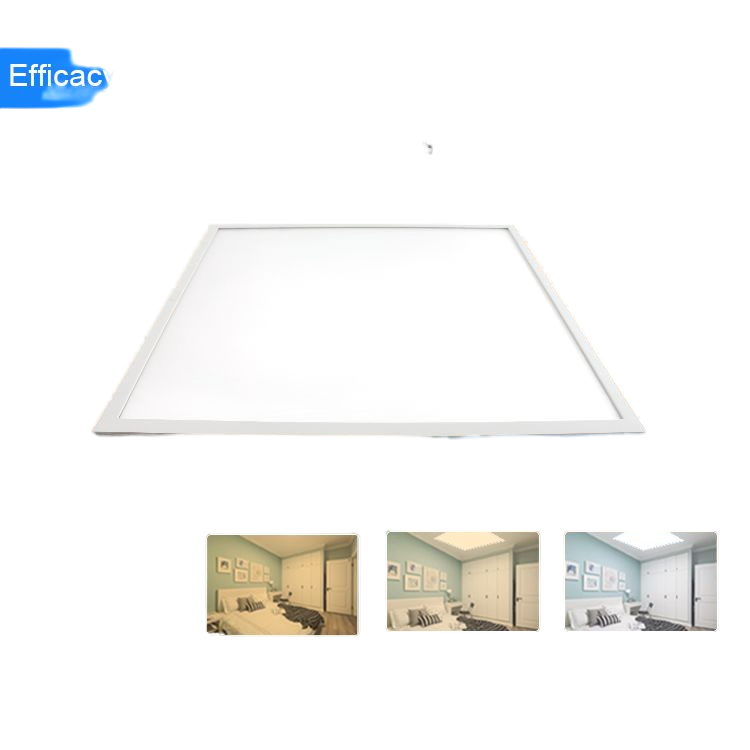

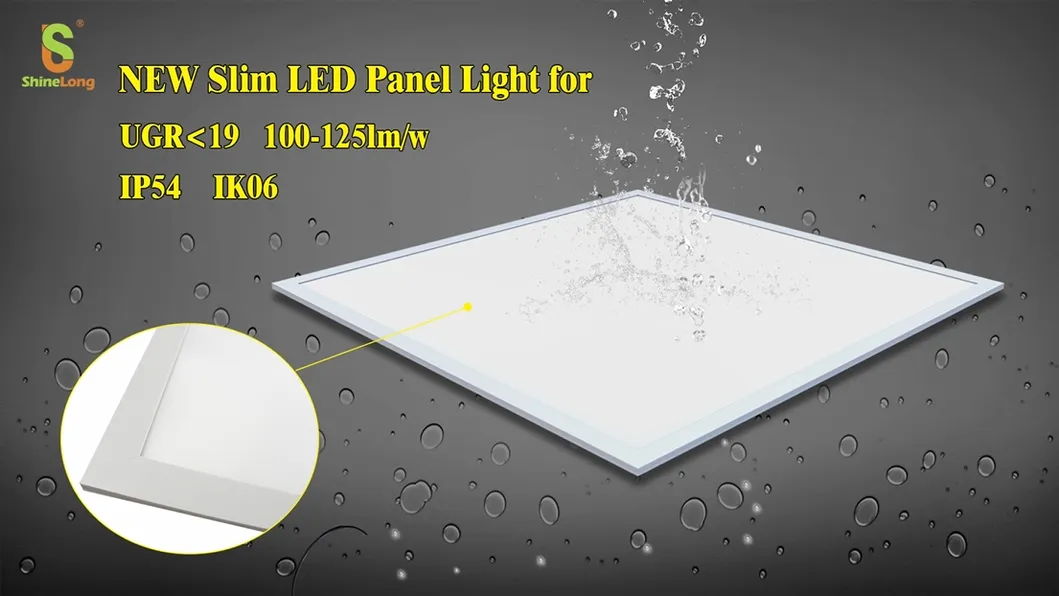

Product Display
📦

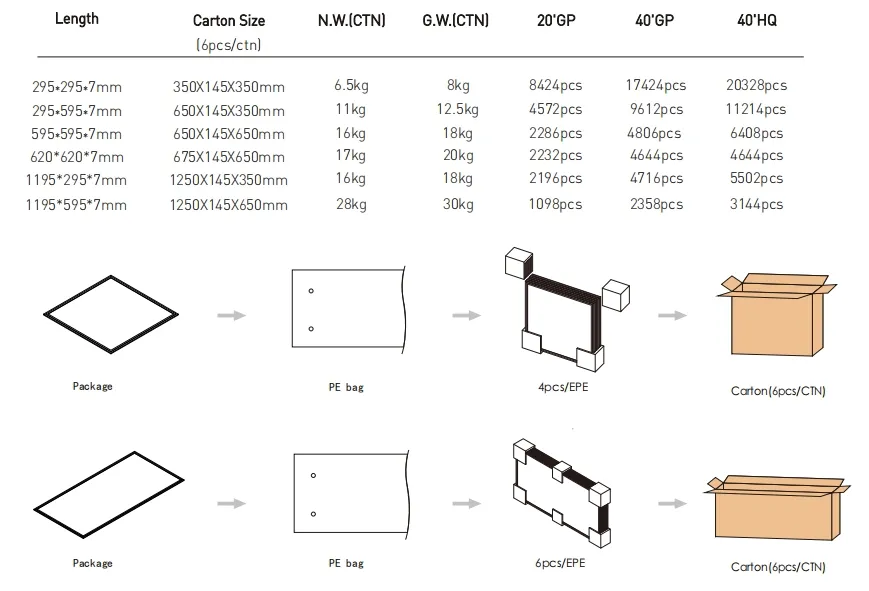

Packaging & Shipping
🛡

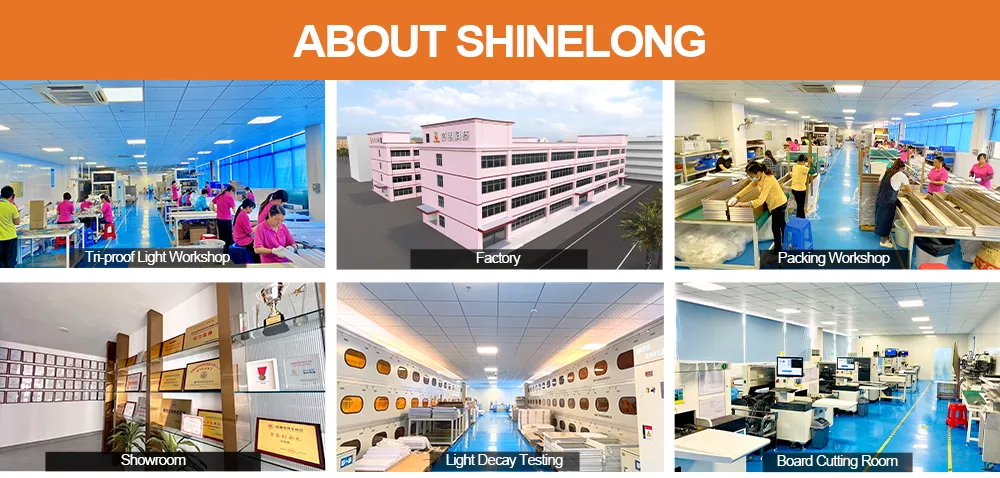

Professional Manufacturing
With an efficient and flexible supply chain system, our production covers SMT, injection molding, and power supply manufacturing. We utilize international advanced equipment to ensure strict quality control at every stage. Products are certified by TUV, VDE, UL, ETL, SAA, UKCA, DLC, and CE.
?
Frequently Asked Questions
Q1: What is your monthly production capacity?
Our monthly production capacity can reach 50,000 pieces of panel lights, allowing us to meet both medium-batch and large-scale order requirements efficiently.
Q2: How long is the standard delivery time?
Regular orders typically have a production cycle of 15-20 days after receiving advance payment. Expedited services are available for urgent requirements.
Q3: Can we have our brand logo on the products?
Yes, we provide OEM services. We can print your logo on both the products and packaging if the minimum order quantity (MOQ) is met.
Q4: How do you guarantee product quality?
We implement strict detection protocols during production and perform rigorous sampling inspections before shipment to ensure intact packaging and high-quality performance.
Q5: What is the warranty and lifespan of the LED panels?
Our panel lights feature an L80B10 lifespan of 50,000 hours (at Ta=25ºC) and come with a comprehensive 5-year warranty for your peace of mind.

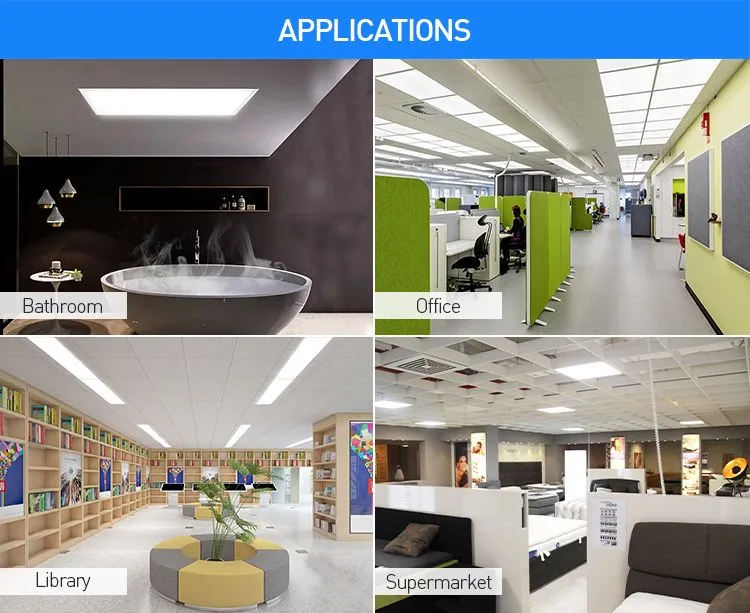

Q6: What installation methods are supported?
The slim panel lights are designed for versatility and can be installed via suspending, ceiling mounting, or recessed mounting to fit various architectural needs.
