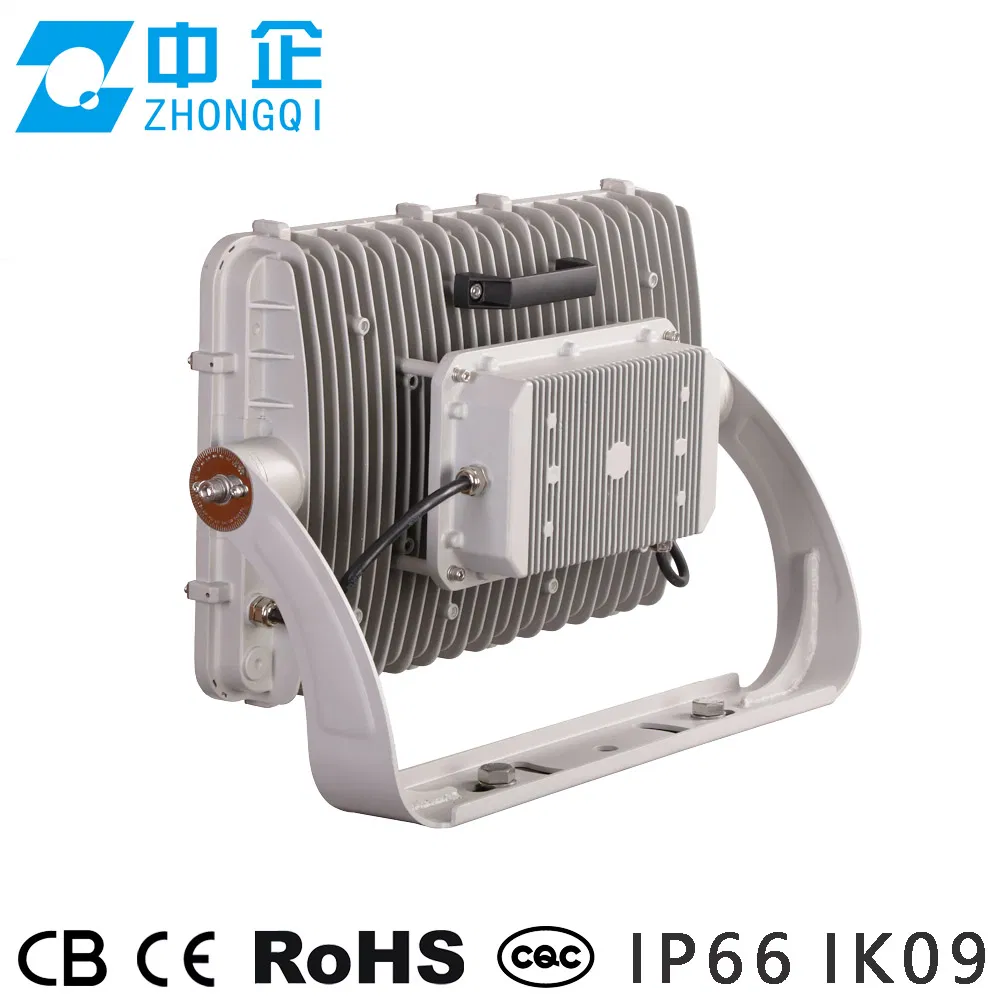

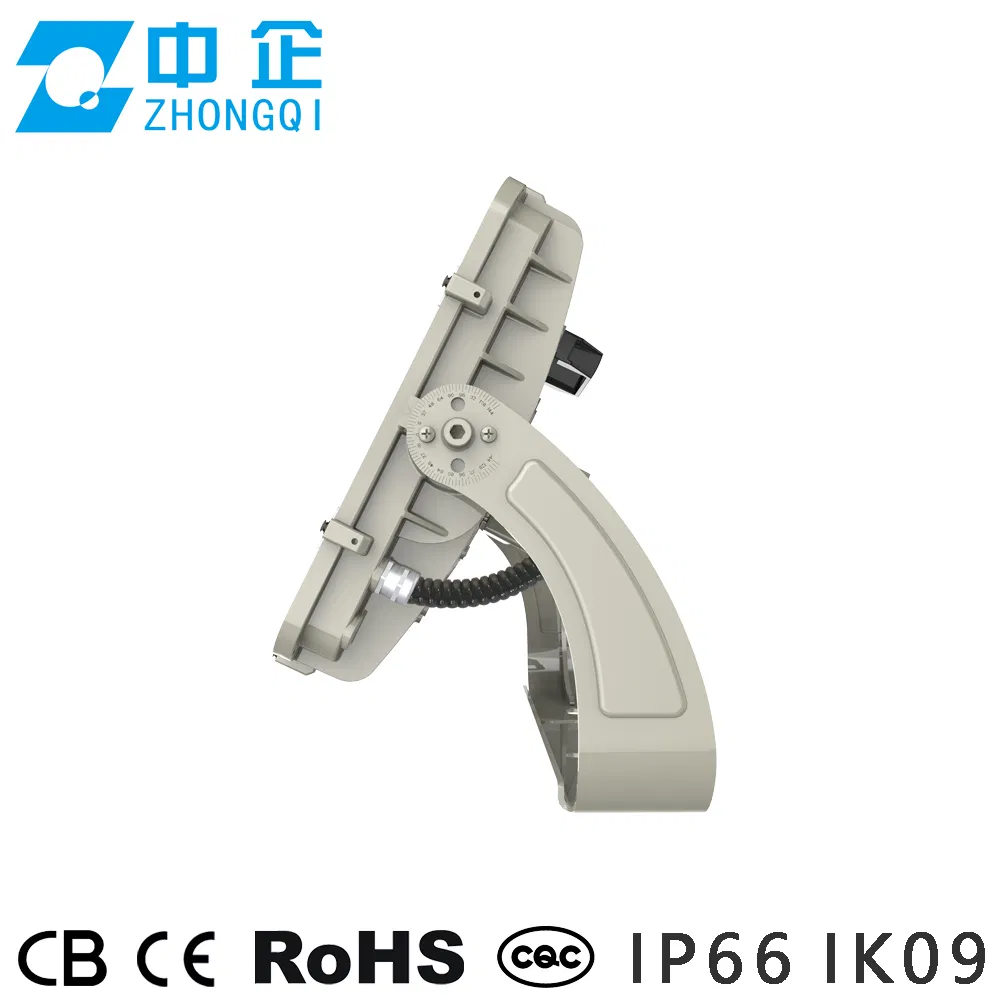

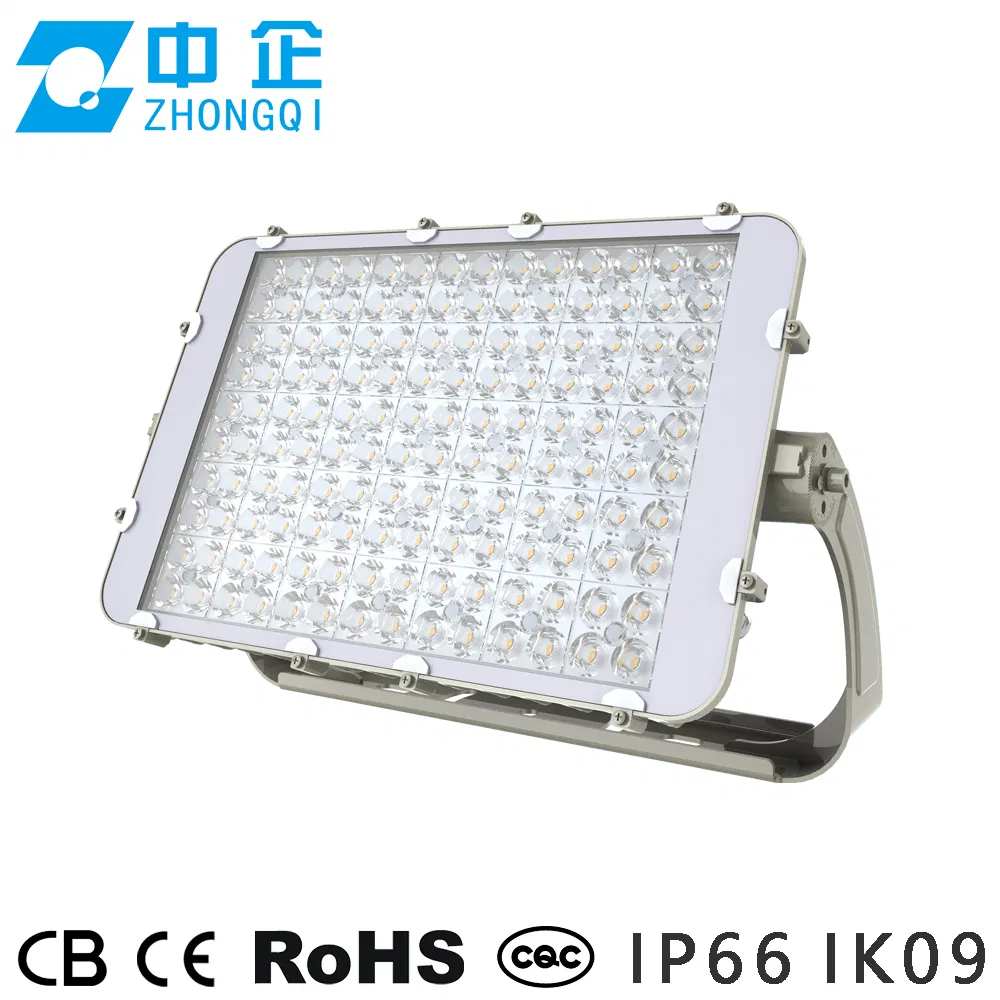

Reliable 300W Marine LED Floodlight SS316 Stainless Body IP66 Ik09 5g Vibration Test Offshore Corrosion Resistant Light
Product Description
Basic Information
Model NO.:TYZQ-FD019L
Power:50-400W
IP Rating:IP66
Operating Voltage:100-240V
LED Chips:Epistar
Efficiency:120lm/W - 200lm/W
IK Rating:IK09
Certification:CE, CB, RoHS, TUV, etc.
Product Features
🛡️

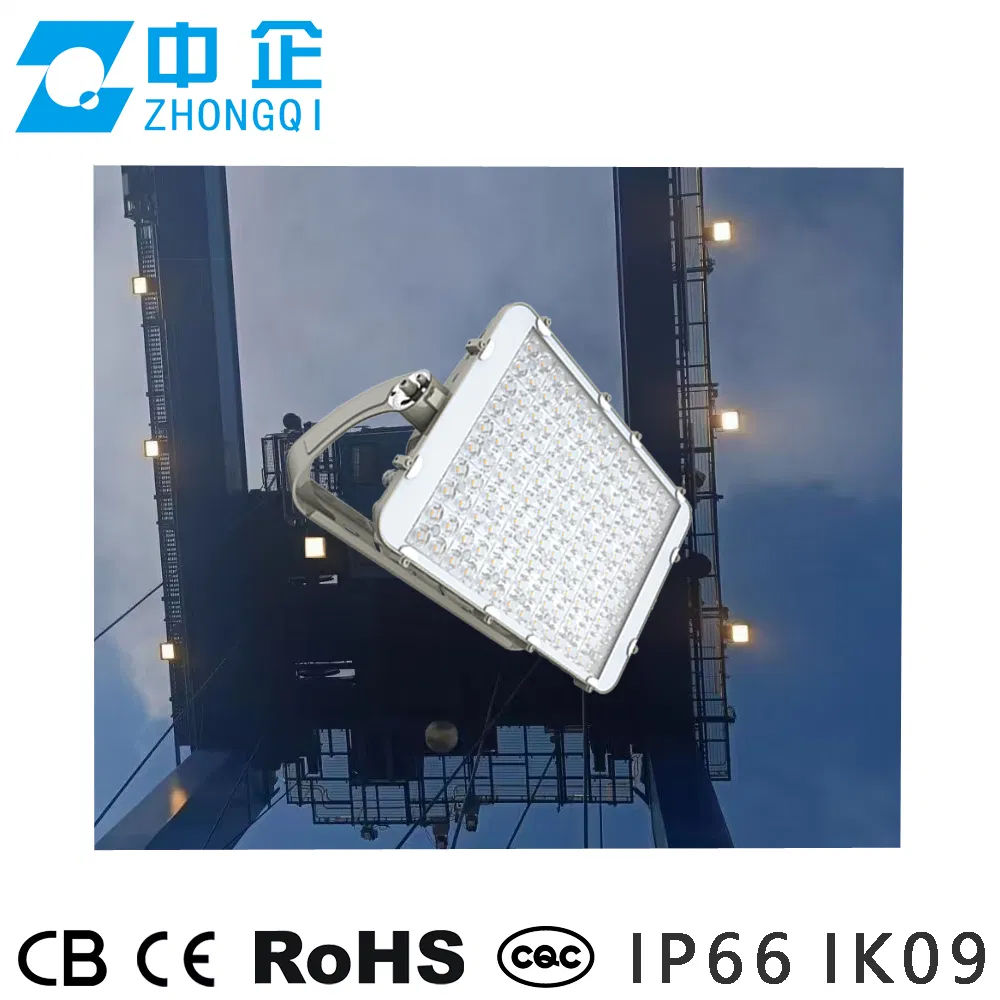

FD019 series floodlight born for harsh environment which has high vibration and salt fog especially crane, harbor and seaport applications.
📊
5G vibration test approved under American standard ANSI C136.31 and Japanese standard JIS C 60068-2-64.
🌊
1000 hours salt spray resistant, IP66 waterproof, and IK09 impact protection.
💡
Wide power range from 100W to 1200W with multiple optic lens options: 8°, 15°, 25°, 30°, 60°, 90°, and asymmetric angles.
🌡️

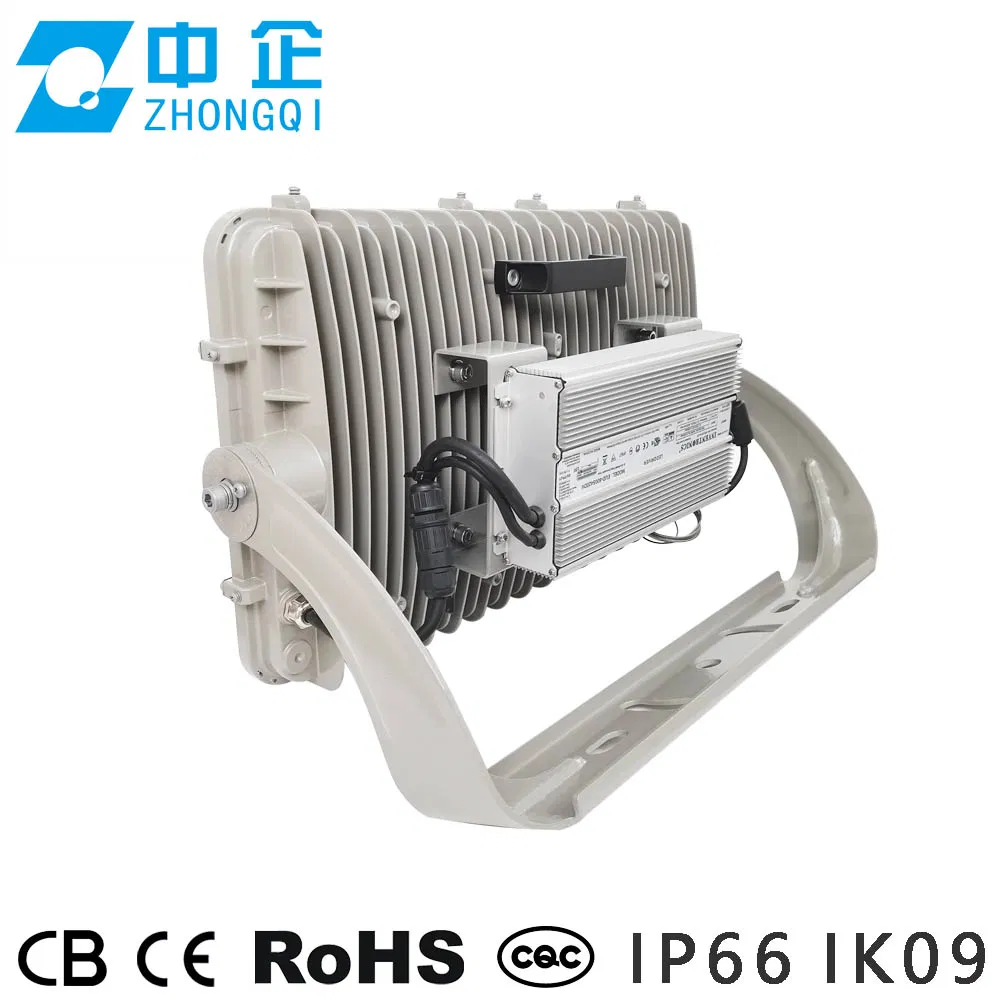

Separate IP66 driver chamber for superior heat dissipation, ensuring a longer driver lifetime.
Technical Parameters
| Item Name | Input Voltage | Frequency | Power Factor | CRI | CCT | Lifetime | Working Temp |
|---|---|---|---|---|---|---|---|
| Flood light | AC90-305V | 50/60HZ | 0.95 | >70 | 2200-6500K | >50000H | -25ºC ~ 55ºC |
| Product Model | Power(W) | Premium LPW | Standard LPW | N.W.(kg) | Product Size(mm) |
|---|---|---|---|---|---|
| TYZQ-FD019 | 100W | 150 lm/W | 130 lm/W | 7.10 | 346*370*152 |
| TYZQ-FD019 | 200W | 150 lm/W | 130 lm/W | 7.30 | 346*370*152 |
| TYZQ-FD019 | 300W | 150 lm/W | 130 lm/W | 17.30 | 605*408*204 |
| TYZQ-FD019 | 400W | 150 lm/W | 130 lm/W | 17.40 | 605*408*204 |
| TYZQ-FD019 | 600W | 150 lm/W | 130 lm/W | 14.3(fixture) | 605*408*204 |
| TYZQ-FD019 | 1200W | 150 lm/W | 130 lm/W | 30.0(fixture) | 790*653*263 |

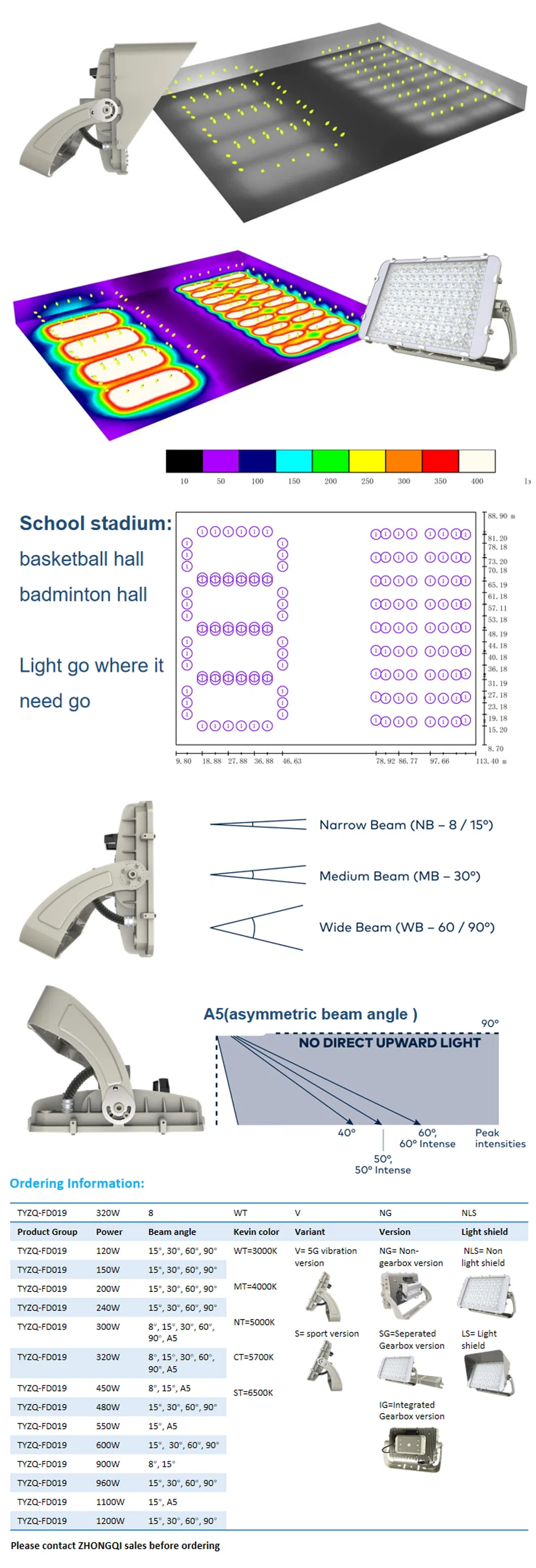

Product Applications

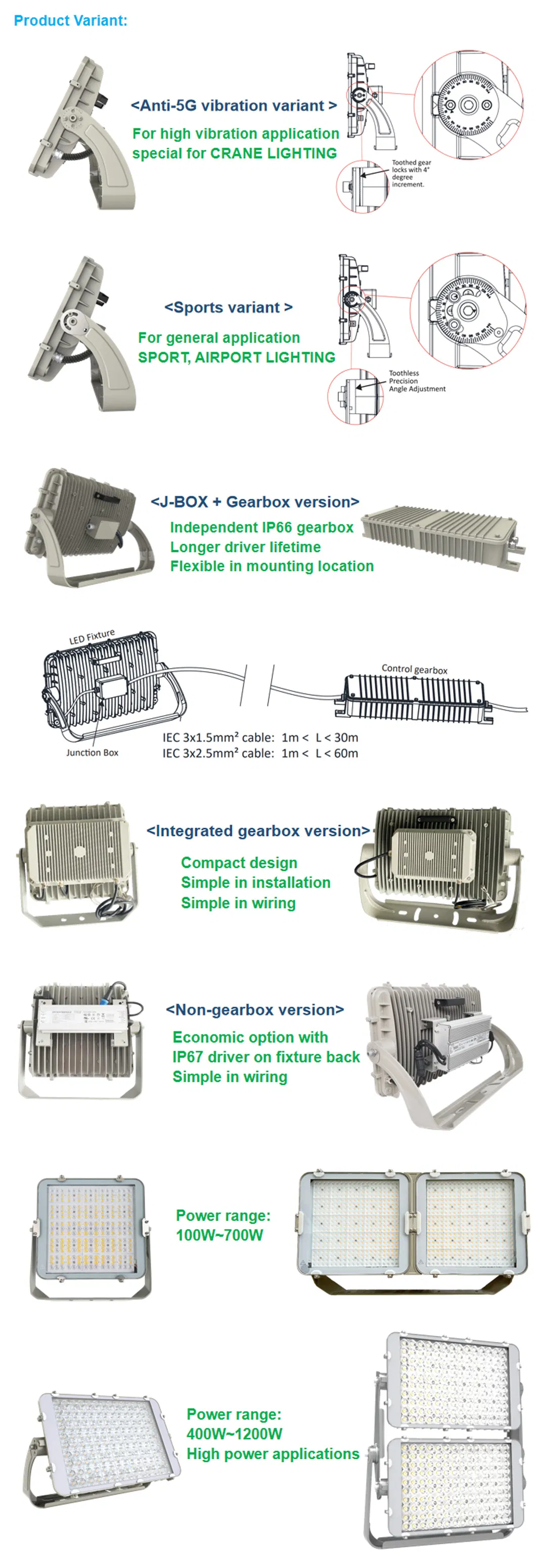

Product Details

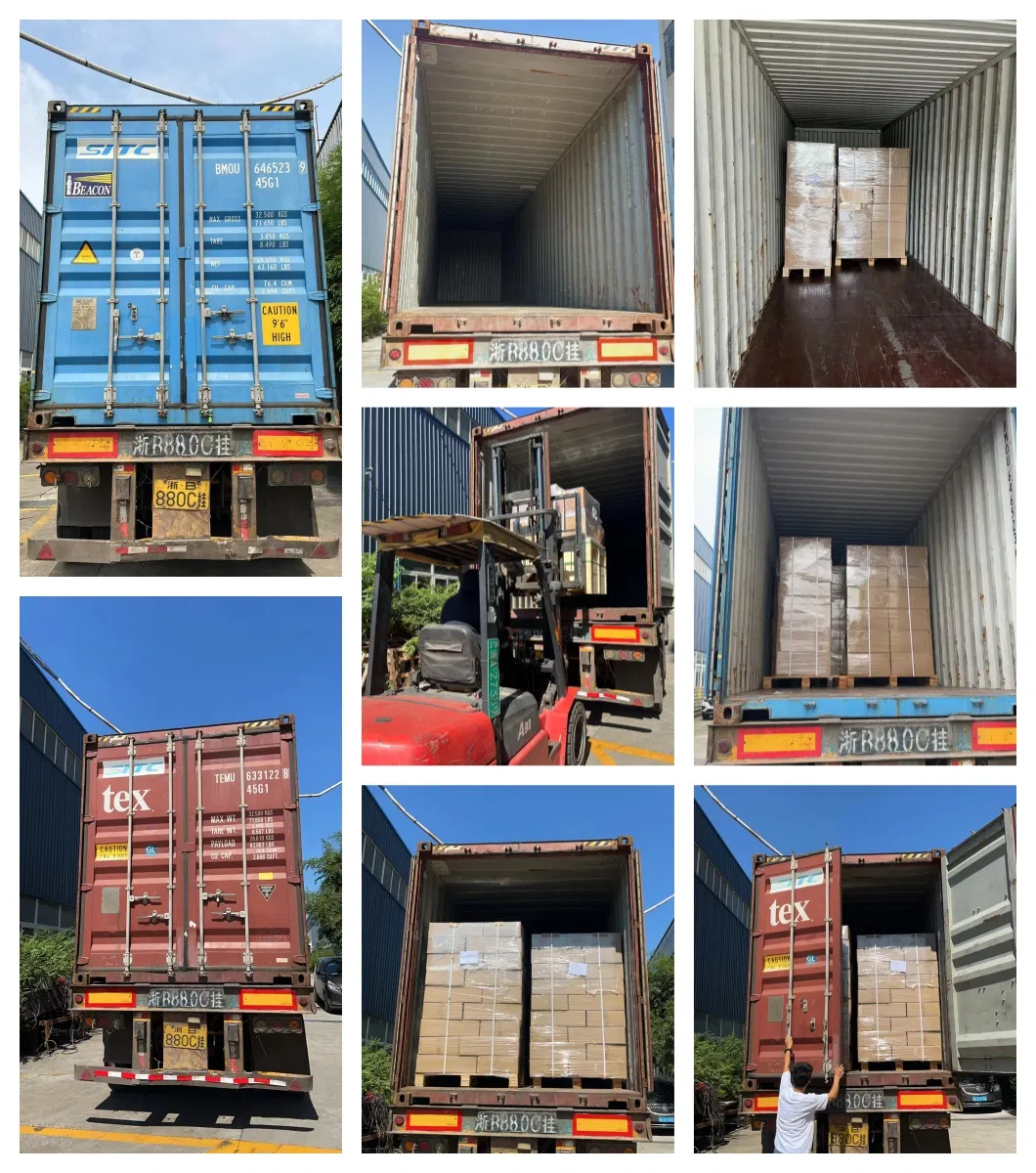

Production & Packaging
Frequently Asked Questions
❓ Q1: Can I have a sample before bulk orders?
Yes, we welcome sample orders for quality testing and approval.
❓ Q2: What is the typical lead time?
Samples usually take 3-5 days, while quantity orders range from 25-30 days.
❓ Q3: Are ODM or OEM services available?
Yes, we offer full ODM and OEM services to meet your specific requirements.
❓ Q4: What is the warranty period for your products?
We provide a 2 to 5-year warranty depending on the configuration selected.
❓ Q5: What are the payment terms?
Our standard terms are a 30% TT deposit and 70% balance payment before shipment.
❓ Q6: Is this light suitable for marine environments?
Absolutely. With 1000 hours of salt spray testing and 5G vibration approval, it is specifically designed for harbors, ports, and offshore applications.
