Factory Price 300-1500W IP66 LED Flood Light LED High Mast Stadium Light 5years Warranty with High Brightness for Sport Field Port
Product Description
📊
Basic Information
Model NO.
MF-QCD-HxxW
Power
300-1500W
IP Rating
IP66
Certification
CE, RoHS, SAA
Operating Voltage
AC100-305V 50/60Hz
Luminous Efficacy
150/170 Lm/W
CRI
80
Life Hours
>50000h
Warranty
5 years
Working Temp
-25°C to +50°C
💡
Product Description

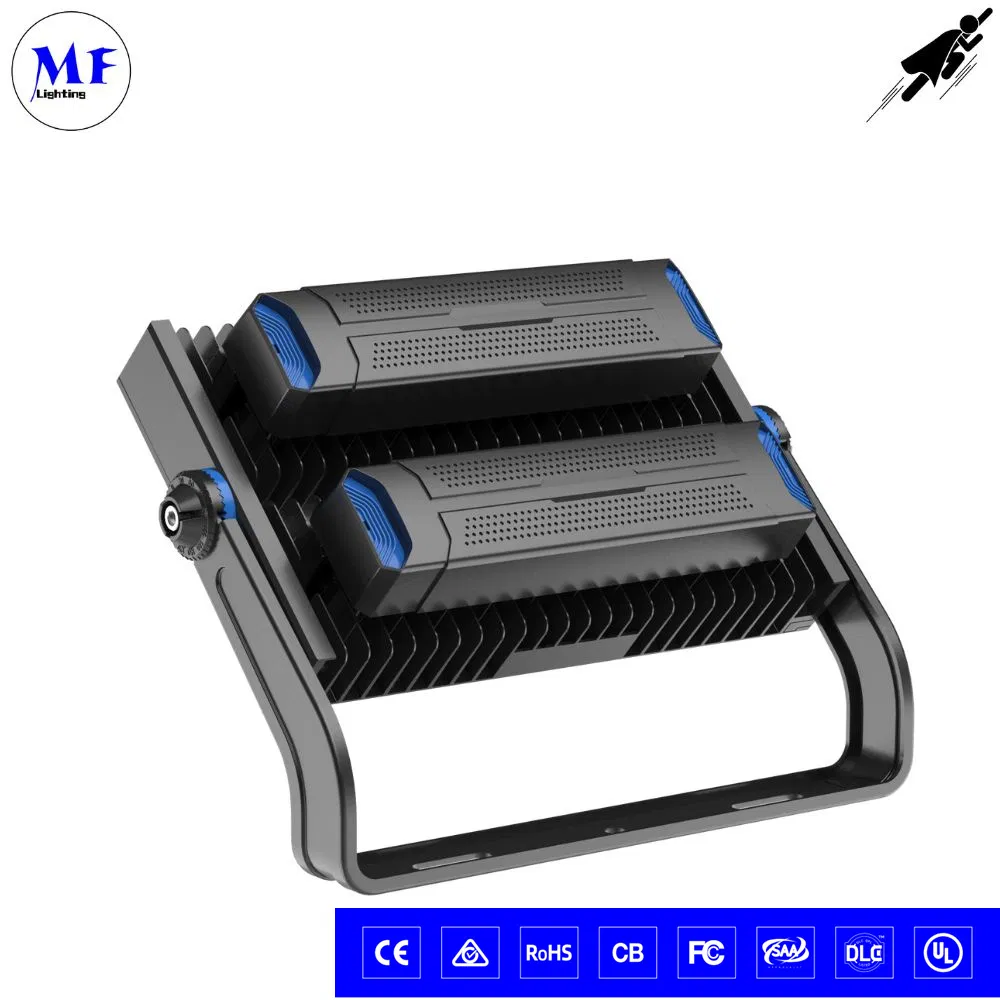

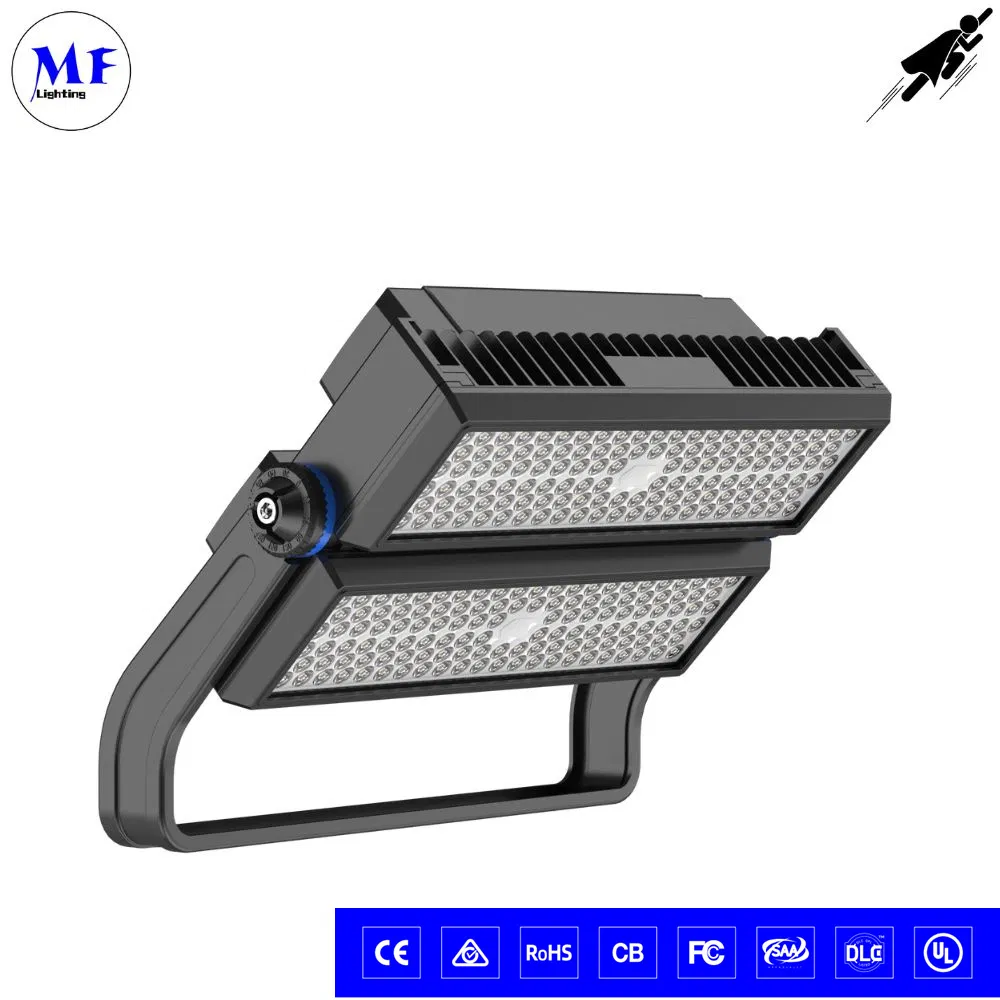

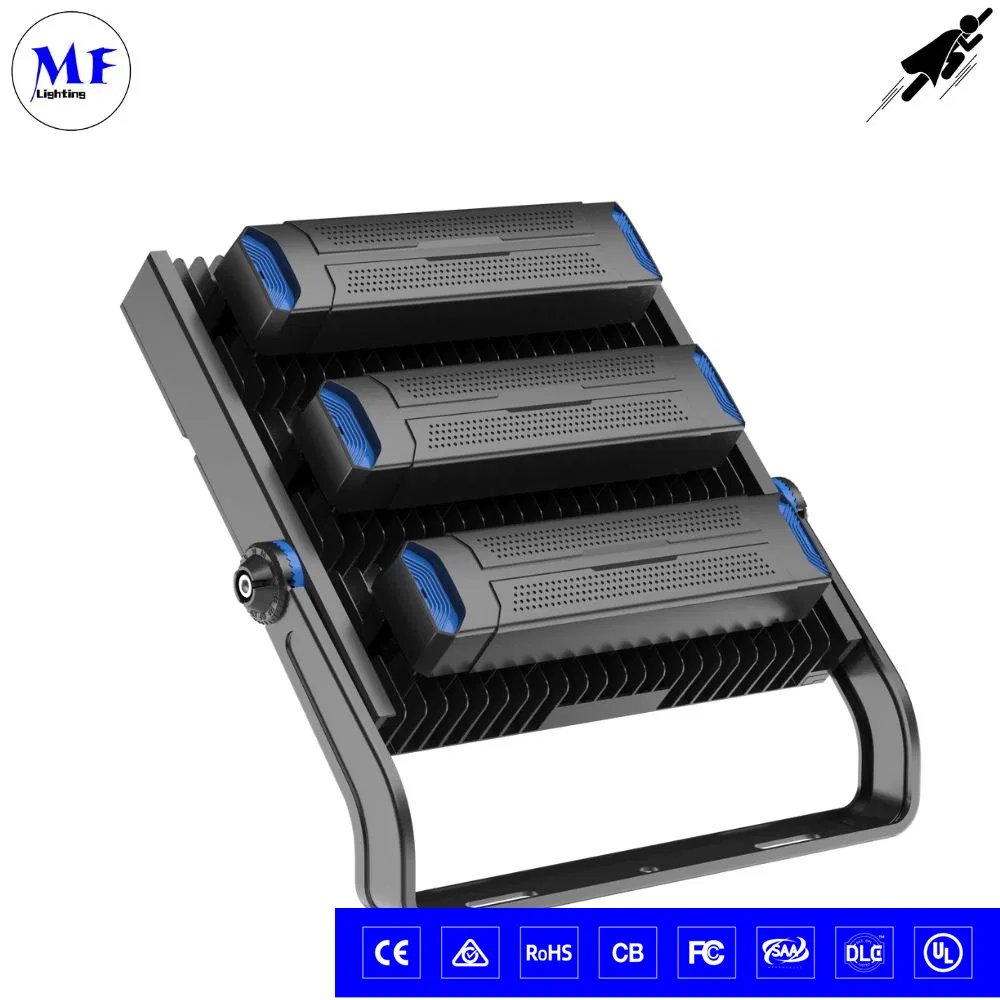

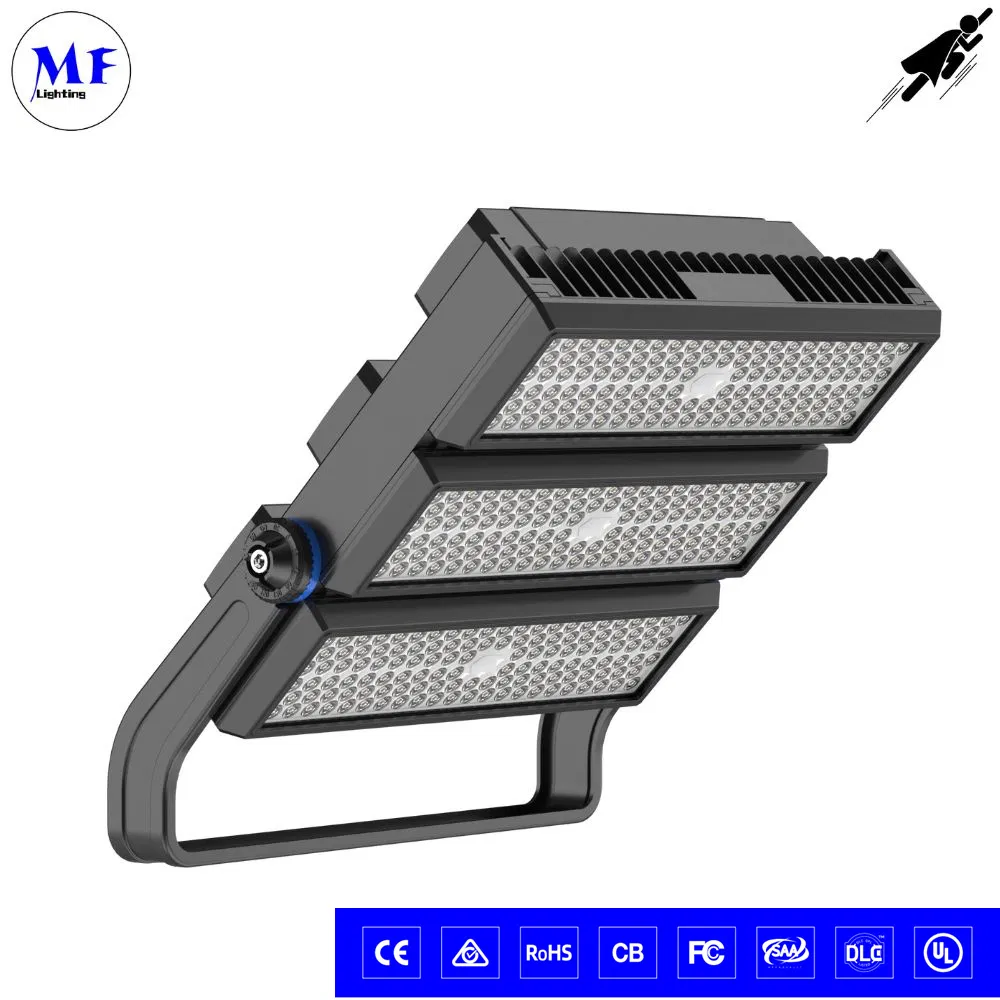

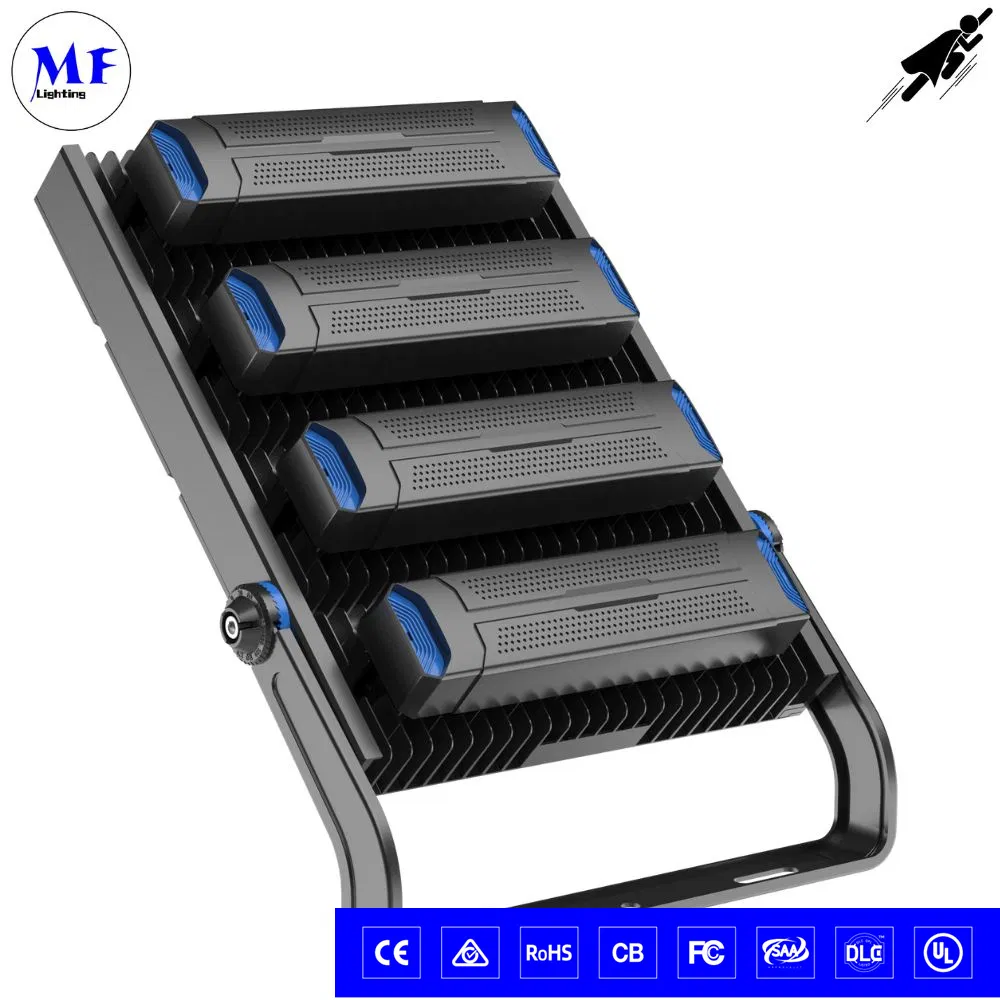

300-1500W IP66 LED Flood Light & High Mast Stadium Light

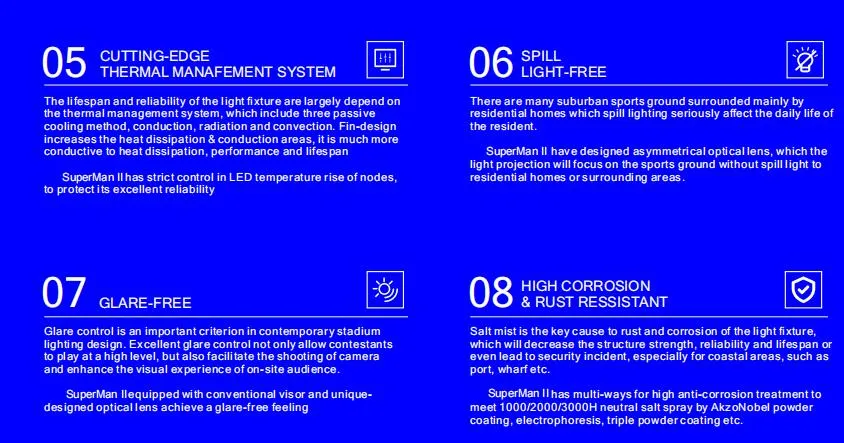

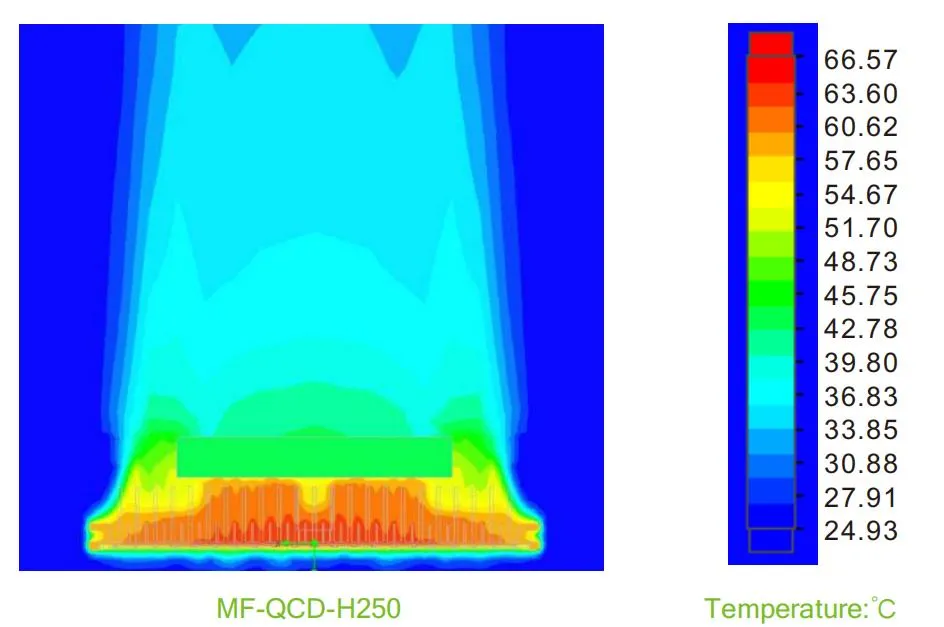

Excellent Heat Dissipation
The lifespan and reliability of LED fixtures largely depend on the thermal management system which includes three passive cooling methods: conduction, radiation, and convection. Die-casting module design increases heat dissipation areas and conduction areas, ensuring superior performance and longevity.
🔹
Conduction: Heat is directly transferred to lower temperature objects in contact.
🔹
Radiation: Heat energy is radiated outward from unit surfaces, optimized through silicone thermal conductivity.
🔹
Convection: Extended fin designs facilitate heat exchange with cooler moving air.
📋
Technical Parameters
Series Plan A - 150lm/w

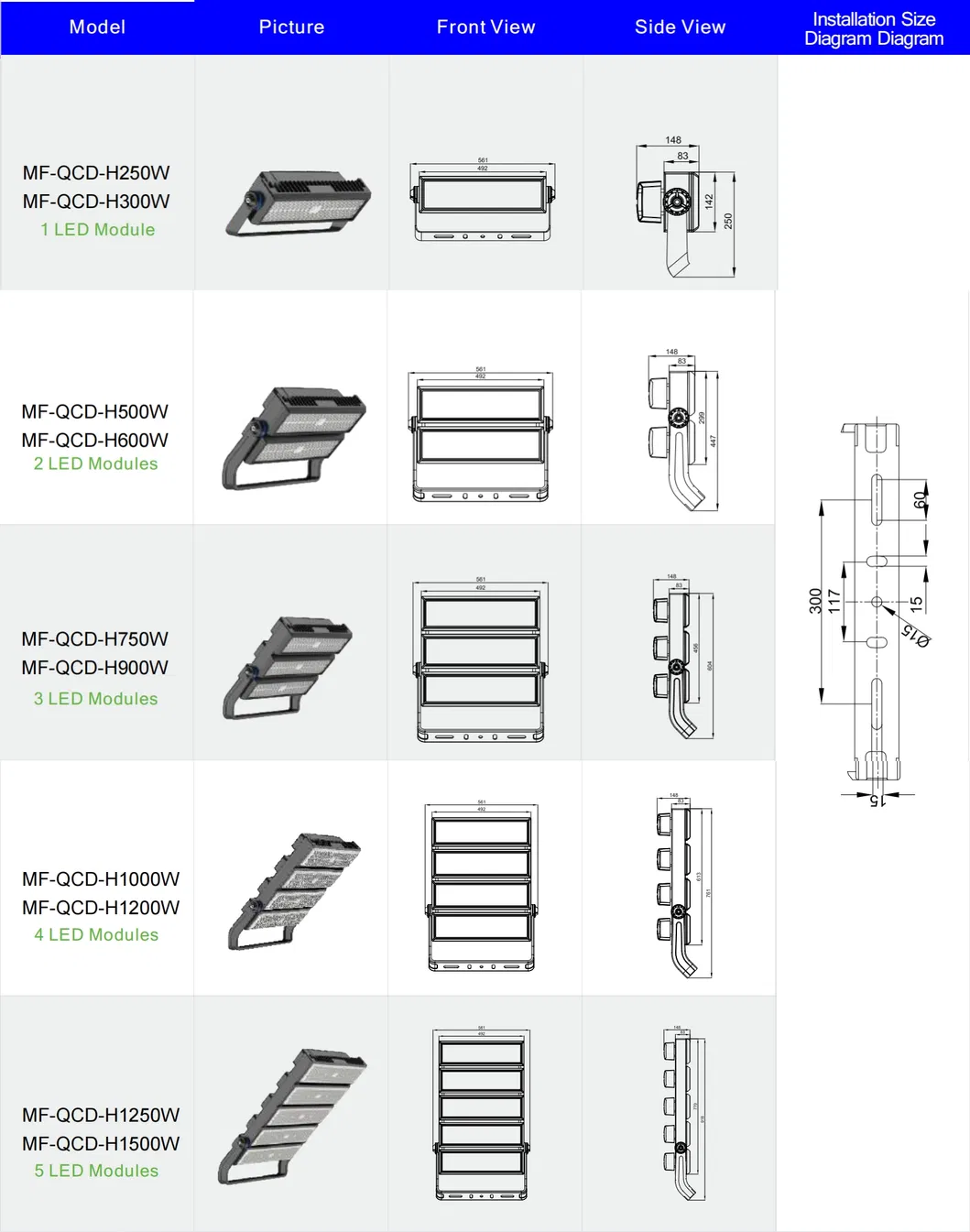

| Model | MF-QCD-H250W | MF-QCD-H500W | MF-QCD-H750W | MF-QCD-H1000W | MF-QCD-H1250W |
|---|---|---|---|---|---|
| Rated Power (W) | 250W | 500W | 750W | 960W | 1200W |
| Luminous Flux (lm) | 36,000 ±5% | 72,000 ±5% | 108,000 ±5% | 144,000 ±5% | 180,000 ±5% |
| Input Voltage | 100-305Vac 50/60Hz | ||||
| CCT (K) | 3000/4000/5000/5700 | ||||

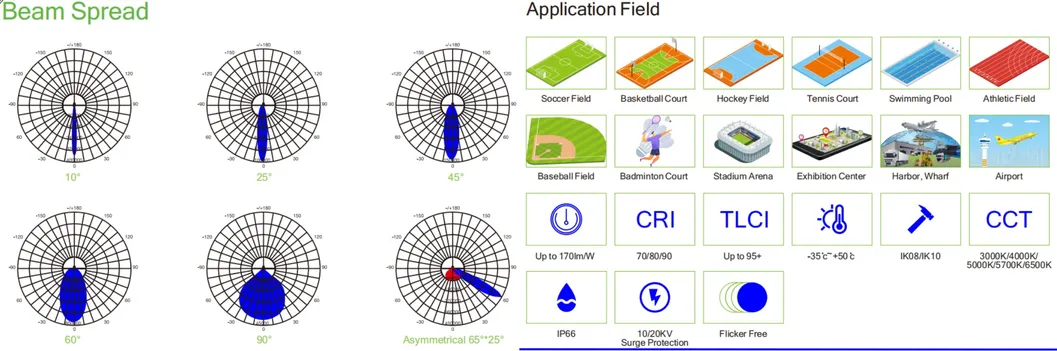

| Beam Angle | 10°/25°/45°/60°/90°/65°*25° | ||||
| IP/IK Class | IP66 / IK08-IK10 | ||||
Series Plan B - 170lm/w
| Model | MF-QCD-H250W | MF-QCD-H500W | MF-QCD-H750W | MF-QCD-H1000W | MF-QCD-H1250W |
|---|---|---|---|---|---|
| Luminous Flux (lm) | 40,800 ±5% | 81,600 ±5% | 122,400 ±5% | 163,200 ±5% | 204,000 ±5% |
| Driver Brand | MW / SOSEN | ||||
| CRI (Ra) | >70 / >80 / >90 | ||||
🖼️

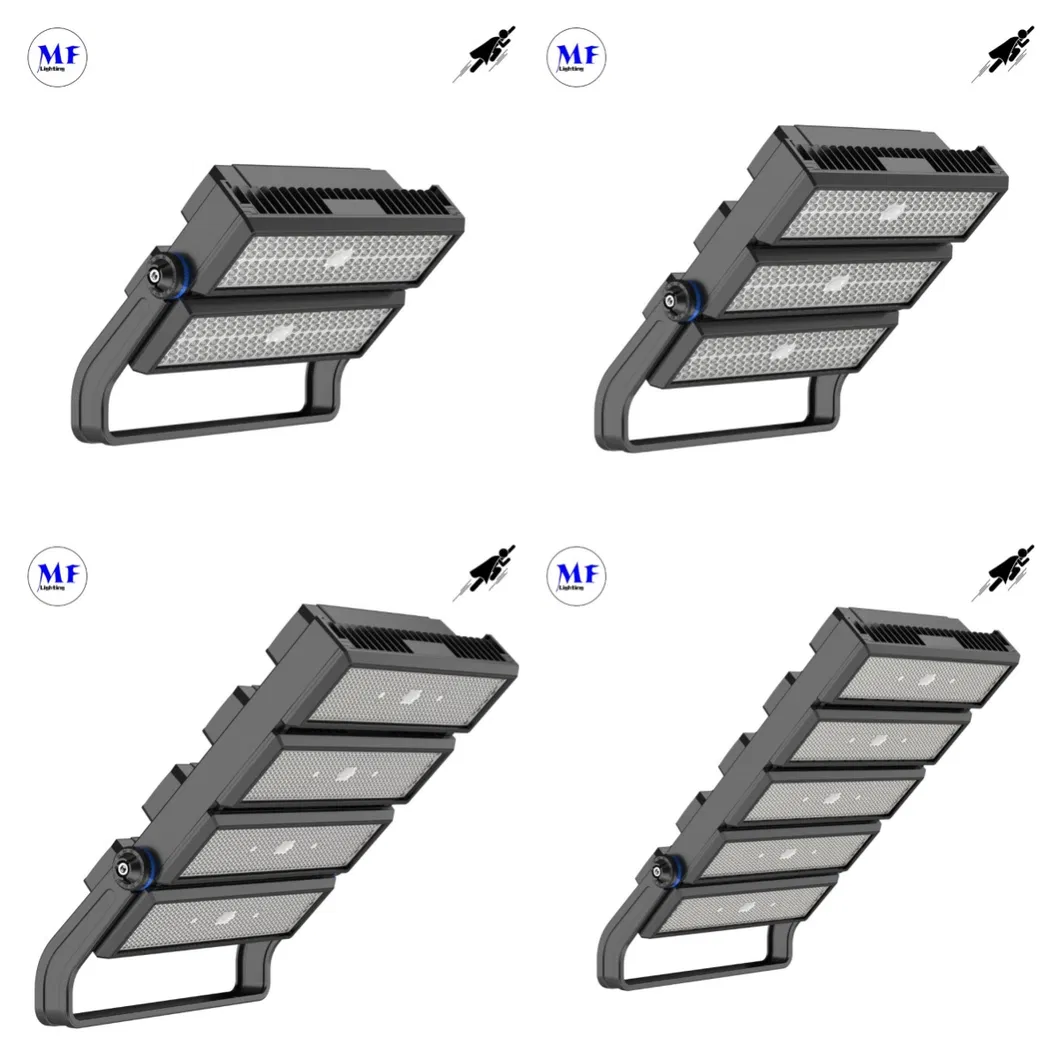

Detailed Gallery
🏟️

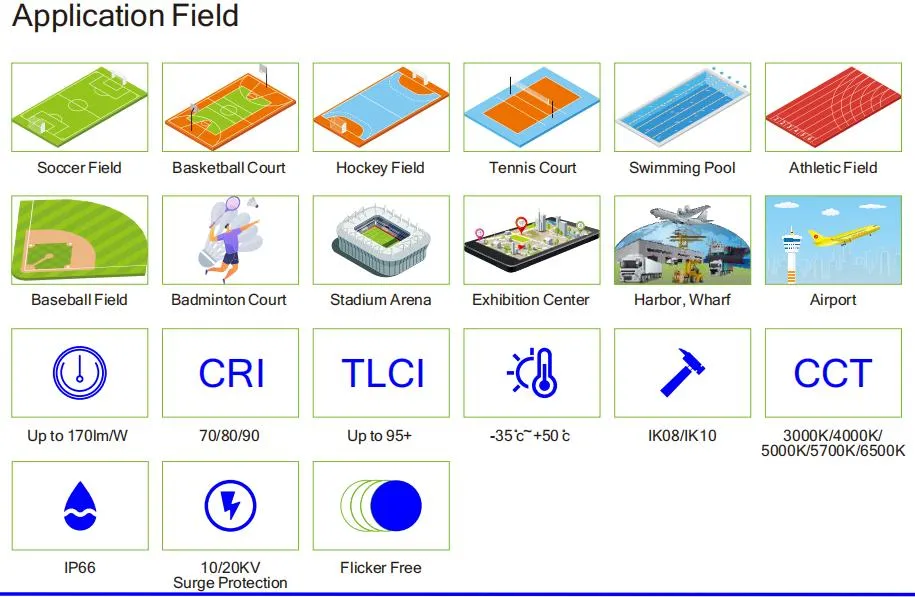

Applications
📍Sports Stadiums: Football, soccer, baseball, and outdoor sports venues.
📍High Mast Lighting: Airports, ports, and large industrial outdoor spaces.

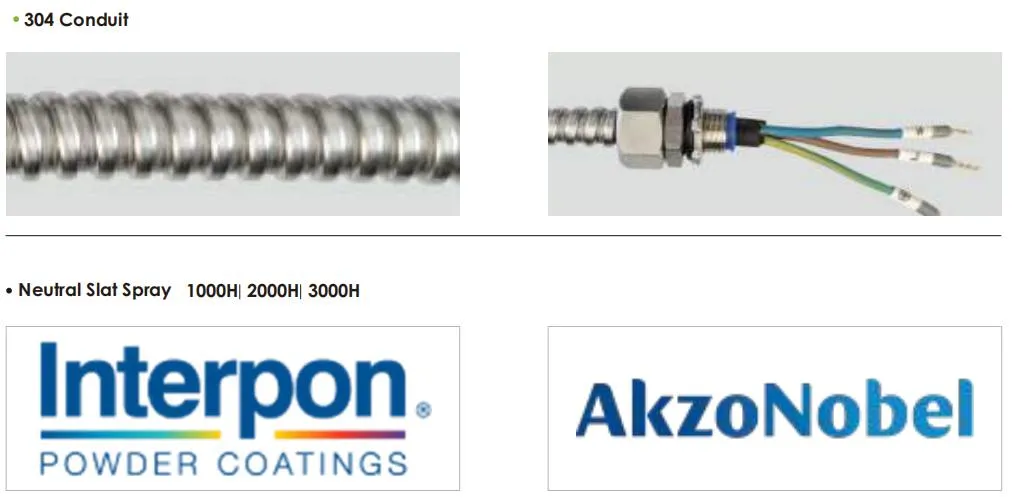

📍Coastal Areas: High anti-corrosion resistance for ports and seaside facilities.
📍Residential Vicinity: Asymmetrical lenses to prevent spill light in suburban grounds.
📍Multi-functional Venues: Intelligent controls for concerts and large-scale events.
📦
Packaging & Manufacturing
Service & Support
We provide comprehensive professional services for global partners:
⭐ OEM/ODM Service
⭐ Dialux Simulation
⭐ IES Photometric Files
⭐ PCB & Driver Design
⭐ Optical Management
⭐ 3D Printing Prototyping
Frequently Asked Questions
❓ Are you a manufacturer?
Yes, we have our own facility with over 14 years of R&D and manufacturing experience based on ISO quality management since 2009.
❓ Can I have a sample order for LED Floodlights?
Yes, sample orders to test and check quality are welcomed. Mixed samples are also acceptable.
❓ What is the typical lead time?
Generally 3-7 days for sample orders and 15-25 days for mass production orders based on order quantities.
❓ Do you offer OEM/ODM services?
We provide full OEM services, including customized labels and color boxes according to your specific requirements.
❓ What is the warranty policy for these lights?
We offer a 5-year warranty. If any defects occur during this period, we provide replacement lights upon verification of the working situation via photo or video.
❓ How do you handle shipping?
We offer shipping via sea, air, or express couriers (DHL, UPS, FedEx, TNT, etc.) depending on your needs.
