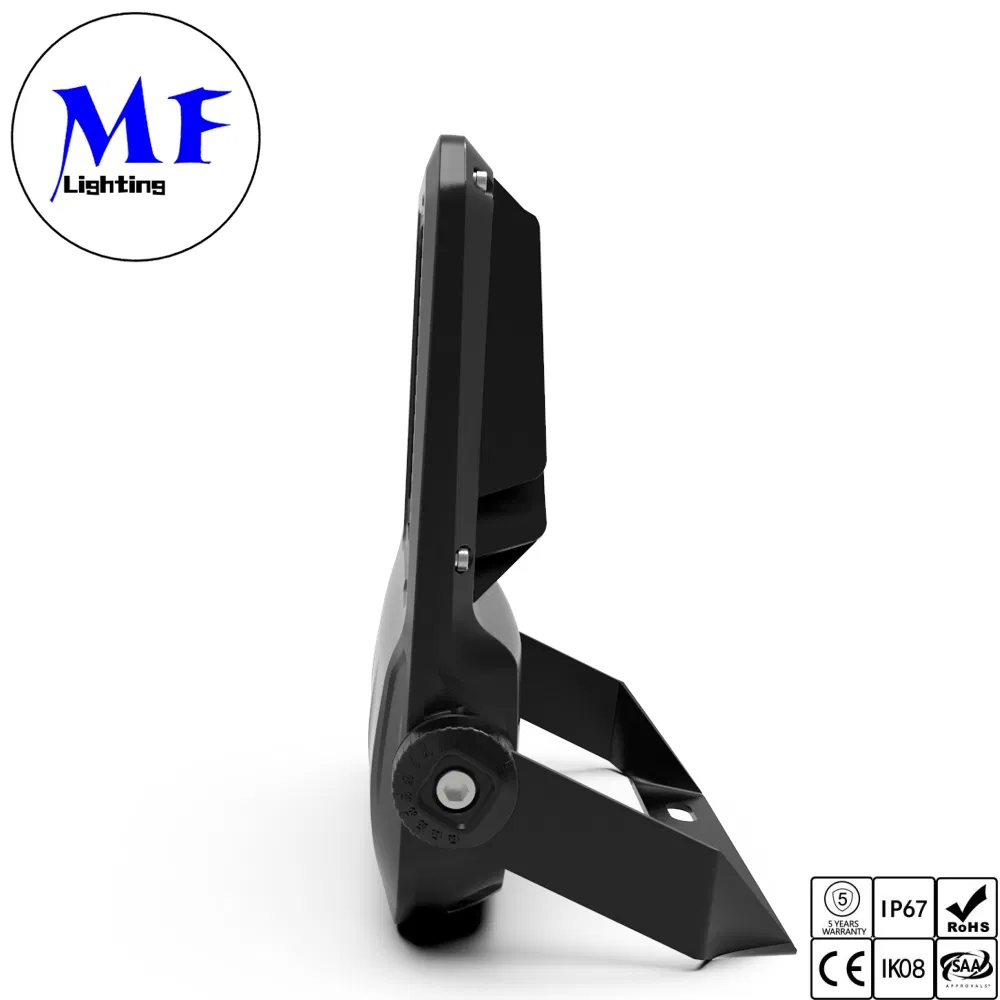

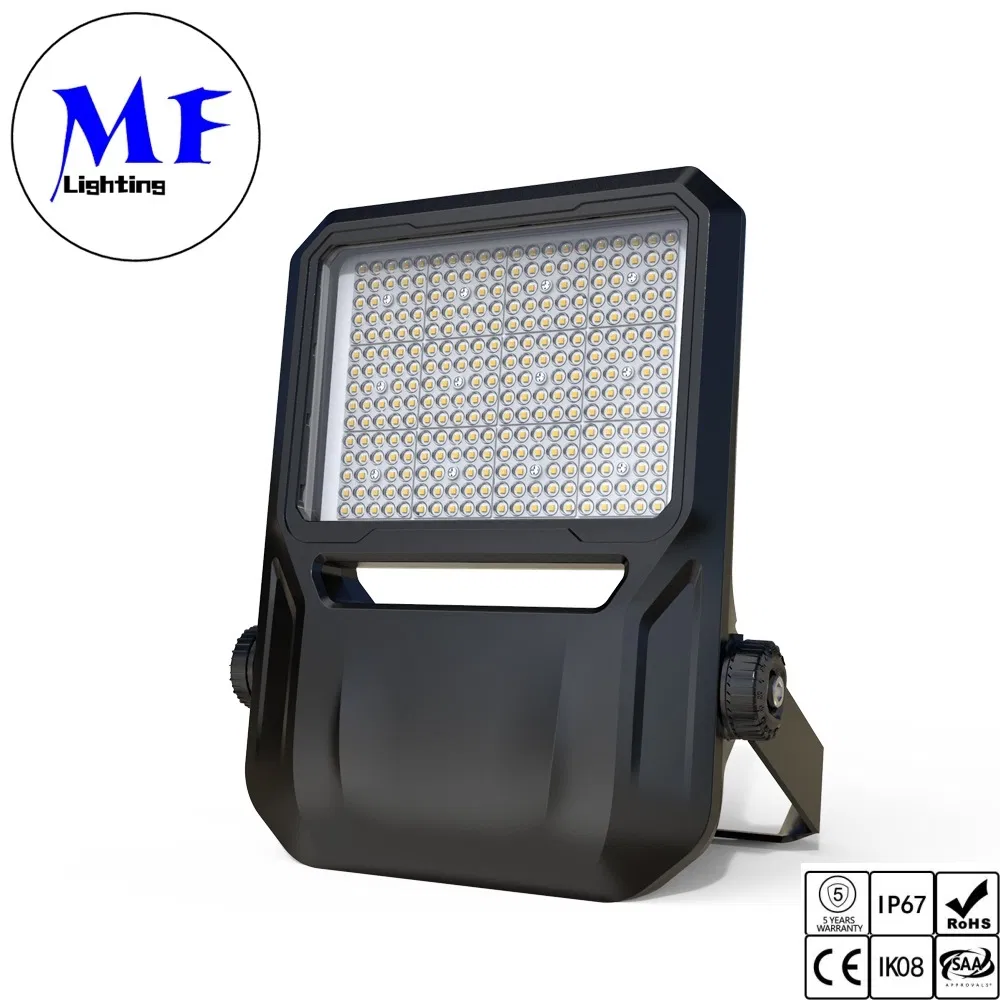

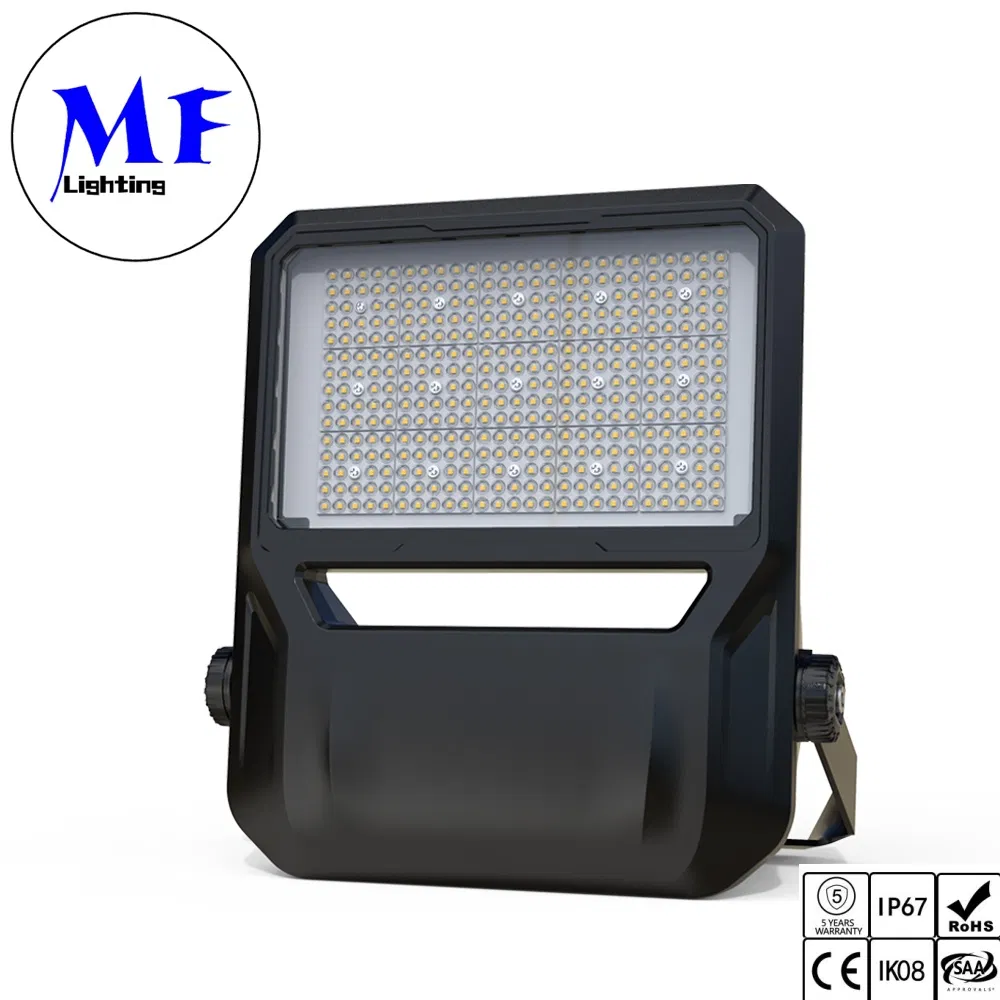

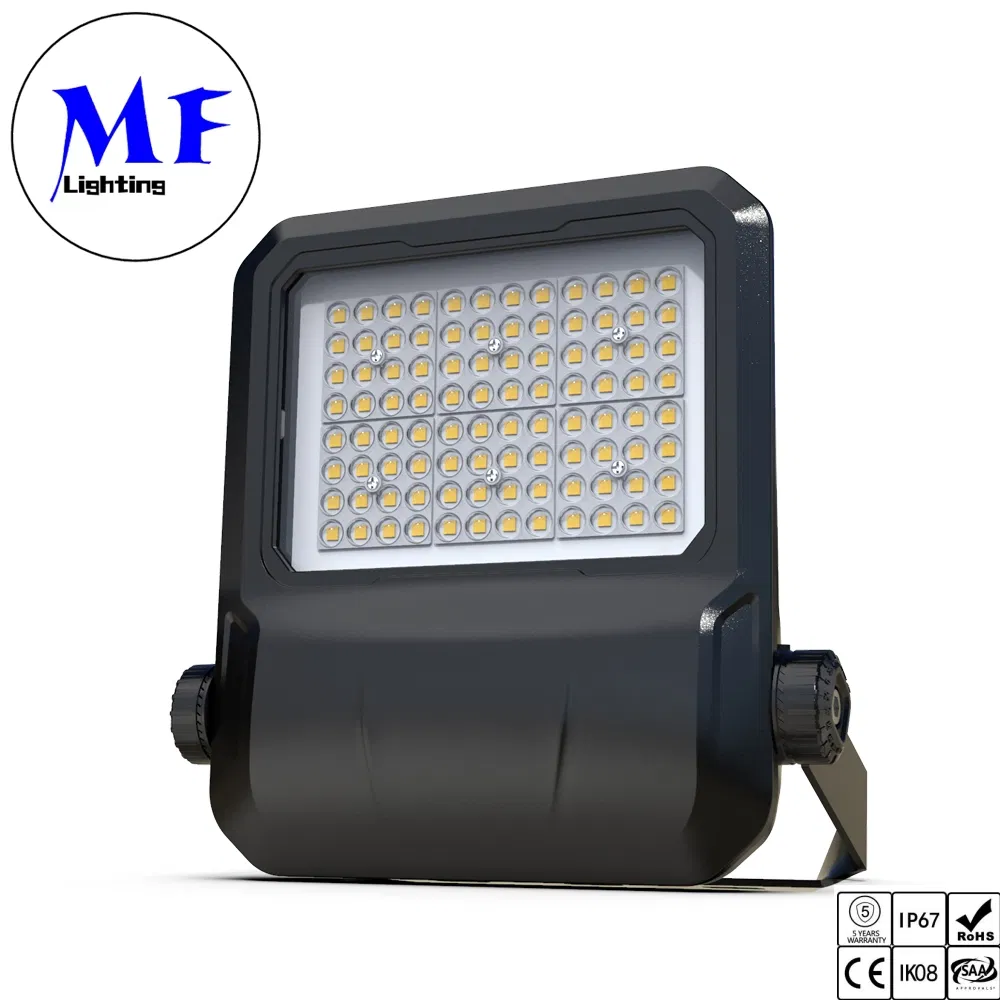

Factory Price 100W 150W 200W 300W 400W Sport Filed Outdoor Stadium Garden Landscape Tennis Court Yard IP66 Waterproof Dustproof Roadway Square LED Flood Light

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Info & Overview
Model NO.:MF SKY series Flood light
Power:20W-400W
IP Rating:IP67
Certification:CCC, CE, RoHS, SAA
Input Voltage:AC 100-277V
LED Brand:Phi-Lips/Mean-Well
Luminous Flux:130lm/W-150lm/W
Material:Aluminum
Warranty:5 Years
IK Rate:IK08/IK09
💡 Product Description

Factory Price 100W 150W 200W 300W 400W Sport Field Outdoor Stadium Garden Landscape Tennis Court Yard IP66/IP67 Waterproof Dustproof LED Flood Light

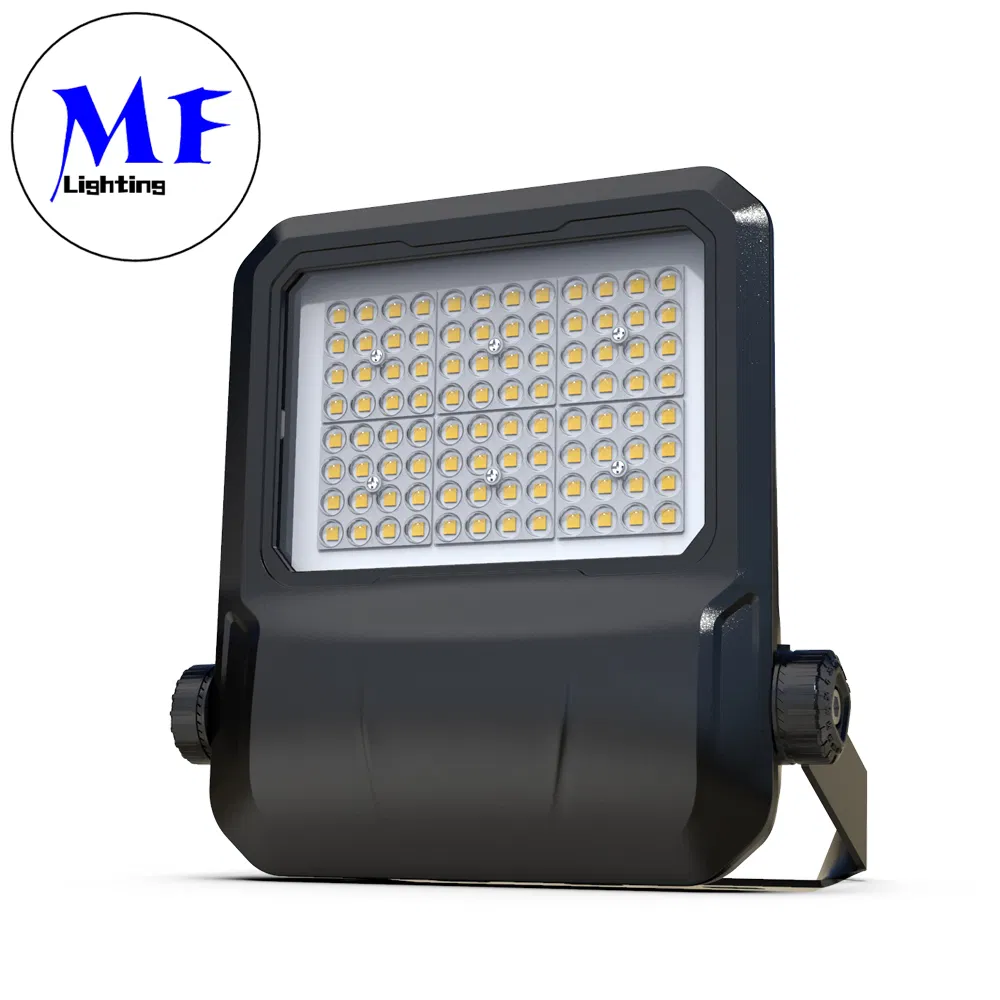

Flood Light View 1

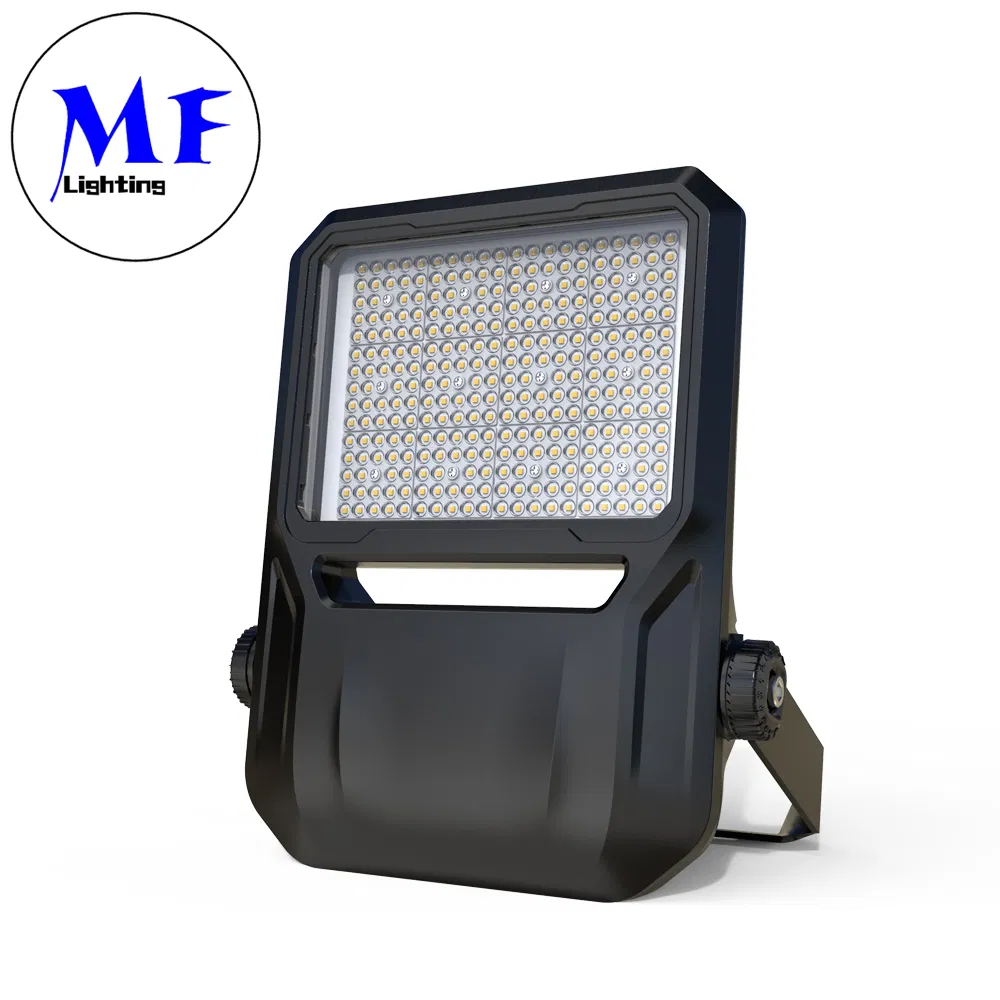

Flood Light View 2

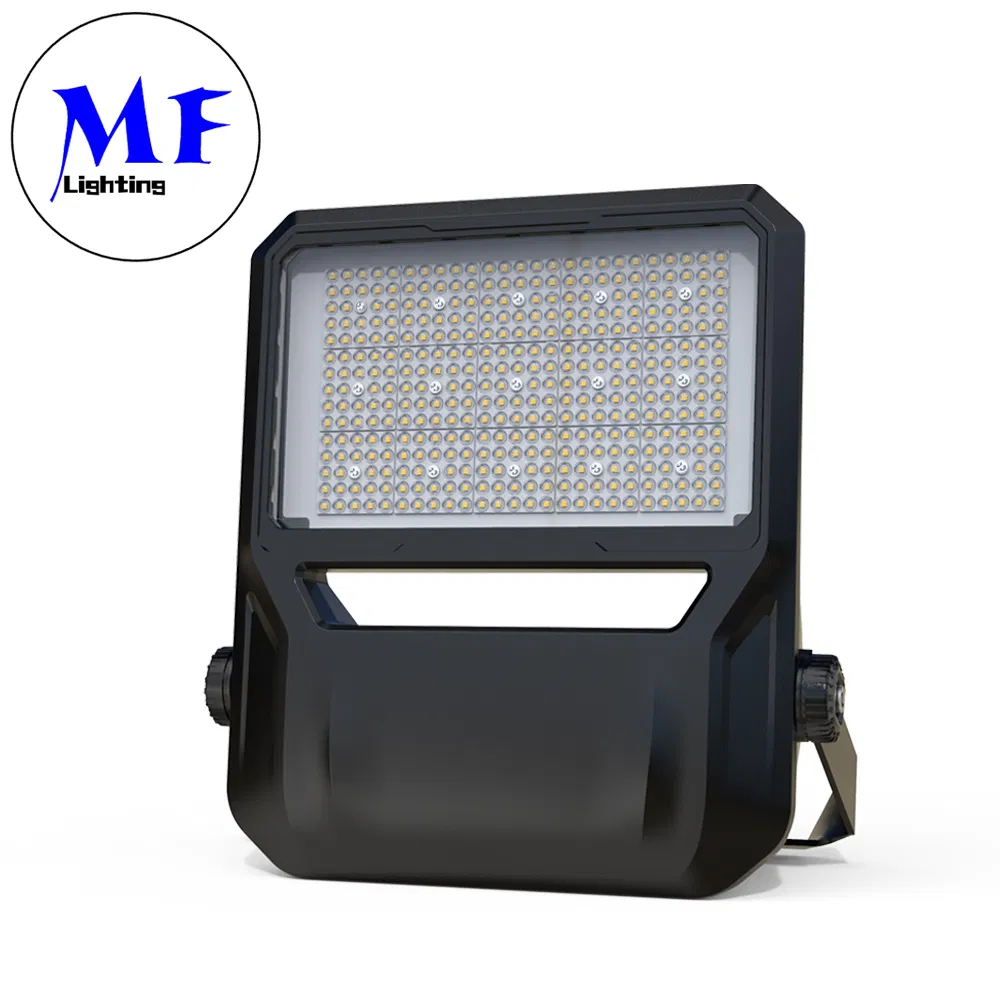

Flood Light View 3

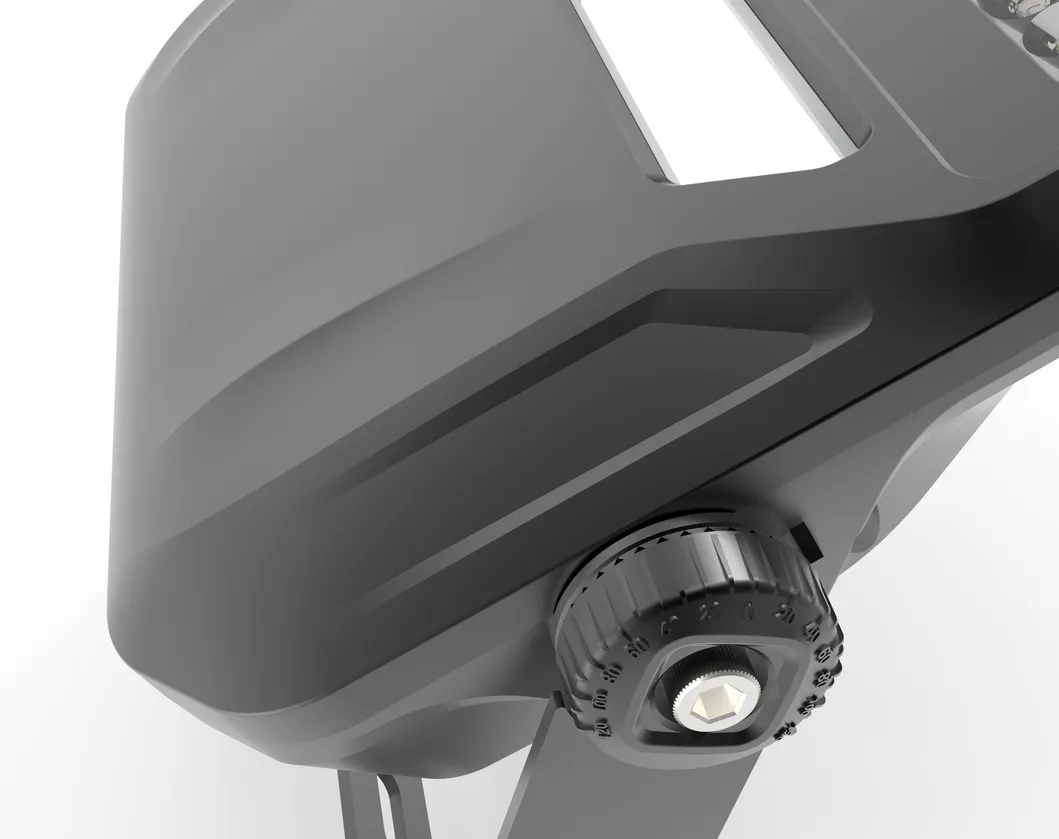

Flood Light Detail 1

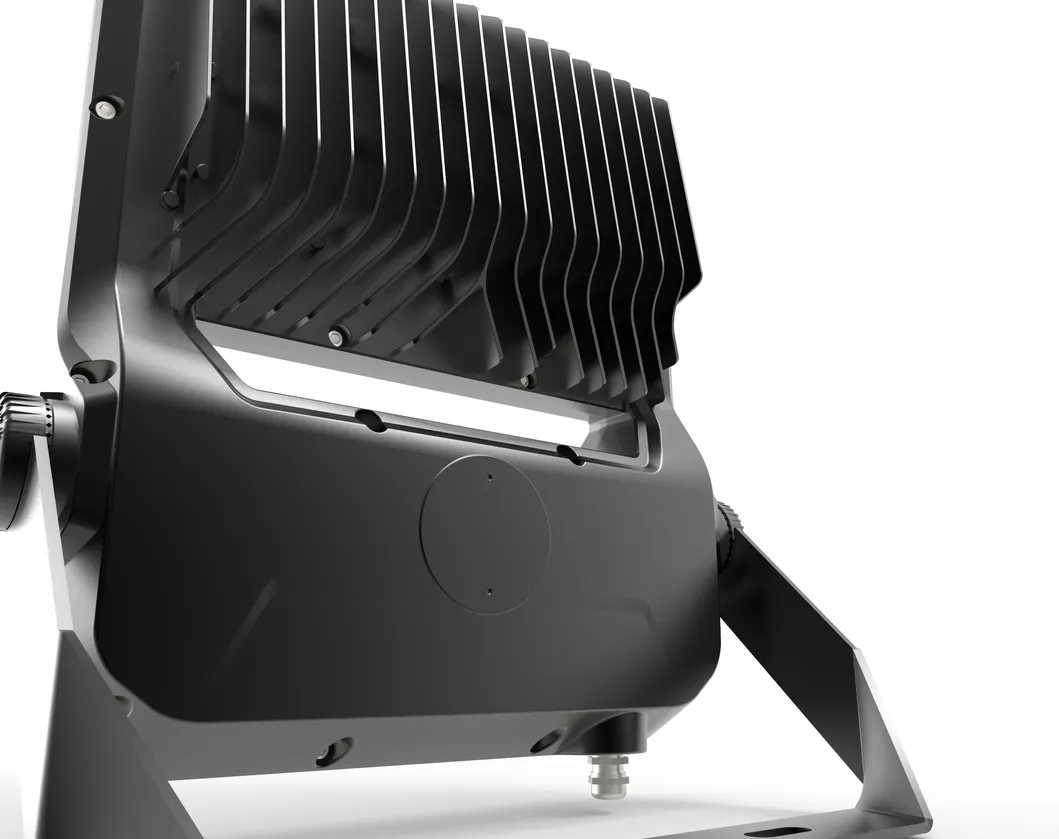

Flood Light Detail 2

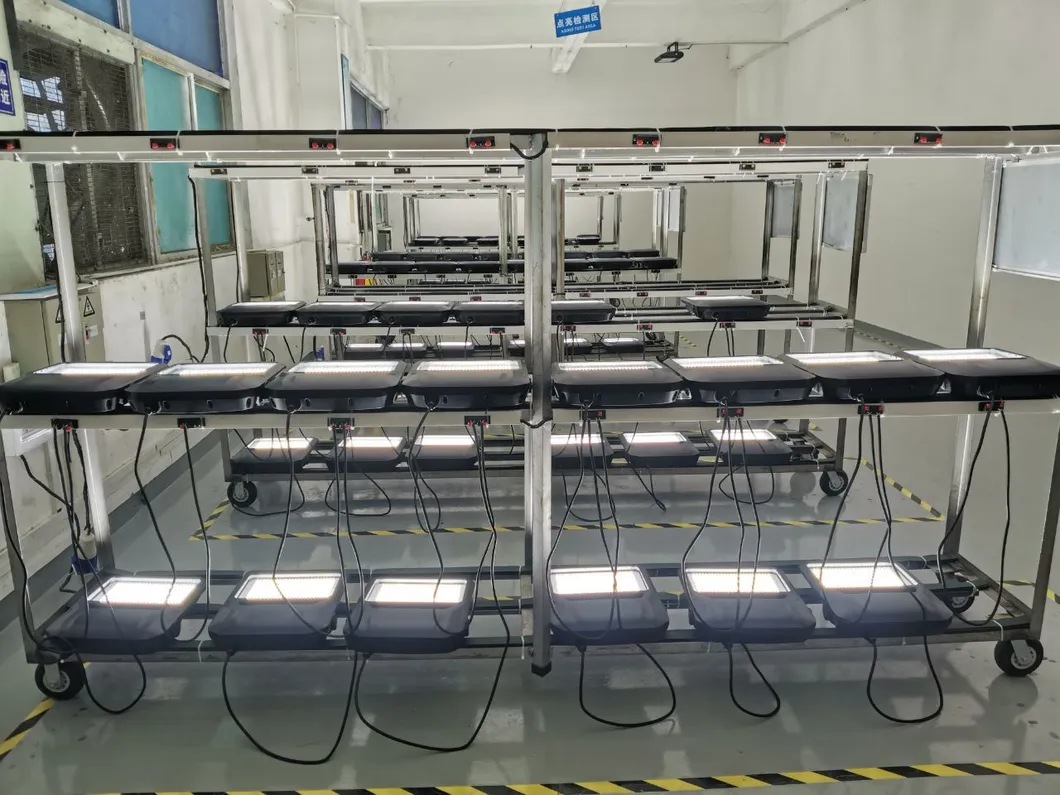

Installation Overview
Key Features
  • Massive light output of up to 39,200lm
  • Ultra-high system efficiency of up to 140lm/W
  • High quality Lu-miled LED Chip and Inven-tronics Driver
  • Long >102,000 hours lifespan to L70
  • Professionally Designed True Asymmetric Flat Optics
  • Tough IP67 and IK09 construction
  • Suitable for coastal areas (with optional 304 stainless steel bracket)
  • IP67 Waterproof and Dustproof
Feature Graphic
🔍 Product Characteristics

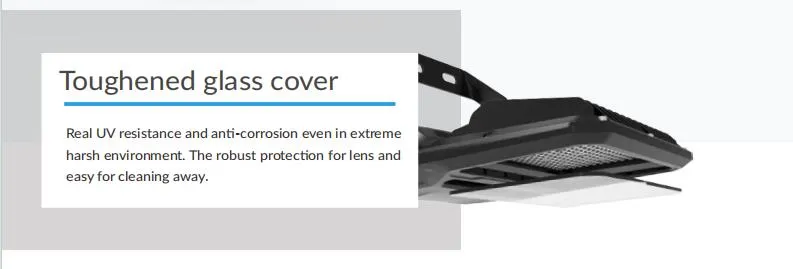

Structure 1

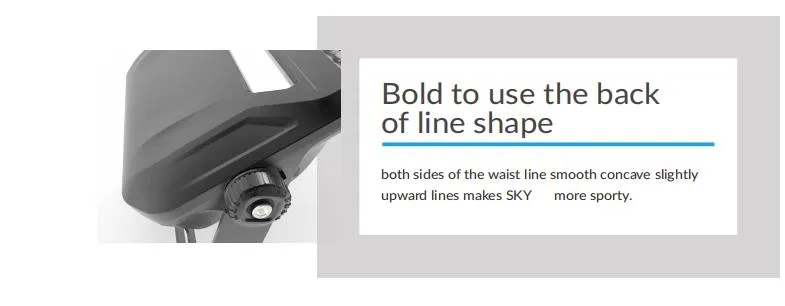

Structure 2

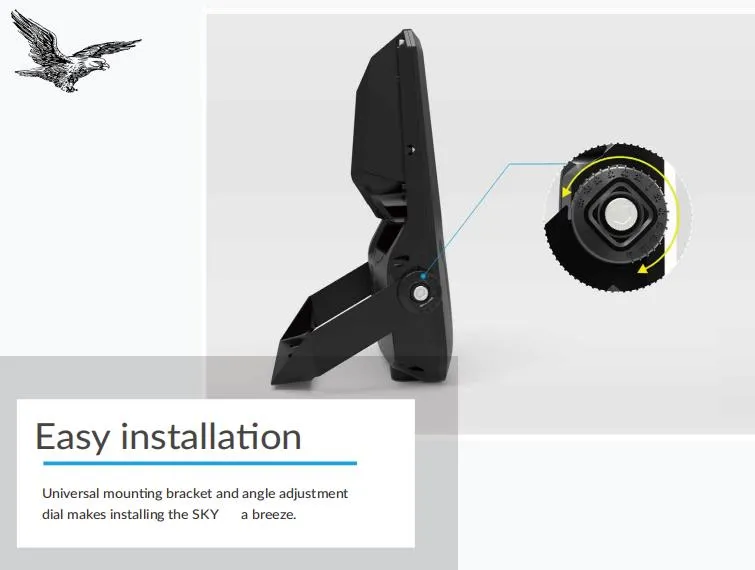

Internal 1
Internal 2

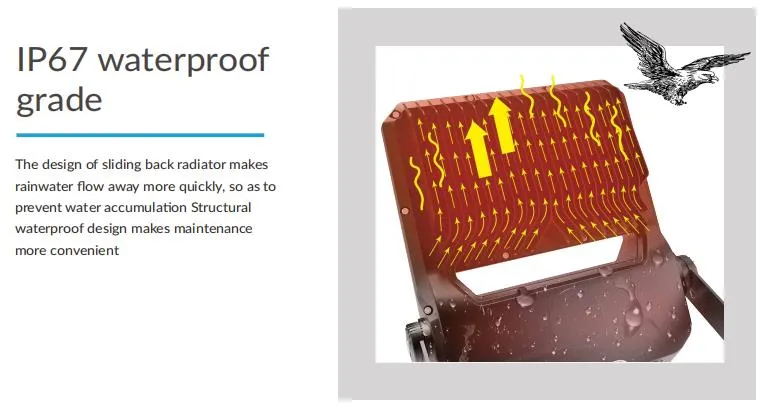

Heat Dissipation 1

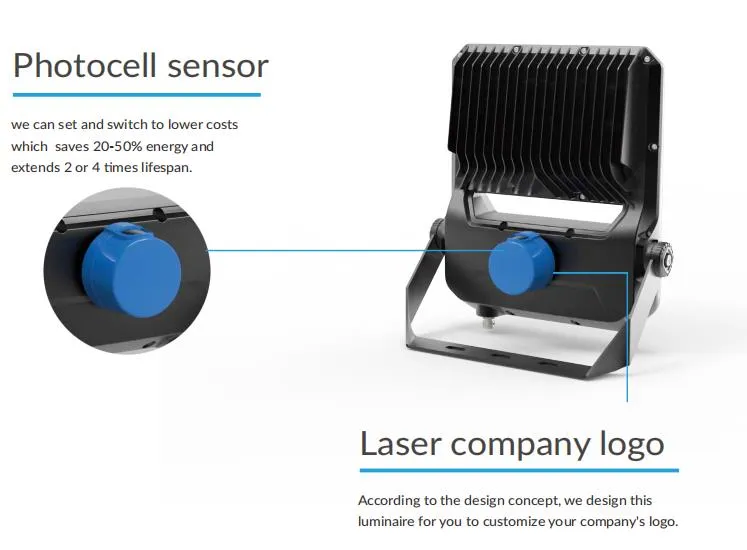

Heat Dissipation 2
📊 Technical Specifications
CODE POWER LUMEN OUTPUT EFFICACY
MF-SKY-5050W7,000lm140lm/W +10
MF-SKY-7575W10,500lm140lm/W +10
MF-SKY-100100W14,000lm140lm/W +10
MF-SKY-150150W21,000lm140lm/W +10
MF-SKY-180180W25,200lm140lm/W +10
MF-SKY-200200W28,000lm140lm/W +10
MF-SKY-240240W33,600lm140lm/W +10
MF-SKY-280280W39,200lm140lm/W +10
LIGHTING & ELECTRICAL DATA
SourceSMD 5050 Power SupplyInven-tronics / Mean-Well
Lifetime>102,000hrs Voltage100-277V/AC
CCT3000K-6500K Surge Protection6kV
🏭 Production

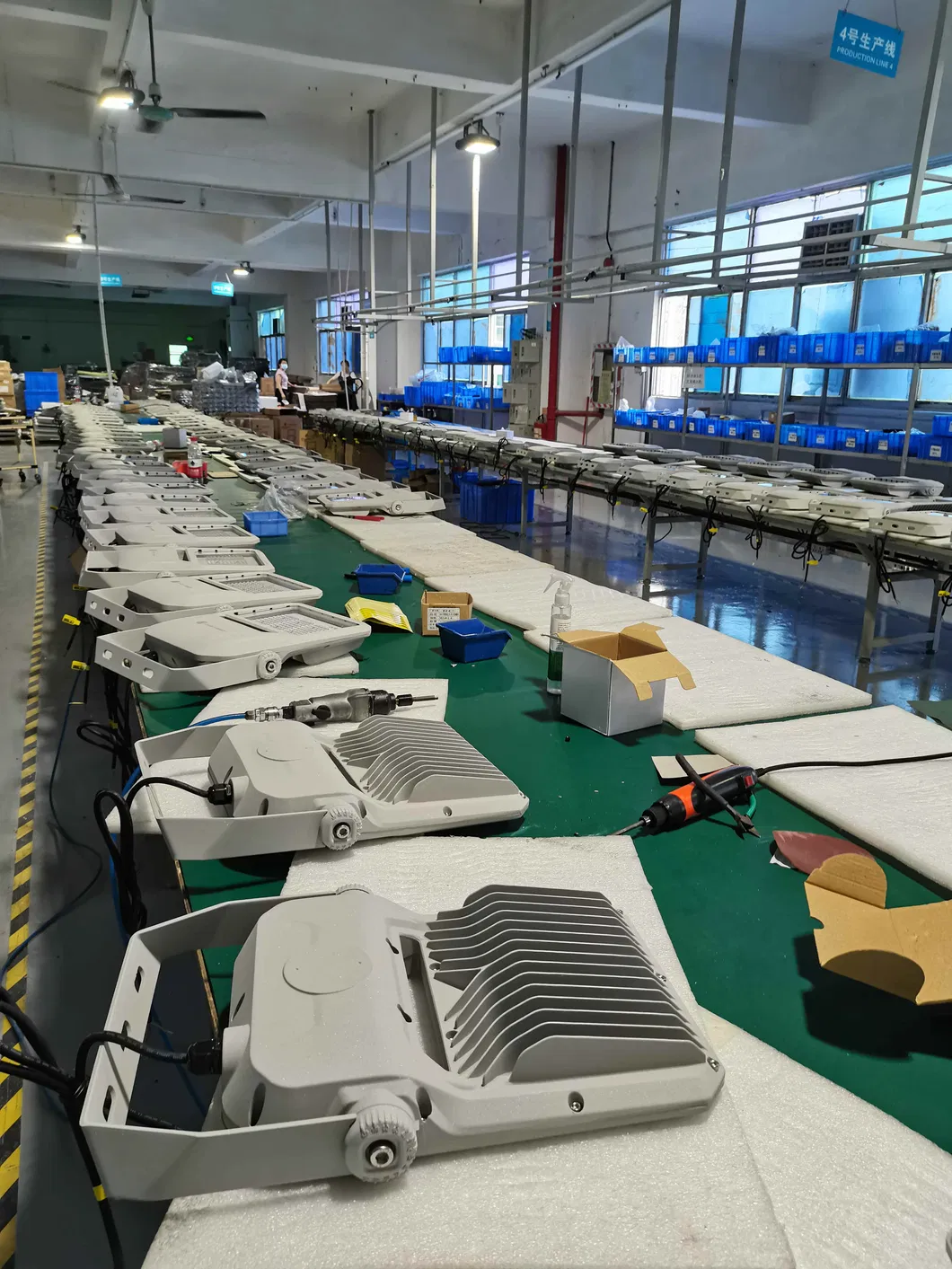

Production 1

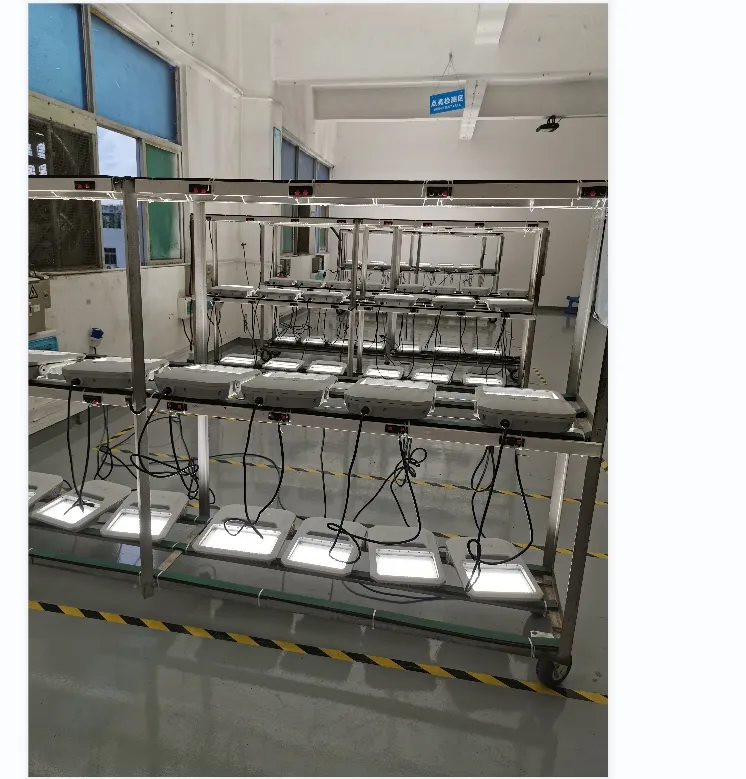

Production 2
📐 Dimensions

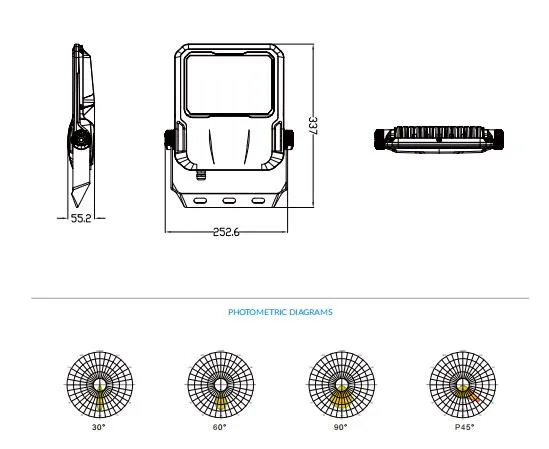

Dim 1
Dim 2

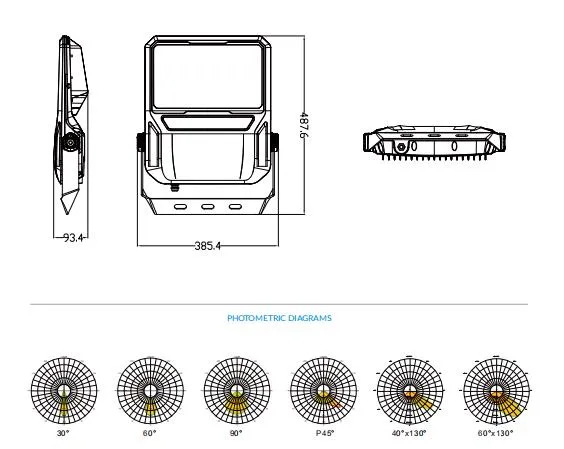

Dim 3
🏟️ Application Areas
COMMERCIAL PUBLIC INDUSTRIAL
SupermarketsAirportsManufacture
Large retailersStadiumsWarehouses
SchoolsTrain stationsParking lots
BillboardsBus stationsExhibition centers

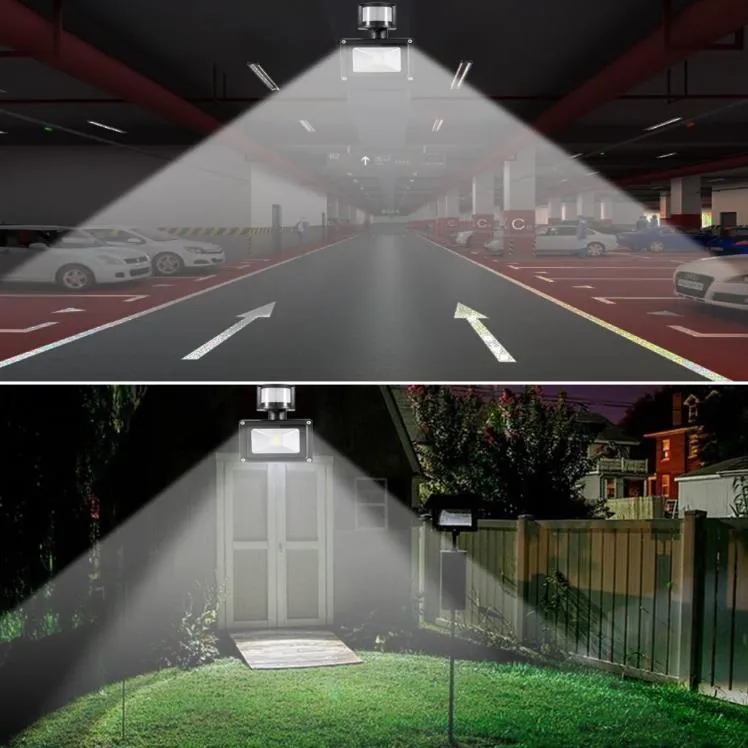

App Example 1

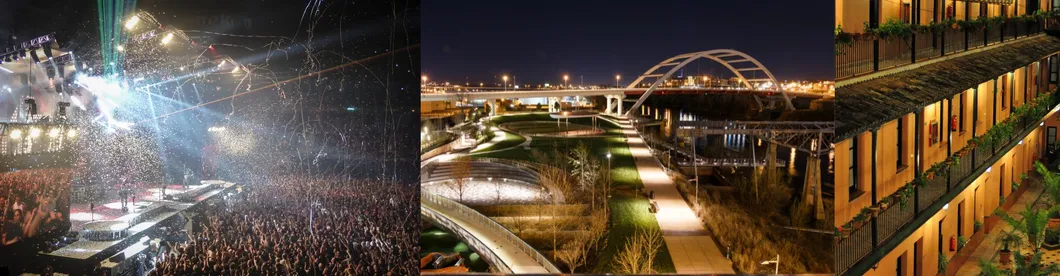

App Scene 1
App Scene 2
📦 Packaging
Pack 1
Pack 2

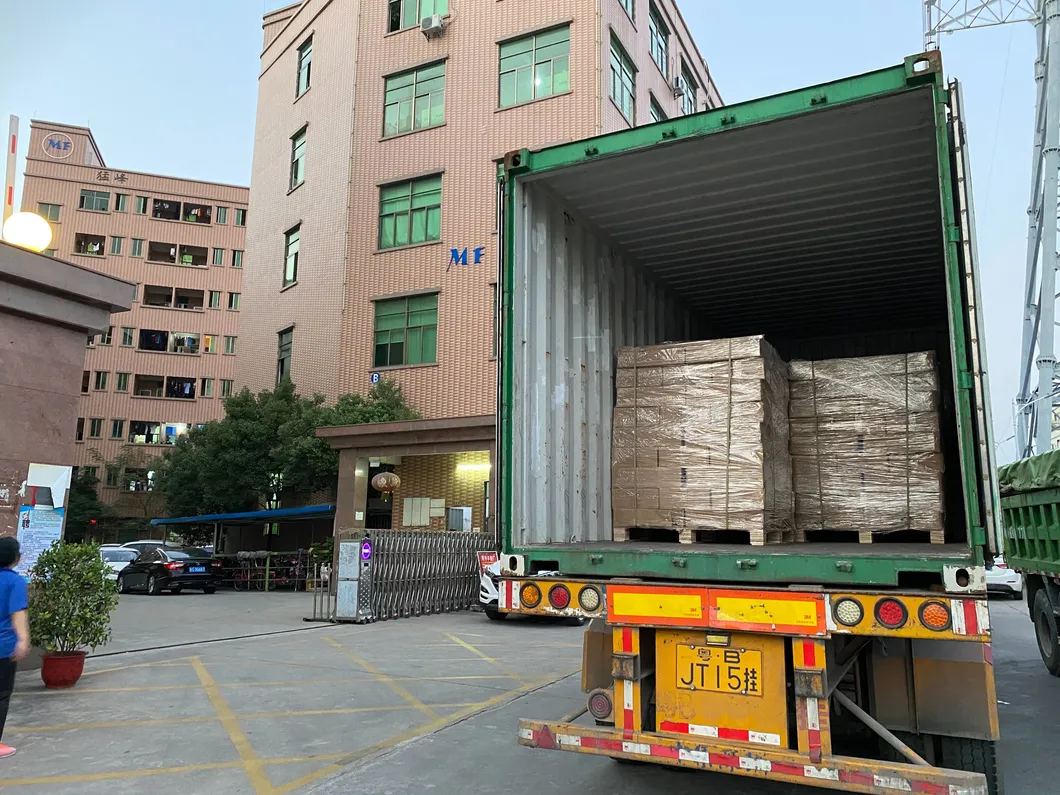

Pack 3
⚠️ Matters Needing Attention

Before installing the lighting fixtures, please read this instruction manual carefully.

  1. Installation and testing should be performed by a certified electrician based on local regulations.
  2. Lamps should always be installed or replaced carefully.
  3. Check local voltage requirements before installation.
  4. Revamping must only be done when power is off and the lamp is cooled.
  5. Clean with a soft cloth and PH neutral detergent when completely cooled.
  6. Do not cover fixtures with flammable materials.
  7. Replacements must be made by the manufacturer or a certified professional to avoid hazards.
Frequently Asked Questions
What is the IP rating of this flood light? The MF SKY series features an IP67 rating, making it completely waterproof and dustproof, suitable for harsh outdoor and coastal environments.
What kind of warranty is provided? We offer a 5-year warranty on this product, ensuring long-term reliability and performance for your lighting projects.
Can this light be used in sports stadiums? Yes, it is specifically designed for sport fields, stadiums, tennis courts, and large outdoor squares with its massive light output and asymmetric optics.
What is the energy efficiency of these LED lights? These lights are highly efficient, providing between 130lm/W and 150lm/W depending on the specific model and power configuration.
What materials are used for construction? The body is made of high-quality aluminum for heat dissipation, with a polycarbonate optic lens and toughened glass for maximum durability.
Is surge protection included? Yes, the lighting system includes built-in 6kV surge protection to guard against electrical spikes and ensure the longevity of the driver.
