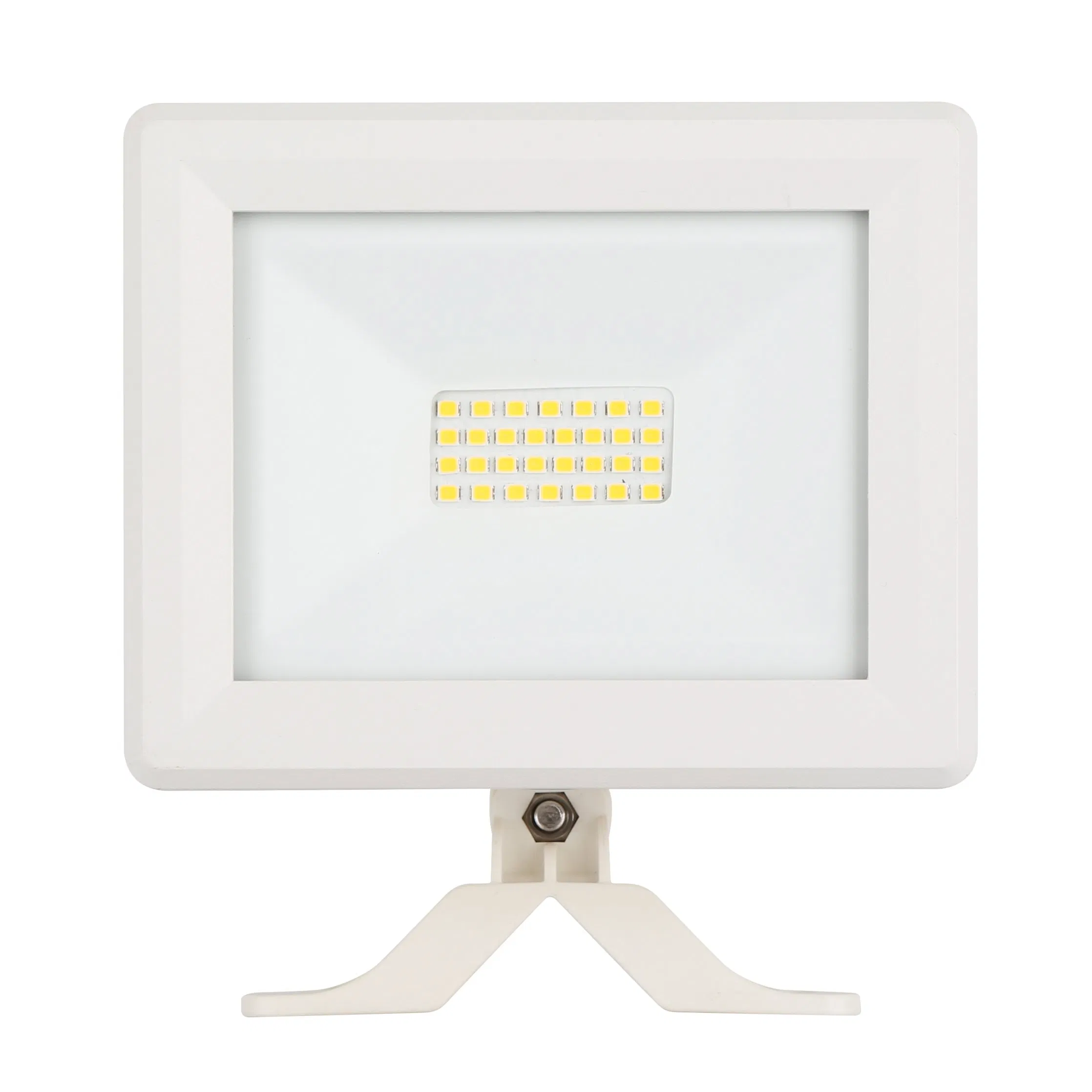

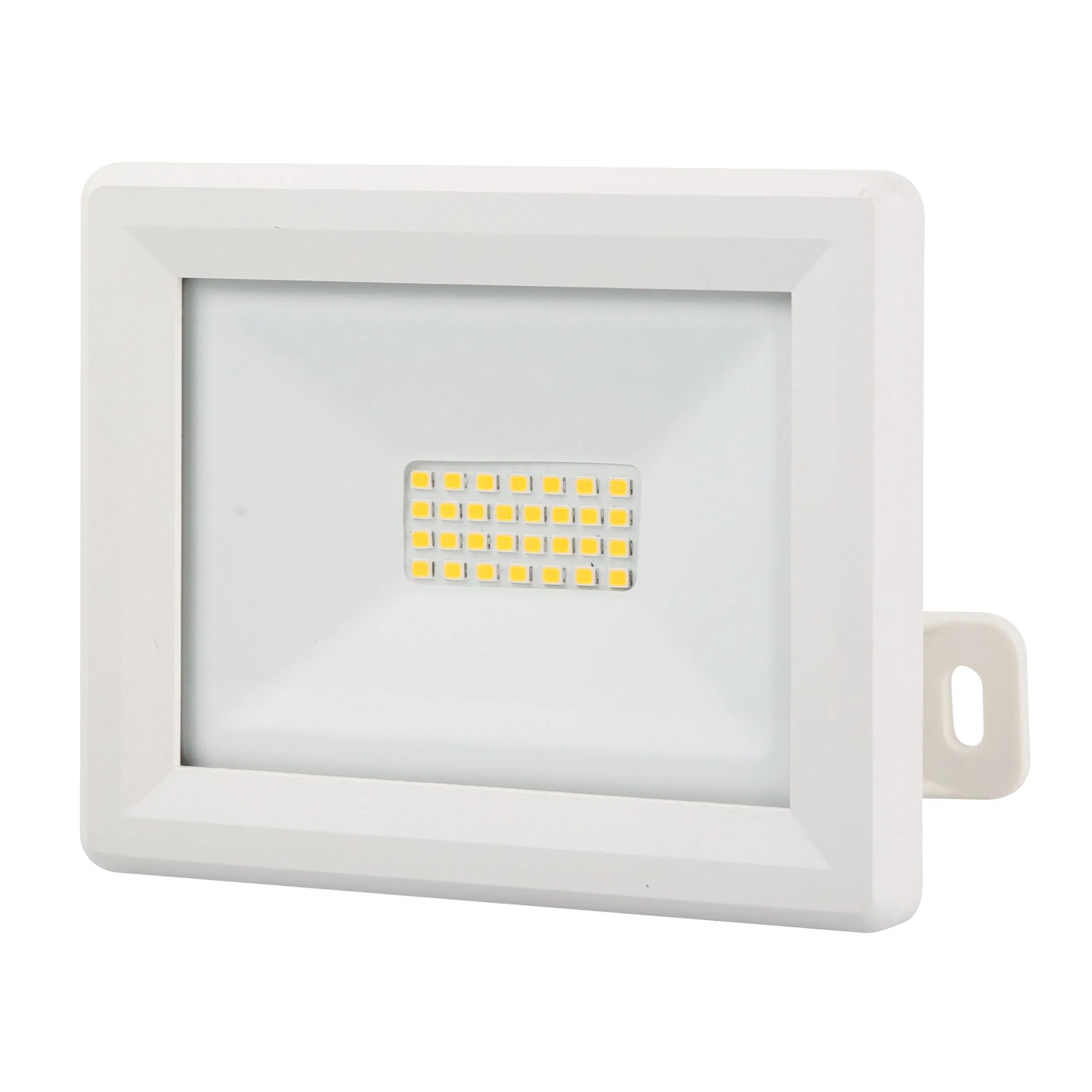

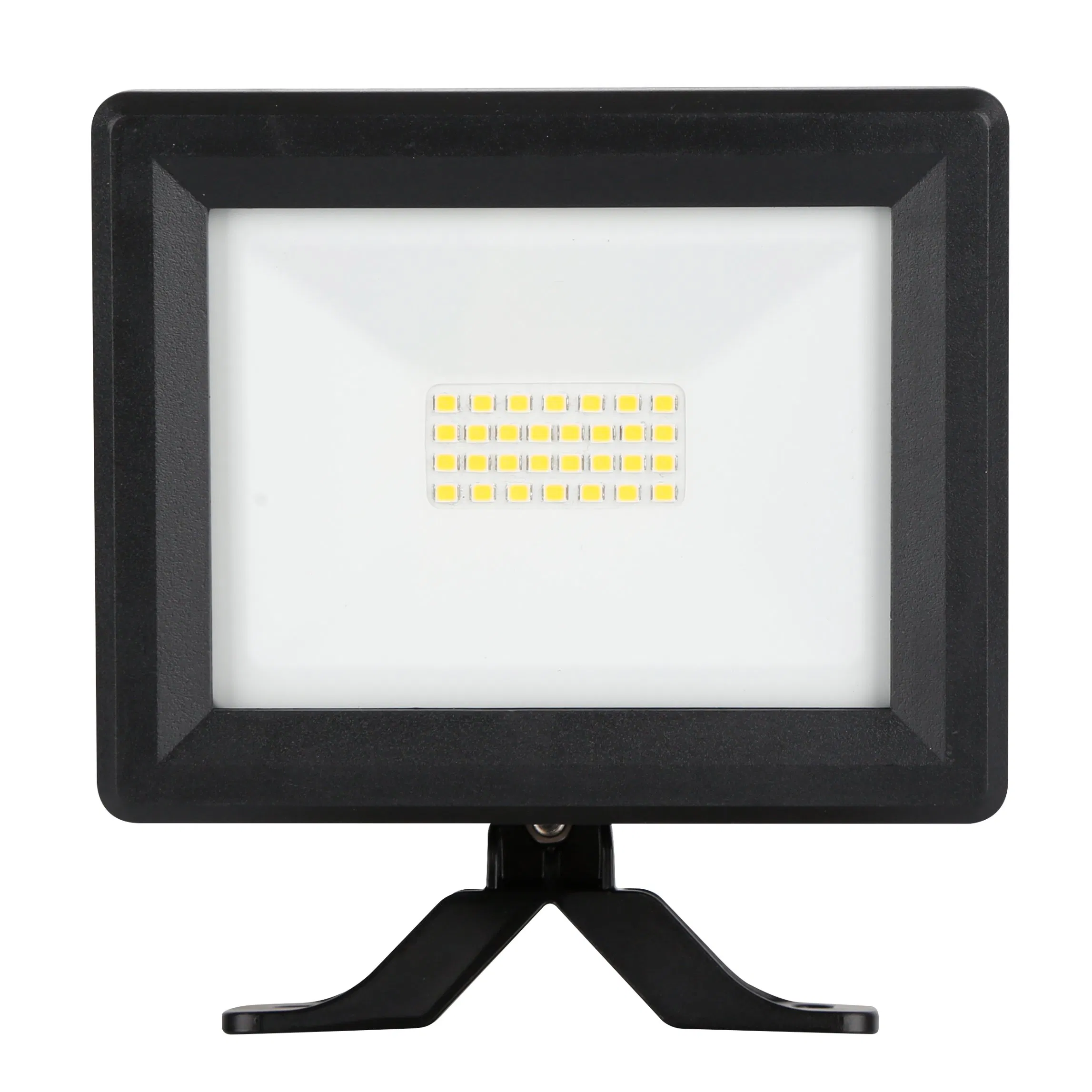

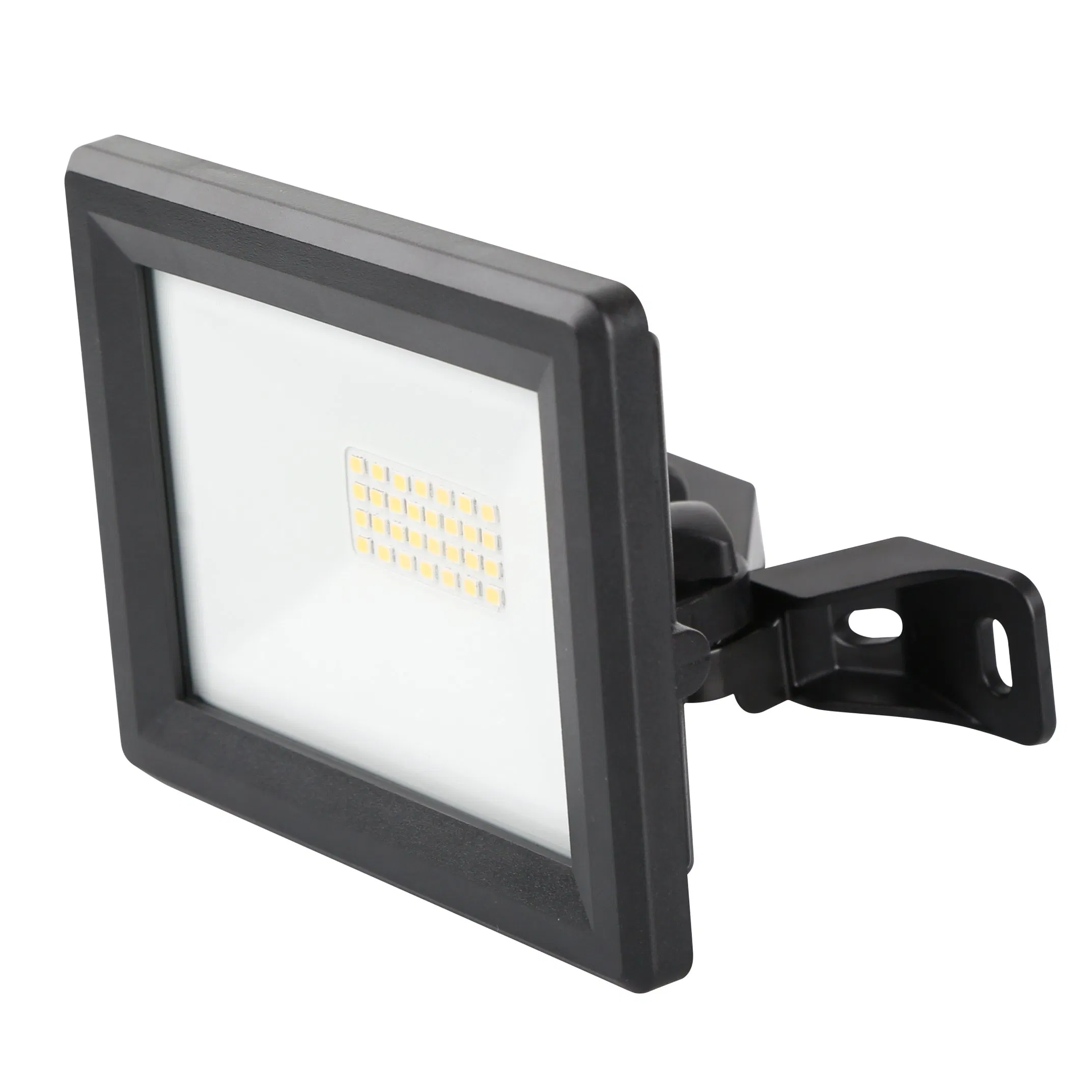

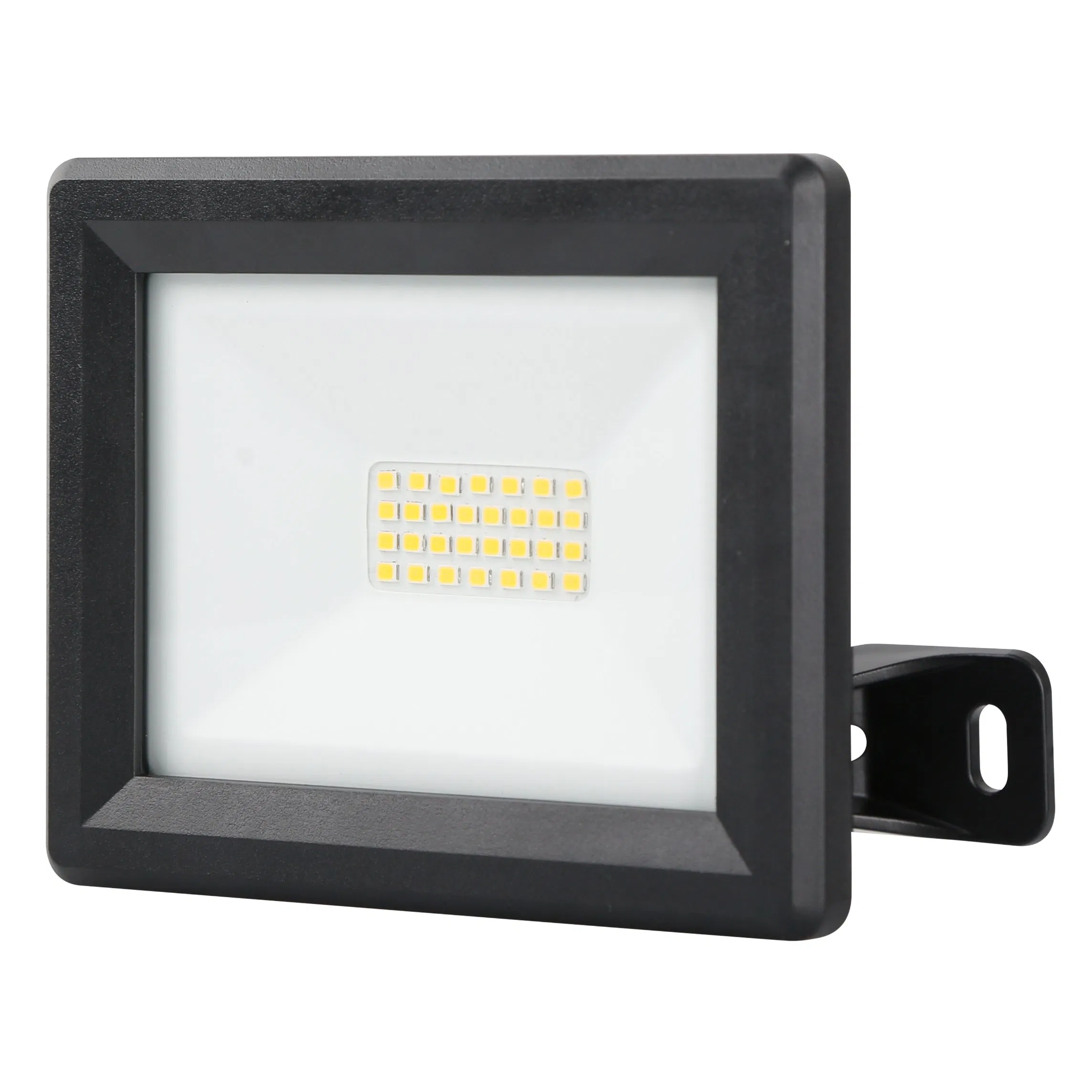

GS CE Standard Industrial IP65 20W 3D Black Bracket LED Wall Lamp Flood Light 3000K 4000K 6000K CCT High Quality Factory
Product Description
📋
Basic Information
Model NO.
TBC220SXJ2-A
Power
10-29W
Projection Distance
>35m
Application
Park
IP Rating
IP65
Certification
CE, EMC, GS, LVD, RoHS, SAA, SASO
Operating Voltage
220-240V
Input Voltage
220V
LED Chips
2835 SMD (30 PCS)
Linear Driver
DOB
Specification
129x63x136mm
Origin
China
⚙️
Product Parameters
- Aluminum die-casting housing + tempered glass + ABS frame
- Voltage: AC 220-240V, 50Hz (Linear Driver DOB)
- LED Chip: 2835 SMD
- Color Temperature: 3000K/4000K/6500K
- Lumen Efficiency: LED module 110lm/w, Whole lamp 100lm/w
- CRI(Ra): ≥80 | DF: ≥0.9 | Beam Angle: 110°±10°
- IP Rating: IP65 | IK Rating: IK05
- Life Time: 25,000 hours | Warranty: 3 years
- Operating Temperature: -25°C~40°C

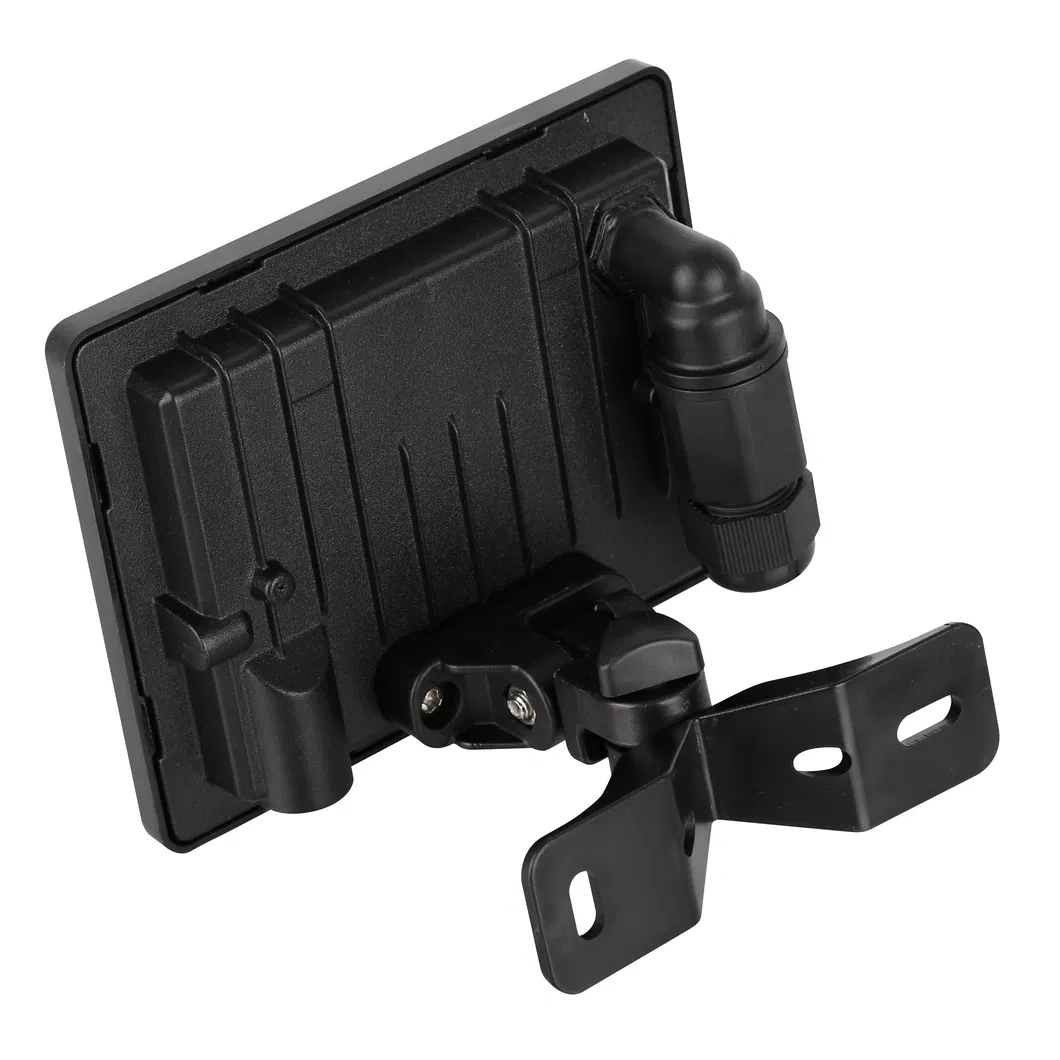

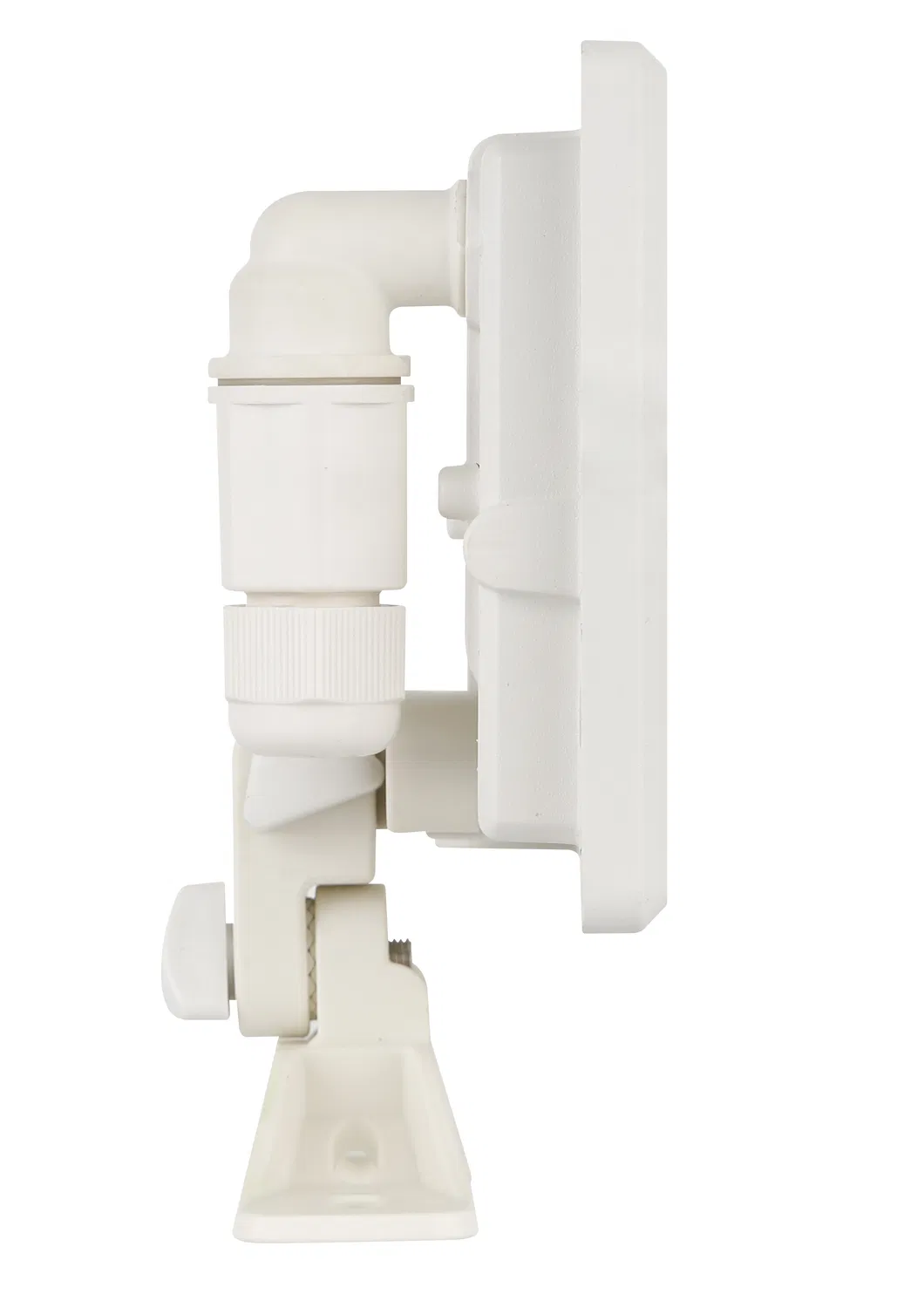

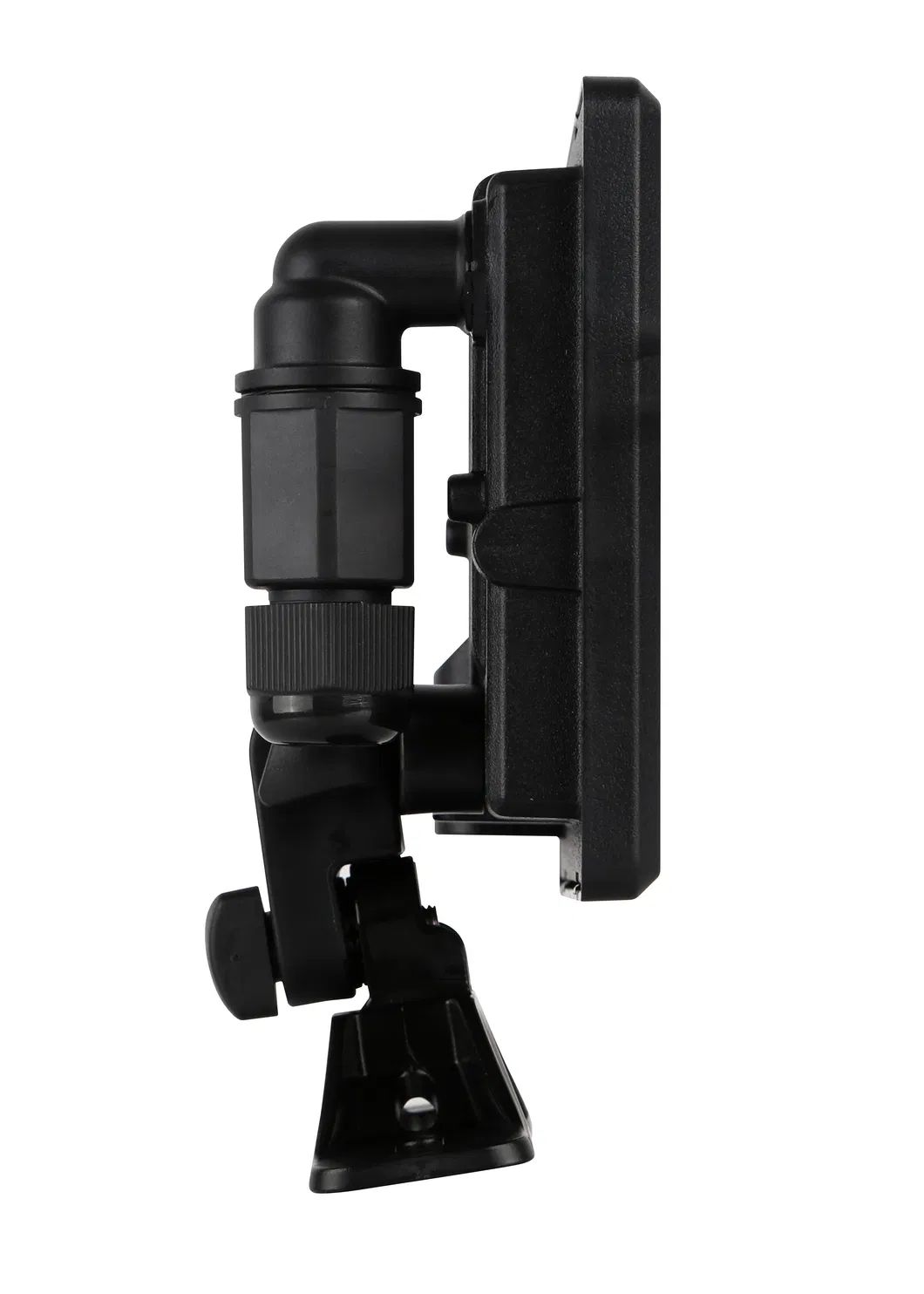

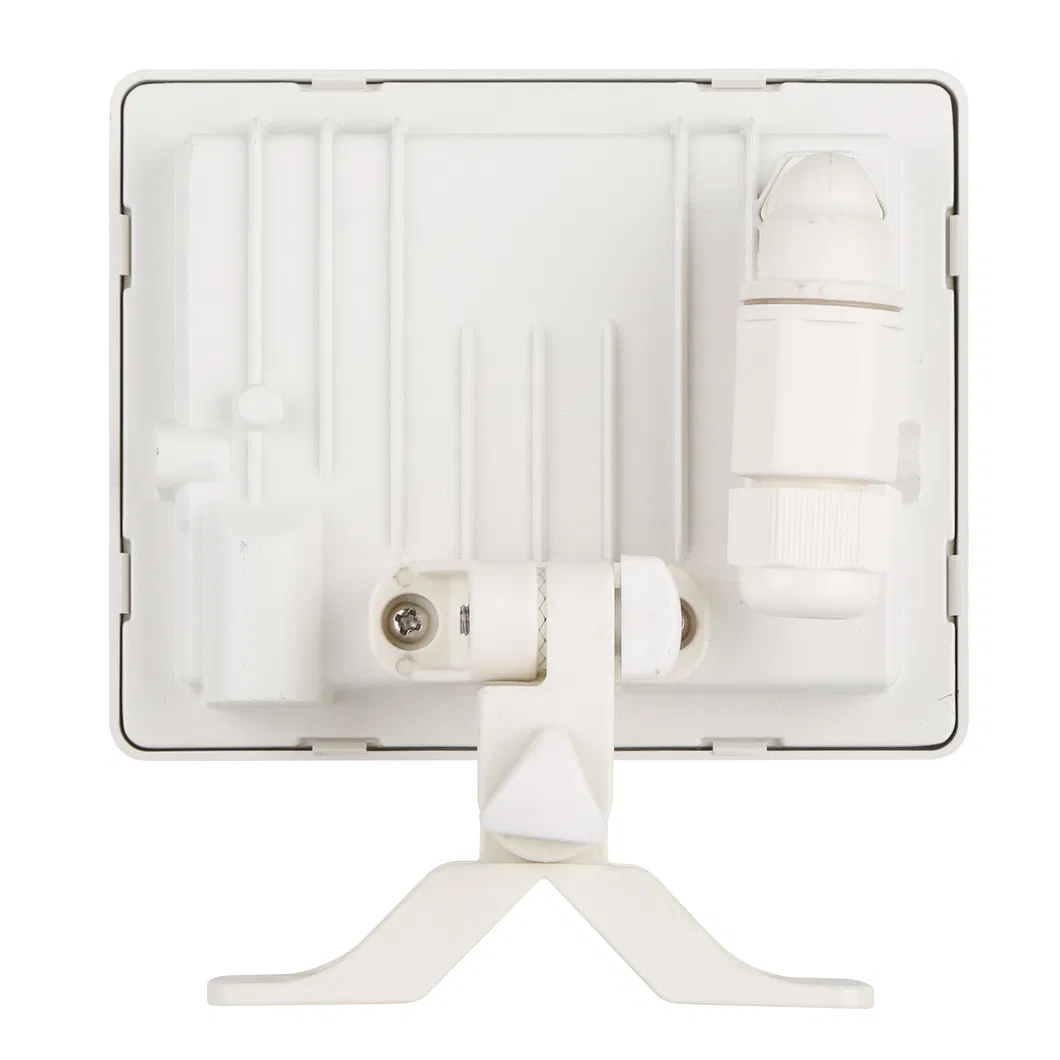

- Special Features: Fast connector (plug and play), 3D bracket for walls/corners
- PIR Sensor: 120° Angle, 4m-10m Distance, Adjustable lighting delay and brightness
📦
Packaging & Shipping
- Package Type: Color box + Carton
- Color Box Size: 135x70x145mm
- Carton Quantity: 20pcs/CTN
- Carton Size: 37x28.5x31cm
- Weight: N/W 7.3kg | G/W 6kg
- MOQ Volume: 1.6345 m³
📸

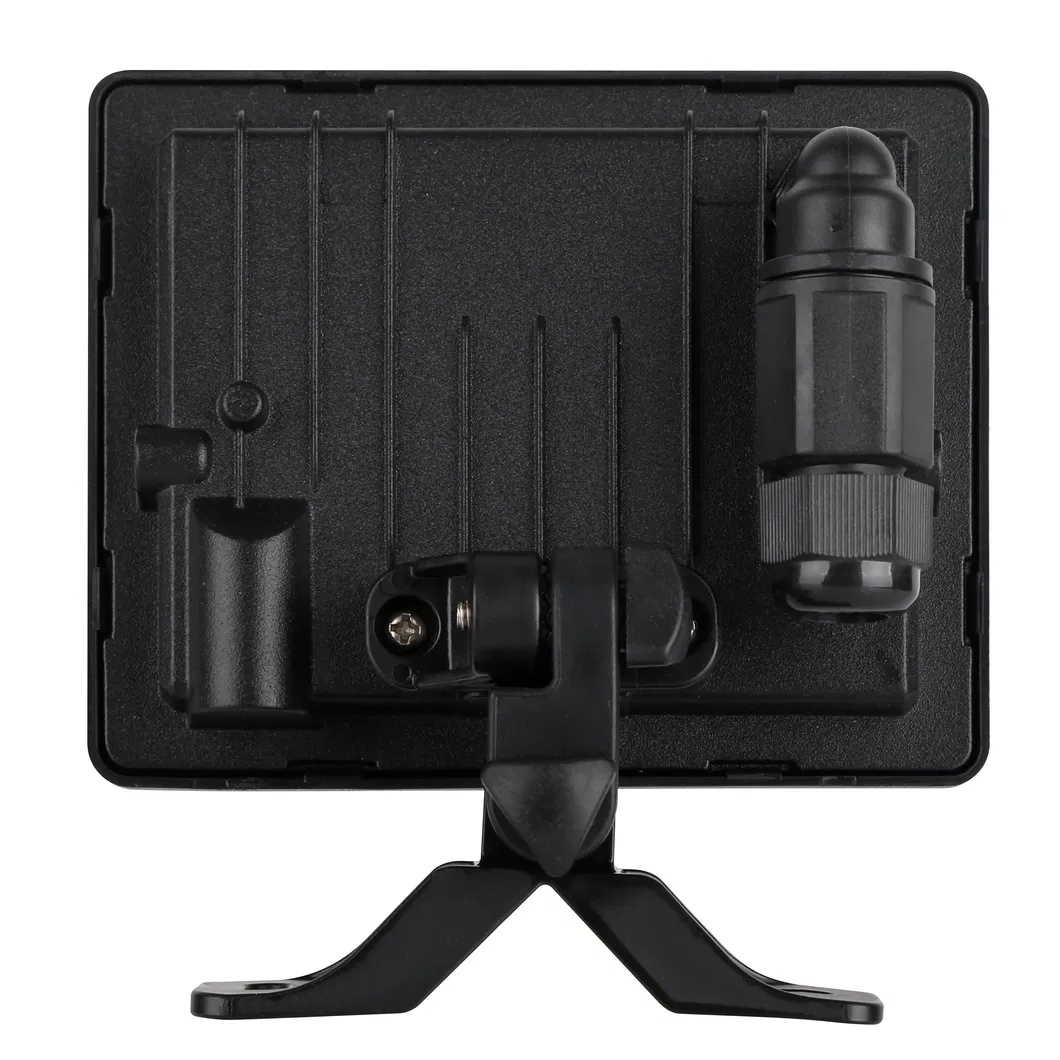

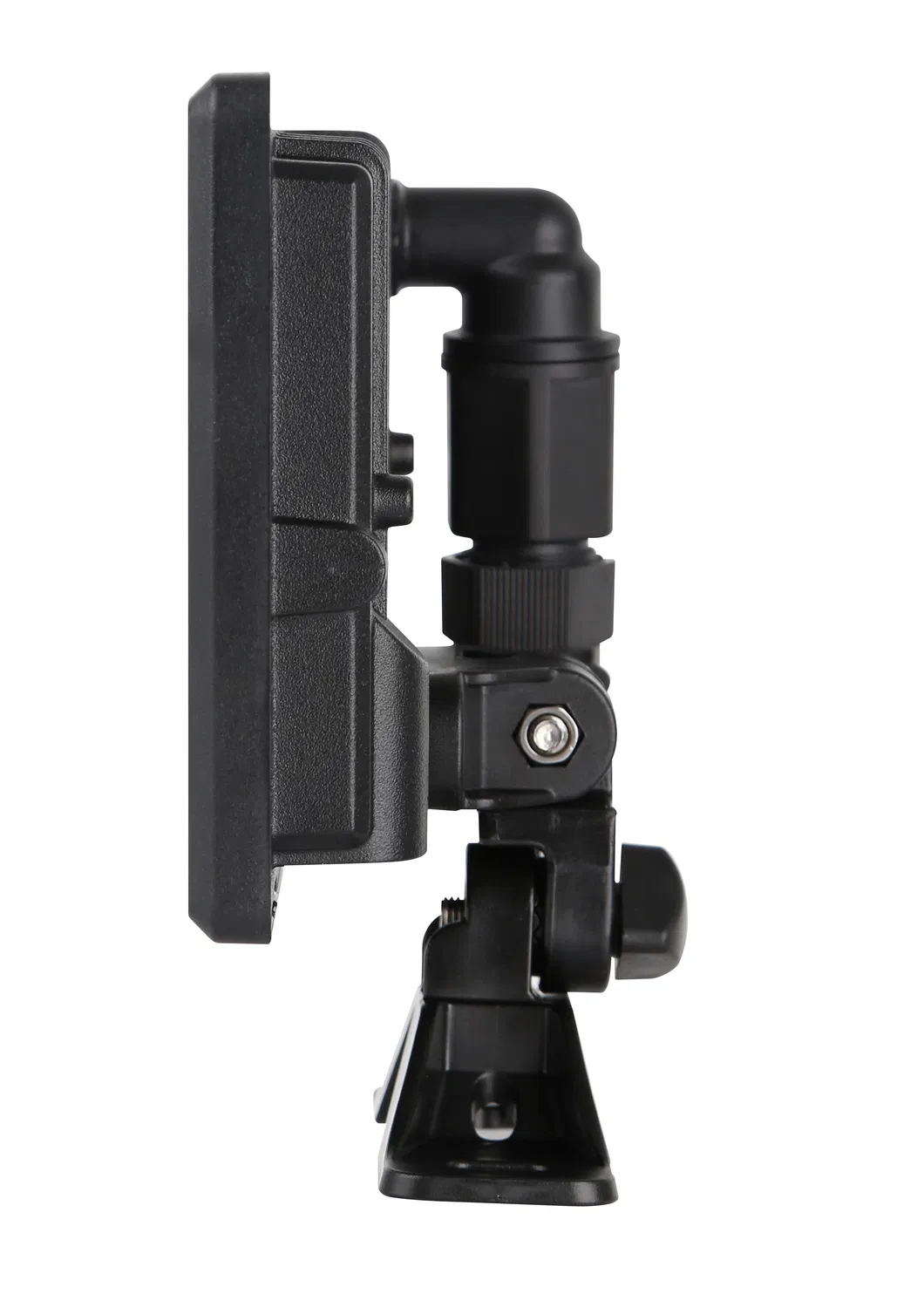

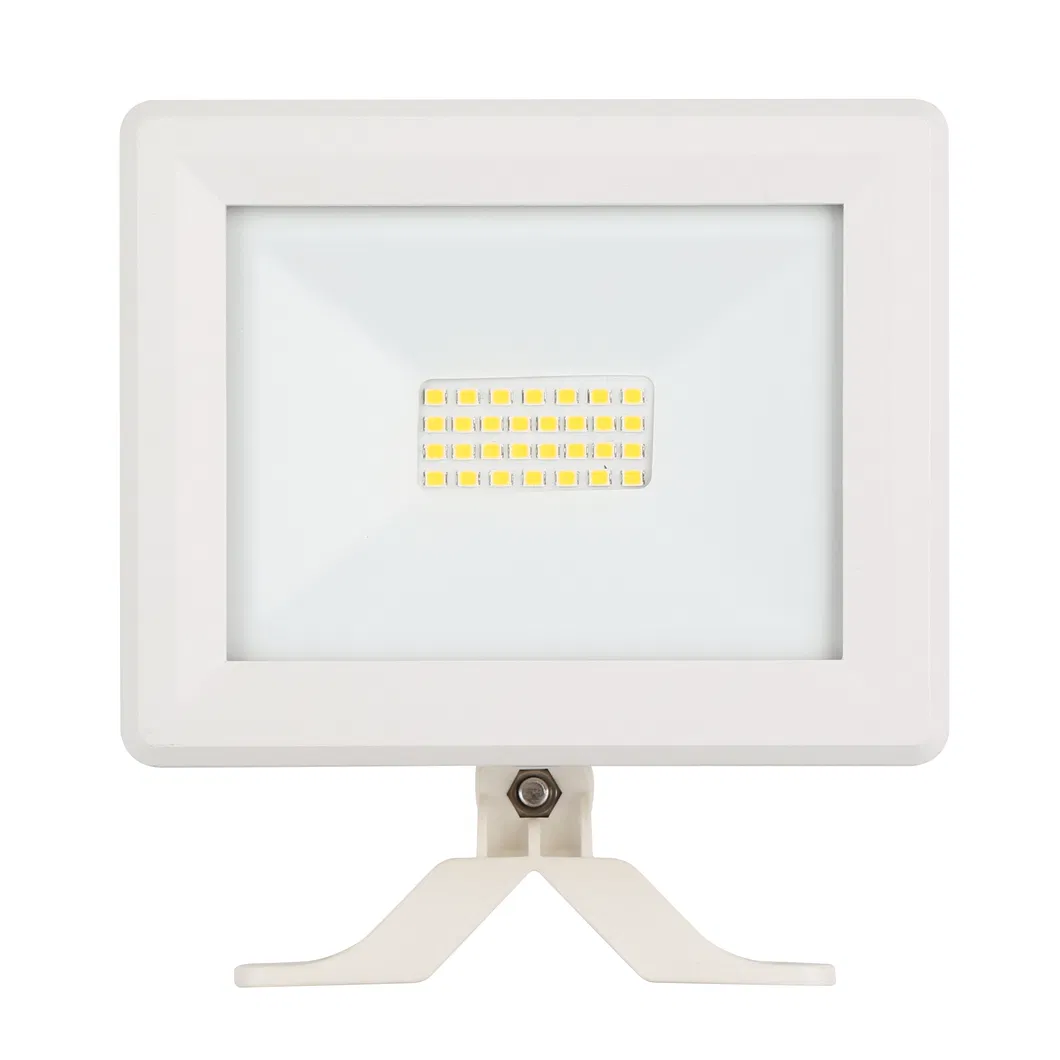

Detailed Photos
🏢

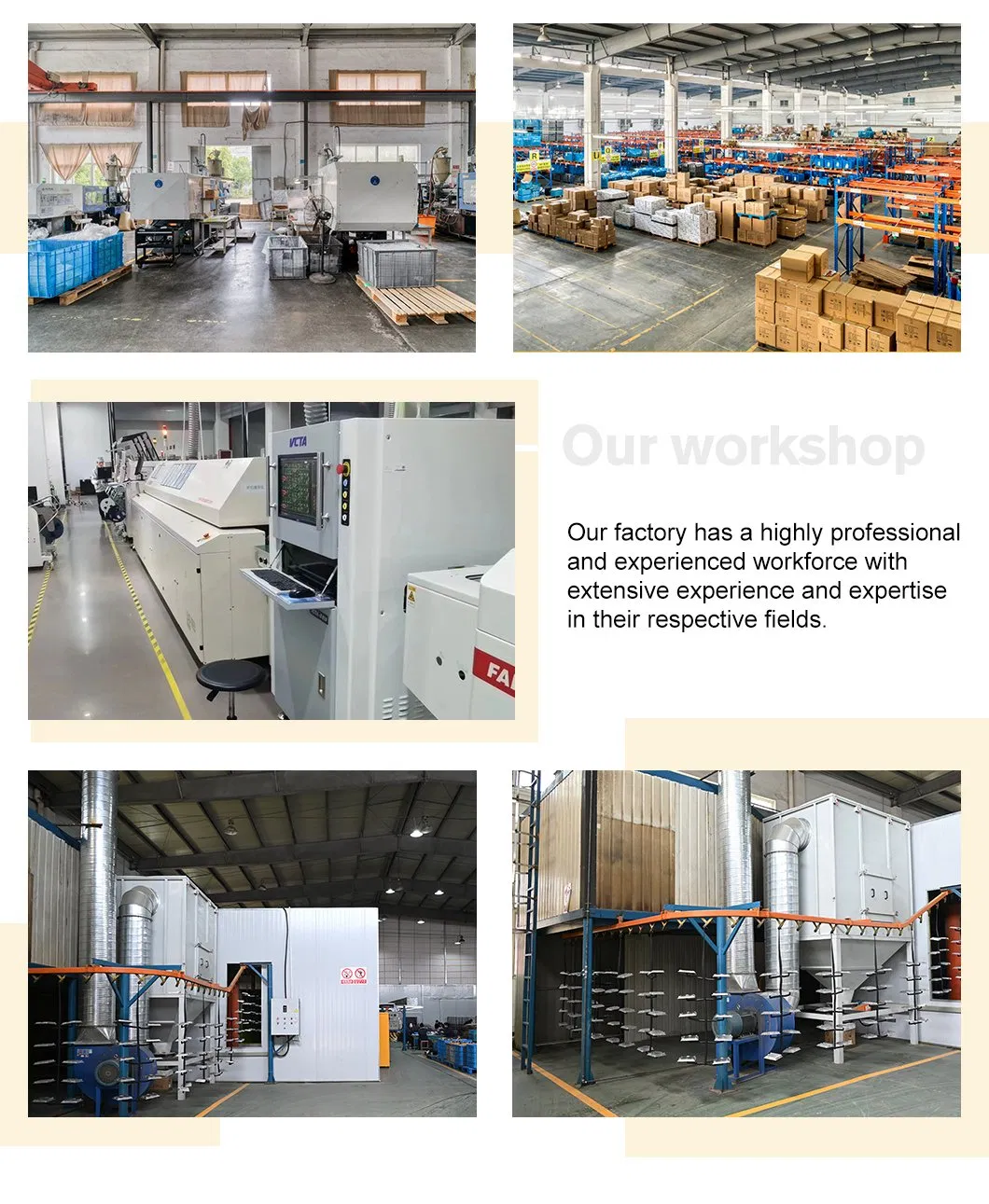

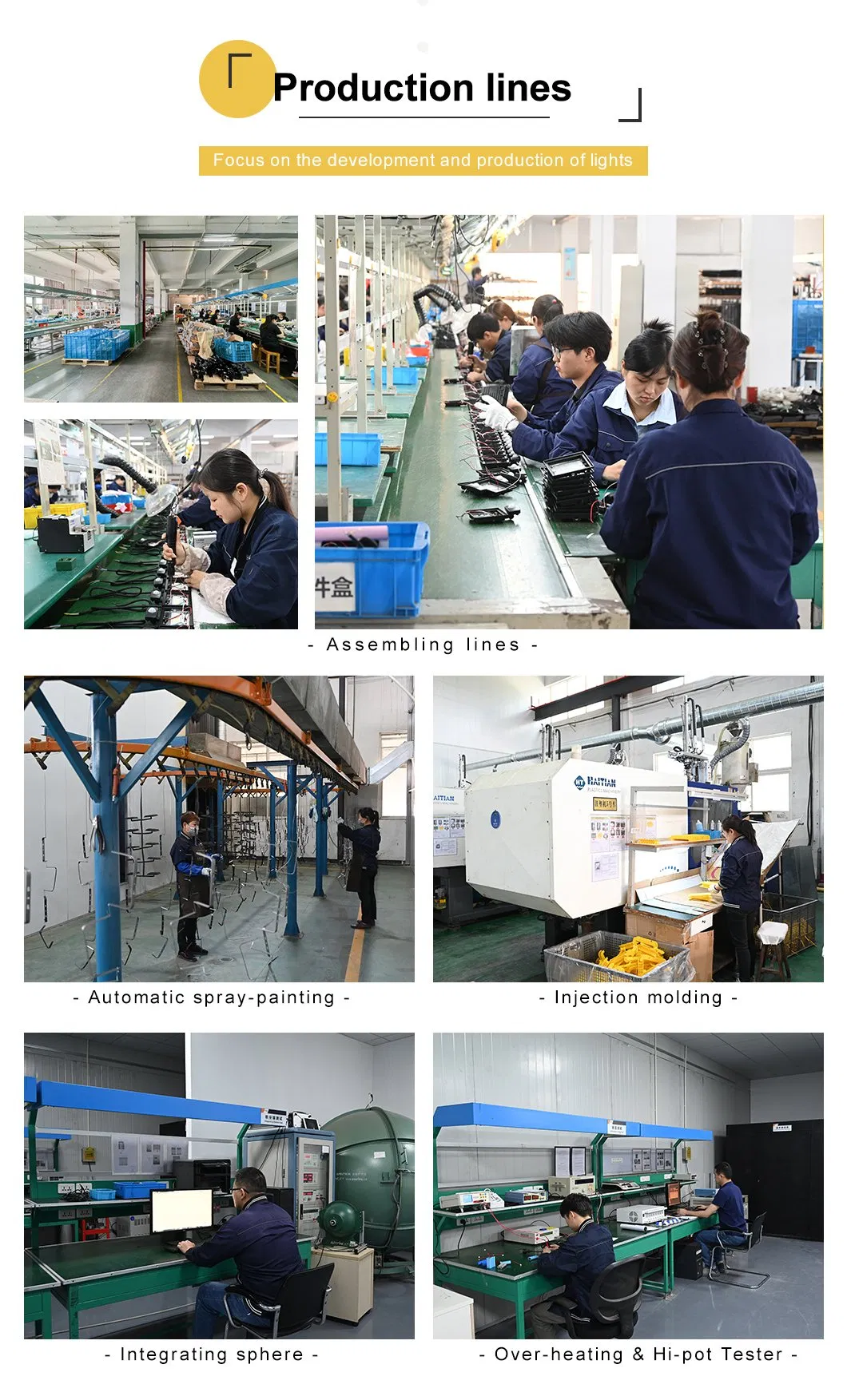

Professional Manufacturing
Our manufacturing process integrates R&D, production, and sales. We focus on scientific and beautiful design, excellent quality, and very high cost-performance for the global market.
❓
Frequently Asked Questions
What is the weather resistance rating of this light?
This light is IP65 rated, making it highly resistant to dust and water, suitable for outdoor applications like parks and walls.
Does this flood light support corner installation?
Yes, it comes equipped with a special 3D bracket designed for both flat wall and corner installations.
How long is the expected lifespan and warranty?
The lamp has a lifespan of approximately 25,000 hours and comes with a 3-year factory warranty.
What color temperatures are available?
We offer three standard color temperatures: Warm White (3000K), Natural White (4000K), and Cool White (6500K).
How does the PIR sensor work?
The integrated PIR sensor has a 120° detection angle and an adjustable distance of up to 10 meters. Lighting delay and ambient brightness settings are also adjustable.
Is the installation complicated?
No, the unit features a fast connector for "plug and play" installation, significantly reducing setup time.
