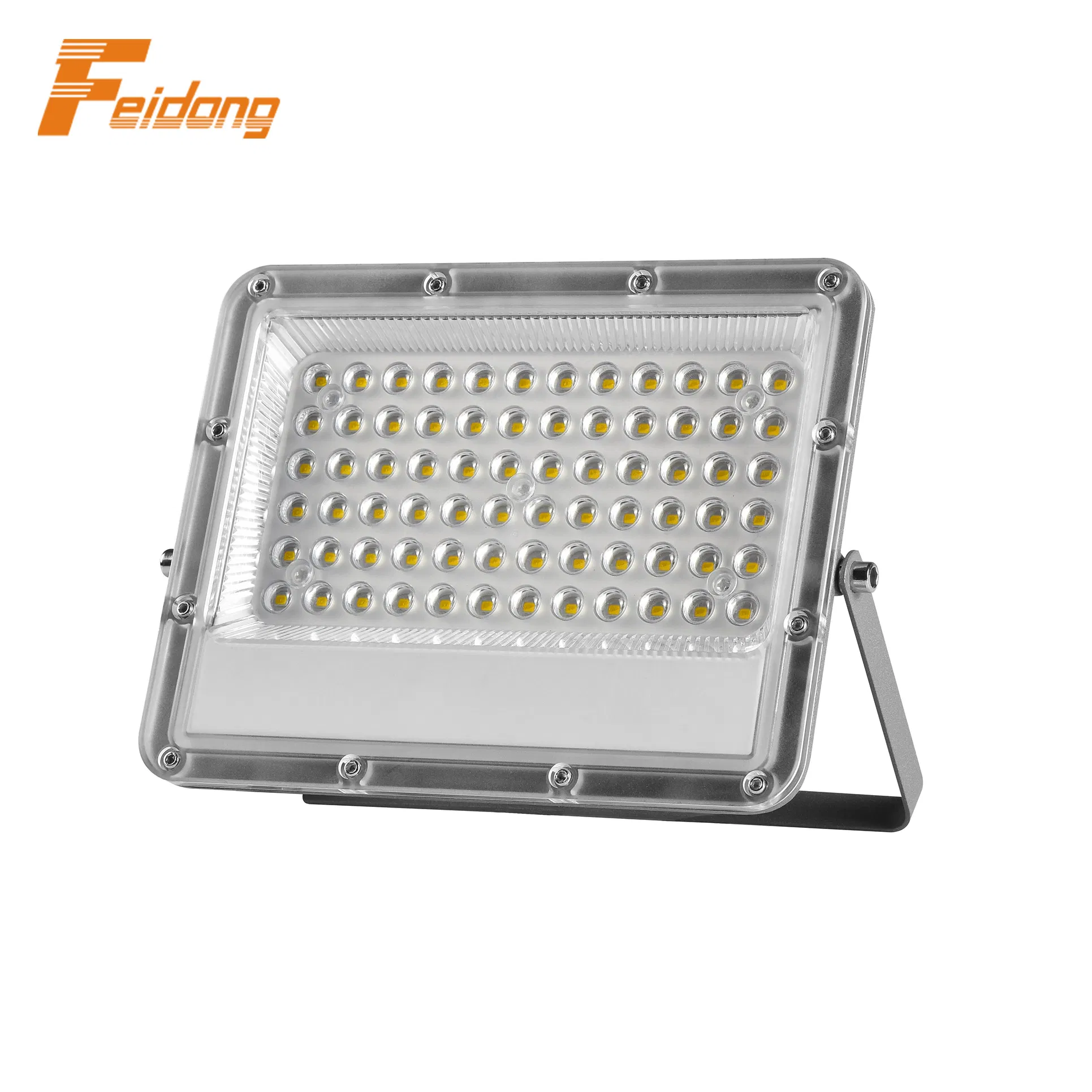

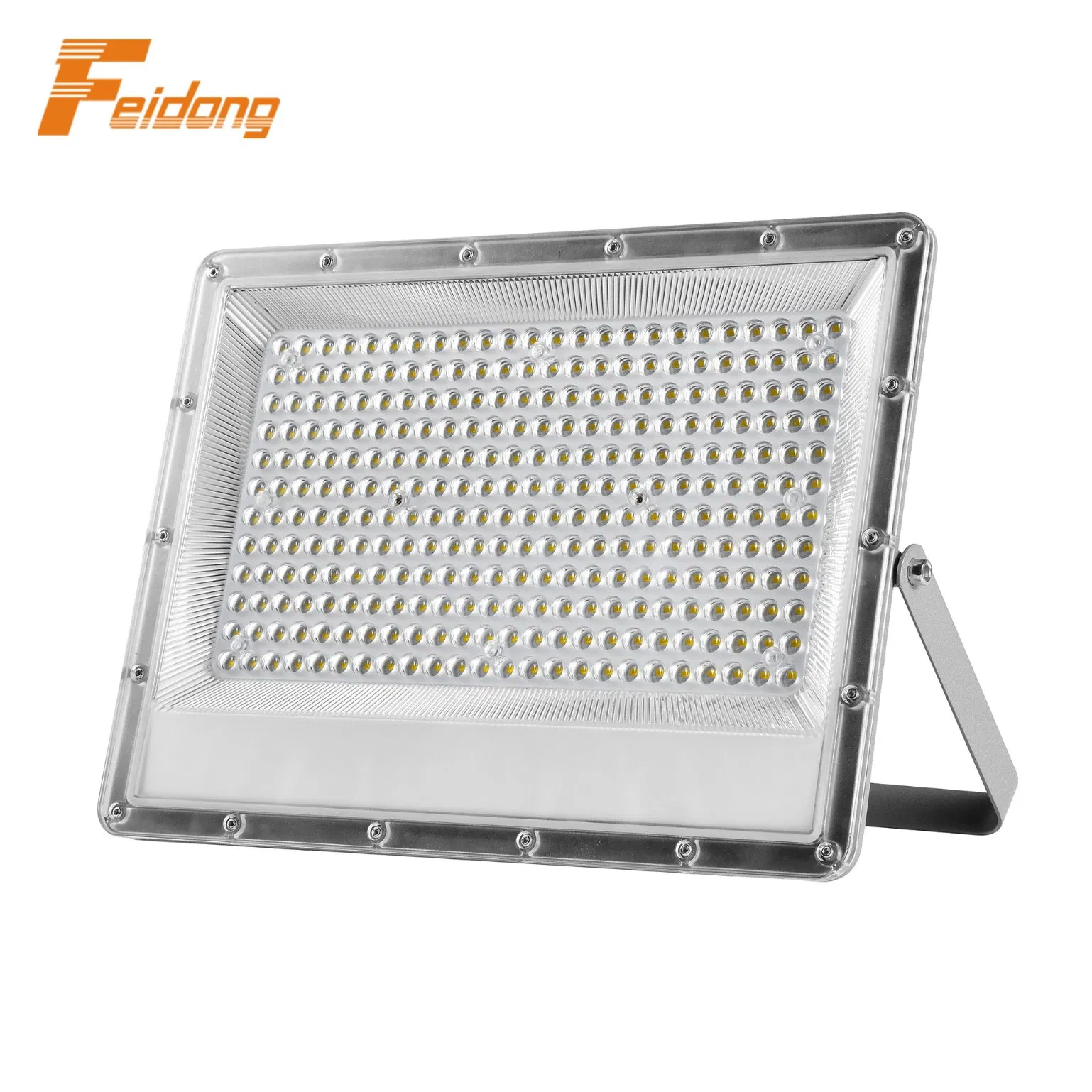

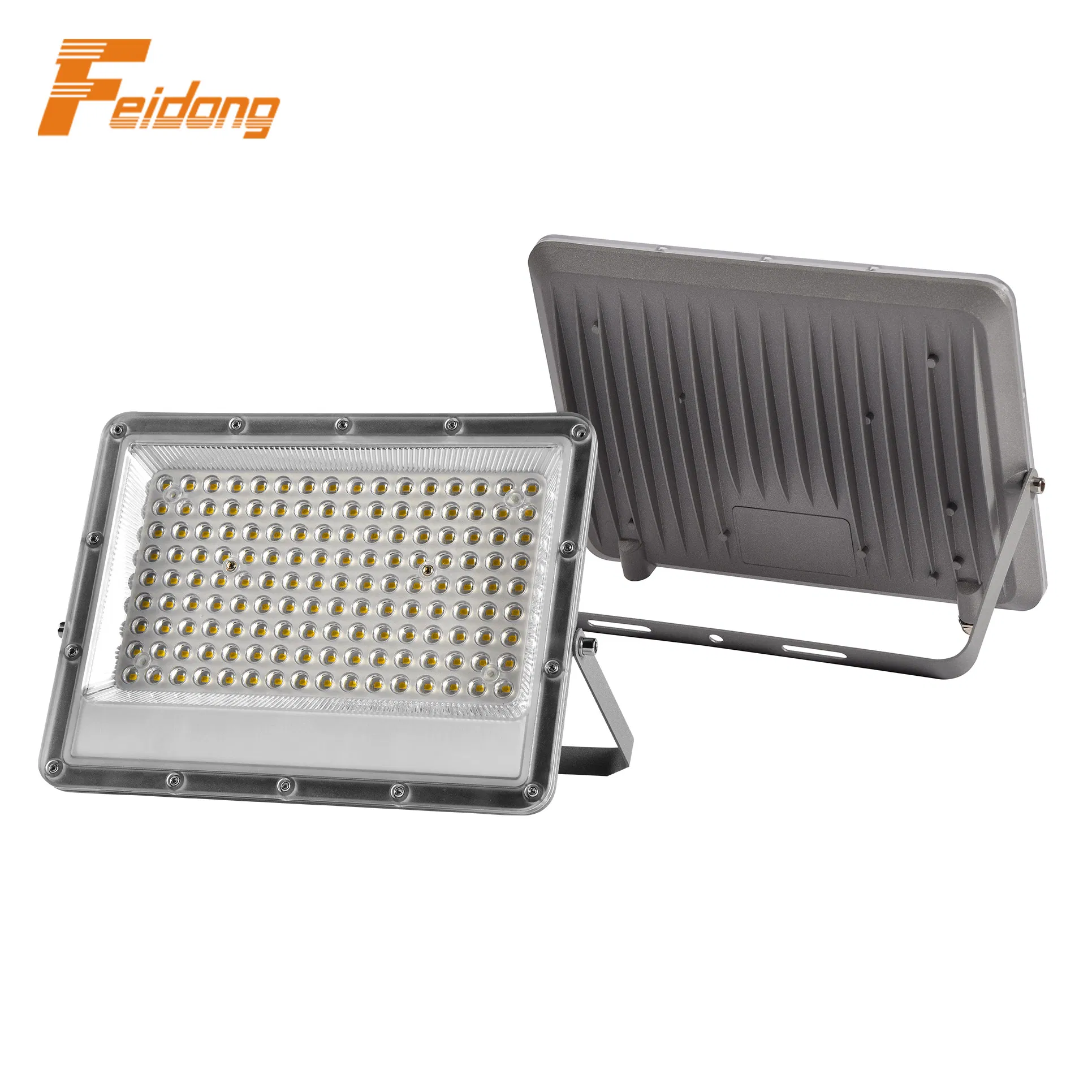

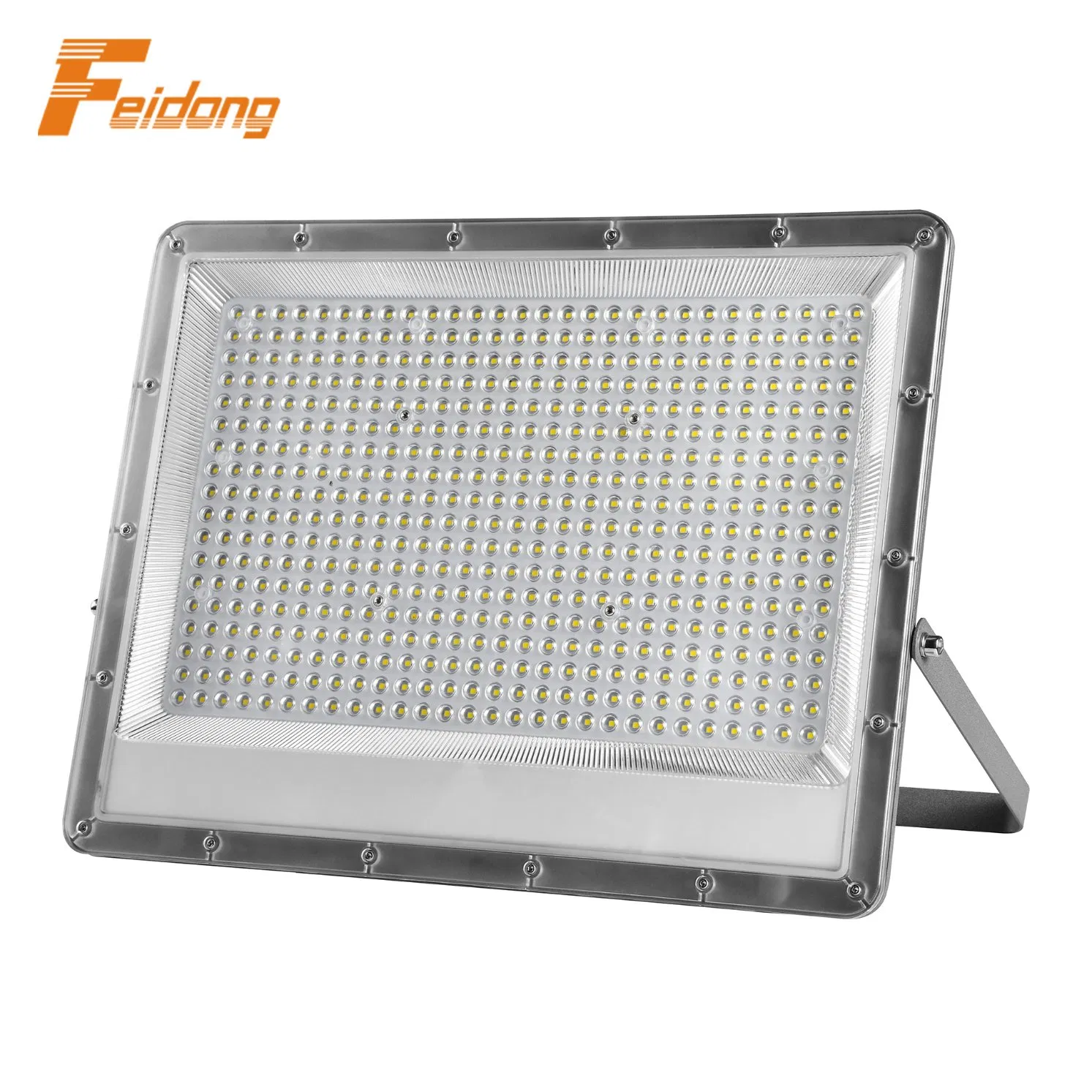

AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
Product Description
📋

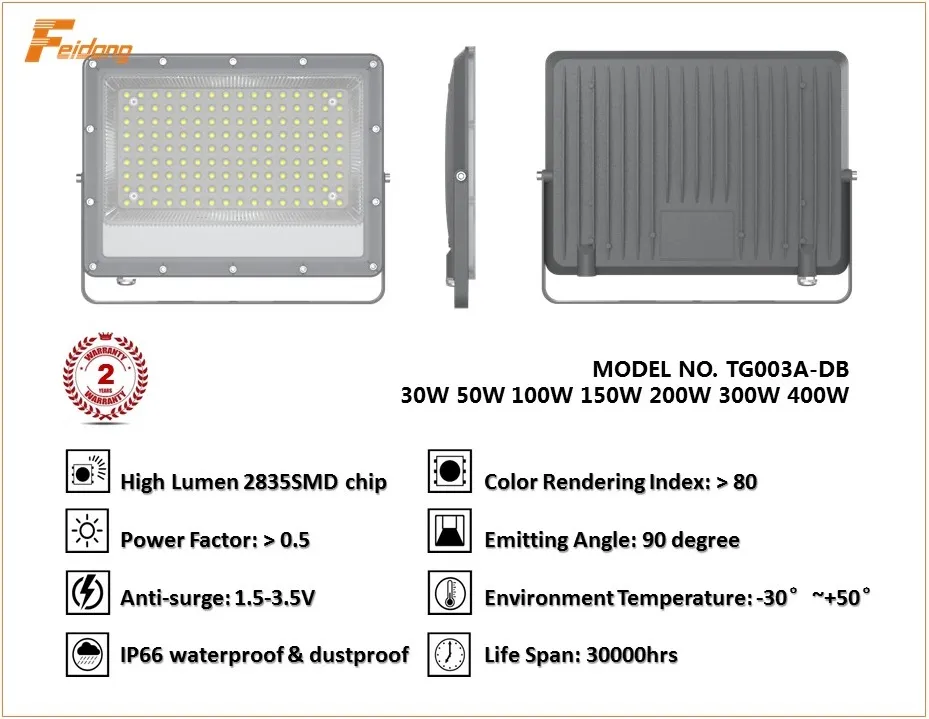

Basic Specifications
Model NO.
TG003
Power Range
30W - 400W
IP Rating
IP66 Waterproof
LED Chips
Sanan Brand
Lumen Efficiency
100-110lm/W
Input Voltage
AC100-265V
CRI
>80

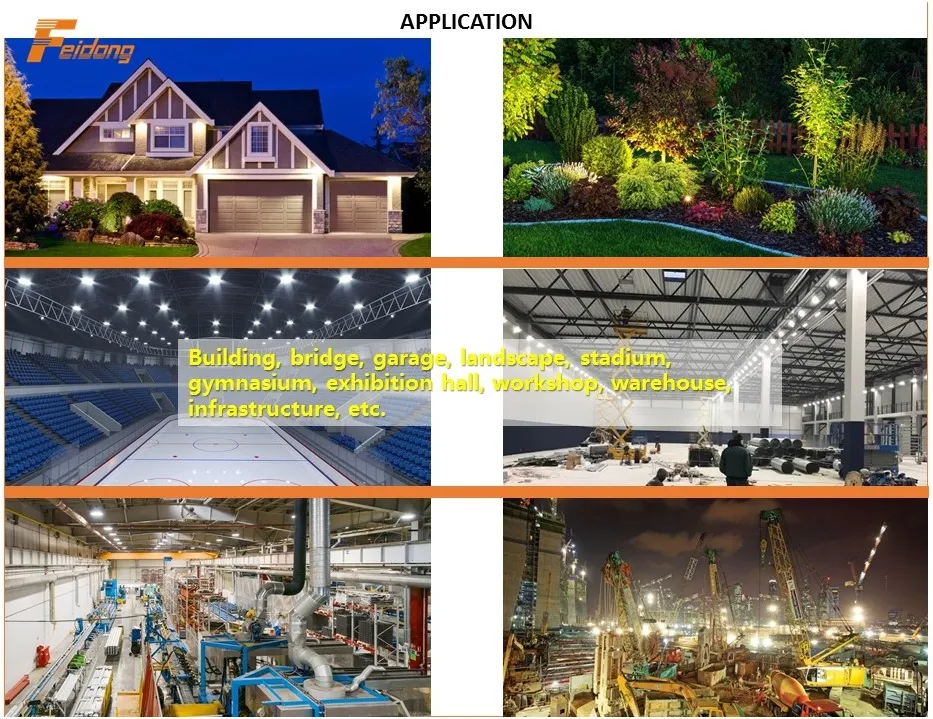

Applications
Park, Square, Factory, Garden
💡
Product Overview
AC100-265V 30W-400W Outdoor LED Floodlight with Optical Lens
Designed for high-performance outdoor lighting, this floodlight features a 90-degree spot light emitting angle and SKD modular design. With a high lumen output of 100-110lm/W, it provides superior brightness and energy efficiency for industrial and commercial use.
📊
Technical Parameters
| MODEL | TG003A-30W | TG003A-50W | TG003A-100W | TG003A-150W | TG003A-200W | TG003A-300W | TG003A-400W |
|---|---|---|---|---|---|---|---|
| POWER | 30W | 50W | 100W | 150W | 200W | 300W | 400W |
| LED QTY | 36 PCS | 72 PCS | 144 PCS | 216 PCS | 288 PCS | 360 PCS | 504 PCS |
| Luminous Flux | 3000-3300LM | 100-110 LM/W | |||||
| Anti-surge | 1.5KV | 3.5KV | |||||
| Dimensions (mm) | 155*125*25 | 210*160*25 | 270*208*25 | 335*250*33 | 380*282*33 | 455*328*35 | 485*368*35 |
| Net Weight (kg) | 0.3 | 0.48 | 0.8 | 1.4 | 1.8 | 2.5 | 3.2 |
📸

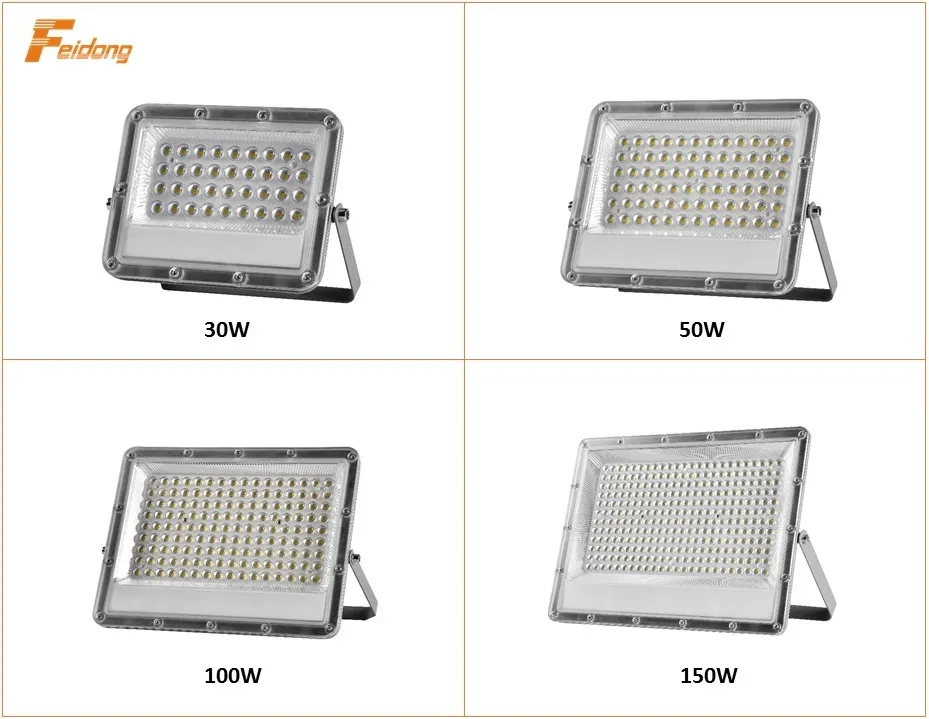

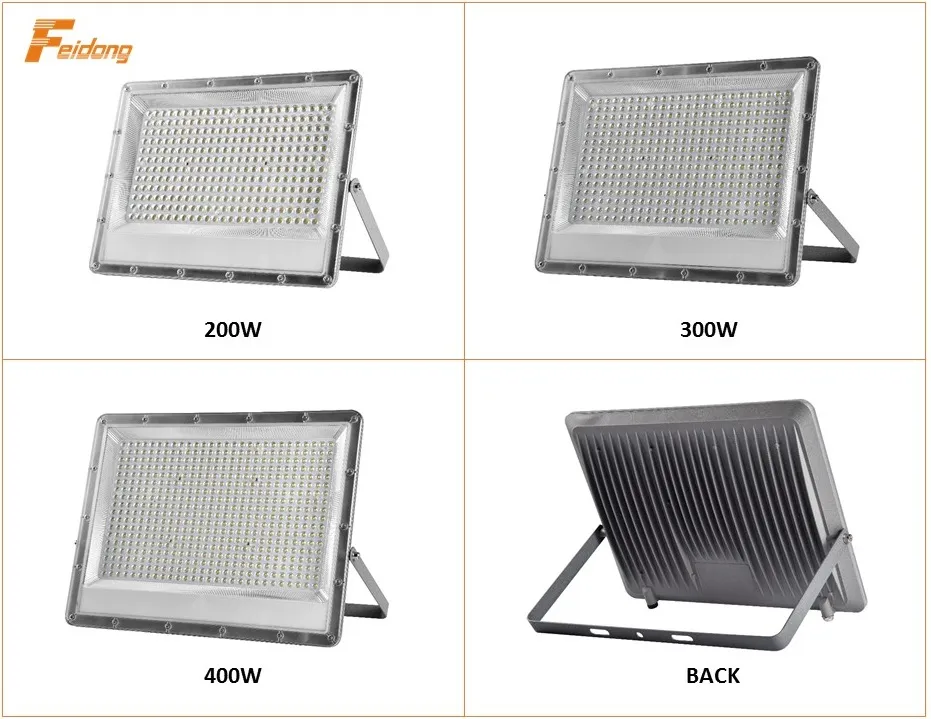

Product Gallery
❓
Frequently Asked Questions
What is the IP rating for these outdoor floodlights?
These floodlights are rated IP66, making them completely protected against dust and powerful water jets, ideal for outdoor use.
What range of power options are available?
The TG003 series offers a wide range of power options from 30W up to 400W to suit different lighting requirements.

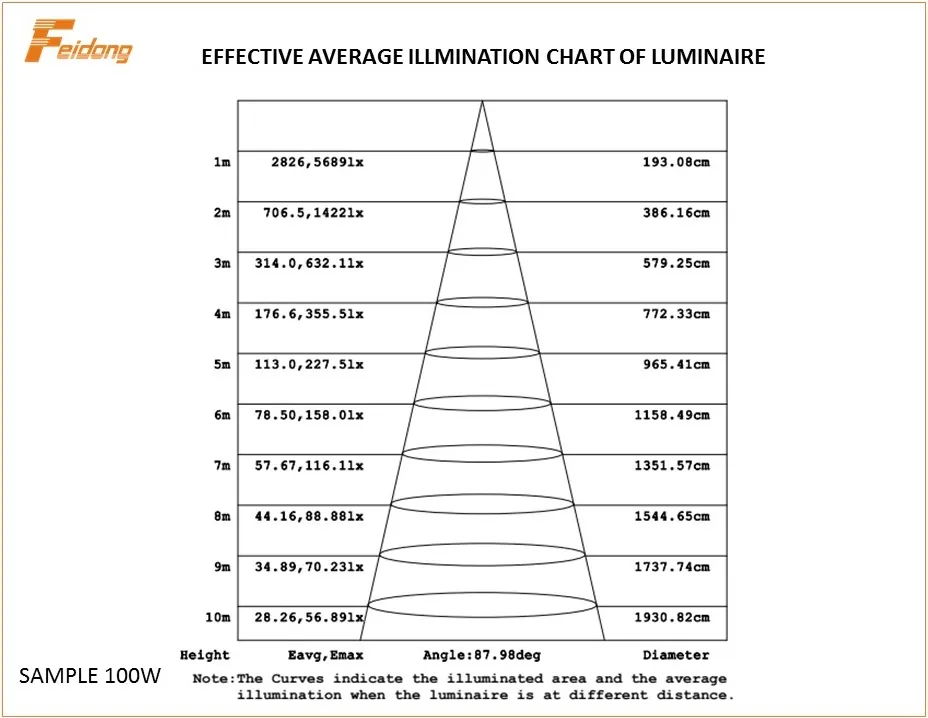

What is the beam angle of the light?
The floodlight features an optical lens that provides a precise 90-degree light emitting angle.
Can these lights handle voltage fluctuations?
Yes, the operating voltage is AC100-265V, allowing the light to function stably across various power grids.
What is the expected lifespan and warranty?
These LED floodlights have a lifetime of over 30,000 hours and come with a 2-year quality warranty.

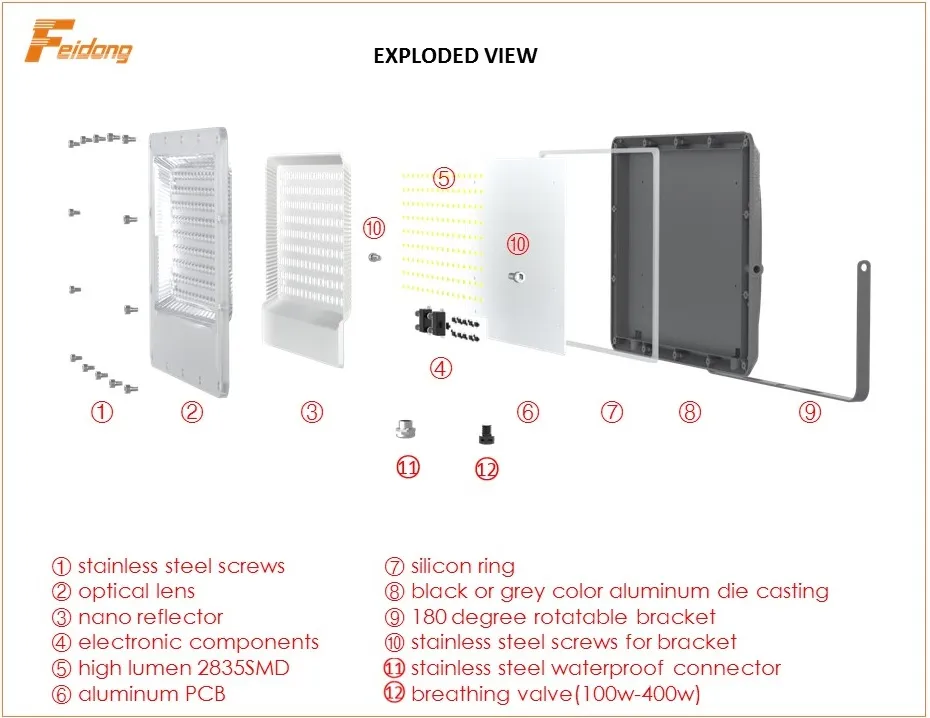

What materials are used for the housing?
The body is constructed from high-quality aluminum alloy, providing excellent heat dissipation and durability.
