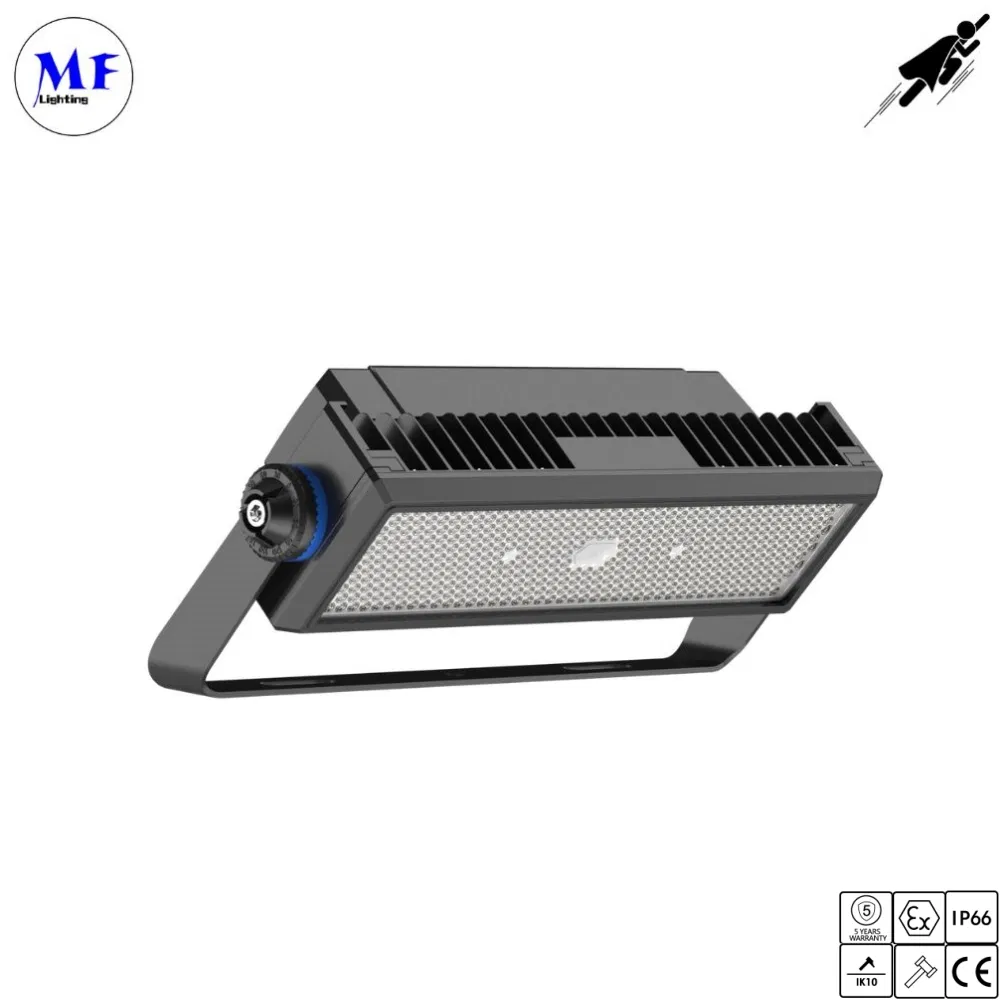

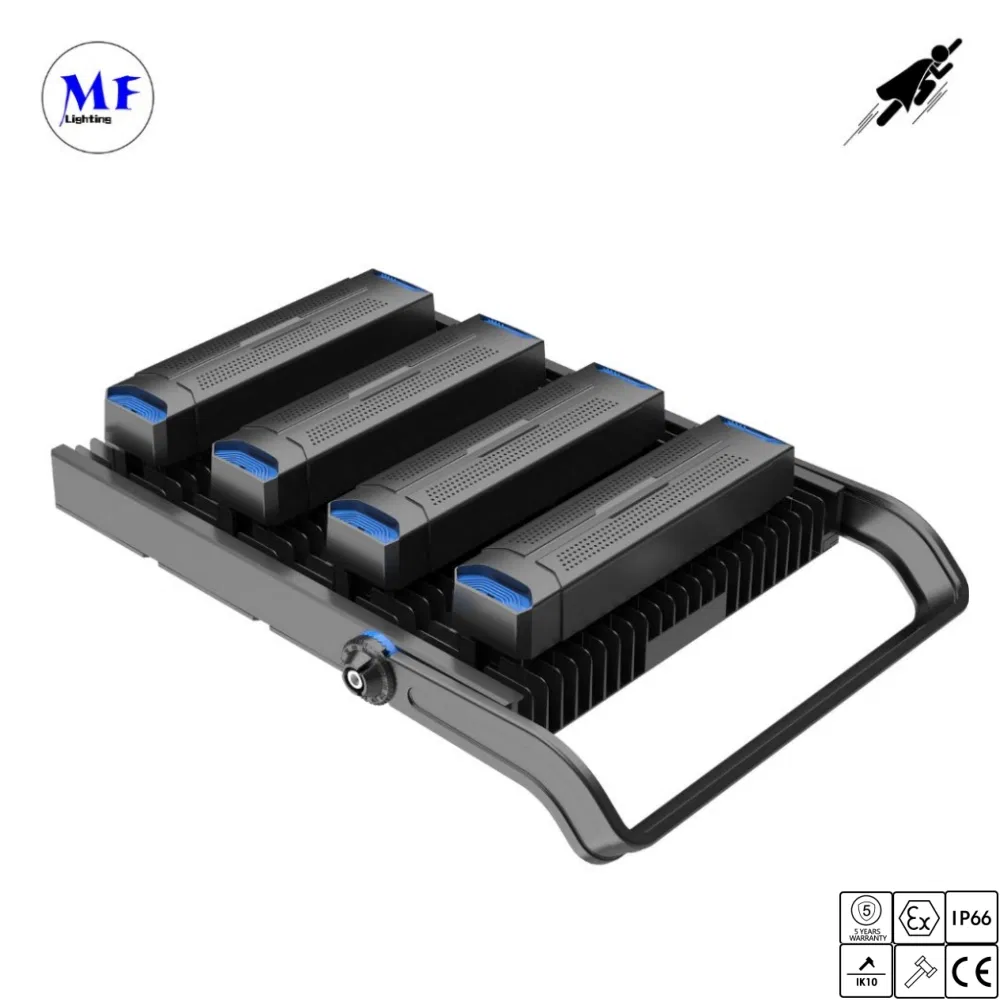

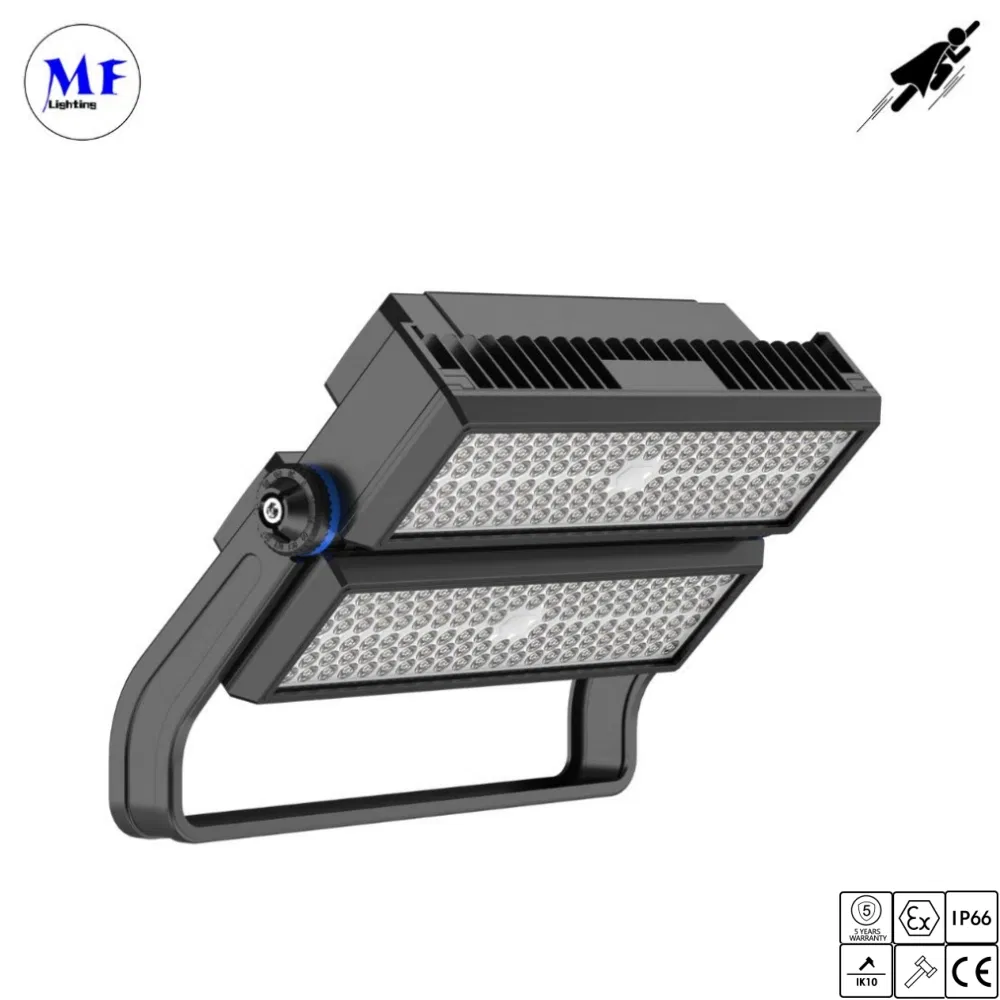

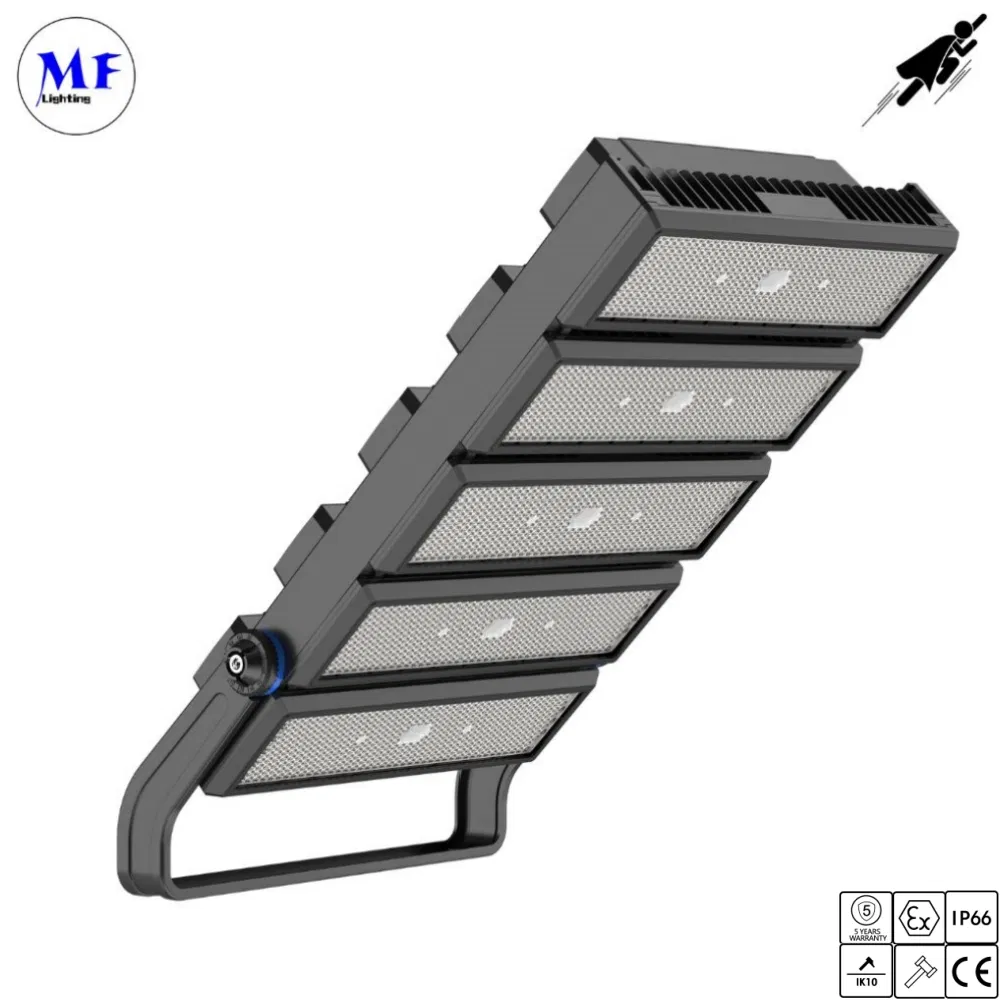

High Power Module 250W 500W 1000W 1250W 1500W Ik10 IP66 Outdoor Waterproof Tennis Sports LED Flood Light Stadium Light for Football Soccer Court
Product Description
Basic Product Information
Model
Superman II Series
Power Range
250W - 1500W
IP Rating
IP66 Waterproof
IK Class
IK08 / IK10
Input Voltage
100-305VAC 50/60Hz
LED Chips
Osram / Lumileds
Driver
Meanwell / Sosen
CRI
>70 / >80 / >90
Beam Angle
10°/25°/45°/60°/90°/65°*25°
Working Temp
-25°C ~ 50°C
Product Features
High Power Module Outdoor Waterproof LED Flood Light specifically designed for stadiums, sports courts, and high mast applications. This new generation of sports lighting combines world-class performance with cutting-edge optical and thermal management.
All-In-One Design
Created for world-class performance, energy saving, and ongoing low maintenance costs in one sleek package.
Flicker-Free Technology
Optimized for slow-motion replay (up to 2000fps) and 4K camera high-definition broadcasting needs.
Modular Concept

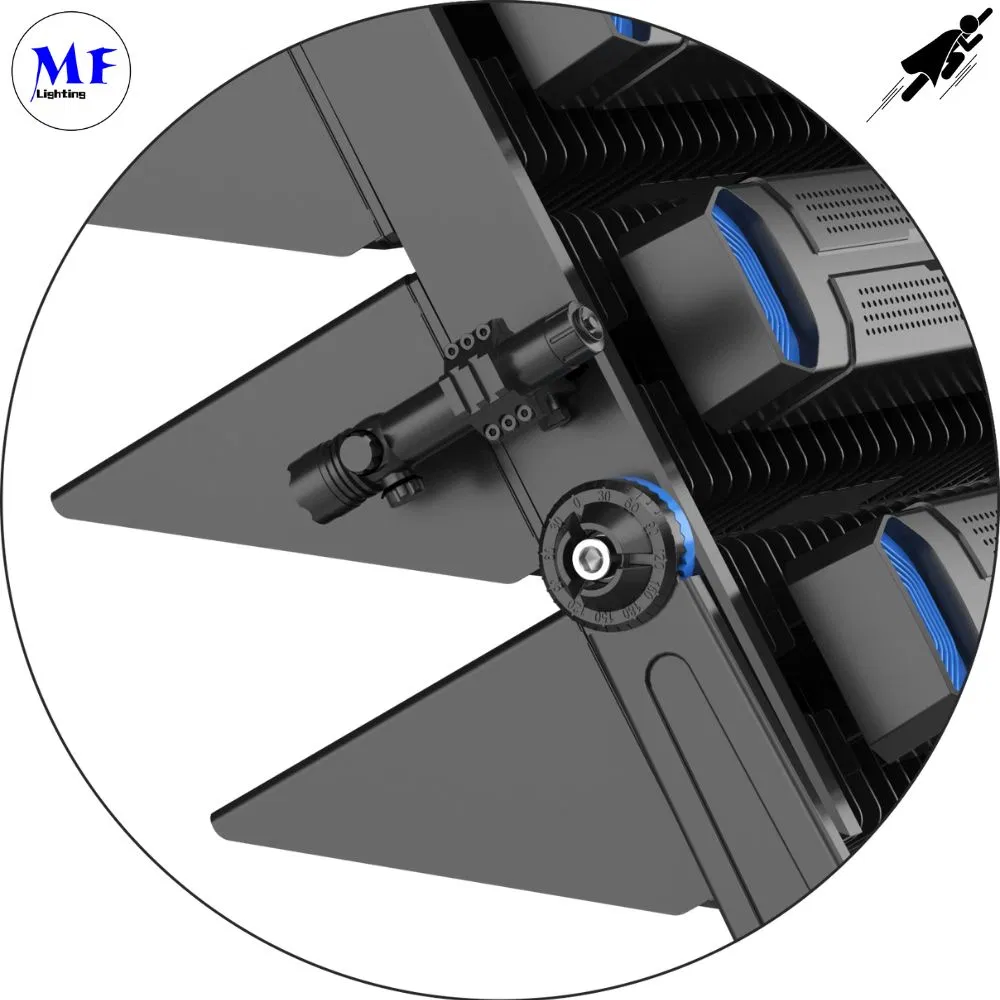

Adopts a modular design based on 250-300W per module, scalable up to 1500W with flexible angle adjustment.
Low Wind Resistance
Non-closed modular gaps reduce the EPA, featuring IP66 protection and wire guards for ball-proof safety.
Thermal Management
Uses conduction, radiation, and convection via fin-design to maximize heat dissipation and lifespan.
Spill Light & Glare Control
Asymmetrical optical lenses focus light on the field, preventing light pollution for surrounding residential areas.
Technical Specifications
Superman II - Plan A (150lm/w)
| Model No. | H250W | H500W | H750W | H1000W | H1250W |
| Rated Power | 240W | 480W | 720W | 960W | 1200W |
| Luminous Flux | 36,000 lm | 72,000 lm | 108,000 lm | 144,000 lm | 180,000 lm |
| Net Weight | 7kg | 14kg | 20kg | 26kg | 32kg |
Superman II - Plan B (170lm/w)
| Rated Power | 240W | 480W | 720W | 960W | 1200W |
| Luminous Flux | 40,800 lm | 81,600 lm | 122,400 lm | 163,200 lm | 204,000 lm |
Superman II - Plan C (150lm/w High Output)
| Rated Power | 300W | 600W | 900W | 1200W | 1500W |
| Luminous Flux | 45,000 lm | 90,000 lm | 135,000 lm | 180,000 lm | 225,000 lm |

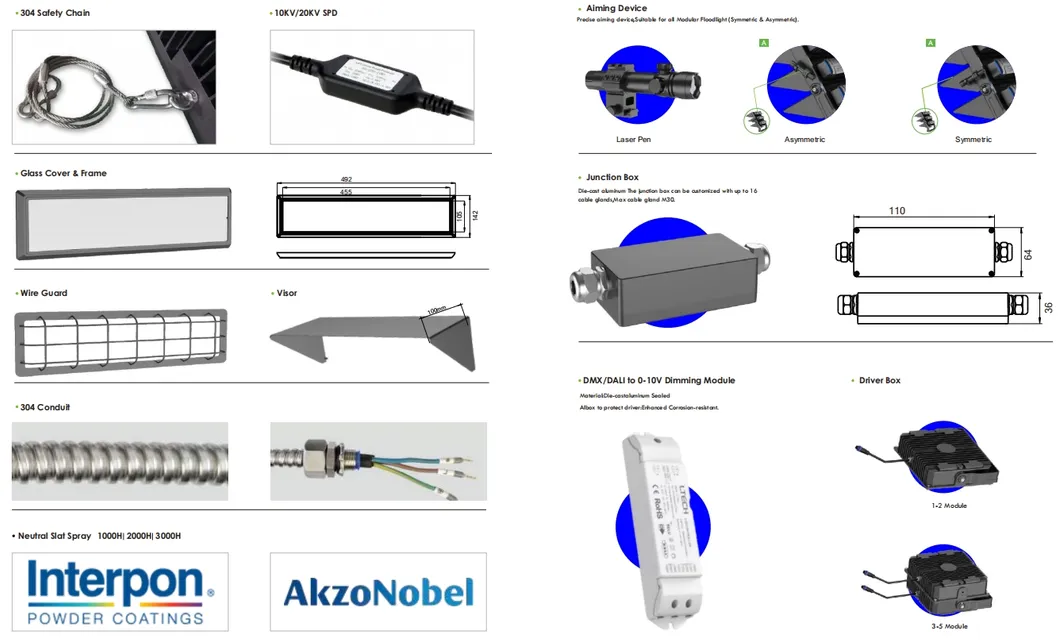

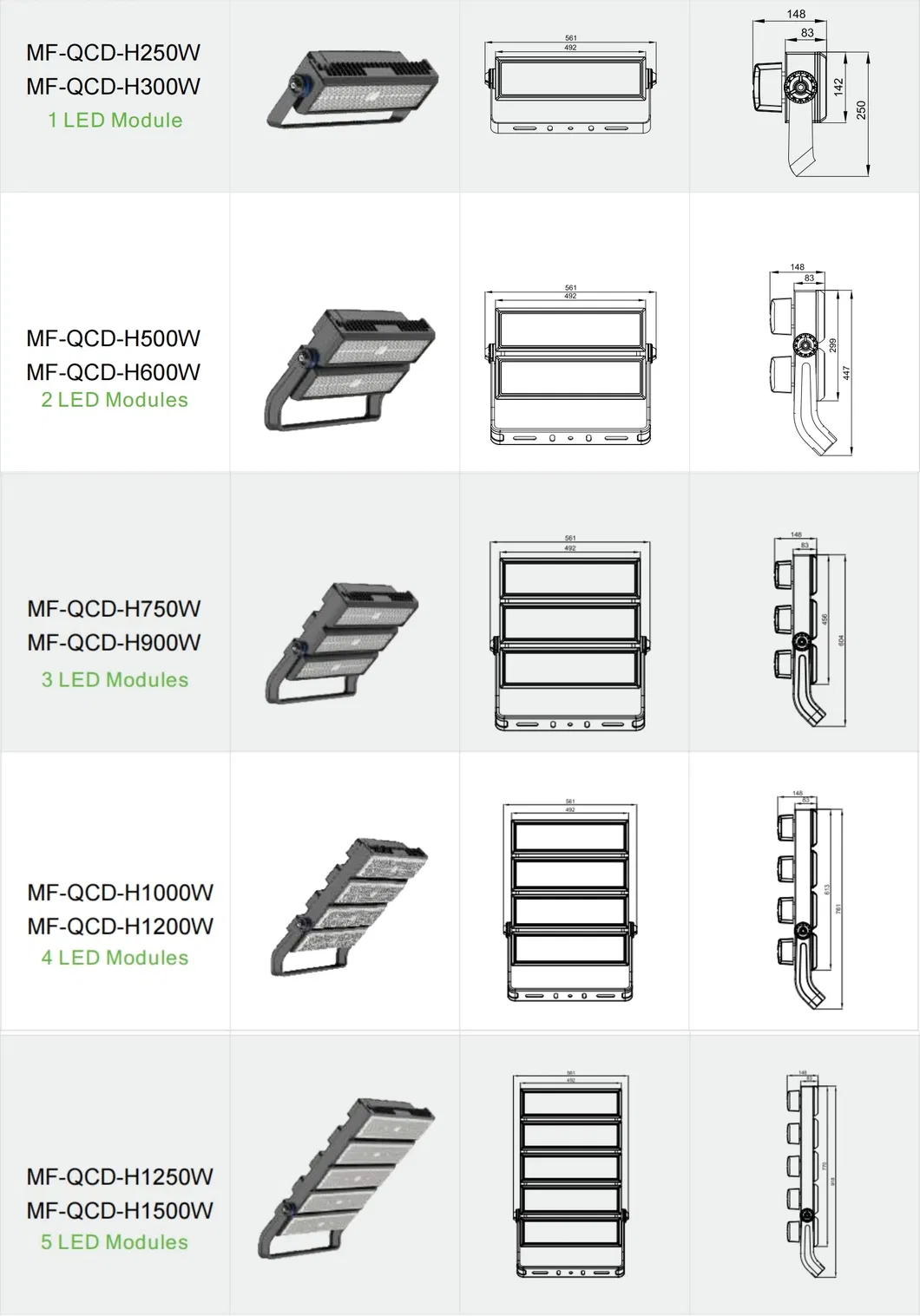

Dimensions & Accessories

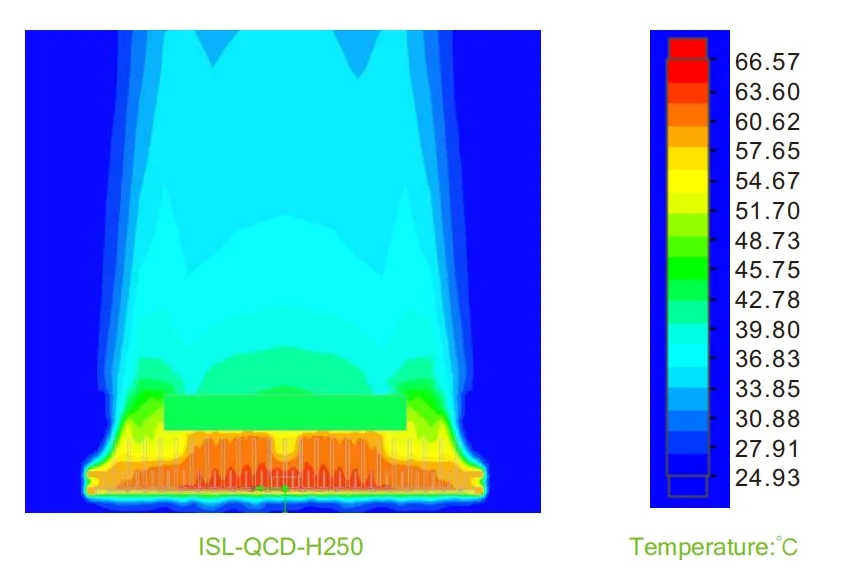

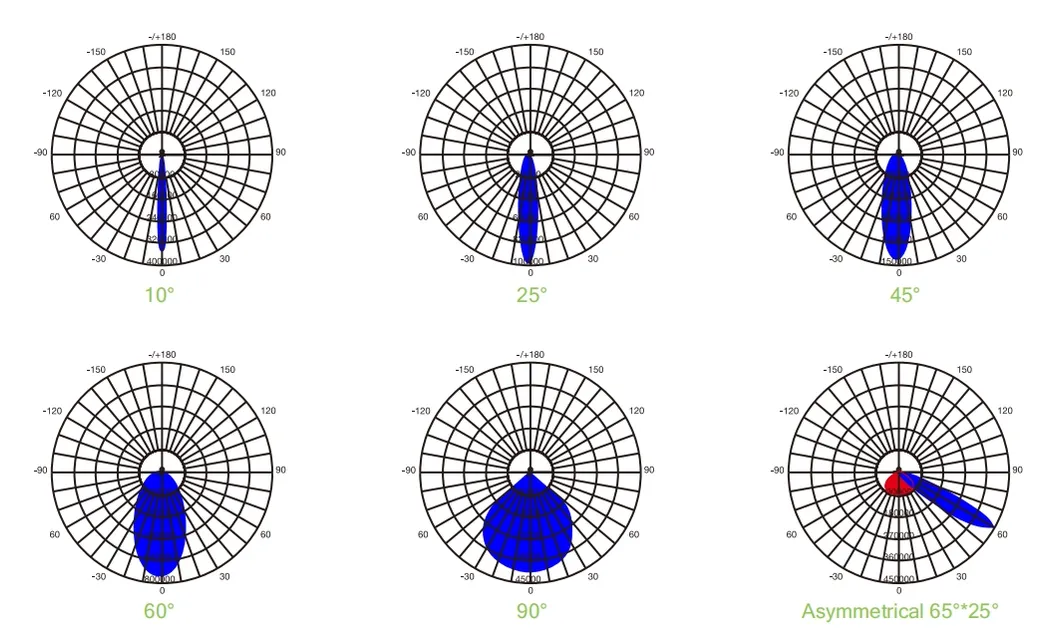

Photometry & Heat Dissipation
The lifespan and reliability of LED fixtures largely depend on the thermal management system. Our die-casting module design increases heat dissipation areas through conduction, radiation, and convection, ensuring long-term reliability even in harsh environments.
Professional Applications
LED High Mast Flood Lights are widely used in sports stadiums, airports, shipping ports, and construction sites. They provide bright, uniform illumination for soccer fields, basketball courts, golf courses, wharfs, and large outdoor parking lots.
Installation & Safety Guidelines
- Fixtures must be installed by a certified electrician based on local regulations.
- Verify local voltage matches product requirements before installation.
- Always ensure power is off and the lamp has cooled before maintenance.
- Clean with a soft cloth and PH-neutral detergent; maintain stainless steel regularly.
- Do not cover fixtures with flammable materials.
- Internal components should only be replaced by the manufacturer or qualified agents.
Frequently Asked Questions
What wattages are available for the Superman II series?
The series offers a wide range of power options from 250W, 300W, up to 1500W via modular scalability.
Can these stadium lights support 4K TV broadcasting?
Yes, they feature flicker-free technology and high-quality drivers, meeting the needs for slow-motion replay and high-definition filming.
Are these lights suitable for coastal or high-wind areas?
Yes, they have low wind resistance design, IP66 waterproof rating, and high corrosion resistance treatment, making them ideal for ports and coastal stadiums.
What kind of protection do they have against surges?
The fixtures integrate a built-in 10KV surge protection device, with an option for 20KV for extreme environments.
How do you manage glare and spill light?
We use asymmetrical optical lenses and specialized visors to focus light exactly where it is needed on the field, minimizing glare for players and residents.
