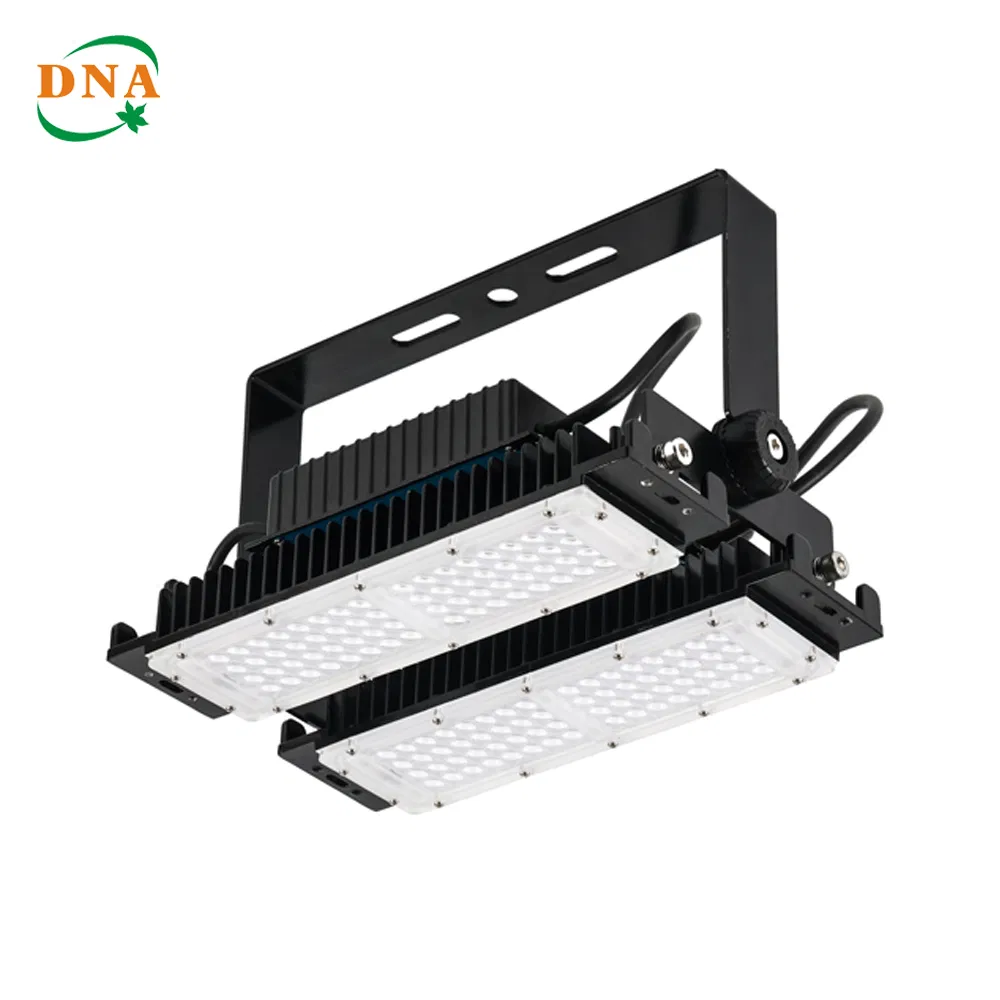

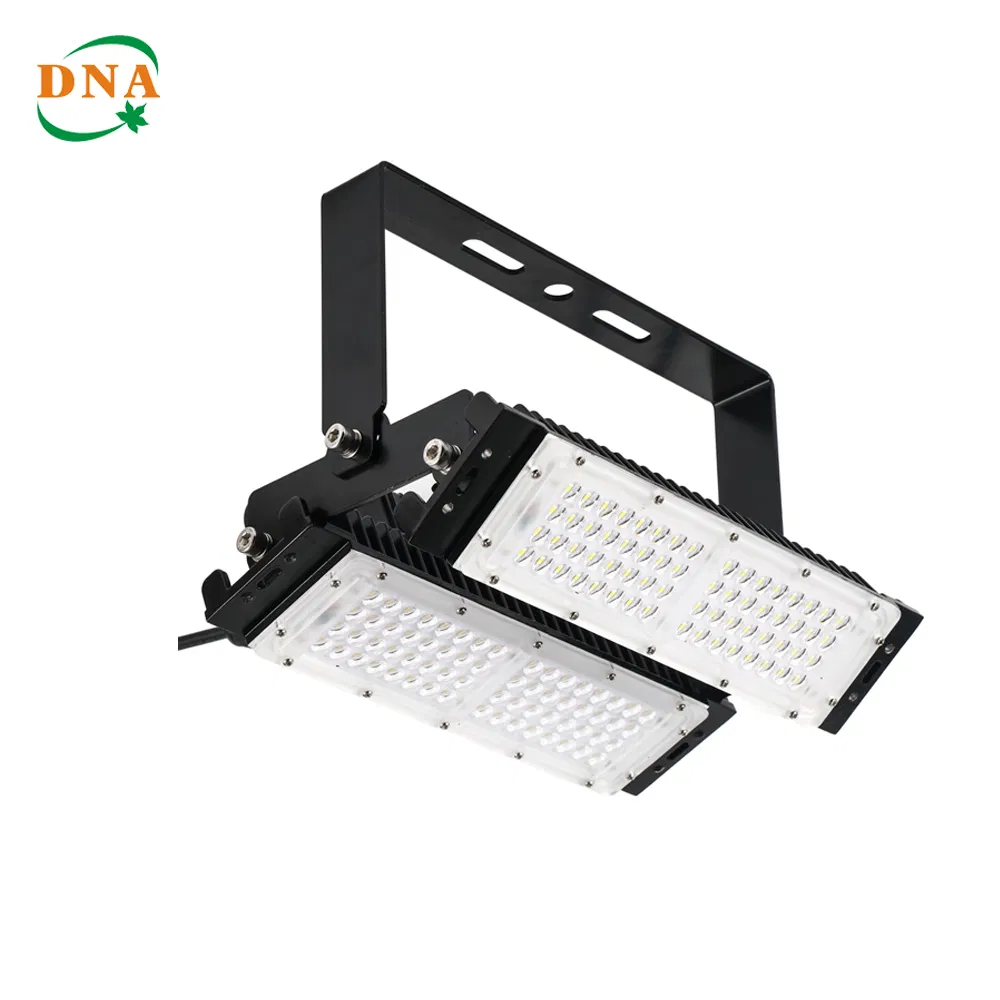

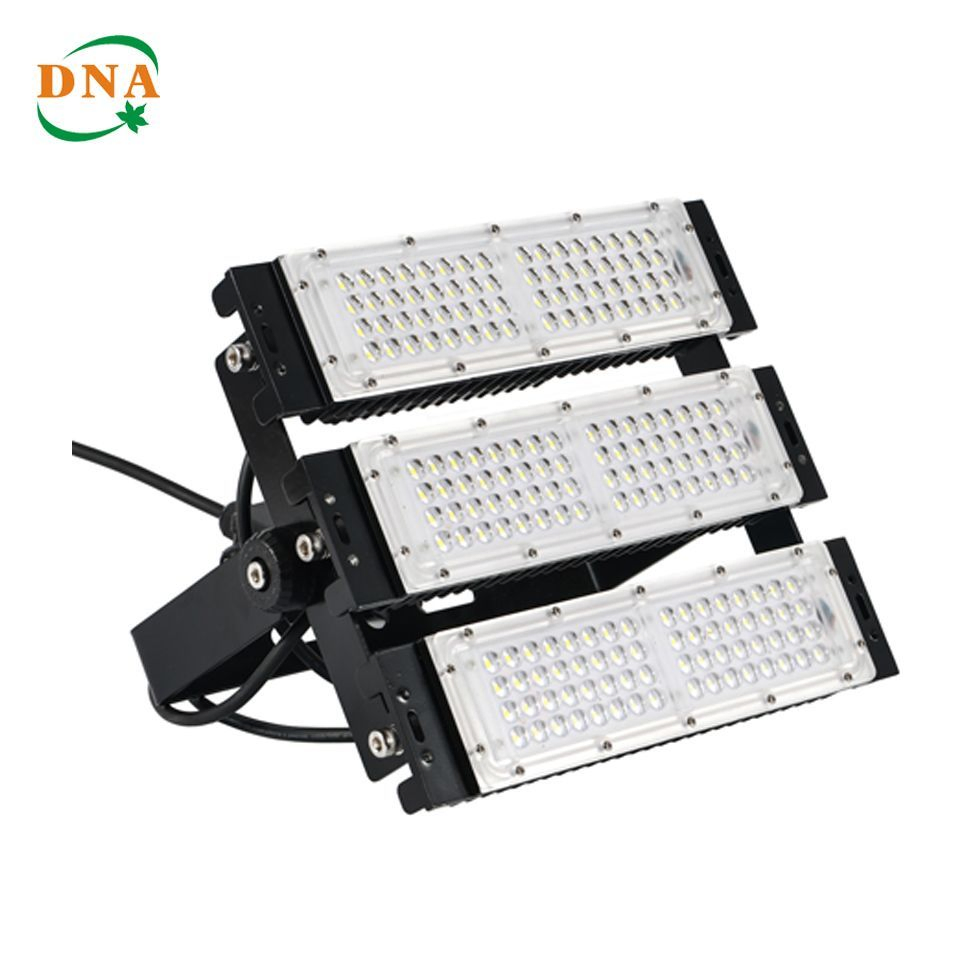

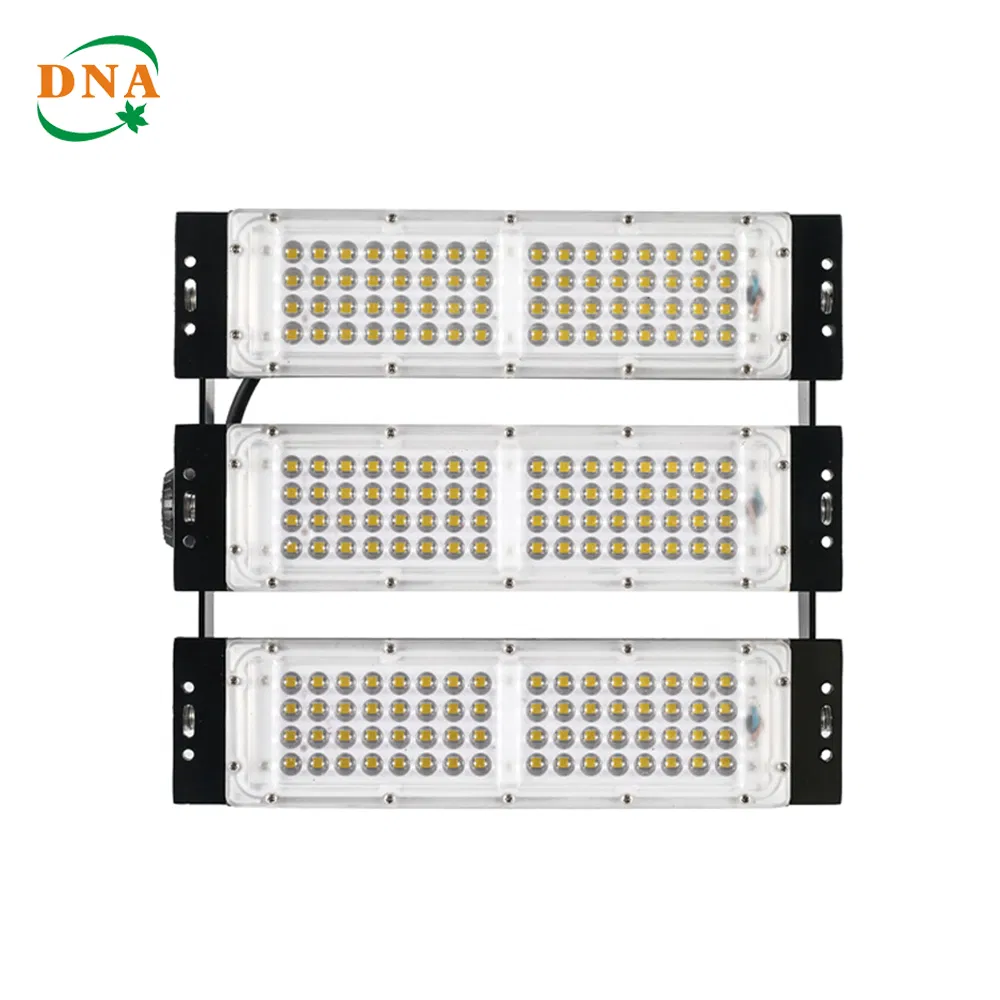

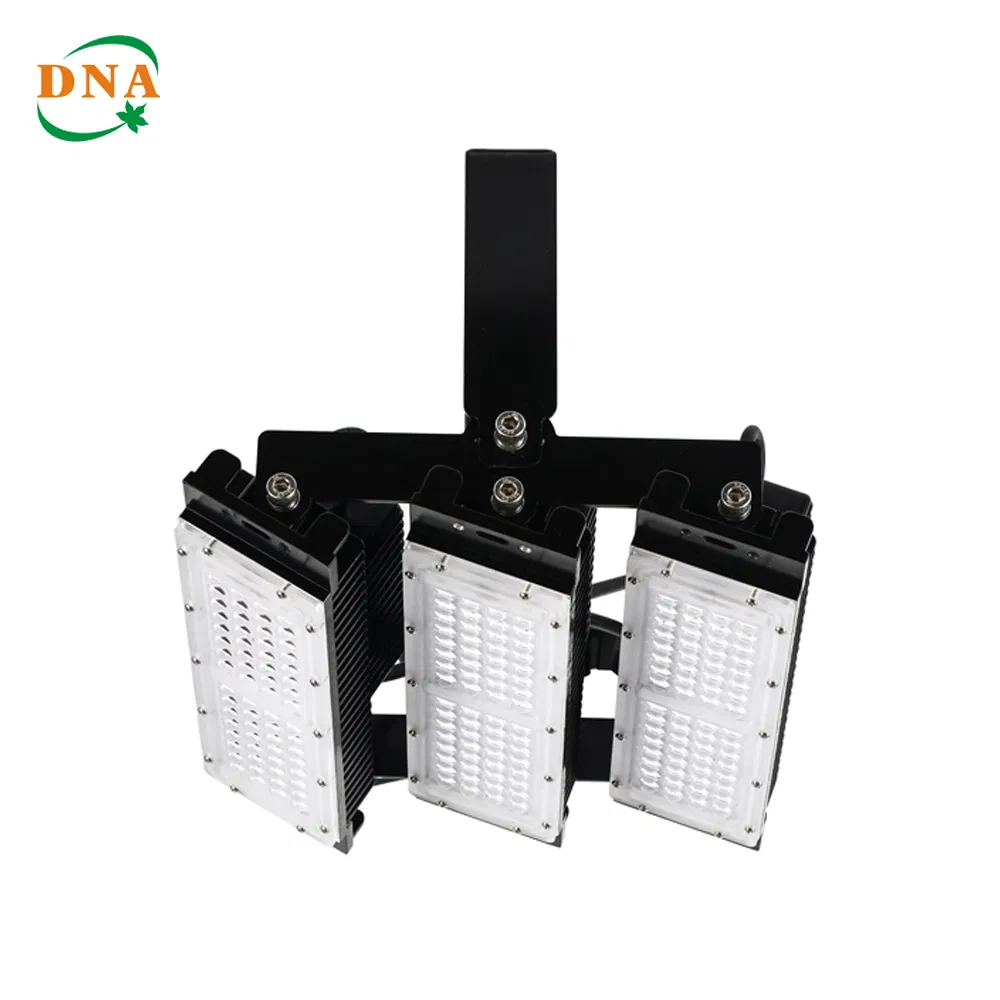

100W 150W 200W 300W LED Tennis Court Lighting LED Flood Light
Product Description
Basic Product Information
Model NO.
FT02
Application
Factory / Stadium / Port / Park
IP Rating
IP66
Certification
CE, PSE, RoHS, UL
Operating Voltage
AC90—300V
LED Chips Brand
CREE
PF
≥0.9
Efficiency (Lm/W)
100—200
Lifespan
>50,000 hours
Warranty
3/6 Years
Technical Specifications
| Model | FT02-30W | FT02-50W | FT02-100W | FT02-150W | FT02-200W |
|---|---|---|---|---|---|
| Power | 30W | 50W | 100W | 150W | 200W |
| Input Voltage | AC90—300V | AC90—300V | AC90—300V | AC90—300V | AC90—300V |
| LED Type | 3030/5050 | 3030/5050 | 3030/5050 | 3030/5050 | 3030/5050 |
| Lumen/Wattage | 100—200 | 100—200 | 100—200 | 100—200 | 100—200 |
| Anti-surge | 10KV | 10KV | 10KV | 10KV | 10KV |
| Power Factor | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 |
| Color Temp | 1800—7500K | ||||
| 0—10V Dimming | Available | ||||
| IK Rating | 10 | 10 | 10 | 10 | 10 |
| Beam Angle | 45°/60°/90° | ||||
| Body Material | Aluminum Alloy | ||||
| Dimension(mm) | 300*75*140 | 300*75*140 | 300*195*140 | 300*265*140 | 300*335*140 |
| Net Weight(kg) | 1.5 | 1.8 | 3.5 | 4.8 | 6.5 |

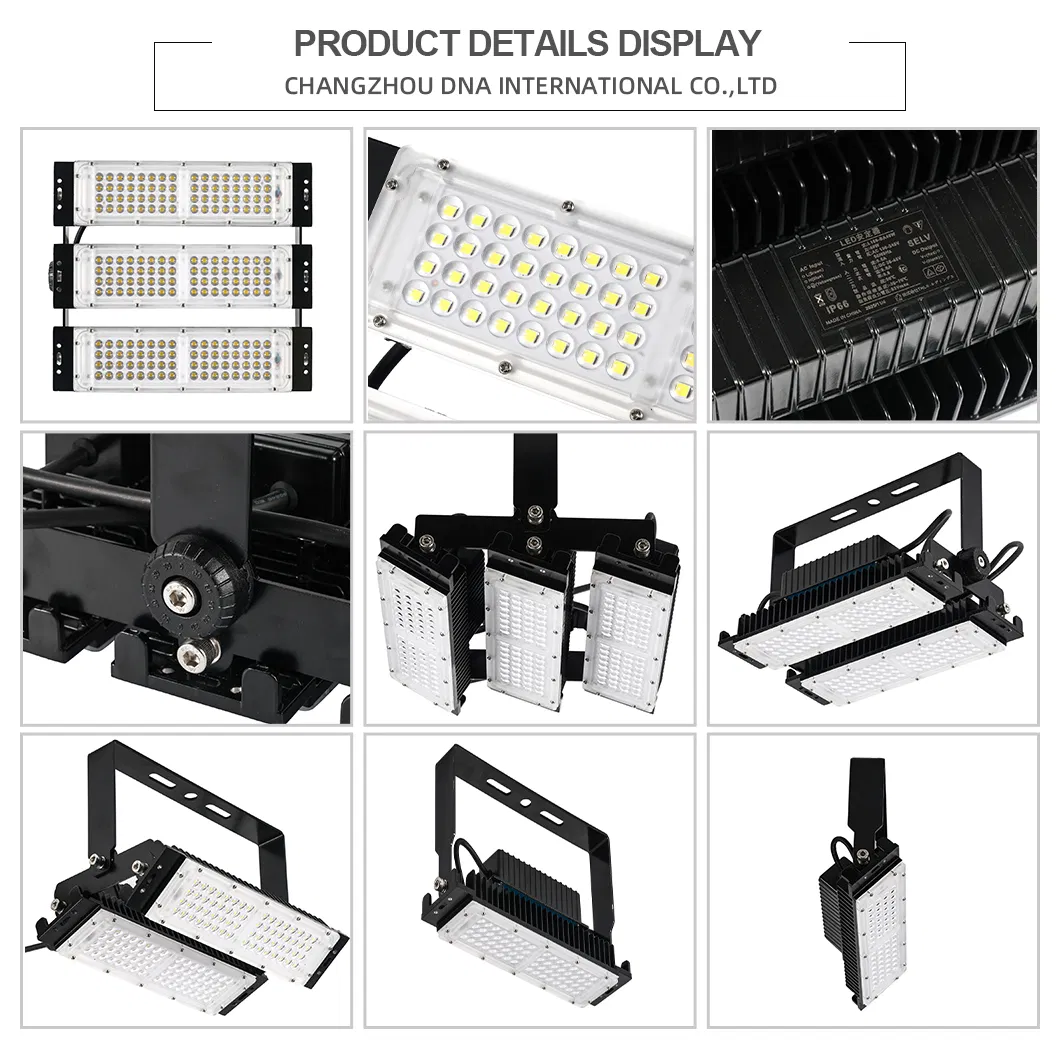

Key Characteristics
1
Unique LED Flood Light design developed by specialized engineering, providing market-exclusive performance.
2
Modular design where each module has its own independent power supply, ensuring higher stability and easier maintenance.
3
Heavy-duty aluminum alloy body with superior heat dissipation capabilities, allowing each module to operate efficiently at 100W.
4
Adjustable lighting beam angles for each module, making it convenient to meet diverse lighting environment requirements.
Frequently Asked Questions
Q1. Are you an original manufacturer?
Yes, we are an original manufacturer. We have been producing high-quality lighting products since 2001.
Q2. Can we place an order for only one set?
Yes, there is no minimum quantity requirement for this model; you can start with a single set.
Q3. Do you offer customization services?
Yes, we provide customization based on your specific needs, such as modifying lamps to emit blue light under 1%.
Q4. What is the warranty period for these products?
Depending on your quality requirements, we offer warranties ranging from one to ten years.
Q5. What is your after-sale policy?
We have a reliable after-sale policy. If any quality issues occur, we provide free replacements.
Q6. Is technical documentation like IES files available?
Yes, IES files and technical data sheets are available for all our LED flood light models to assist with your lighting design.
